Kia Rio 3rd generation was produced in 2011, 2012, 2013, 2014, 2015 and 2016 with sedan and hatchback bodies. In our publication you will find a description of fuses and relays Kia Rio 3 with diagrams and photos – examples of execution. We note the cigarette lighter fuse. In conclusion, we suggest you familiarize yourself with the full operating instructions.

Fuse and relay designations may vary. You can find the current diagrams for your Kia Rio 3 on the back of the protective cover.

Cabin block

Located in the cabin under the panel, on the driver’s side, behind a protective cover.

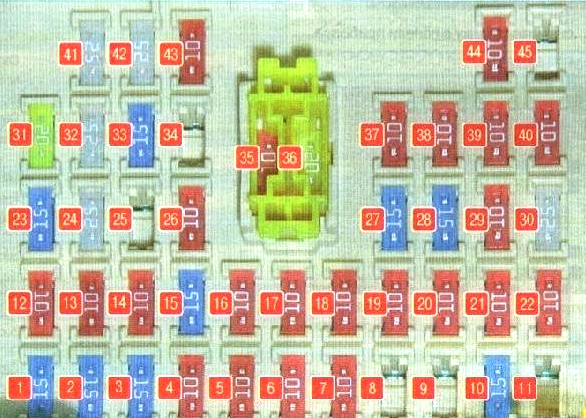

Fuses

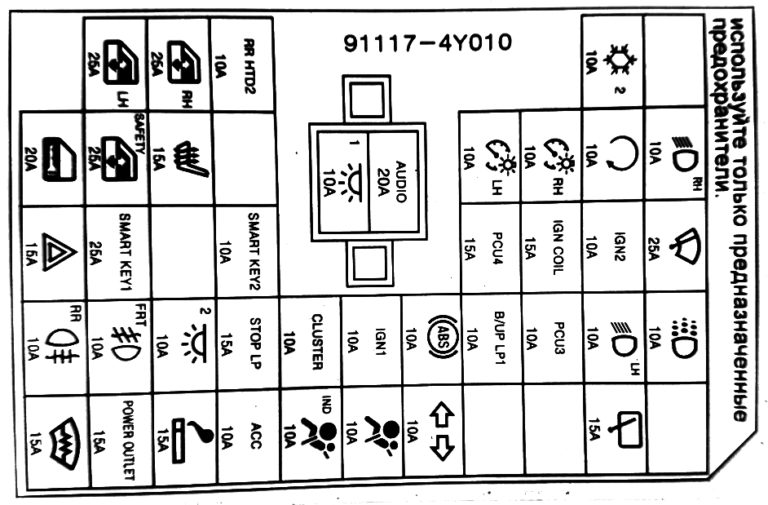

Scheme

Description

115A FRT Deicer Windshield Wiper Blade Rest Zone Heater Relay
215A P/OUTLET Socket for connecting additional equipment
315A C/LIGHTER Cigarette lighter
410A ACC Front directional light lamp, power door mirror regulator, BCM, current converter, electronic key ECU, audio system, digital clock, head unit with navigation
510A A/BAG IND Front airbag deactivation indicator
610A A/BAG SRS safety system control unit
710A Hazard warning switch
810A MOPS 2 ECU EUR
9Reserve
1015A R/WPR Rear window wiper and washer (optional)
1115A Steering wheel heater
1210A RR Rear fog lamp relay
1315A FRT Front fog light relay
1410A ROOM 2 Automatic lighting switch-off relay (door opening sensor), switch on the automatic transmission gear lever
1515A STOP LP Relay, brake light switch, electronic key system control unit, electronic key ECU, NAS relay, data link connector
1610A CLUSTER Instrument cluster, VCM unit, audio system, lever illumination, automatic transmission gearshift, tire pressure monitoring module
1710F IGN 1 Brake light switch, heated seats, diagnostic connector, parking sensors
1810A ABS Front panel switch, ESC module, HAC relay
1910A B/UP LP Reverse light switch
2010A PCU Engine control unit, electronic key system control unit, speed sensor, brake light switch, inverter, air conditioning ECU
2110A H/LP LH Left block headlight
2210A DAY TIME RUNNING LIGHT Daytime running lights
2315A HAZARD Alarm relay, VSM
2425A SMK_1 Electronic key control unit
2515A Sunroof motor
2610A SMK_2 Engine start and stop button
2715A PCU Vehicle speed sensor (manual transmission), transmission mode switch (automatic transmission)
2815A IGN COIL Ignition coils, capacitor
2910A IGN Daytime running lights, headlight range control, air conditioning control unit, headlights, power window relay (without VCM), VCM unit, electronic key system control unit (with VCM unit)
3025A F/WPR Windshield wiper, steering column switch
3120A DOOR LOCK Door lock control unit relay (with BCM unit), driver’s door lock actuator (without BCM unit)
3225A SAFETY P/WDW Power window lock
3315A S/HEATER Front seat heating
3410A Electric exterior mirror regulator
3510A ROOM 1 Interior lighting, trunk lighting, air conditioning, tire pressure monitoring module, digital clock
3620A AUDIOS ISG: converter, Without ISG: audio system, head unit with navigation
3710A TAIL LH Rear left lamp, license plate lamps, left headlight unit, instrument panel illumination
3810A TAIL RH Right tail light, right block headlight, instrument panel illumination
3910A START Ignition switch (manual transmission), transmission mode switch (automatic transmission)
4010A H/LP RH Right block – headlight, instrument cluster
4125A P/WDW LHWindow lift control unit, left rear window lift switch
4225A P/WDW RH ​​​​Window lift control unit, right rear window lift switch
4310A RR HTD Heated exterior rear-view mirror system, EBUD/RSMb Air conditioning ECU
4410A A/CON 2 Air conditioner
45Reserve

Fuse number 2 is responsible for additional sockets, and fuse number 3 at 15A is responsible for the cigarette lighter.

Relay

Non-removable relays are mounted on the back of the unit.

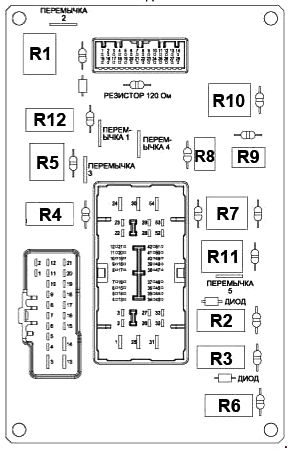

Scheme

Transcript

  1. Rear window heating relay
  2. Fog light relay
  3. Rear fog light relay
  4. Side light relay
  5. Daytime running light relay
  6. Windshield defroster relay
  7. Door lock relay
  8. Trunk lid unlock relay
  9. Turn signal relay
  10. Alarm relay
  11. Power window relay
  12. Security alarm relay

Block under the hood

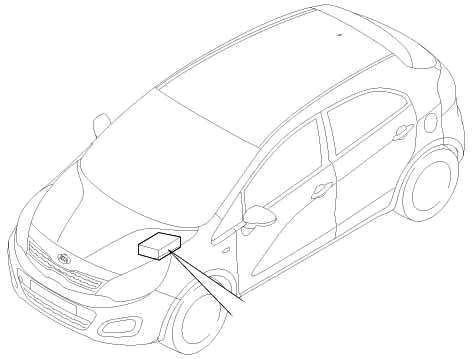

Located in the left side of the engine compartment.

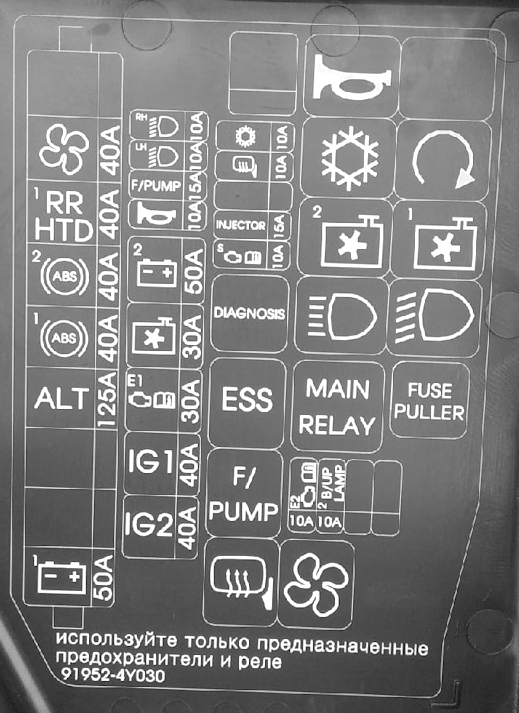

Example of a circuit from the block cover

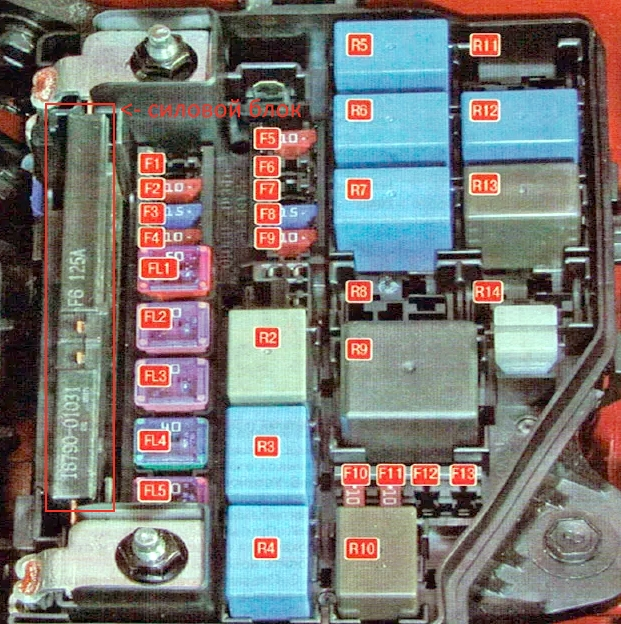

Photo – diagram

Appointment

F1Reserve
F210A Exterior mirror heating relay
F315A Fuel pump
F410A Audible signal
F510A Air conditioner
F6Reserve
F7Reserve
F815A Power supply system (fuel injectors), engine control unit, valve timing solenoid valve
F910A Engine management system sensors, engine control unit, immobilizer module
F1010A Fuel and Oil Unit
F1110A Reverse light bulbs
F12Reserve
F13Reserve
FL150A Instrument panel junction box
FL230A Engine cooling fan relay (high, low speed)
FL330A Engine control unit relay
FL440A Electronic key system control unit relay, ignition switch (without electronic key system)
FL550A Engine start relay (electronic key system), ignition switch (without electronic key system)
R1Reserve
R2Emergency braking warning system relay
R3Fuel pump relay
R4Exterior rearview mirror heating relay
R5Horn relay
R6Air conditioner relay
R7Fan relay (low speed)
R8Reserve
R9Electronic engine control unit relay
R10Electric fan relay for air heater blower
R11Reserve
R12Ignition lock switch relay
R13Fan relay (high speed)
R14Reserve

On the back of the unit there may be some relay elements: a sound signal relay, a security alarm siren relay, a starter relay, etc.

Relay power unit

It is located on the left side of the main unit.

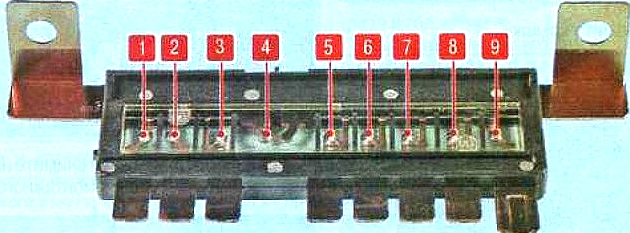

Scheme

Marking

  1. 50A Instrument panel junction box, tail light relay
  2. Reserve
  3. Reserve
  4. 125A Generator
  5. 40A ABS hydro-electronic module, diagnostic connector
  6. 40A ABS Hydroelectronic Module
  7. 40A Rear window heating relay
  8. 40A Electric air fan relay heater blower
  9. Reserve
