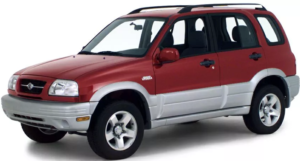

Suzuki Vitara has been produced in four generations since 1988 and is available worldwide. For some markets, the model received the prefix “Grand” in the name and was sold as Suzuki Grand Vitara, Grand Escudo, XL-7 . In our material you will find a description of the fuse and relay blocks of the second generation Suzuki Vitara, produced in 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006. We will show the locations of the blocks, their photos and diagrams. We will highlight the fuse responsible for the cigarette lighter.

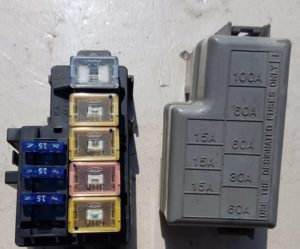

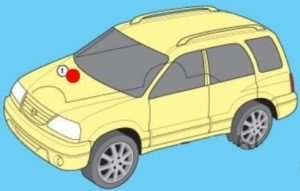

Block under the hood
On the right side, next to the battery.

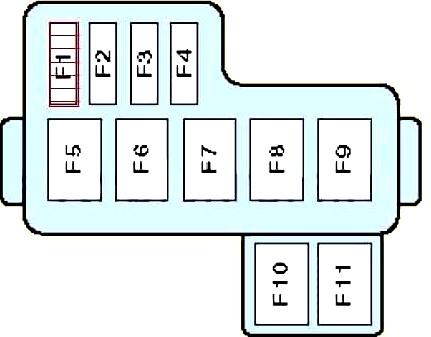

Option 1
Description
| F1 | (15A/25A) Additional equipment |
| F2 | (15A) Petrol: Engine management |
| F3 | (15A) Right headlight |
| F4 | (15A) |
| F5 | (60A) |
| F6 | (Z30A) Instrument panel fuse/relay block |
| F7 | (60A) Ignition switch circuits |
| F8 | (50A) ABS/ESP system |
| F9 | (80A/100A) |
| F10 | (30A) Engine control |
| F11 | (25A) Air conditioning system |
Additional elements
Transcript
- Accessory fuse or relay
- Accessory fuse or relay
- Air conditioner compressor relay
- Air conditioner fan relay
- Optional equipment fuses

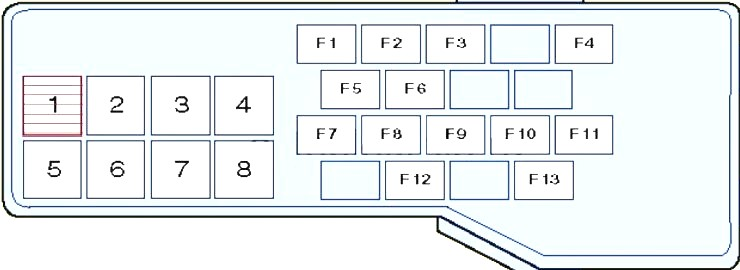

Option 2

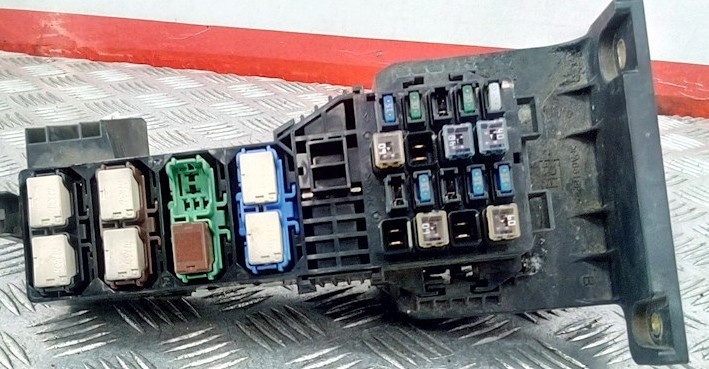

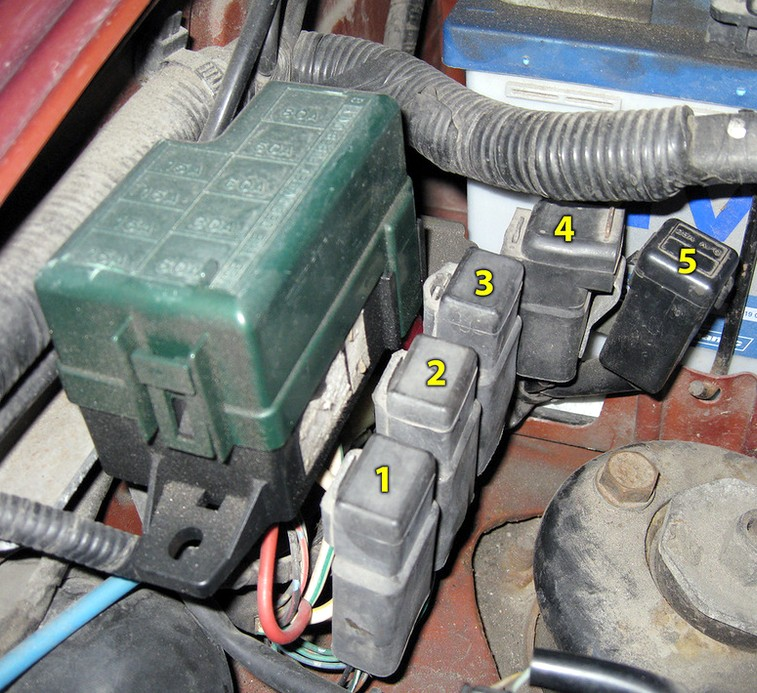

Photo – example
Appointment
| 1 | Air conditioning relay |
| 2 | Condenser fan high speed relay #1 |
| 3 | Fog light relay |
| 4 | Horn relay |
| 5 | Condenser Fan Motor Relay |
| 6 | Relay #2 high speed condenser fan motor/drive |
| 7 | Transmission control system relay |
| 8 | Oxygen sensor heater relay |
| F1 | (15A) Left headlight |
| F2 | (15A) Engine control |
| F3 | (15A) Stop signals |
| F4 | (25A) Rear window heater |
| F5 | (60A) Heater fan motor |
| F6 | (60A) ABS system |
| F7 | (15A) Engine control |
| F8 | (15A) Sound signal |
| F9 | (25A) Air conditioning system |
| F10 | (15A) Fog lights |
| F11 | (15A) Right headlight |
| F12 | (60A) Instrument panel fuse/relay block |
| F13 | (60A) Ignition switch circuits |
Additional elements
- (120A) Generator (main fuse on battery terminal)
- (40A) Auxiliary heater
- (40A) Cooling system fan motor
- (80A) Glow plugs

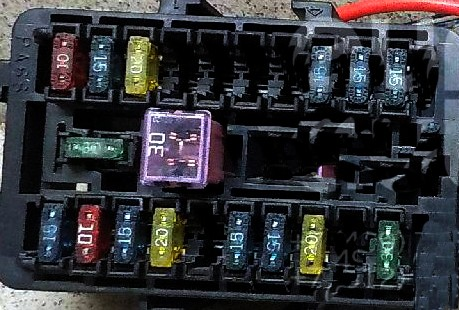

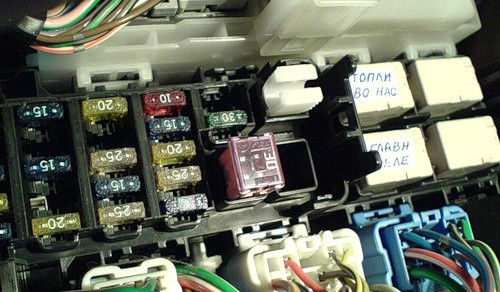

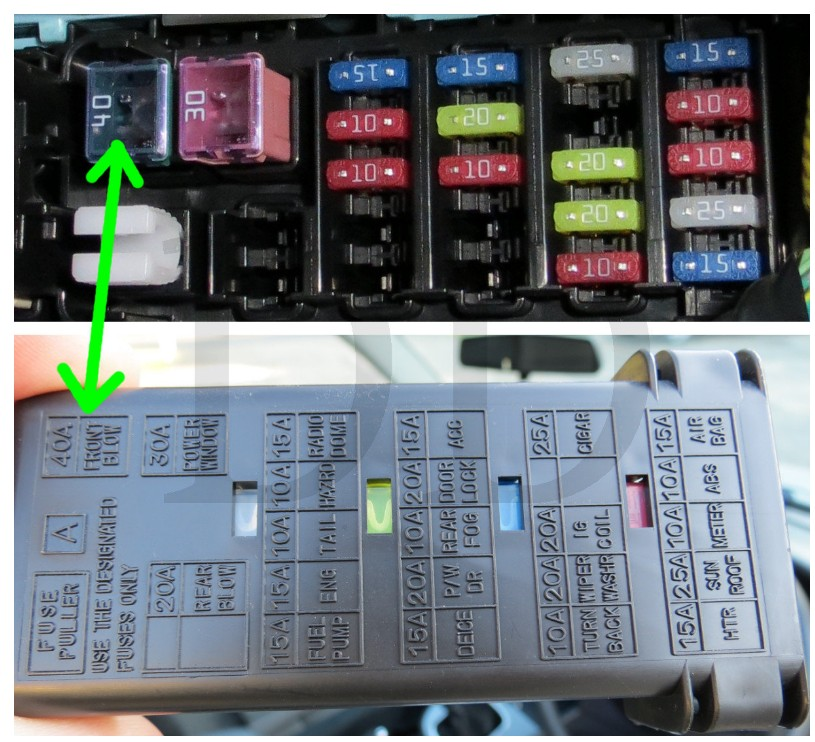

Cabin block

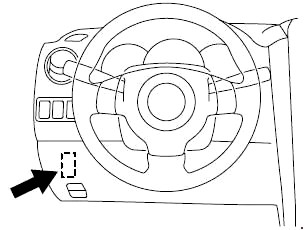

It is located on the driver’s side under the panel on the side wall (covered by a black cover, which should have the current purpose written on it). It is easier to get to it if you remove the panel under the steering column (it is attached at the corners with 4 screws).
Translation of the designation into Russian
| A/C | air conditioning |
| ABS | ABS |
| ALL | generator |
| ALT-S | generator |
| AM | engine switch |
| DEF | window heater |
| DOME | interior lighting |
| DOOR | door |
| ECU | engine control module |
| EDU | injection control |
| EFI | electronic injection control system in a vehicle |
| A MAIN | main engine |
| FAN | fan |
| FOG | fog light |
| Fr | front |
| F-TAIL | taillights |
| GAUGE | dashboard, speedometer |
| HAZARD | emergency signals |
| HAZ-TRN | emergency-turns |
| HEAD | headlights |
| HEAD LH | left headlights |
| HEAD RH | right headlights |
| HORN | beep |
| HTR | heater |
| I/UP | idling |
| IG | ignition |
| IGN | ignition |
| MAIN | main |
| P/W | window regulator |
| POWER | feeding |
| PWR | feeding |
| RAD | radio |
| Rr/rear | posterior |
| SIG | cigarette lighter |
| SPARE | spare |
| ST | starter |
| STOP | Stop signal |
| TAIL | taillights |
| TURN | turn signals |
| WASH | windshield washer |
| WIP | windscreen wiper |
| WIPER | windscreen wiper |
The cigarette lighter fuse is marked CIGAR at 20 or 25A.
There may be separate relays nearby.

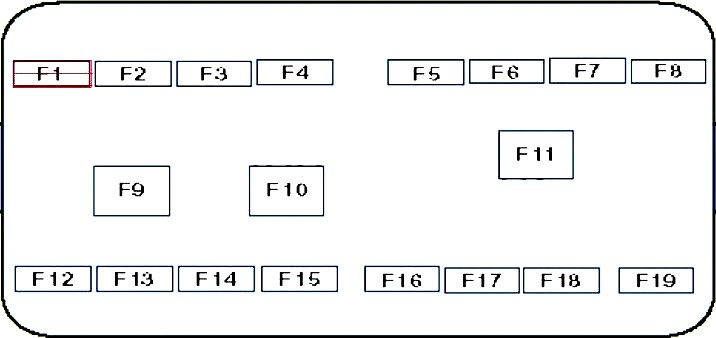

Description
| F1 | (15 A) |
| F2 | (15A) Rear fog lamp |
| F3 | (20A) Central locking |
| F4 | (15A) Engine control |
| F5 | (20A) Fuel filter heater |
| F6 | (15A) Emergency alarm |
| F7 | (15A) |
| F8 | (15A) |
| F9 | (30A) Heater fan motor |
| F10 | (30A) Electric window lifter |
| F11 | (30A) Reserve |
| F12 | (15A) Engine control |
| F13 | (10A) |
| F14 | (15A) Windshield wiper/washer |
| F15 | (20A) Cigarette lighter |
| F16 | (15A) Seat heating |
| F17 | (15A) |
| F18 | (25A) Hatch |
| F19 | (20A) |
Fuse number 15 at 20A is responsible for the cigarette lighter.
