Renault espece 3 – represents the third generation of this series. The extended version is called Grand Espace. It was produced in 1997, 1998, 1999, 2000, 2001 and 2002. We present a complete description of the fuse boxes and relays Renault Espace 3 : locations, diagrams, photos, purpose.
This car has 2 main fuse boxes. One is located in the passenger compartment under the passenger’s feet, the second is under the hood, behind the battery.

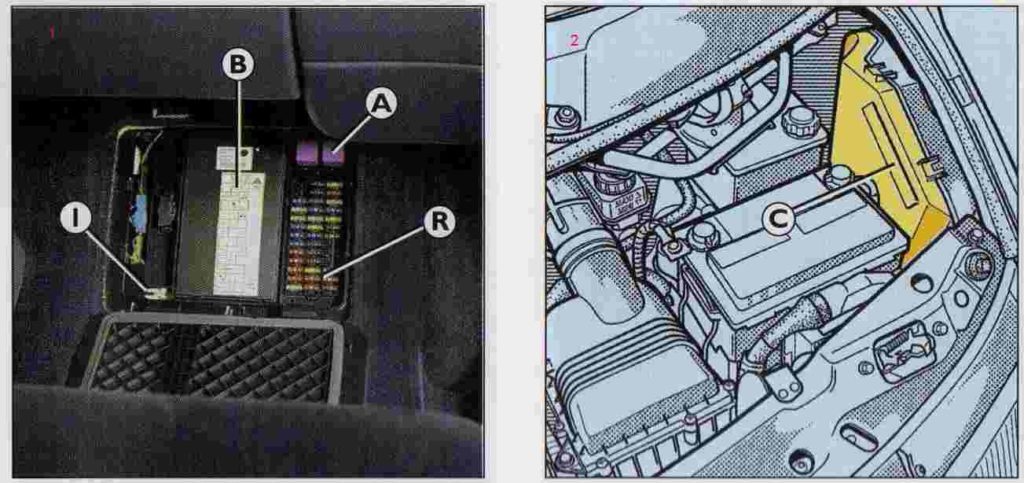

Block locations

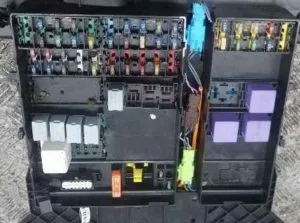

Fuse and relay box in the passenger compartment

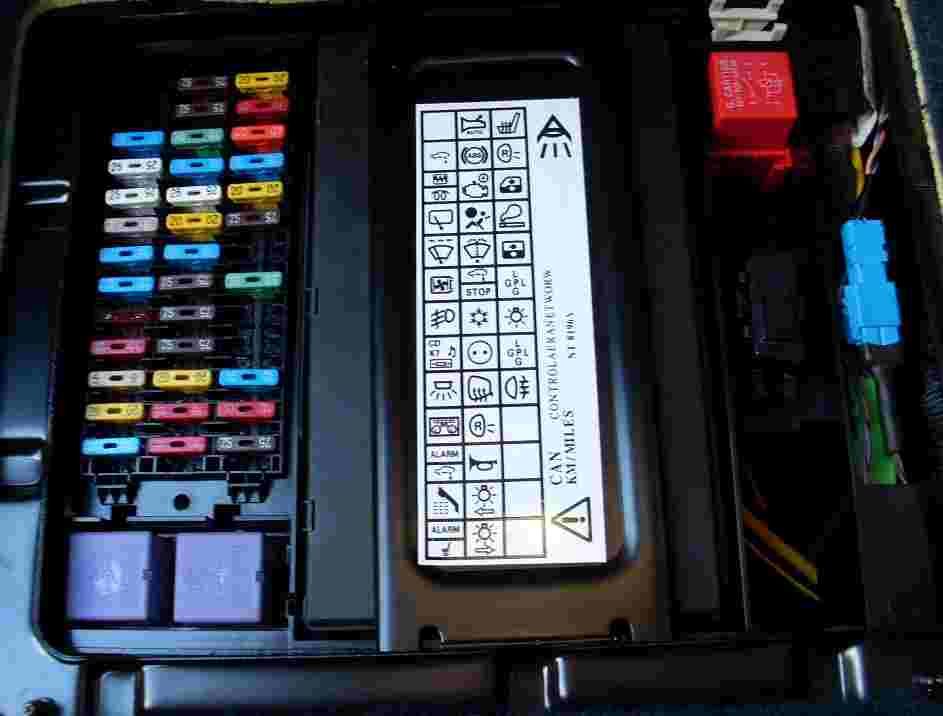

The drawing located on the top shows the current description of the fuses.

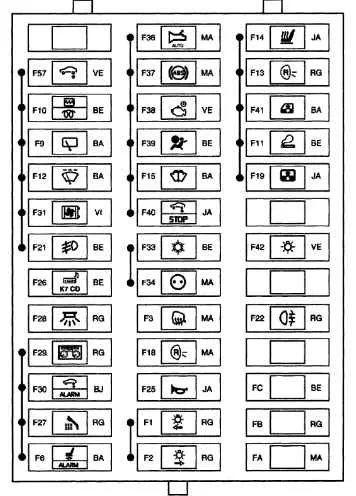

Option 1
| FA | (15A) Spare |
| FB | (10A) Spare |
| FC | Spare |
| F1 | (10A) Front left side light/rear left side light |
| F2 | (10A) Front right side light/rear right side light |
| F3 | (7.5A) Door rear view mirror heater |
| F6 | (25A) Electric seats |
| F9 | (25A) Rear Window Wiper |
| F10 | (15A) Engine control |
| F11 | (15A) Cigarette lighter |
| F12 | (25A) Windshield wiper |
| F13 | (7.5A) Reverse lights |
| F14 | (20A) Seat heater |
| F15 | (25A) Multifunctional control unit, windshield wipers |
| F18 | (10A) Heater/Air Conditioner, Reversing Lights |
| F19 | (20A) Hatch |
| F21 | (15A) Fog lights |
| F22 | (10A) Rear fog lights |
| F25 | (20A) Sound signal |
| F26 | (15A) Audio system, electric door mirrors |
| F27 | (10A) Telephone |
| F28 | (10A) Interior lighting lamps |
| F29 | (10A) Multifunctional control unit |
| F30 | (5A) Anti-theft system, active suspension system |
| F31 | (3A) Cooling Fan Motor Relay |
| F33 | (15A) Audio system heater/air conditioner |
| F34 | (7.5A) Additional equipment |
| F36 | (7.5A) Automatic transmission |
| F37 | (7.5A) Anti-lock braking system (ABS) |
| F38 | (30A) Engine Control |
| F39 | (15A) Airbag, anti-theft system |
| F40 | (20A) Cruise control, brake lights, active suspension system |
| F41 | (40A) Electric window lifts – front |
| F42 | (30A) Horn, Light Switch |
| F57 | (30A) Suspension Control System |
Fuse number 11 is responsible for the cigarette lighter.
- Rear Window Defogger Relay
- Relay 1 main ignition circuits
- Cooling Fan Motor Relay

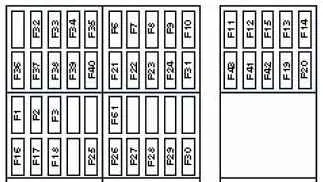

Option 2
| F1 | (10A) Front left side light/rear left side light |
| F2 | (10A) Front right side light/rear right side light |
| F3 | (7.5A) Door rear view mirror heater |
| F6 | (25A) Electric seats |
| F7 | (15A) Air conditioning, central locking, immobilizer |
| F8 | (15A) Emergency signaling |
| F9 | (25A) Rear Window Wiper |
| F10 | (3A) Engine control |
| F11 | (15A) Cigarette lighter |
| F12 | (25A) Windshield wiper |
| F13 | (10A) Air conditioning system, reversing lights |
| F14 | (20A) Seat heater |
| F15 | (25A) Windshield wiper |
| F16 | (15A) Left headlight – high beam |
| F17 | (15A) Right headlight – high beam |
| F18 | (7.5A) Reverse lights |
| F19 | (10A) Hatch |
| F20 | (10A) Bi-fuel dual fuel injection system |
| F21 | (15A) Fog lights |
| F22 | (10A) Rear fog lights |
| F23 | Jumper – position “ACC” |
| F24 | (15A) Engine Management System – Diesel |
| F25 | (20A) Sound signal |
| F26 | (5A) Anti-theft system, audio system |
| F27 | (10A) Audio system, telephone |
| F28 | (10A) Interior lighting lamps |
| F29 | (20A) Audio system, switch illumination |
| F30 | (5A) Suspension control system |
| F31 | (3A) heater/air conditioner |
| F32 | (15A) Audio system |
| F33 | heater/air conditioner |
| F34 | (5A) Instrument cluster |
| F35 | (5A) Audio CD changer |
| F36 | (5A) Automatic transmission |
| F37 | (7.5A) Anti-lock braking system (ABS) |
| F38 | (30A) Engine Control |
| F39 | (15A) Airbag, anti-theft alarm, instrument cluster |
| F40 | (20A) Cruise control, hazard warning lights, brake lights, active suspension system |
| F41 | (30A) Electric window lifters |
| F42 | (30A) Electric window lifters |
| F43 | Jumper – automatic transmission control system, main ignition circuit relay |
| F61 | (5A) Engine management system (Bi-fuel dual fuel system) |
Fuse number 11 for 15A is also responsible for the operation of the cigarette lighter.

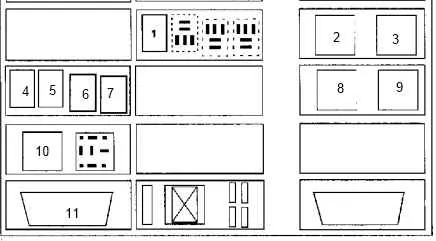

- Air conditioner relay
- Rear window lifter relay
- Rear Window Defogger Relay
- Rear Fog Light Relay
- Interior Light Relay – Rear
- Anti-theft system relay
- Front Fog Light Relay
- Relay 1 main ignition circuits
- Relay 2 main ignition circuits
- Windshield wiper intermittent relay
- Diagnostic Link Connector (DLC)

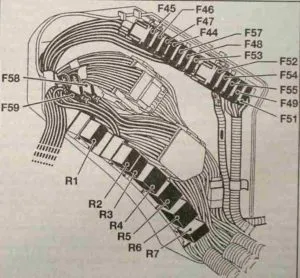

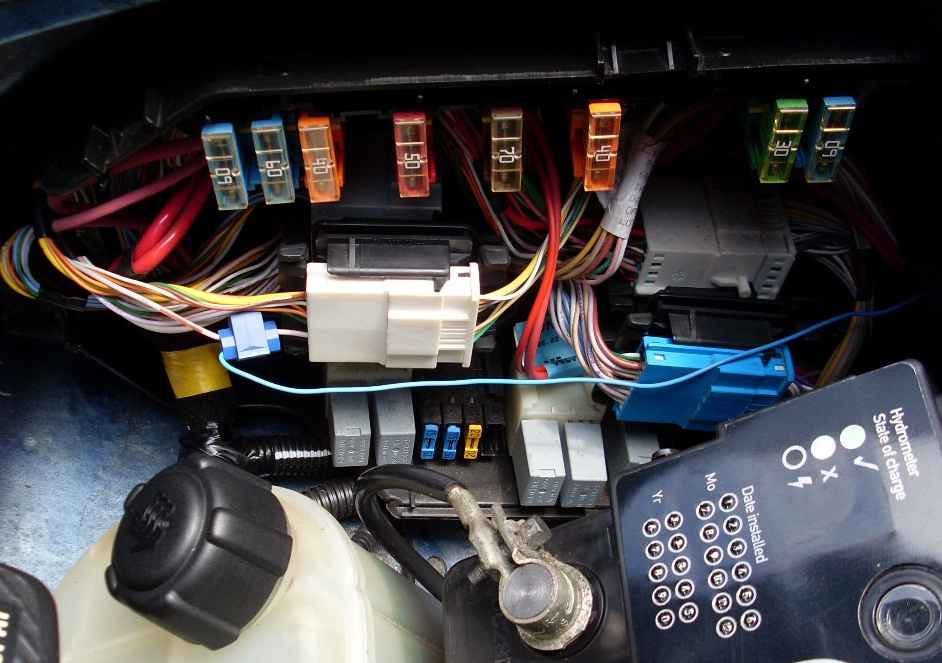

Block under the hood of Renault Espace 3
| F44 | (40A) Door mirror defroster, rear window defroster |
| F45 | (60A) Fuse/Relay Box, Footwell ^42), Main Ignition Relay, Multifunction Control Module (1999^) |
| F46 | (60A) Fuse/Relay Box, Footwell ^12, F29) |
| F47 | — |
| F48 | (50A) heater/air conditioner |
| F49 | (30A) Engine control |
| F50 | (70A) Headlight relay – high beam, headlight relay – low beam, headlight washers |
| F51 | (60A) Anti-lock brake system (ABS) |
| F53 | (60A) Charging system connector |
| F54 | (40A) Cooling Fan Motor Relay 1 |
| F55 | (40A) Cooling Fan Motor Relay 2 |
| F56 | — |
| F57 | — |
| F58 | (15A) Left headlight – high beam |
| F59 | (15A) Right headlight – high beam |
- High beam headlight relay
- Low beam headlight relay
- Heater Fan Motor Relay
- –
- Starter relay
- –
- Ignition Coil Relay
- Engine Management System Relay
- Oxygen sensor relay
- Fuel pump relay
Option 2
- Fuel pump relay
- Fuel pump relay
- Starter relay
- Relay for switching on low beam headlights during daytime driving
- Heater Fan Relay
- Relay for switching on 2 speeds of the engine cooling system fan
- Engine Cooling Fan Relay
- Engine overheat protection relay
- Engine Cooling Fan Relay
