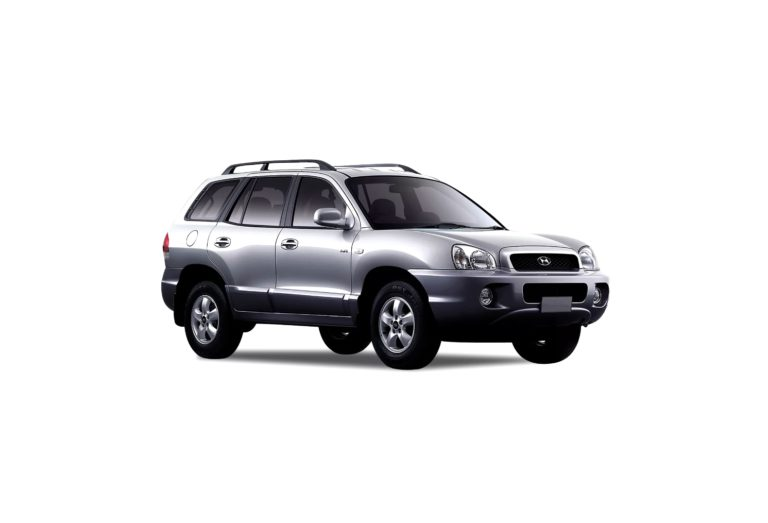

Hyundai Santa Fe 1st generation also known as Santa Fe Classic was produced in 2000, 2001, 2002, 2003, 2004, 2005 and 2006. During this time, the model received several minor updates. In this material you will find a description of the fuses and relays of the Hyundai Santa Fe 1st generation with block diagrams, photo examples of execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.

The number of elements in the blocks may differ from the one shown. Check the assignment with your diagrams on the back of the cover.

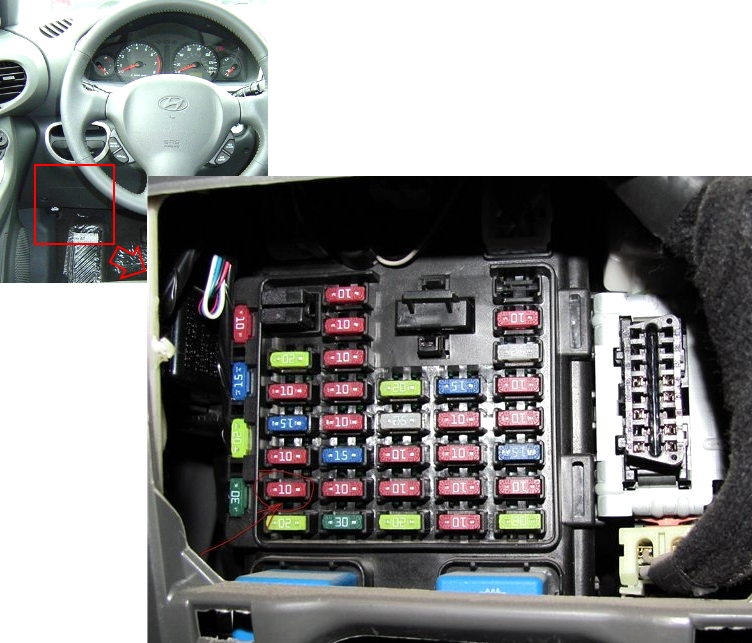

Cabin block

It is located under the driver’s dashboard.

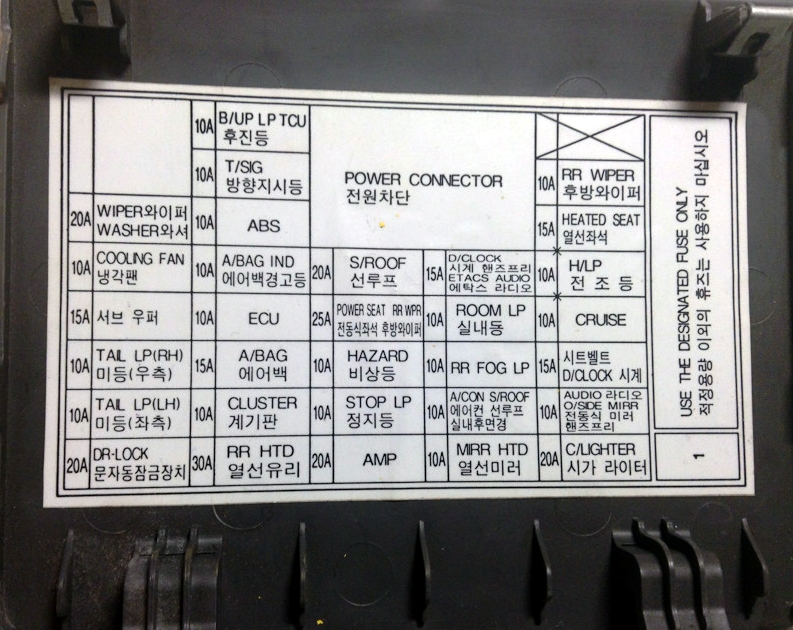

Example of a circuit from the block cover

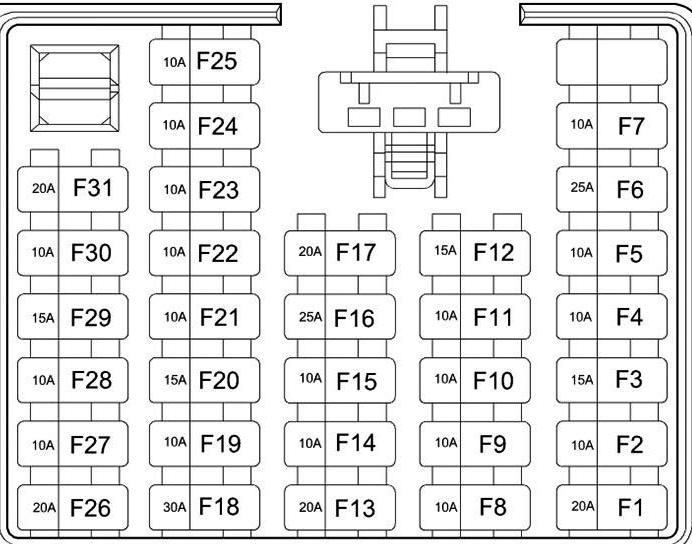

Fuse description

F120A Cigarette lighter and socket
F210A Audio, electric exterior mirror
F315A Digital clock, rear socket
F410A Cruise control
F510A Headlight Relay
F620A Seat heating
F710A Rear wiper motor control
F810A Heated rear window, Electric exterior mirror
F910A Air conditioning control, sunroof control, electric chrome mirror
F10Reserve
F1110A Interior light, door switch, door lamp, manual air conditioning control, Homelink controller
F1215A Digital clock, ETACM, audio, siren
F1320A Speakers AMP
F1410A Stop signal, data connector, universal control connector
F1510A Emergency lamp
F1625A Power seats, rear wiper motor control
F1720A Sunroof controller
F1830A Heater relay
F1910A Instrument cluster, pre-excitation resistor, ETACM, automatic light sensor, DRL control module, generator
F2015A SRS control module
F2110A ECM (V6 2.7L), PCM (I4 with automatic transmission), ECM (I4 with manual transmission)
F2210A Instrument cluster (Airbag IND)
F2310A ABS control module, G-sensor, air bleed connector, 4WD control module
F2410A Turn signal lamp
F2510A Reverse light, TCM, ETS control unit, Ignition misfire sensor
F2620A Door lock/unlock relay, key lock/unlock relay
F2710A Tail and taillight (left), turn signal lamp, license plate lamp
F2810A Tail and parking light (right), fog light relay, lighting switch
F2915A ETS Control Module (V6 3.5L), Safety Relay
F3010A Radiator fan relay, condenser fan relay
F3120A Front wiper motor, wiper relay, washer motor

Fuse number 1 at 20A is responsible for the cigarette lighter.

Relay

Above the fuses are 2 relays: the power window relay and the rear window heater relay.

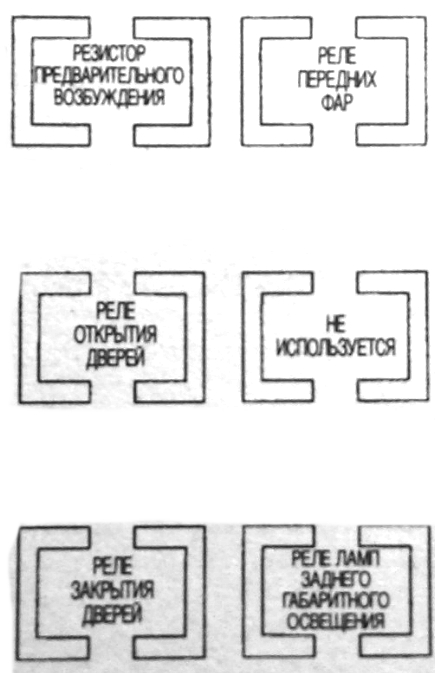

And on the back of the block, several relay elements are also attached.

Block under the hood

Located next to the battery.

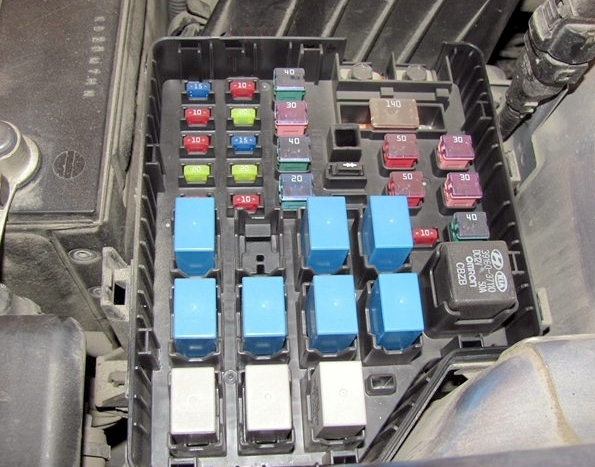

Photo – example

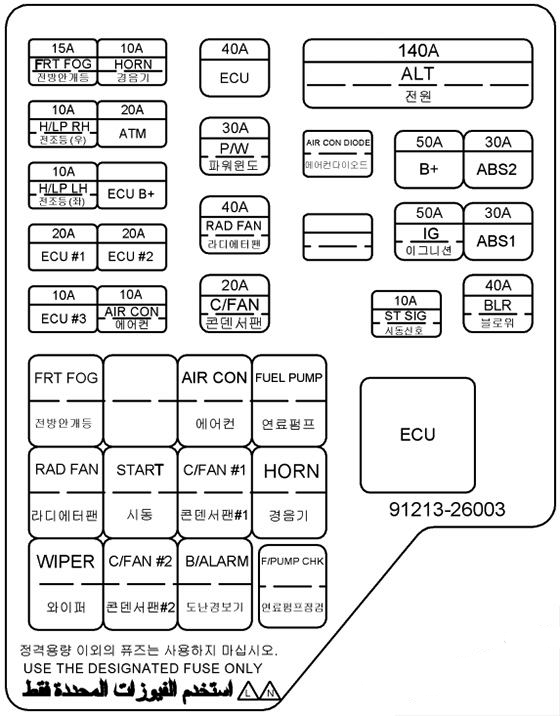

Marking

ALL140A Generator
B+50A Taillight relay, fuse 11-17, power connector
IGN50A Starter relay, ignition switch
BLR40A Air conditioner fuse, fan relay
ABS.130A ABS control unit, air bleed connector
ABS.230A ABS control unit, air bleed connector
ECU40A Engine Control Relay
P/W30A Power window relay, fuse 26
ROW FAN40A Radiator fan relay
C/FAN20A Condenser Fan Relay
FRT FOG15A Fog light relay
H/LP(LH)10A Left headlight, instrument cluster, DRL control unit
H/LP(RH)10A Right headlight
ECU #120A Misfire sensor, oxygen sensor
ECU #220A Injector
ECU #310A Engine Management, ECM, PCM
ECU(B+)15A Fuel Pump Relay, ECM, TCM, Alternator, PCM
ATM20A Control relay, 4WD control module
HORN10A Horn Relay
A/C10A Air conditioner relay
ST SIG10А PCM, ECM
