Skoda Yeti is a compact crossover. Years of production: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018. During this time, the car was restyled. And already in 2019, the concept of the second generation Yeti was shown.
The number of elements in the blocks, as well as their purpose, may differ and depend on the year of manufacture and configuration of a particular car. In case of difficulty, contact your nearest Skoda dealer for official information.
Blocks in the cabin
Fuse box

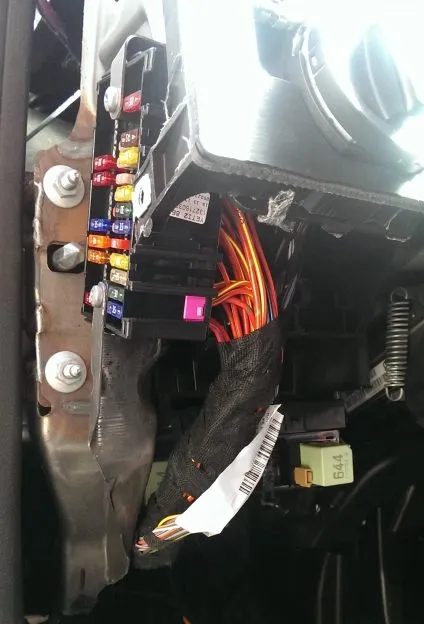

The main fuse box is located at the end of the instrument panel, on the driver’s side.

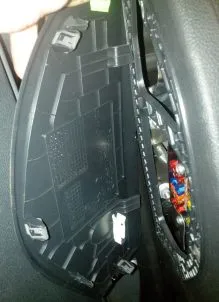

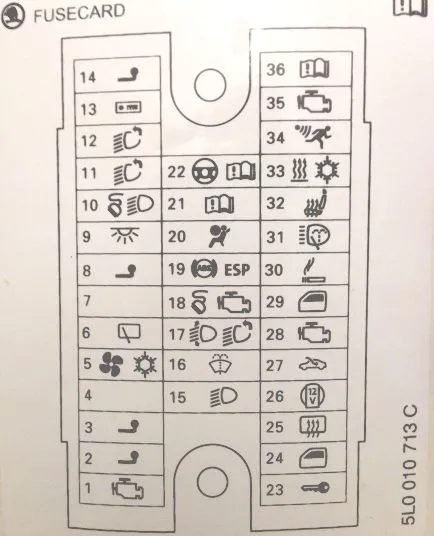

In some models, a diagram with the current assignment of fuses is glued to the back of the protective cover.

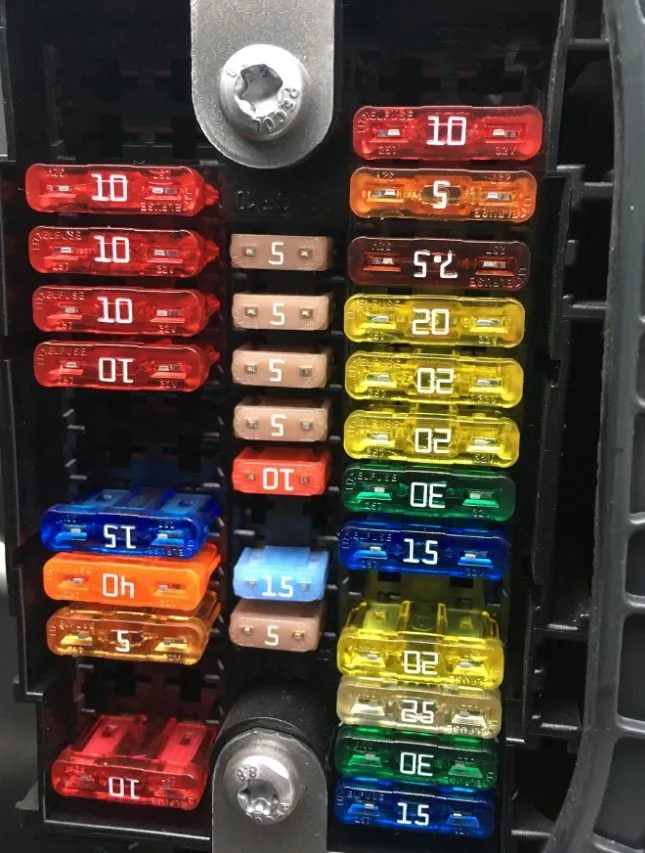

Option 1
| 1 | (10A) Gearbox ventilation system heating (diesel engine) Automatic transmission control unit DQ200 |
| 2 | (20A) Trailer electrical control unit |
| 3 | (15A) Trailer electrical control unit |
| 4 | (5A) Instrument panel, windscreen wiper switch handle, turn signal switch lever |
| 5 | (40A) Heater fan, cooling system fan, air conditioner, Climatronic |
| 6 | (15A) Rear window wiper |
| 7 | (5A) Telephone |
| 8 | (15A) Trailer electrical control unit |
| 9 | (10A) Multifunctional control unit |
| 10 | (10A) Rain sensor, light switch, central plug for connecting the diagnostic stand |
| 11 | (10A) Left headlight |
| 12 | (10A) Right headlight |
| 13 | (15A) Audio/navigation system |
| 14 | (5) Towing hitch |
| 15 | (5A) Light switch |
| 16 | (5A) Windshield washer nozzle heaters |
| 17 | (5A) Headlight range control |
| 18 | (10A) Central plug for connecting diagnostic stand, engine control unit, brake sensor |
| 19 | (5A) ABS control unit, ESP, tire pressure monitoring switch, parking assist control unit, offroad mode switch, start/stop button |
| 20 | (5A) SRS System, Airbag System Switch and Control Unit |
| 21 | (5A) WIV, reversing light, mirror dimming, pressure sensor, telephone preparation, air flow meter |
| 22 | (5A) Instrument cluster, electromechanical power steering control unit, Haldex |
| 23 | (15A) Central locking system and boot lid |
| 24 | (30A) Rear window lift |
| 25 | (25A/30A) Rear window heating, independent additional heating and ventilation |
| 26 | (20A) Additional equipment power socket (trunk) |
| 27 | (30A) Electrically operated sliding and tilting sunroof, electrically operated sunblind |
| 28 | (15A) Fuel Pump Relay, Fuel Pump Control Unit, Injector Valves |
| 29 | (30A) Front window lift |
| 30 | (20A) Cigarette lighters, front and rear |
| 31 | (20A) Headlamp Washer/Wiper System |
| 32 | (20A) Seat heater |
| 33 | (7.5) Heater, Сlimatic, Сlimatronic |
| 34 | (5A) Anti-theft system |
| 35 | (10A) Transmission Control |
| 36 | (5A) Audio system |
Option 2
- Heating element of the breather of the gearbox (diesel engine), Automatic transmission
- Towing hitch – left lamp
- Electrical socket for towing hitch
- Instrument cluster, steering column levers, camera
- Heating system fan, radiator fan, air conditioning, Climatronic
- Rear window wiper
- Emergency call
- Towing hitch – right light
- Interior lights, rear fog light
- Rain sensor, light switch, diagnostic connector
- Headlights – left side
- Headlights – right side
- Head unit
- Central control system, engine control system
- Light switch
- All-wheel drive
- KESSY, steering lock
- Diagnostic connector, engine management system, brake system sensors, all-wheel drive, START-STOP system
- ABS, ESC, tire pressure monitoring indicator switch, parking assistant, OFF ROAD mode switch, START-STOP system button
- Airbag
- Flexible service interval – WIV, reversing light, dimmable rearview mirror, pressure sensors,
telephone connection kit, mass air flow meter, headlight range control and headlight range adjuster - Instrument cluster, electromechanical power steering, data bus
- Central locking, trunk lid
- Electric windows – rear doors
- Rear window heating, independent heater and fan
- Socket in the luggage compartment
- Electric sliding sunroof, electric sunblind
- Fuel pump, injectors, AdBlue® heater
- Electric windows – front doors, exterior rear view mirrors – heated, folding function, adjustable mirror position
- 12V socket – front and rear (cigarette lighter)
- Headlight washer
- Heated front seats
- Heater, climate control, Climatronic, remote control of independent heater
- Anti-theft alarm, backup siren
- Automatic transmission
- Towing hitch
In both versions, fuse number 30 is responsible for the cigarette lighter.
Relay block

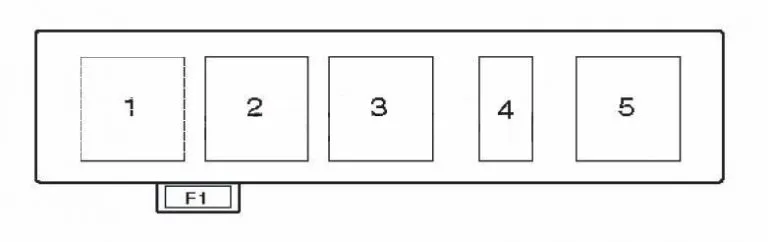

It is located under the instrument panel itself behind the fuse box.
Purpose
| 1 | Main Ignition Circuit Relay |
| 2 | Rear Window Defogger Relay |
| 3 | |
| 4 | Fuel pump relay |
| 5 | Auxiliary ignition circuit relay |
| F1 | (30A) Electric seat |
Block under the hood

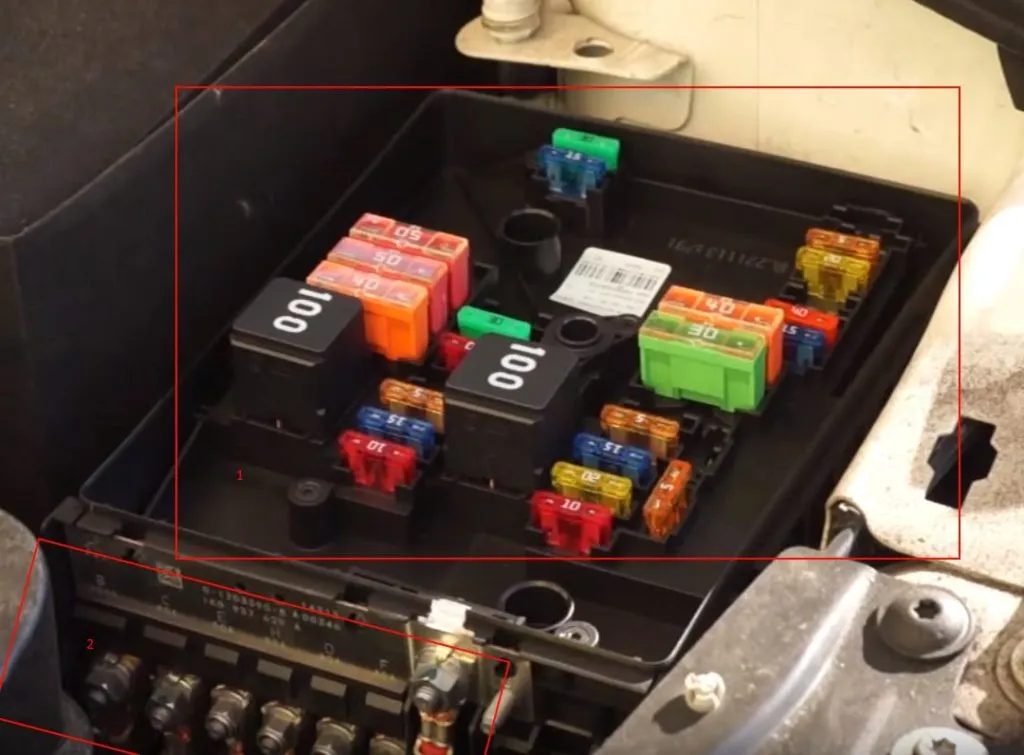

It is located on the left side of the engine compartment, behind the protective cover. The unit itself consists of 2 parts. The high-power fuse section and the fuse section, which also contains some relays, such as the engine management system relay.

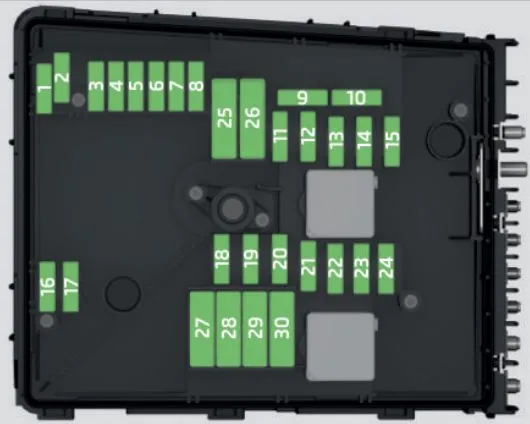

Option 1
| 1 | Not used |
| 2 | (30A) DSG gearbox |
| 3 | (5A) Multifunctional control unit, Measuring line |
| 4 | (20A) ABS/ESP system |
| 5 | (15A) DSG gearbox |
| 6 | (5A) Instrument panel, windscreen wiper switch handle and turn signal switch lever |
| 7 | (40A) Main Ignition Circuits |
| 8 | (15A) Radio receiver |
| 9 | (5A) Telephone |
| 10 | (5A/ 10A) Engine control, Engine control unit relay coil power supply |
| 11 | (20A/ 30A) Additional heater |
| 12 | (5A) Diagnostic unit |
| 13 | (15A/ 30A) Engine control |
| 14 | (20A) Engine Management, Ignition |
| 15 | (5A/10A) Lambda probe, fuel pump relay, glow plug relay |
| 16 | (30A) Central control unit for on-board electrical system, right main headlight, right rear grouped light |
| 17 | (15A) Sound signal |
| 18 | (30A) Digital Audio Processor Amplifier |
| 19 | (30A) Windshield wiper |
| 20 | (10A/ 15A/ 20A) Fuel pressure regulating valve |
| 21 | (10A/ 15A/ 20A) Lambda probe |
| 22 | (5A) Clutch pedal switch, brake pedal switch |
| 23 | (5A/ 10A/ 15A) Coolant pump boost pressure limiting solenoid valve, high pressure fuel pump cooler changeover valve |
| 24 | (10A) Activated carbon filter, EGR valve |
| 25 | (40A) ABS/ESP system |
| 26 | (30A) Multifunctional control unit |
| 27 | (50A) Glow plugs, pre-heating |
| 28 | (50A) Windshield heater |
| 29 | (50A) Interior power supply |
| 30 | (50A) Clamp X |
Option 2
- Not used
- Automatic transmission, AdBlue system control
- Battery data module
- ABS
- Automatic transmission
- Not used
- Power terminal 15, starter
- Head unit, instrument cluster, telephone
- Not used
- Engine management system
- Autonomous heating and ventilation
- Data bus
- Engine management system
- Ignition
- Lambda probe, fuel pump, pre-heating system
- Right headlight, right rear light
- Sound signal
- Audio system amplifier
- Windscreen wiper
- Fuel pressure regulator, injection pump
- Lambda probe
- Clutch pedal switch, brake pedal switch
- Coolant pump, boost pressure limiter valve, radiator changeover valve, fuel pump
- Evaporative canister, exhaust gas recirculation valve, radiator fan
- ABS
- Left headlight, left rear light
- Pre-heating system
- Heated windshield
- Power supply to the interior fuse box (fuses No. 24, 27 31, 32), electric
seat adjustment drive - Terminal X
