Fuses and relays Chrysler Pacifica (CS; 2003-2008)

This material provides a detailed look at the fuse box diagrams for the Chrysler Pacifica (first generation; CS): 2003, 2004, 2005, 2006, 2007, 2008.

Fuses #24 and #26 are responsible for the cigarette lighter.

In the engine compartment

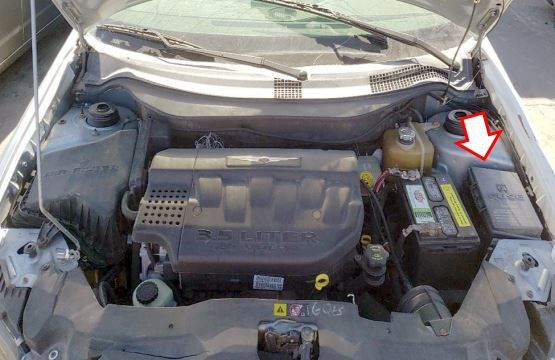

It is located next to the battery, under the protective cover.

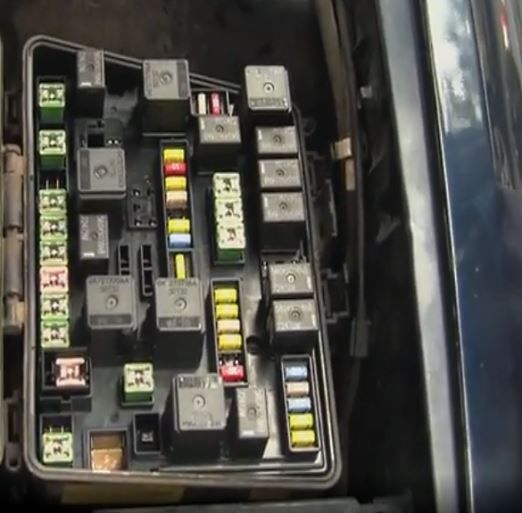

Example of access.

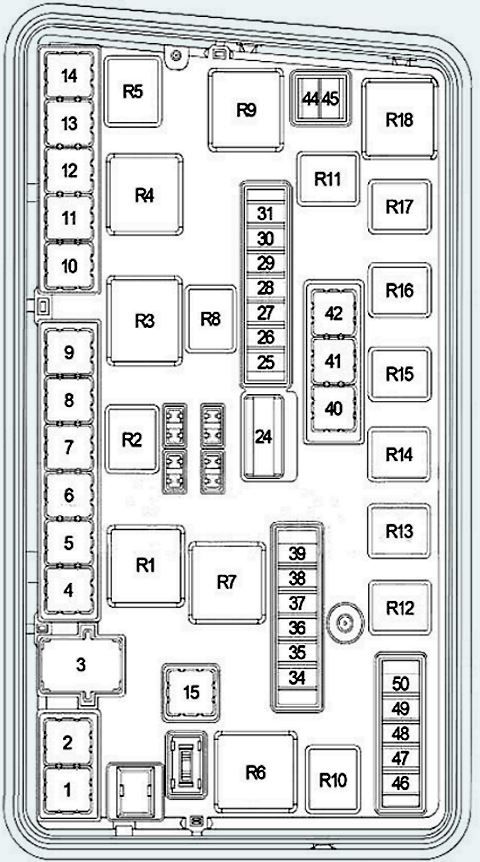

No.	Description	Current, A
R1	Rear Window Defogger Relay
R2	Gearbox control relay
R3	Start relay
R4	Empty
R5	Fuel pump relay
R6	Door relay
R7	Starter relay
R8	Empty
R9	Front Fan Motor Relay
R10	Rear Aux Fan Relay
R11	Beep
R12	Automatic shutdown relay
R13	Air Conditioning Compressor Clutch Relay
R14	Empty
R15	Manifold Adjustment Valve Relay (3.5L)
R16	Front Wiper Relay (On/Off)
R17	Front Wiper Relay (High Speed/Low Speed)
R18	Auxiliary relay
1	ABS module	40 A
2	Empty	–
3	Fuses:  #46, #47, #48, #49, #50	30 A
4	BCM —  Body Control Module	40 A
5	Rear Window Defogger Relay	40 A
6	Front Wiper Relay (On/Off & High Speed/Low Speed)	30 A
7	Starter relay	40 A
8	Automatic Switch – Power Seat	40 A
9	Sunroof	40 A
10	Trailer connector	30 A
11	Electric rear door	40 A
12	Empty	–
13	Radiator fan	40 A
14	Empty	–
15	ABS module	40 A
24	Rear cigarette lighter and socket	20 A
25	Navigation, audio amplifier, radio, hands-free system, sunroof, automatic day and night mirror, overhead console	15 A
26	Chrysler Pacifica Front Console Cigarette Lighter Fuse and Power Port	20 A
27	Empty	–
28	Horn relay	25 A
29	Instrument cluster, brake light switch	20 A
30	Ignition Switch –  Parking Assist Module, Skreem Module, Body Control Module, Starter Relay, Instrument Cluster POD, A/C Compressor Clutch Relay, Powertrain Control Module, Fuel Pump Relay	10 A
31	Body Control Module (BCM)	20 A
34	Rear auxiliary fan control unit	10 A
35	Empty	–
36	Powertrain Control Module, Transmission Relay	20 A
37	Automatic shut-off relay –  short-stroke valve (3.5L), powertrain control unit, noise suppressor, injectors, ignition coils	25 A
38	A/C Compressor Clutch Relay, Manifold Adjustment Valve Relay (3.5L),	20 A
39	Powertrain Control Module,  Fuel Pump Fuse Chrysler Pacifica	20 A
40	Driver’s door:  Power seat, Power mirrors, Power window	40 A
41	Passenger door:  electric mirror, window lift	40 A
42	MTC – Fan Motor Resistor Block, ATC – Front Fan Power Supply	40 A
44	Center Row Seat Heating Switch, Seat Heating Interface Module	25 A
45	Automatic Temperature Control Unit, Air Conditioner Heater Control Unit, ABS Module	10 A
46	Passenger door:  door lock, electric windows, dome light, electric mirrors	20 A
47	Driver’s door:  Dome light. Power seat, door lock, power windows, power mirrors	20 A
48	Hands-free system, body control module, overhead console, navigation system	15 A
49	Audio amplifier	25 A
50	DVD/CD changer, FM radio and satellite radio, instrument panel switch, automatic temperature control unit, Skreem module	15 A
