Dodge Ram Truck 1500, 2500, 3500 (2009, 2010, 2011) Fuse Box and Relay Diagram.

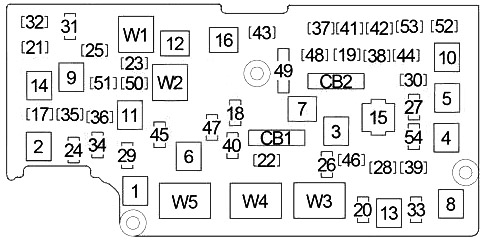

Engine Compartment Fuse Box Diagram

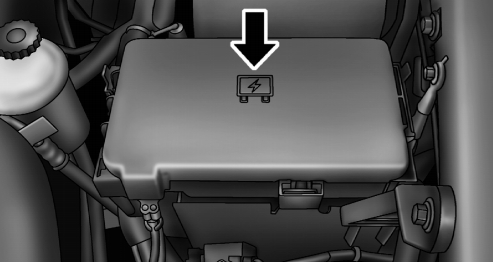

The Totally Integrated Power Module (TIPM) is located in the engine compartment next to the battery. This center contains cartridge fuses and mini fuses. The description of each fuse and component may be stamped on the inner cover, otherwise the socket number of each fuse is stamped on the inner cover, which corresponds to the following table.
| No. | A | Protected component |
|---|---|---|
| 1 | — | — |
| 2 | 30 | Trailer Towing, Left/Right Storage Box |
| 3 | 25 | Passenger door module |
| 4 | 40 | ABS |
| 5 | 30 | ABS |
| 6 | — | — |
| 7 | 25 | Driver’s door module |
| 8 | 30 | Transmission Control Module |
| 9 | 30 | Brake support module |
| 10 | — | — |
| 11 | — | — |
| 12 | 40 | Starter relay |
| 13 | 60 | Radiator Fan Relay (High), Radiator Fan Relay (Low) |
| 14 | — | — |
| 15 | 60 | Fuse: “38”, “39”, “41”, “42” |
| 16 | — | — |
| 17 | 25 | Luke Motor |
| 18 | 25 | Transmission Control Module, Transmission Solenoid/TRS Assembly, Line Pressure Sensor/Variable Force Solenoid Assembly, Transmission Solenoid/Pressure Switch Assembly, Transmission Range Sensor |
| 19 | 5 | Passenger side window/door lock switch, sunroof motor |
| 20 | 25 | Front Wiper On/Off Relay |
| 21 years old | 25 | High speed windshield wiper |
| 22 | 20 | Wiper Park |
| 23 | — | — |
| 24 | — | — |
| 25 | 10 | Data Link Connector, Window/Door Lock Switch – Driver Side |
| 26th year | 10 | Wireless ignition unit |
| 27 | 15 | Brake light switch, brake light relay |
| 28 year | — | |
| 29 | — | |
| 30 | 25 | Inverter module |
| 31 years old | 20 | Socket – dashboard, socket – console |
| 32 | 20 | Windshield washer pump |
| 33 | 15 | Transmission Control Module |
| 34 | 15 | Steering module, cluster, upper switch block, lower switch block |
| 35 year | 20 | Seat heating module, |
| 36 | 20 | Seat heating module, rear seat heating switch |
| 37 | 10 | Horn |
| 38 | 20 | Cluster, multi-function switch |
| 39 | 30 | Radio, Amplifier |
| 40 | — | — |
| 41 years old | 15 | Speakerphone module, compass module, video screen module, satellite video module |
| 42 | 10 | Heating and air conditioning controls, hood light |
| 43 year | 10 | Horn |
| 44 year | 10 | Passenger Safety Controller Module |
| 45 | 10 | Passenger Safety Controller Module |
| 46 | — | — |
| 47 | 10 | Heating and air conditioning control, infrared sensor, parking assistance module |
| 48 | 20 | Cigarette Lighter, Cigarette Lighter – Center Console |
| 49 | 20 | Socket – at the back |
| 50 | 25 | Transmission control module, ignition coils, ignition capacitor, fuel injector, |
| 51 | 20 | 3.7L: Short Stroke Valve Solenoid |
| 52 | 10 | Transmission Control Module, Front Axle Disengagement Module |
| 53 | 15 | Multifunction switch, steering control unit, interior rearview mirror, instrument cluster, transfer case selector switch |
| 54 | — | — |
| CB1 | 25 | Driver/Passenger Seat Switch, Seat Memory Module, Driver/Passenger Seat Lumbar Adjustment Switch |
| CB2 | 25 | Window/Door Lock Switch – Driver Side, Electric Sliding Light Switch, Fuse: “19” |
| Relay | ||
| W1 | ||
| W2 | ||
| W3 | ||
| W4 | ||
| W5 | ||
