The compact car Ford Focus 2nd generation was produced in 2004, 2005, 2006, 2007, 2008, 2009, 2010 and 2011 with both gasoline and diesel engines. During this time, the car underwent restyling once, which affected the interior and exterior. In this publication, we will show a description of the fuse blocks and relays of the Ford Focus 2, their locations, diagrams and photos. We will separately note the cigarette lighter fuse. And finally, we will offer complete electrical diagrams of the car for download.

General arrangement of blocks

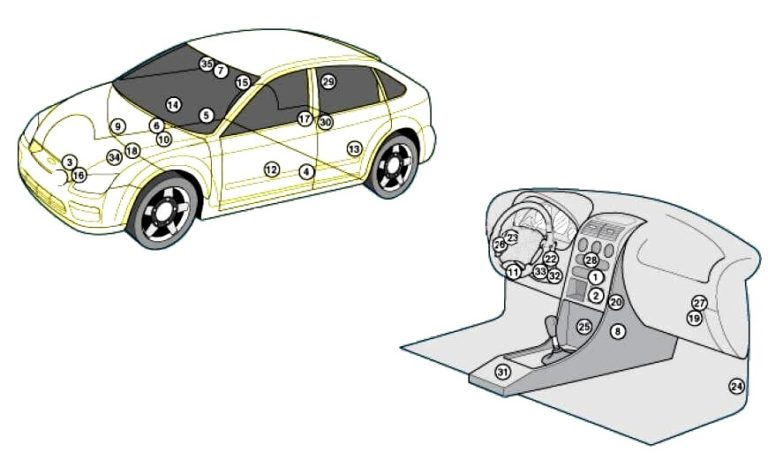

This diagram shows the location of all electronic control units.

Scheme

Description

1Electronic air conditioning control unit
2Dashboard air temperature sensor supplied from the ventilation grille
3Impact sensor (SRS)
4Driver’s side SRS impact sensor
5Passenger side SRS impact sensor
6Anti-theft alarm sound
7Sunlight sensor
8Additional heater – electric
9Additional fuel heater
10Rechargeable battery
11Diagnostic Connector (DLC)
12Driver’s door electrical control unit – in the door
13Left rear door electrical control unit – in the door
14Passenger door electrical control unit – in the door
15Right rear door electrical control unit – in the door
16Cooling system fan motor control unit
17Additive supply control unit
18Fuse/relay block, engine compartment
19Fuse/relay block instrument panel
20Heater fan motor resistor – near the heater fan motor
21Sound signal
22Immobilizer ring antenna
23Turn signal relay – in the turn signal switch
24Fuel cut-off inertia switch
25Keyless entry system control unit
26Lighting control unit
27Multifunction control unit – in the fuse/relay block of the dashboard – functions: Air conditioning system, anti-theft system, additional heater – electric, central locking, windshield heater, interior lights, windshield wiper/washer
28Navigation system control unit
29Parking system control unit
30Parking brake control unit
31SRS electronic control unit
32Steering column lock electronic valve
33Steering wheel position sensor
34Electronic gearbox control unit
35Rain sensor (windshield wiper)

Block under the hood

It is located on the left under the protective cover.

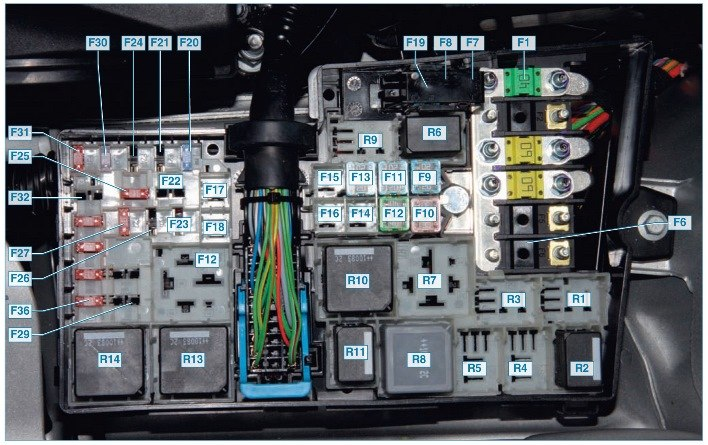

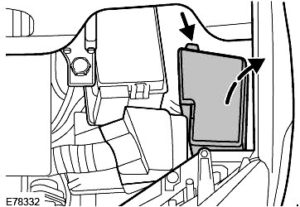

Location of the unit under the hood

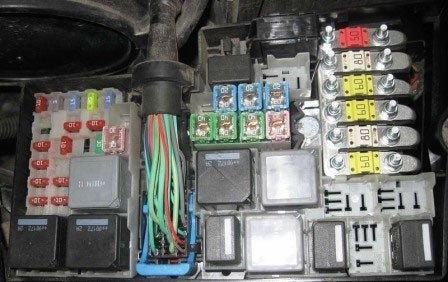

Photo – example

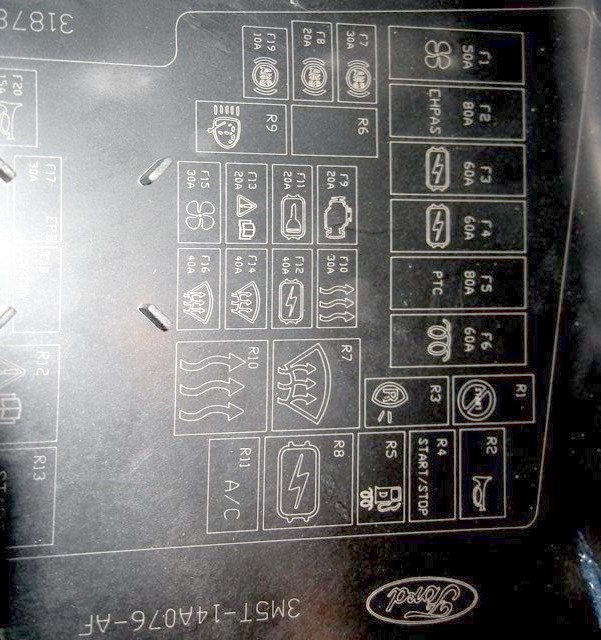

An example of the current diagram on the back of the protective cover.

Scheme

Fuse description

F140/60A Cooling system fan electric motor
F280A Power steering
F360A Relay and fuse mounting block in the passenger compartment
F460A Relay and fuse mounting block in the passenger compartment
F580A Air conditioner with manual or automatic control
F660A Reserve
F730A ABS hydraulic unit pump
F820A ABS hydraulic unit valves
F920A Main relay contacts and winding
F1030A Heater fan motor (heater fuse)
F1120A Ignition switch
F1240A Ignition relay power circuit
F1320A Starter
F1440A Heated windshield – right element
F1530A Cooling system fan relay
F1640A Left windshield heating element
F1730A Reserve
F18Reserve
F1910A ABS control unit
F2015A Audible signal
F2120A Additional heater
F2210A Power steering control unit
F2330A Headlight washer pump
F2415A Reserve
F2510A Windshield defroster relay winding
F2610A Automatic transmission
F2710A Air conditioner compressor clutch
F2810A Reserve
F2910A Separate climate control system
F303A Engine control unit, automatic transmission control unit
F3110A Battery Charging System
F3210A Automatic transmission control unit, selector position sensor
F3310A Oxygen concentration sensor heating
F3410A Injectors, ignition coil
F3510A Engine control system
F3610A Engine control unit

Relay purpose

R1Start inhibit activation relay
R2Horn relay
R3Reverse light relay
R4Reserve
R5Exhaust gas recirculation (EGR) relay – for petrol engines, Fuel heater relay – diesel
R6Main relay
R7Windshield defroster relay
R8Ignition relay
R9Headlight Washer Relay
R10Heater fan relay
R11Air conditioner compressor relay
R12Cooling system fan motor relay, glow plug relay
R13Starter relay
R14Cooling system fan relay, Electric fan motor

Cabin block

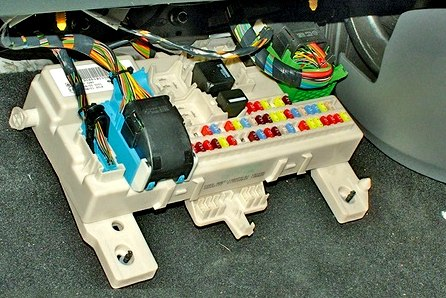

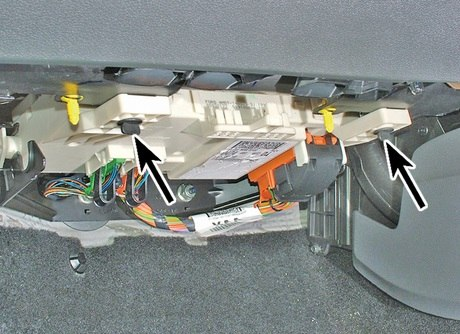

This unit is located under the glove compartment and is secured with two screws.

Option 1

Scheme

Marking

3710A Left headlight high beam
3810A Far right headlight beam
3920A Cigarette lighter , rear auxiliary socket
4020A Luke
4120A Front passenger door electrical module
427.5A Heated mirrors
4310A Electronic modules (battery powered)
4410A Diagnostic connector (OBD II)
4510A Daytime running lights
4610A Instrument cluster, multifunction electronic module (GEM)
4715A Windshield washer, windshield washer jet heating
4820A Low beam headlights, daytime running lights
4915A Light switch
5020A Windshield wiper
5115A Fuel pump
5225A Heated rear window
537.5A Left side marker light
547.5A Right side marker light
5520A Driver’s door electrical module, central locking
5620A Keyless Entry/Start System
5710A Anti-theft system siren
5815A Audio system (battery powered)
5925A Socket in the luggage compartment, trailer connector
6015A Right headlight low beam
6115A Left headlight low beam
6220A Driver’s seat adjustment electric drive
6325A Window regulators
64Reserve
6510A Airbags
667.5A Headlight leveling, low beam headlights, xenon headlight unit
6710A Immobilizer (WFS), instrument cluster (powered by ignition switch)
687.5A Radio, instrument cluster
6920A Fog light
7010A Electronic modules (powered by ignition switch)
7110A Daytime running lights
7225A Multifunction Electronic Module (GEM)
737.5A License plate light
7415A Brake light bulbs
7510A Transmission control unit, electronic accelerator pedal
767.5A Electronic parking brake (EPB)
7725A Central locking relay
7815A Rear window wiper
7915A Electric mirror folding drive
8010A Interior lighting, electric mirrors
8120A Right rear door electrical module
8220A Left rear door electrical module
8310A CD changer, rear seat entertainment system (RSE)
8410A Reversing lamps, trailer module
8510A Cooling system
8620A Seat heating
Relay
K1Heated rear window
K4Fuel pump
K5Daytime running lights

In this version, fuse number 39 at 20A is responsible for the operation of the cigarette lighter.

Option 2

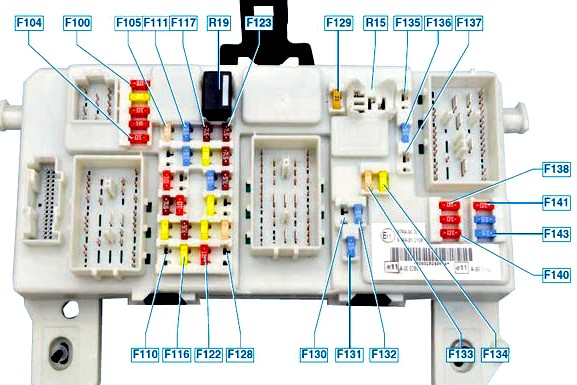

Photo – diagram

Transcript

10010A Electronic modules (powered by ignition switch)
10120A Sunroof, power driver’s seat, roof control unit (Focus Coupe-Cabriolet)
10210A Heater control unit, steering column adjustment, diesel particulate filter, remote control system receiver
10310A Outdoor lighting (battery powered)
10410A Interior lighting, energy saving system
10525A Heated rear window
10620A Keyless Entry/Start System
10710A Instrument cluster (battery powered), diagnostic connector
1087.5A Additional functions of the instrument cluster (audio system and navigation system)
10920A Cigarette lighter , rear auxiliary socket
11010A Daytime running lights
11115A Fuel pump (petrol engines)
11215A Audio system (battery powered)
11310A Daytime running lights
11410A Instrument cluster (powered by ignition switch), immobilizer
1157.5A Exterior lighting (powered by ignition switch)
11620A Fog light
1177.5A License plate light
11820A Left rear door electrical module
11915A Socket in the luggage compartment
12020A Right rear door electrical module
12120A Heated front seats
12210A Airbags
1237.5A Heated mirrors
1247.5A Left side marker light
1257.5A Right side marker light
12620A Keyless Entry/Start System
12725A Window regulators
128Reserve
12920A Windshield wiper
130Reserve
13115A Rear window wiper
13215A Brake light bulbs
13325A Front passenger door electrical module, central locking relay
13420A Driver’s door electrical module, central locking
13520A Daytime running lights
13615A Windshield washer, windshield washer jet heating
13710A Backup power supply for anti-theft system
13810A Engine control unit, electronic accelerator pedal, automatic transmission control unit
13910A Far right headlight beam
14010A Left headlight high beam
14110A Reversing lamps, electric mirrors
14215A Right headlight low beam
14315A Left headlight low beam
Relay
R1Fuel pump
R2Reserve

Fuse number 109 at 20A is responsible for the cigarette lighter.

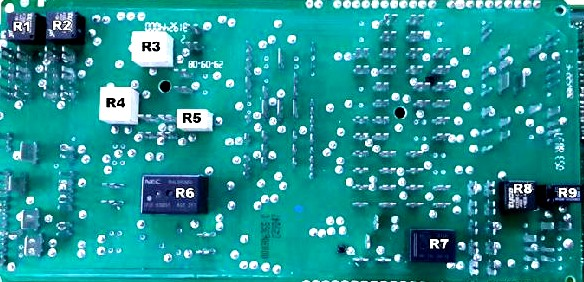

On the back of the unit, there may be some individual relay elements.

Description

  • R1 Dipped beam relay
  • R2 High beam relay
  • R3 Central locking and rear wiper relay
  • R4 Driver door unlocking relay
  • R5 Other door opening relay
  • R6 Front wiper relay
  • R7 Rear window heating relay
  • R8 Battery discharge protection relay
  • R9 Light relay
