In this article we look at the description of the companions and relays of the Jeep Renegade BU; 2014-2019.
The accessories are grouped into blocks of accessories located in the engine compartment, under the accessories panel and in the middle of the luggage compartment.
Motor vehicle

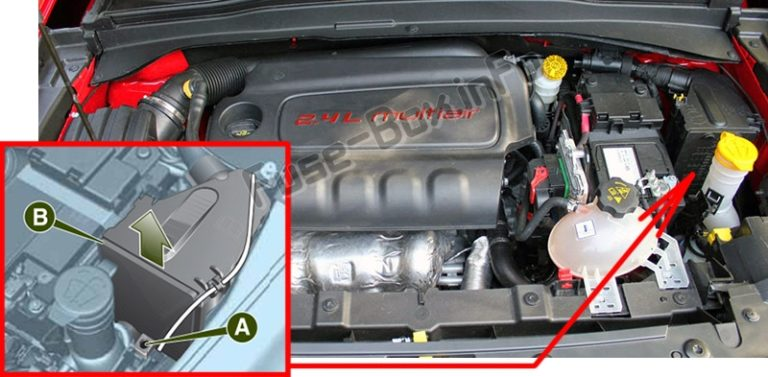

The breakout block is located on the side of the battery.

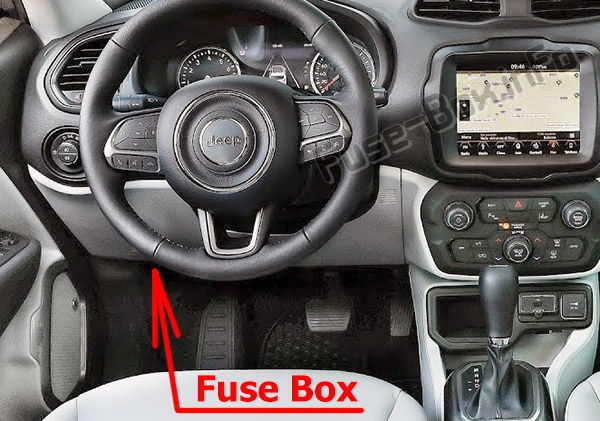

Block of accomplices on the panel of accessories
The locker block is located on the left side of the ceramic column, and access to the guards is easily removed from the bottom of the fitting panel.

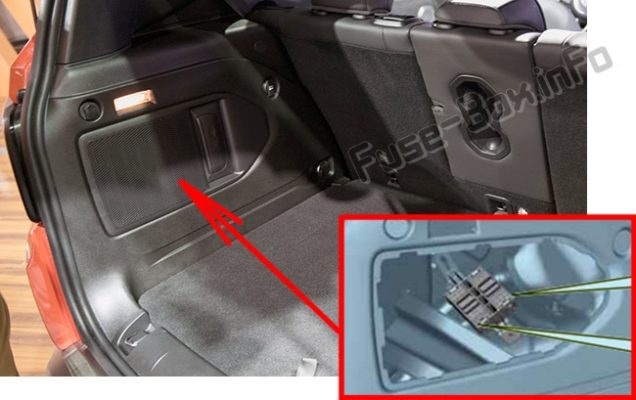

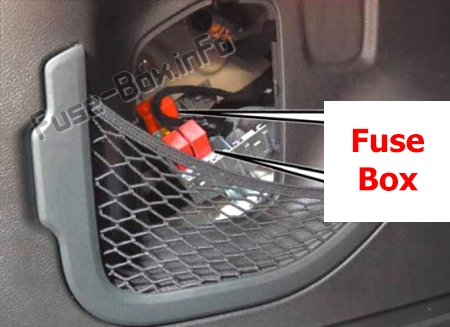

Luggage compartment
To deny access to visitors, remove the doors from the left rear panel of the rear compartment.
Depending on the configuration of the car, two possible companions may be present (or offence).
2014-2017
2018-2019

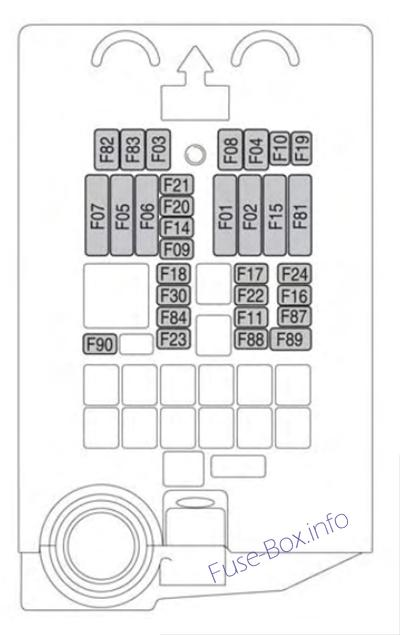

Schemes for the block of devotees
2014, 2015
Motor vehicle
Assignments of accomplices to the motor vehicle (2014, 2015)
| Porozhnina | Maxi Fuse | Mini-protector | Micro devotee | Description |
|---|---|---|---|---|
| F01 | 70 Amp Tan | – | – | Body Computer Module |
| F02 | 70 Amp Tan | Body computer module, rear compartments | ||
| F03 | – | 20 amp yellow | Controller housing unit Computer case | |
| F04 | – | 30 amp green | – | Electronic module keruvannya galm |
| F05 | 70 Amp Tan | – | – | Steering wheel with electric power |
| F06 | 20 amp yellow | – | – | Engine cooling fan |
| F06 | 40 amps orange | – | – | Engine cooling fan |
| F07 | 30 amp green | – | – | Engine cooling fan |
| F07 | 40 amps orange | – | – | Engine cooling fan |
| F08 | 30 amp green | Automatic transmission, GSM | ||
| F09 | – | – | 5 Amp Tan | Engine module |
| F10 | – | – | 10 amps | Rig |
| F11 | – | – | 10 amps | Postachannya secondary navantazhenya |
| F14 | – | – | 7.5 Amp brown | Obigrivach “Produvannya” |
| F14 | – | – | 5 Amp Tan | Pressure of the pump “After running” |
| F15 | 40 amps orange | – | – | Pump module keruvannya galm |
| F16 | 5 Amp Tan | Engine block, automatic transmission | ||
| F17 | – | – | 10 amps | Postachannya of the first navantazhen |
| F18 | – | – | 20 amp yellow | Ignition on the rear 12 V socket |
| F19 | – | – | 7.5 Amp brown | Air conditioning compressor |
| F20 | – | – | 5 Amp Tan | Electronic drive on several wheels |
| F21 | – | – | 15 Amp Blue | Irrigation pump |
| F22 | – | – | 7.5 Amp brown | Engine pressure control module |
| F23 | – | – | 30 amp green | Frontal slope with underheating – for obvious reasons |
| F24 | 15 Amp Blue | Automatic transmission electronic power supply unit | ||
| F83 | – | 40 amp orange | – | Air conditioner fan |
| F84 | – | – | 30 amp green | Power supply All-wheel drive |
| F87 | – | – | 5 Amp Tan | Automatic transmission shift lever |
| F88 | – | – | 7.5 Amp brown | External mirrors with heating |
| F89 | – | – | 30 amp green | Rear window heating |
| F90 | – | – | 5 Amp Tan | IBS sensor (battery charge status) |

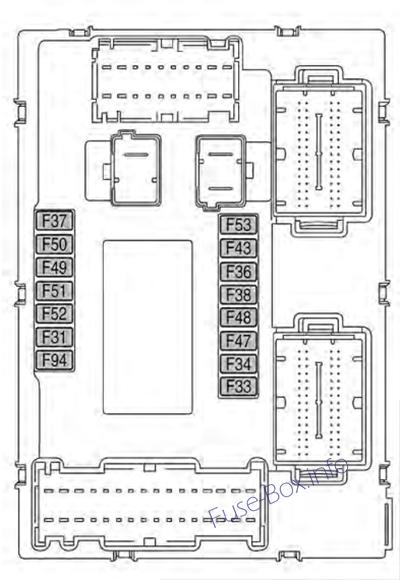

Block of accomplices on the panel of accessories
Appointments of allies on the panel of accessories (2014, 2015)
| Porozhnina | Mini-protector | Description |
|---|---|---|
| F31 | 7.5 Amp brown | Electric front seats / Air conditioning fan |
| F33 | 25 Amp Clear | Front fender (on the side of the water) |
| F34 | 25 Amp Clear | Front fender (passenger side) |
| F36 | 20 amp yellow | Uconnect® living system, air conditioning, alarm, power folding exterior mirrors, USB port |
| F37 | 10 amps | Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC |
| F38 | 20 amp yellow | Central castle |
| F42 | 7.5 Amp brown | Living under lock and key |
| F43 | 20 amp yellow | Washer with double-sided pump |
| F47 | 25 Amp Clear | Rear fender (water side) |
| F48 | 25 Amp Clear | Rear fender (passenger side) |
| F49 | 7.5 Amp brown | Installed ParkSense, dot headlights at the front, dome, mirror, overhead hatch with electric motor, heated front seats, stabilizer battery, ESC system, ESL |
| F50 | 7.5 Amp brown | Safety pillow |
| F51 | 7.5 Amp brown | Hazard warning lights, front auxiliary light, air conditioning compressor, NC pedal switch, automatic transmission with gear, compass, rear camera, headlight leveling, air conditioning |
| F53 | 7.5 Amp brown | Post IPC / launcher / Keyless Enter-N-Go™ system |
| F94 | 15 Amp Blue | Socket |

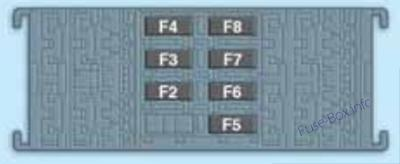

Block of companions at the baggage section
Assignments of accomplices to luggage (ver. 1, 2014, 2015)
| Porozhnina | Mini-protector | Description |
|---|---|---|
| F2 | 20 amp yellow | Audio system |
| F3 | 20 amp yellow | MY SKY |
| F4 | 7.5 Amp brown | Adjustment of the front seat cross section (water side) |
| F5 | 30 amp green | Electric seat (water side) |
| F6 | 7.5 Amp brown | Electric seat (on the driver’s side and on the passenger’s side) |
| F7 | 30 amp green | Adjustment of the transverse support of the front seats (on the side of the driver and passenger) |
| F8 | 20 amp yellow | Front seat heating |
The controller also has a 20-amp protector for the sun visor of the folding.
Assignments of accomplices to the motor vehicle (2016, 2017)
| Porozhnina | Maxi Fuse | Cartridge devotee | Micro devotee | Description |
|---|---|---|---|---|
| F01 | 70 Amp Tan | – | – | Body Computer Module |
| F02 | 70 Amp Tan | “ | “ | Body computer module, rear compartments |
| F03 | “ | 20 amp blue | “ | Controller housing unit Computer case |
| F04 | – | 30 amp rose | – | Electronic module keruvannya galm |
| F05 | 70 Amp Tan | – | – | Steering wheel with electric power |
| F06 | 20 amp yellow | – | – | Engine cooling fan |
| F07 | 40 amps orange -1.4 without air conditioner 50 amps red -1.4 with air conditioner and all models 2.4 | Engine cooling fan | ||
| F08 | – | 30 amp rose | – | Automatic transmission, GSM |
| F09 | – | – | 5 Amp Tan | Engine module |
| F10 | – | – | 15 Amp Blue | Rig |
| F11 | 10 amperes red – dviguni 1.4 25 amperes clear – dviguni 2.4 | Postachannya secondary navantazhenya | ||
| F14 | – | – | 7.5 Amp brown | Heater “Blowdown” |
| F14 | – | – | 5 Amp Tan | Pump power “after run” |
| F15 | 40 amp orange | – | – | Brake control module pump |
| F16 | 5 Amp Tan | Engine block, automatic transmission | ||
| F17 | 10 amps red – 1.4 motor 15 amp blue – 2.4 motor | Postachannya of the first navantazhen | ||
| F18 | – | – | 20 amp yellow | Ignition on the rear 12 V socket |
| F19 | – | – | 7.5 Amp brown | Air conditioning compressor |
| F20 | – | – | 5 Amp Tan | Electronic drive on several wheels |
| F21 | – | – | 15 Amp Blue | Irrigation pump |
| F22 | – | – | 20 amp yellow | Engine pressure control module |
| F23 | – | – | 30 amp green | Frontal slope with underheating – for obvious reasons |
| F24 | “ | “ | 15 Amp Blue | Electronic unit for automatic transmission |
| F30 | “ | 20 ampere power supply (installed by the locksmith) | Rear vane exit 12 V with permanent battery life | |
| F83 | – | 40 amp green | – | Air conditioner fan |
| F84 | – | – | 30 amp green | Electrical life Full drive |
| F87 | – | – | 5 Amp Tan | It is important to change the automatic transmission |
| F88 | – | – | 7.5 Amp brown | External mirrors with heating |
| F89 | – | – | 30 amp green | Rear window heating |
| F90 | – | – | 5 Amp Tan | IBS sensor (battery charge status) |
Block of accomplices on the panel of accessories
Appointments of supporters at the panel of accessories (2016, 2017)
| Porozhnina | Mini-protector | Description |
|---|---|---|
| F31 | 7.5 Amp brown | Electric front seats / Air conditioning fan |
| F33 | 20 amp yellow | Front fender (on the side of the water) |
| F34 | 20 amp yellow | Front fender (on the passenger side) |
| F36 | 15 Amp Blue | Electrical system, air conditioner, alarm system, external mirrors that fold electrically, USB port |
| F37 | 10 amps | Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC |
| F38 | 20 amp yellow | Central castle |
| F42 | 7.5 Amp brown | Living under lock and key |
| F43 | 20 amp yellow | Washer with double-sided pump |
| F47 | 20 amp yellow | Rear slope (on the side of the water) |
| F48 | 20 amp yellow | Rear fender (on the passenger side) |
| F49 | 7.5 Amp brown | Installation of ParkSense, spot-lighting of the front cabin, mirror, overhead hatch with electric motor, heated front seats, stabilizer battery, ESC system, ESL |
| F50 | 7.5 Amp brown | Safety pillow |
| F51 | 7.5 Amp brown | Hazard warning lights, front auxiliary light, air conditioning compressor, NC pedal switch, automatic transmission with gear, compass, rear camera, headlight leveling, air conditioning |
| F53 | 7.5 Amp brown | Post-installation of IPC / starter / keyless system Enter-N-Go |
| F94 | 15 Amp Blue | Socket |
Block of companions at the baggage section
ssignments of accomplices to luggage (ver. 1, 2016, 2017)
| Porozhnina | Mini-protector | Description |
|---|---|---|
| F1 | 30 amp blue | Pressure inverter |
| F2 | 20 amp yellow | HIFI audio system |
| F3 | 20 amp yellow | MY SKY |
| F4 | 7.5 Amp brown | Front seat with adjustments across (on the side of the water) |
| F5 | 30 amp green | Electric seat (on the side of the water) |
| F6 | 7.5 Amp brown | Electric seat (on the driver’s side and on the passenger’s side) |
| F7 | 30 amp green | Front seats with cross-adjustable seat (on driver and passenger side) |
| F8 | 20 amp yellow | Front seat heating |
Assignments of accomplices to luggage (ver. 2, 2016, 2017)
| Porozhnina | Mini-protector | Description |
|---|---|---|
| F1 | 10 amps | External lighting controller on the head |
| F5 | 15 Amp Blue | Control lamps for external lighting (on the side of the water) |
| F6 | 15 Amp Blue | Ambient lighting controller (on the passenger side) |
2018, 2019
Motor vehicle
Assignments of accomplices to the motor vehicle (2018, 2019)
| # | AMPERE | ADD-ONS |
|---|---|---|
| F10 | 15 | Rig |
| F18 | 20 | Electrical supply of luggage compartment |
| F30 | – | It is in stock |
| F88 | 7.5 | Heated rear view mirrors |
| F89 | 30 | Rear window heating |

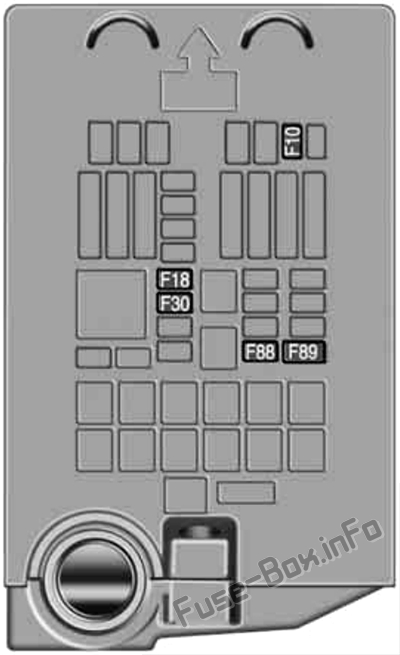

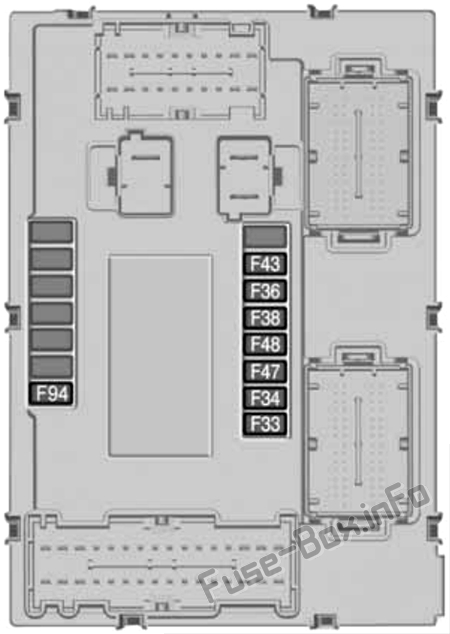

Block of accomplices on the panel of accessories
Assignment of fuses in the instrument panel (2018, 2019)
| # | AMPERE | USERS |
|---|---|---|
| F33 | 20 | Front electric window (passenger side) |
| F34 | 20 | Front electric fender (water side) |
| F36 | 15 | Electrical systems Uconnect climate control system, alarm system, electric folding rear view mirrors, EOBD system, USB port |
| F38 | 20 | Safe lock device (door release on the side of the water compartment) / door release / central locking / rear door electric release |
| F43 | 20 | Wind / rear windshield washer pump |
| F47 | 20 | Rear left electric brake |
| F48 | 20 | Rear right electric fender |
| F94 | 15 | Lighter for cigars (case є) |
Luggage compartment
Assignment of companions to the baggage department (2018, 2019)

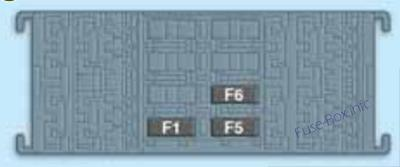

| # | AMPERE | USERS |
|---|---|---|
| Trimach control unit No. 1 | ||
| F2 | 20 | Hi-Fi system |
| F3 | 20 | Electric sunroof |
| F4 | 7.5 | Electrically adjustable across the front seats (on the side of the water) |
| F5 | 30 | Electric drive of the front seat (on the driver’s side) |
| F6 | 7.5 | Electric drive of the front seats (on the side of the driver and passenger) |
| F7 | 30 | Electric transverse support for the front seats (on the driver and passenger side) |
| F8 | 20 | Electrically heated front seats |
| In addition, the control unit has a 20 A protector for protecting the hatch panel. | ||
| Trimach control unit No. 2 | ||
| F1 | 10 | Ceruvan block for external lightening on the hood |
| F5 | 15 | Exterior lighting block (left side) |
| F6 | 15 | Exterior lighting block (right side) |
