Toyota RAV4 5th generation was produced in 2019, 2020, 2021, 2022 and to the present, and has the designation CA50W / XA50W. In this post you can find a description of the fuses and relays of the Toyota RAV 4 5th generation with block diagrams, photographs and block locations. Note the cigarette lighter and headlight washer fuse.

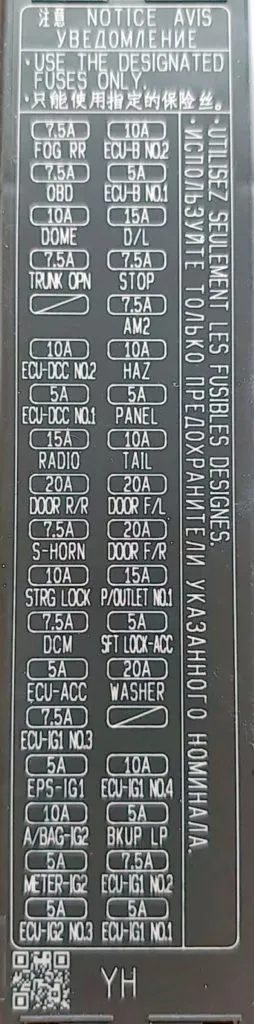

The purpose of fuses and relays, as well as their location in the blocks may differ from the one presented and depends on the year of manufacture, region of delivery and the level of electrical equipment of your Toyota Rav 4. The current diagram will be applied to the block cover.

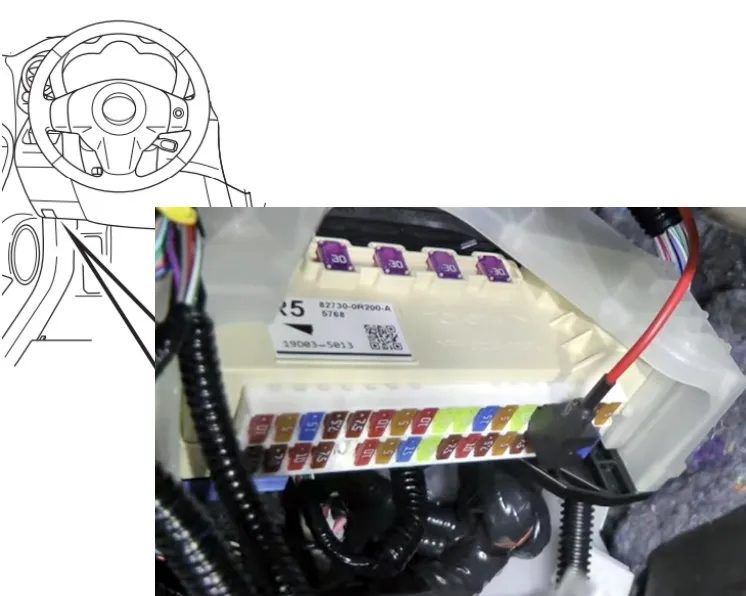

Block in the cabin
It is located on the left side under the instrument panel and is covered with a protective cover.
| FOG RR | Rear fog lights |
| ECU-B NO.2 | Key detection indicator, tire pressure sensor |
| OBD | Diagnostic connector |
| ECU-B NO.1 | Wireless control system, body electrical control unit, VSC, intelligent entry and start system, clock |
| DOME | Interior lighting, tailgate opening system, intelligent entry and start system, immobilizer, start system, steering wheel lock, wireless control system |
| D/L | Central lock |
| TRUNK OPEN | Trunk lock |
| STOP | Brake light bulbs |
| AM2 | Tailgate opening system, intelligent entry and start system, immobilizer, start system, steering wheel lock, wireless control system |
| ECU-DCC NO.2 | ABS, air conditioning, audio system, automatic lighting system, tailgate opening system, monitor, instrument cluster, cruise control, central locking, double locking, dynamic radar cruise control, engine control unit, intelligent entry and start system, EPS, front fog light, fuel filler flap, active air damper control system, headlights, headlight range control, hybrid system, lighting, immobilizer, intelligent parking system, interior lighting, lane keeping system, automatic turn signal off system, light buzzer, navigation, power windows, collision avoidance system, rear fog light, electric mirrors |
| HAZ | Alarm |
| ECU-DCC NO.1 | ABS, TRC, VSC |
| PANEL | VSC OFF switch, instrument cluster, BSM switch, 4WD switch, wiper rest zone heater switch, multiport fuel injection system/sequential multiport fuel injection system, parking assist systems, heated seat switches, power outlets, tailgate switch, air conditioning control unit, rear window defogger switch, audio system, steering wheel controls, cup holder lighting |
| RADIO | Audio system |
| TAIL | Side light, number plate light, fog light |
| DOOR R/R | Rear door window lifts |
| DOOR F/L | Front left door window lifts |
| S-HORN | Anti-theft system |
| DOOR F/R | Front right door window lifts |
| STRG LOCK | Steering wheel lock |
| P/OUTLET NO/1 | Socket, Cigarette Lighter |
| DCM | Telematics system |
| SFT LOCK-ACC | Gear selector lock |
| ECU-ACC | Accessories. Check |
| WASHERS | Glass washer |
| ECU-IG1 NO.3 | Blind Spot Monitoring |
| EPS-IG1 | Electric steering wheel |
| ECU-IG1 NO.4 | Dynamic radar cruise control, engine control unit, intelligent entry and start system, EPS, front fog light, fuel filler door, active air damper control system, headlights, headlight beam range control, hybrid system, lighting, immobilizer, intelligent parking system, interior lighting, lane keeping system, automatic turn signal off system, light buzzer, navigation, power windows, collision avoidance system, rear fog light, power mirrors, seat belt indicator, shift selector lock, sunroof, SRS, starting system, steering wheel lock, parking light, telematics system, anti-theft system, tire pressure monitoring system, TRC, turn signals (hazard warning), pedestrian warning system (noise generator), VSC, wireless charging system, wireless control system |
| A/BAG-IG2 | SRS, seat belt indicator |
| BKUP LP | Reversing lights, audio system, monitor, navigation |
| METER-IG2 | Measuring instruments |
| ECU-IG1 NO.2 | ABS, TRC, VSC |
| ECU-IG2 NO.3 | ABS, cruise control, dynamic radar cruise control, hybrid system, body control unit (CAN), gear selector lock, telematics system, TRC, pedestrian warning system (noise generator), VSC |
| ECU-IG1 NO.1 | Vehicle Stability Control, Electric Cooling Fans, Rear Window Defogger, Outside Rearview Mirror Defogger, Steering Wheel Sensor, Multi-Port Fuel Injection System/Sequential Multi-Port Fuel Injection System, Headlights (Low Beam), Battery Charging System, Blind Spot Monitor |
The fuse marked P/OUTLET is responsible for the operation of the cigarette lighter.
In the upper part of the block there are fuses responsible for the electric window lifts and electric seat drive.

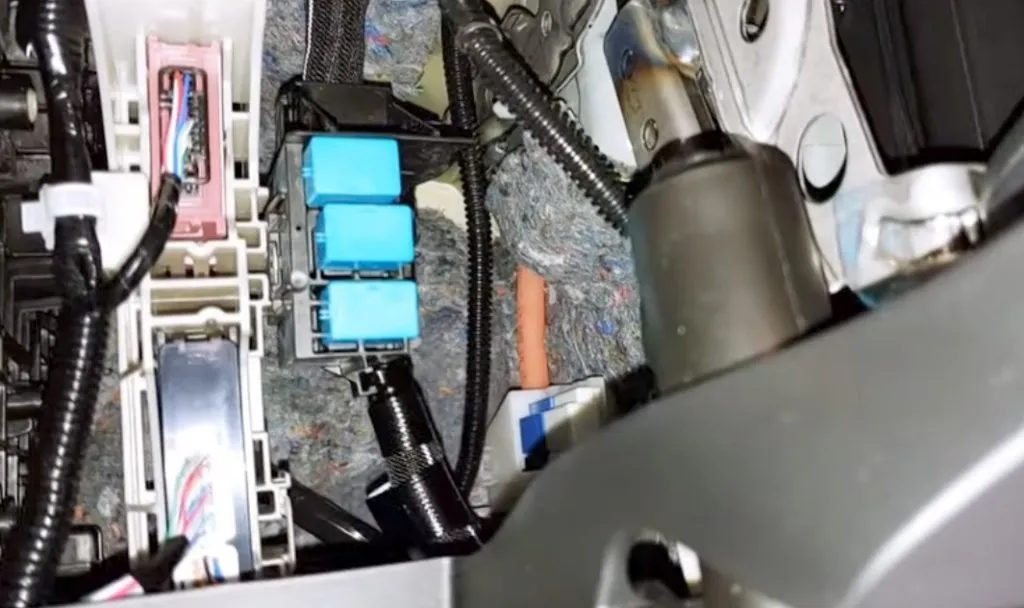

Some relays can also be installed separately behind the glove compartment.

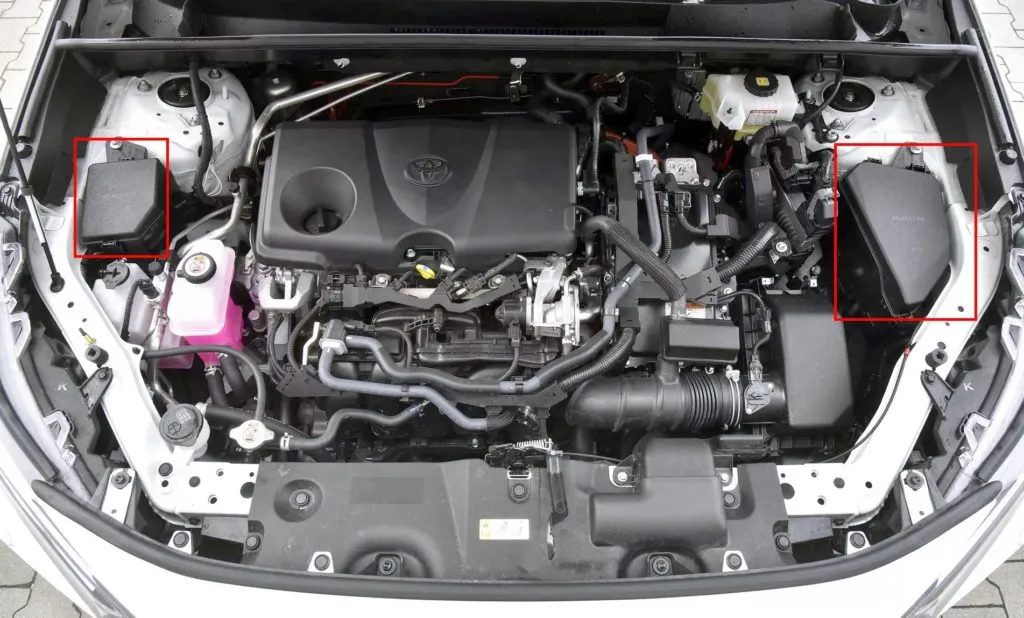

Blocks under the hood
Under the hood there are 2 blocks with fuses and relays.

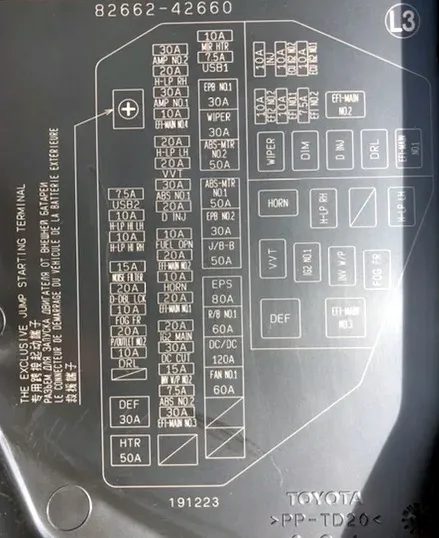

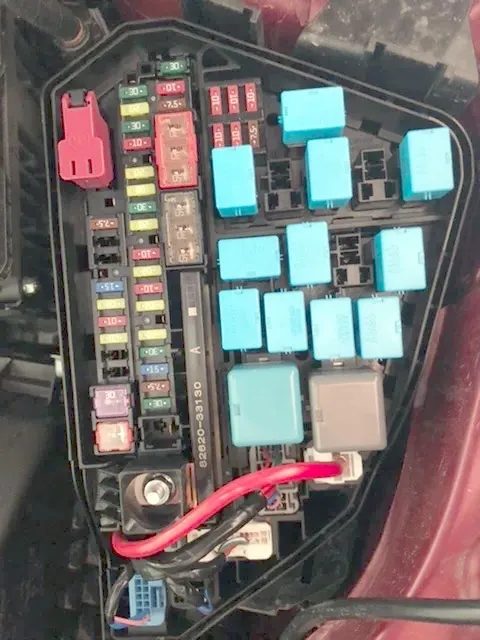

Fuse and relay box
Located on the left side.

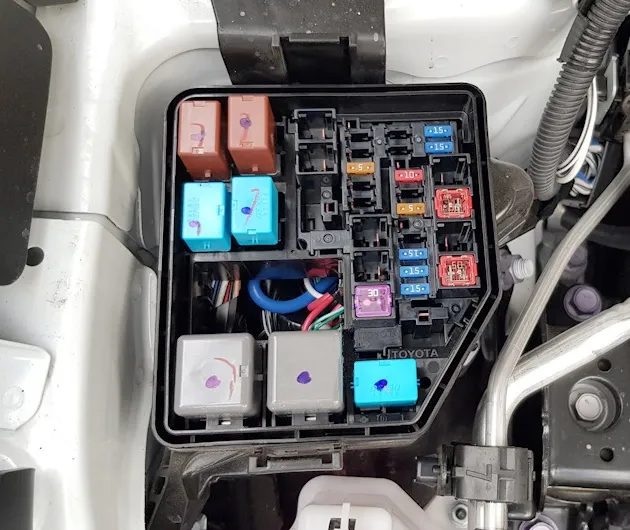

Relay block
Installed on the right side.

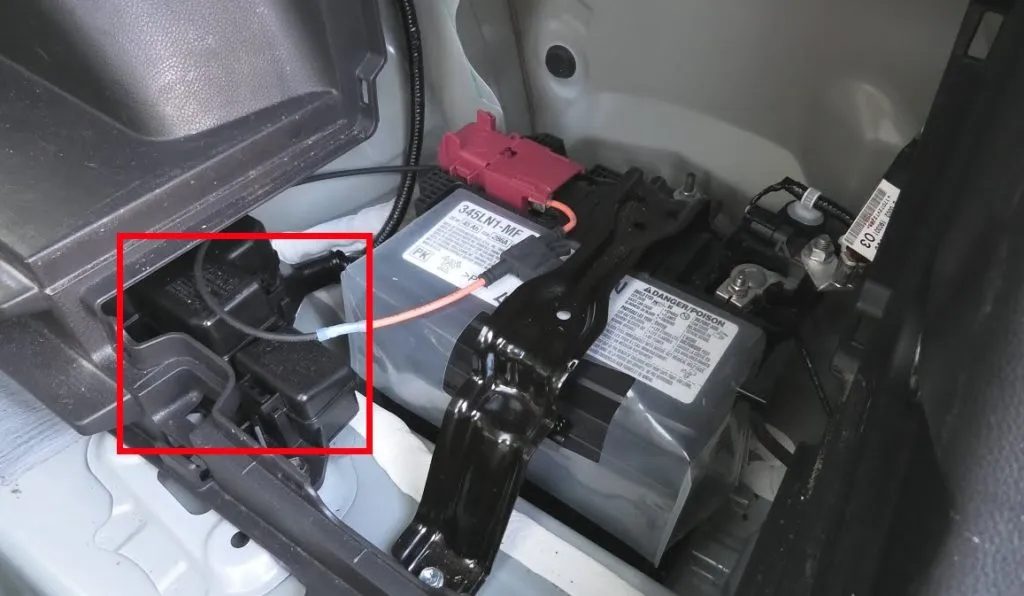

Block in the trunk
It is located in models where the battery is located in the right part of the luggage compartment behind the protective cover, mainly in hybrid models.
