The Peugeot 605 business class car was produced in 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 and 1999. During this period, the car underwent restyling. We will present a description of the Peugeot 605 fuse blocks, their diagrams and locations.

Please note that the number and location of fuses, as well as their rating, may differ from the one presented and depend on the equipment and year of manufacture of your car.

Block under the hood of a Peugeot 605

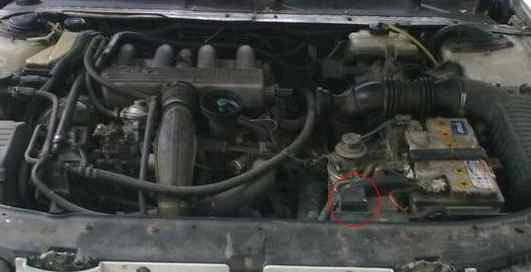

In the engine compartment, the unit is located under a protective cover.

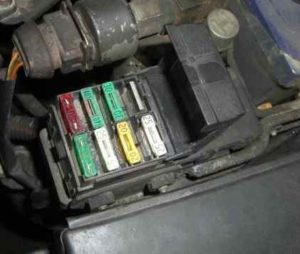

It looks something like this.

Appointment

2 fuses of 30 A: motor-fan group;
1 fuse of 20 A: compressor alarm;
1 fuse of 50 A: ABS system;
1 shunt: anti-lock braking system;
1 fuse of 30 A: spare.

Fuses in the passenger compartment

This block is located under the dashboard at the bottom. To access the large fuse box cover, turn the two fasteners a quarter turn to the side and remove it. There on the back, the current fuse diagram.

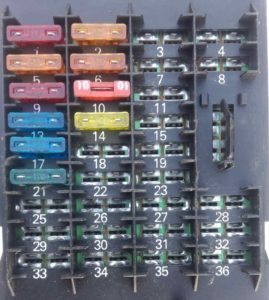

General scheme

Marking

  • F1 10A System ABR
  • F2 10A Brake lights, interior lighting, cruise control, ABS, telephone.
  • F3 5A Spare fuse.
  • F4 10A ABS control unit.
  • F5 10A Interior air temperature sensor. Lighting lamp, rear-view mirrors, clock or on-board computer, reading lamps,
    heater, coolant level sensor, remote control signal receiver, central locking, radiator fan relay, power windows. Sunroof.
  • F6 5A Fog lights.
  • F7 20A Spare.
  • F8 30A Spare.
  • F9 30A Glass lifts. Glass cleaner.
  • F10 10A License plate lights, front parking lights, warning signal about lights not turned off, switch illumination.
  • F11 15A Lambda probe heating.
  • F13 15A Emergency alarm. Telephone.
  • F14 5A Rear left side marker light, backlight control, radio, instrument panel lighting, heater switches, sunroof switch.
  • F15 15A Fuel pump.
  • F17 30A Seat heater.
  • F18 5A Rear right side marker light, clock or on-board computer, side marker light warning light, cigarette lighter illumination, interior lighting switches.
  • F19 15A Shock absorber stiffness control unit, cruise control unit.
  • F21 30A Front door glass lifters, sunroof.
  • F22 20A Headlight washers.
  • F23 15A Reversing lights, fuel filter condensate level sensor, power steering, fan and radiator fan thermal switch.
  • F25 30A Rear side door power window switches.
  • F26 20A Lighted up. Audible signal.
  • F27 10A Clock, trip computer, interior lighting, trunk lighting, fuel level indicator, door warning lights.
  • F28 Not used.
  • F29 30A Rear side door window switches on the driver’s panel.
  • F30 30A Front left seat position adjuster.
  • F32 20A Antenna.
  • F33 30A Rear window and door mirror heater.
  • F34 30A Central locking, locking, security alarm.
  • F35 30A Front right seat position adjuster.
  • F36 30A Air conditioning relay.

Fuse number 26 at 20A is responsible for the cigarette lighter.
