The 5th generation Ford Mondeo began to enter the European markets in 2015. In the USA, it has been produced since 2012 under the name Fusion. Therefore, we can say that this model was sold all over the world in 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020. During this time, the car was restyled twice. In our material you will find a description of the fuse blocks and relays of the Ford Mondeo 5 (USA Fusion). We will show the location of the blocks and their diagrams with photo examples of execution. We will separately highlight the fuses responsible for the cigarette lighter and tell you how to find out the factory code from the door for keyless access to the interior.

Please note that the number of elements in the blocks and their purpose may differ from yours and depends on the year of manufacture, equipment level and country of delivery. Check the purpose with your diagram on the back of the protective cover.

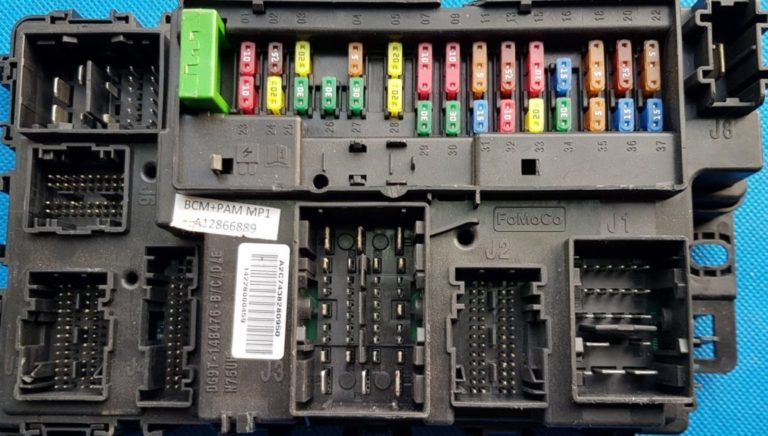

Cabin block

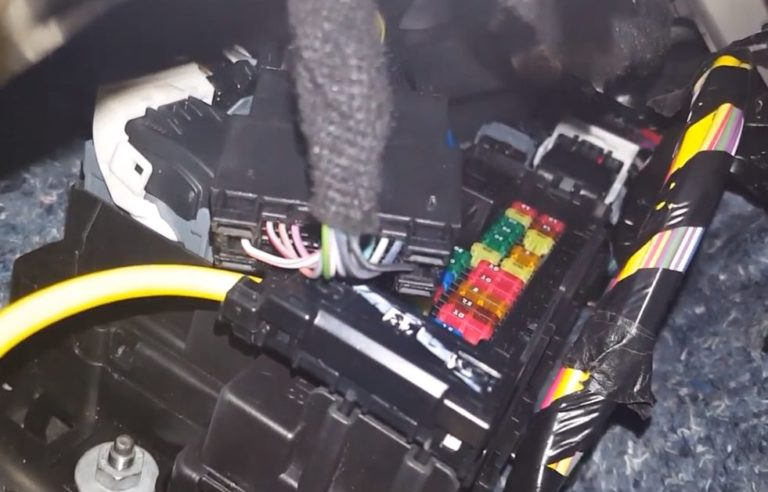

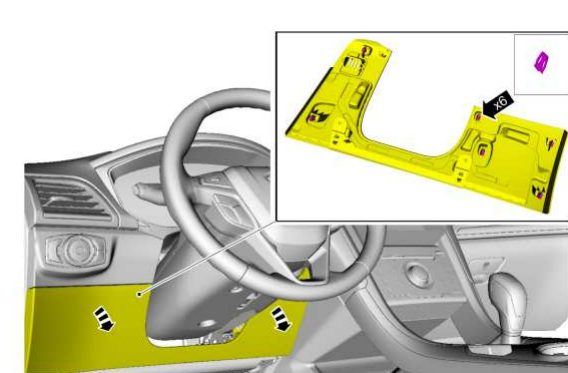

It is located on the instrument panel on the left side and is connected to the BCM (body control module). For comfortable access, you need to remove part of the protection.

Description

110A Backlight, glove box lamp, vanity mirror lamp, ceiling lamp, luggage compartment lamp.
27.5A Seat with memory function, lower support for the driver’s seat backrest, electrically adjustable exterior mirrors.
320A Unlocking the driver’s door.
45A Reserve
520A Subwoofer Amplifier
610A Reserve
710A Reserve
810A Anti-theft alarm sound signal
910A Reserve
105A Power tailgate module, keypad, mobile phone module
115A General Security Module
127.5A Climate control, gearbox
137,A Steering column, instrument panel, data connector
1410A Extended Power Module
1510A Data Channel Gateway
1615A Child lock, unlocking the luggage compartment lift window
175A Battery emergency power on beeper
185A Ignition switch, Push-button start/stop ignition switch
197.5A Passenger airbag off indicator, transmission
207.5A Headlight control module
215A Thermometer in the cabin.
225A Reserve
2310A Auxiliary equipment off delay power supply circuit
2420A Central locking
2525A Driver’s door and mirror
2630A Passenger door and mirror
2730A Luke
2820A Audio Amplifier
2930A Driver’s side rear door window
3030A Passenger side rear door window
3115A Reserve
3210A Global Positioning System module, voice control, display, radio
3320A Radio, noise control
3430A Start/stop bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker).
355A Airbag and seat belt system control module.
3615A Auto-dimming interior mirror, heated front and rear seats, lane departure warning system, automatic high beam. Climate-controlled seats.
3715A All-wheel drive module. Heated steering wheel.
3830A Reserve

How to find out the code from the door

4 ways to find out the factory code from the door (KEY CODE):

  1. Check the code in the documents on a separate card;

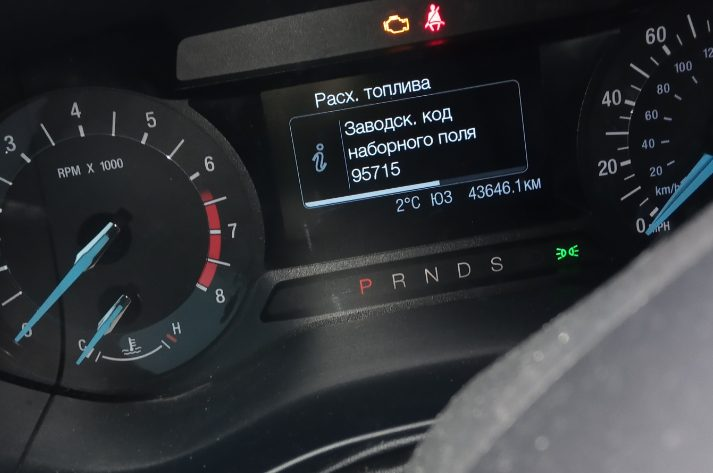

  2. You can find out the code if you have two keys with the car. Insert the first key, turn on the ignition (but do not start the car), hold for 4 seconds, remove the key, insert the second and do the same. The factory code will appear on the dashboard;
  3. If the previous two items are not present, then the factory code can be found under the fuse block on the back;
  4. Calculate from a computer using a diagnostic cable.

Block under the hood

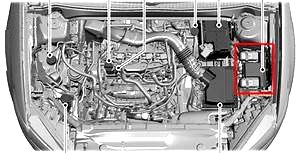

It consists of 2 compartments and is located on the left side, next to the rack and covered with a protective cover.

Upper section

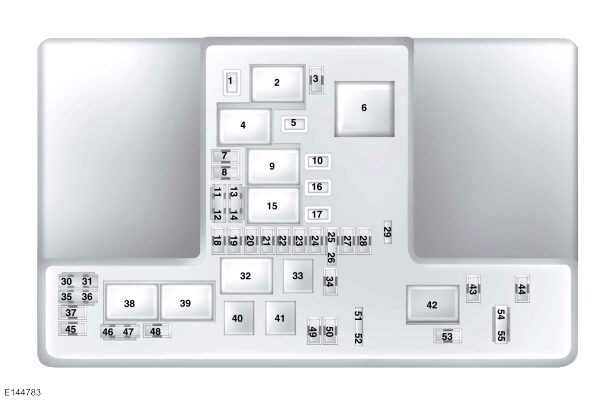

Scheme

Marking

125A Windshield wiper 30A Sunroof
2Starter relay
315A Automatic operation mode of windshield wipers, rain sensor, rear wipers
4Electric fan relay.
520A Auxiliary power outlet on the rear of the console
6Auxiliary heater relay
720A Powertrain Control Module
820A Powertrain Control Module
9Powertrain control module relay
1020A Front additional driver power sockets
1115A Powertrain Control Module
1215A Powertrain Control Module
1310A Powertrain Control Module
1410A Powertrain Control Module
15Run/Start Relay
1620A Auxiliary power outlet on console, cigarette lighter
1720A Additional power socket in the luggage compartment
1810A Powertrain Control Module
1910A Power steering
2010A Start/stop position lighting, cruise control
2115A Transmission control module, transmission oil pump
2210A Air conditioning system
2315A. Start/stop, blind spot warning system, rear view camera, adaptive cruise control, proximity warning signal, power quality module, air quality sensor
2410A Reserve
2510A Anti-lock braking system, ABS
2610A Powertrain Control Module.
2710A Reserve
2810A Rear window washer pump.
295A Air flow meter
30Reserve
31Reserve
32Cooling fan relay
33Air conditioning relay
3415A Electric steering column lock.
35Reserve
36Reserve
37Reserve
38Cooling fan relay
39Cooling fan relay
40Horn relay
41Horn relay
42Fuel pump relay
43Christmas
445A Heated washer sprayer.
45Reserve
4610A Generator
4710A Brake switch
4820A Audible signal
495A Air flow sensor 20A Diesel heating element
5010A Cooling system fan, junction box 20A Signal
51Reserve
52Reserve
5310A Electric seats.
545A Fuel-operated remote heater, 10A Brake switch
5510A ALT sensor

Fuses 17, 16, 10 and 5 at 20A are responsible for the operation of cigarette lighters and USB sockets.

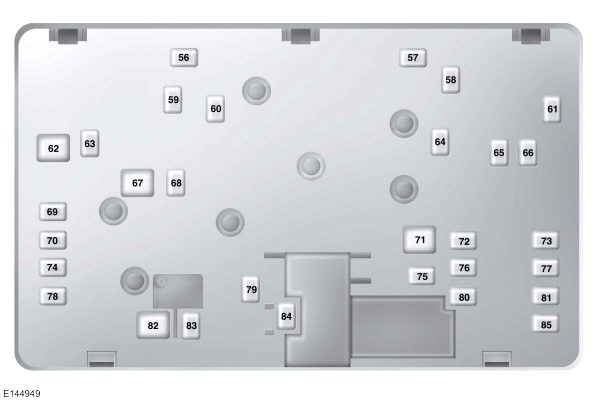

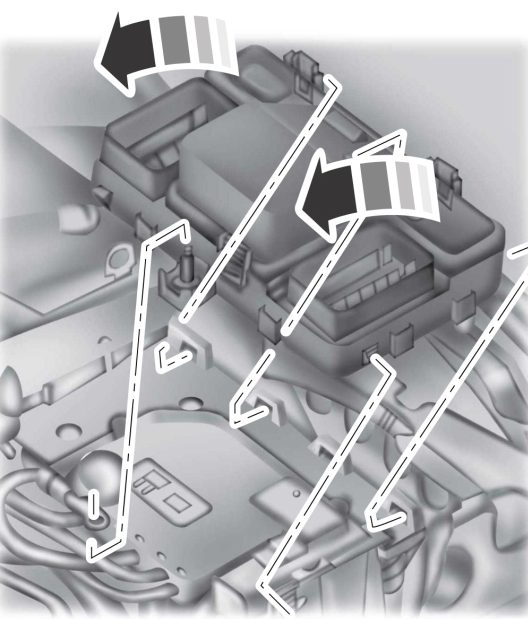

Lower section

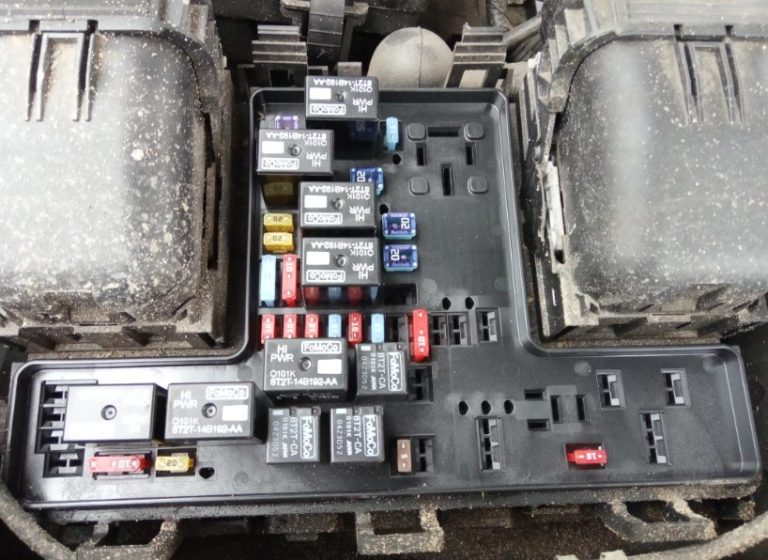

Access example

Appointment

5630A Fuel pump
5720A Diesel fuel evaporator
58Reserve
5930/40A Cooling system fan (DW10F and 2.0L GTDI AU)
6030/40A Cooling system fan (DW10F and 2.0L GTDI AU)
6140A Windshield heater (left side)
6250A Body systems control unit
6320/30A Cooling system fan (DW10F and 2.0L GTDI AU)
6430A Additional heater
6520A. Heated front seats
6640A Windshield heater (right side)
6750A Body systems control unit
6840A Heated rear window
6930A Anti-lock brake system
7030A Passenger seat
7160A Additional heater
7220A Fuel pump 30A Sunroof
7320A Rear heated seat
7430A Driver seat module
7530A Additional heater
7620A Transmission oil pump
7730A Climate-controlled seat module
7840A Trailer Towing Module
7940A Electric blower fan.
8030A Power module in the luggage compartment.
8140A Inverter 220V.
8260A Anti-lock brake system pump.
8325A Electric cleaner motor
8430A Starter Solenoid.
8520A Fuel heater 60A Anti-lock brake system pump
