Chrysler PT Cruiser Fuses (2006-2010)

This material provides a detailed look at the fuse diagrams of the Chrysler PT Cruiser (first generation; restyling): 2006, 2007, 2008, 2009 and 2010 .

Fuses #11 and #16 are responsible for the cigarette lighter and sockets.

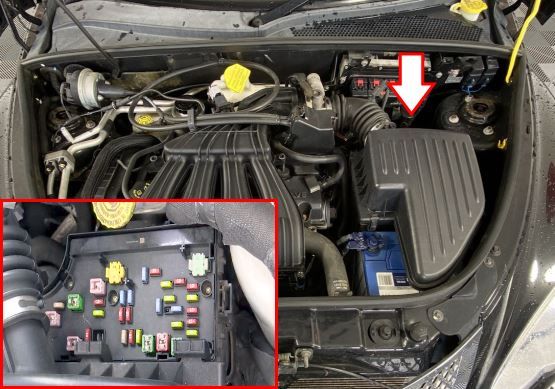

In the engine compartment

Located next to the air cleaner unit, under the protective cover.

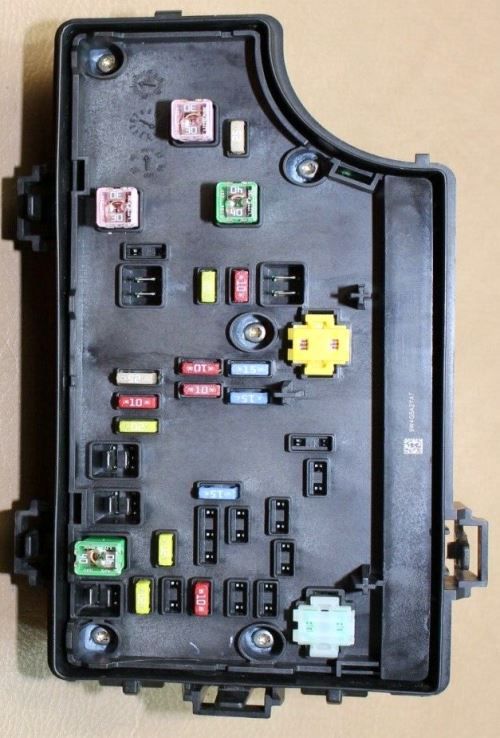

Photo – example.

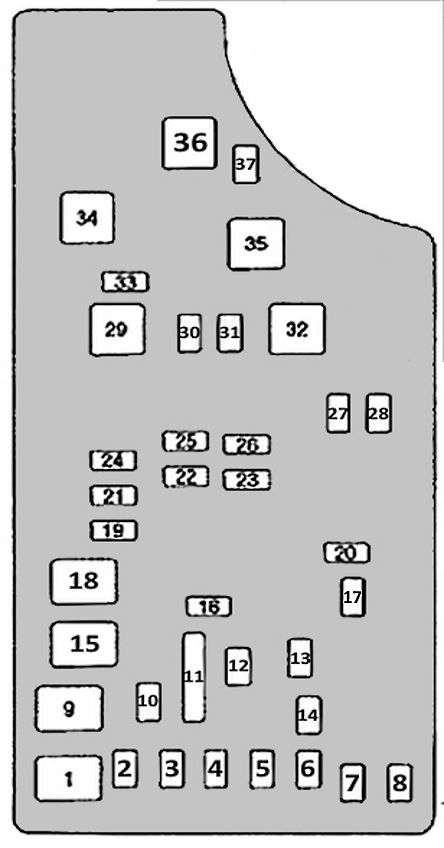

Scheme

No.	Description	Current, A
Type “Cartridge”
1	Convertible only: Power Top roof module	40 A
9	Power seats	40 A
15	Radiator Fan Relay – Battery Powered	50 A
18	Main Relay (Automatic Shutdown) – Contact Power Supply	40 A
32	ENG ASD Control Feed 1	30 A
34	Anti-lock Braking System – Valves	30 A
35	Anti-lock Braking System – Pump	40 A
36	Headlight washer control	30 A
Type “Mini”
2	All wheel drive – ECU	20 A
3	Center High Mounted Brake Lights / Brake Switch Power Supply	10 A
4	Ignition switch	10 A
5	Trailer connector	20 A
6	Ignition switch, power mirrors, occupant detection module, steering control module, satellite audio digital receiver, Hand Free system	10 A
7	Ignition switch sensor #1	30 A
8	Ignition switch sensor #2	30 A
10	Cabin compartment unit, power locks	20 A
11	Socket, cigarette lighter fuse Chrysler PT Cruiser	15 A
12	Inverter	20 A
13	rear socket	20 A
14	interior lighting	10 A
16	Hatch, Ignition, Cigarette Lighter	15 A
17	IOD Feed CVT Mod/Mod_Wcm	10 A
19	Audio amplifier #1 and #2	20 A
20	Ignition Off-Draw – Radio	15 A
21	Ignition Off-Draw – Anti-Theft Module, Alarm	10 A
22	Air conditioning, heating and ventilation. Compass sensor	10 A
23	Main Relay – Power #3	15 A
24	Luke	25 A
25	Heated mirror	10 A
26	Main Relay – Power #2	15 A
27	Passive safety system controller	10 A
28	Occupant Presence Recognition Module, Passive Safety System Controller	10 A
29	Not used	–
30	Heated seats	20 A
31	Headlight Washer Relay Control Unit	10 A
33	Anti-lock brake system MOD, diagnostic connector J1962, powertrain control module	10 A
37	Reserve	25 A
