Nissan Leaf is one of the first serial electric cars of Nissan company. It was produced in 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020. In this material we will show the location of the fuse boxes in Nissan Leaf, their photos and purpose. Separately, we will note the fuse responsible for the cigarette lighter.

Depending on the configuration and delivery region, different designs and placement of units are possible. In case of difficulty, contact the dealer.

Fuse box in the passenger compartment

It is located behind the cover in the front pillar. On the back side there will be an up-to-date diagram describing the purpose.

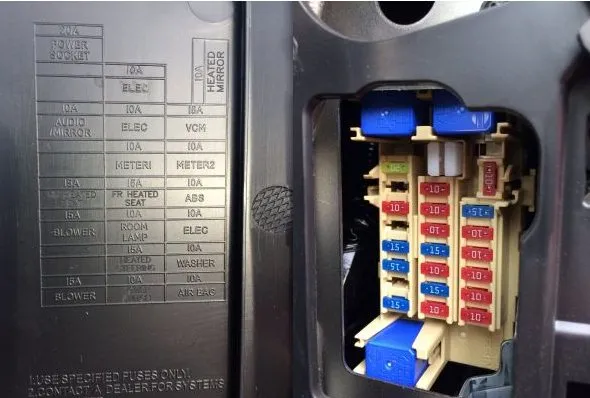

Photo – diagram

  • 20A – socket / cigarette lighter
  • –
  • 10A – Audio system / mirror
  • –
  • 15A – Parking/braking systems
  • 15A – Fan
  • –
  • 15A – Fan
  • 10A – Electrical components
  • 10A – Electrical components
  • 10A – Measuring instruments
  • 15A – Seat heating
  • 10A – Interior light
  • 15A – Steering control heater
  • 10A – Switch
  • 10A – Heated mirrors
  • 15A – External light
  • 10A – Measuring instruments
  • 10A – ABS
  • 10A – Electrical components
  • 10A – Washer
  • 10A – Airbags

The fuse for the cigarette lighter is marked as Power Socket 20A. At the very top left.

Blocks under the hood

Block 1

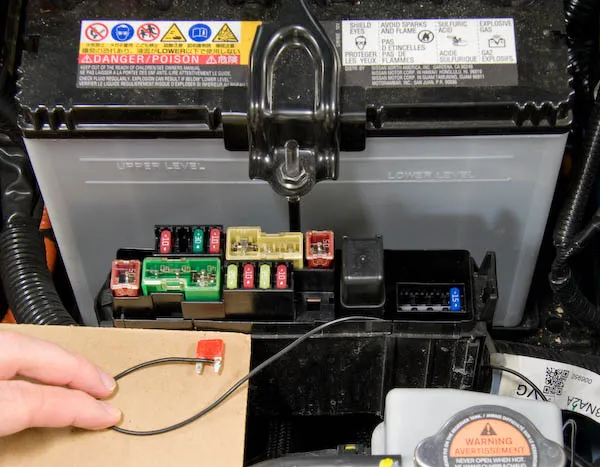

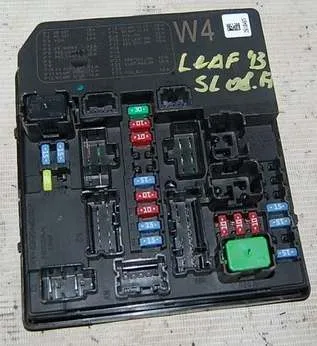

Photo of the block

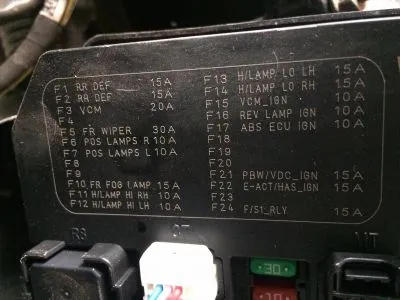

Current description and purpose on the inside of the lid.

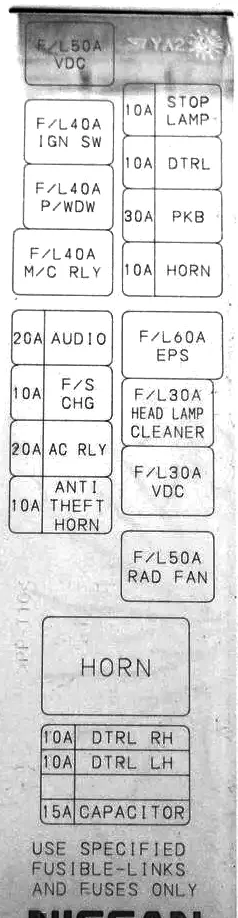

Example of a diagram

  • HORN – signal
  • HEAD LAMP CLEANER – headlight cleaner
  • RAD FAN – radiator fan
  • DTRL – headlight control system
  • (A/C) – Air Conditioner – air conditioner

Block 2

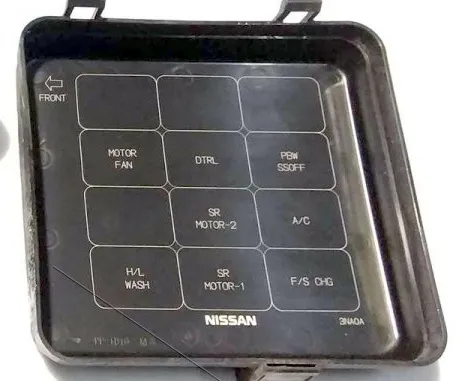

The purpose of the elements will be located at the top.

Block 3

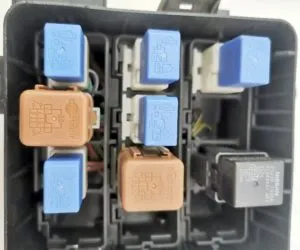

This block with a relay is usually installed on the right side of the engine compartment.

SR MOTOR RLY – Starter Relay
