Nissan Teana has been produced since 2003 to the present. J31 , the first generation, was produced in 2004, 2005, 2006, 2007 and 2008. The second generation j32 in 2009, 2010, 2011, 2012 and 2013. The third generation j33 was produced in 2014, 2015, 2016, 2017, 2018, 2019. Each of them underwent restyling. In our material you will find a description of the fuses and relay blocks of the Nissan Teana for all generations of the car, as well as their photos and diagrams. We note the fuse responsible for the cigarette lighter.
Depending on the configuration, year of manufacture and country of delivery, there may be differences in the blocks. Check the current description with yours on the back of the protective cover.
j31

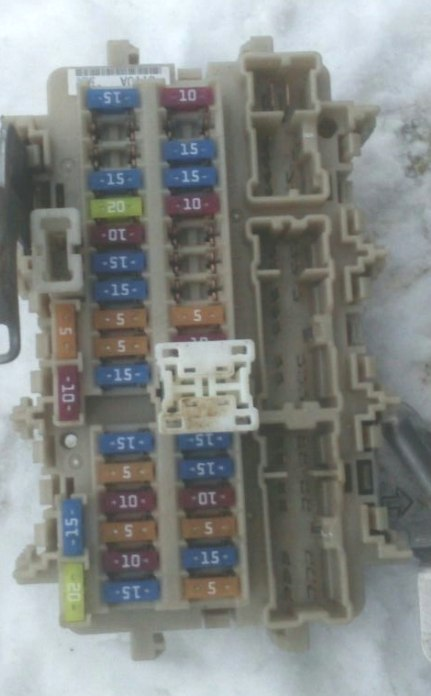

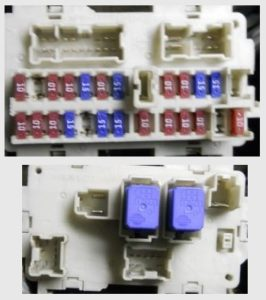

Cabin block
It is located behind the glove box.

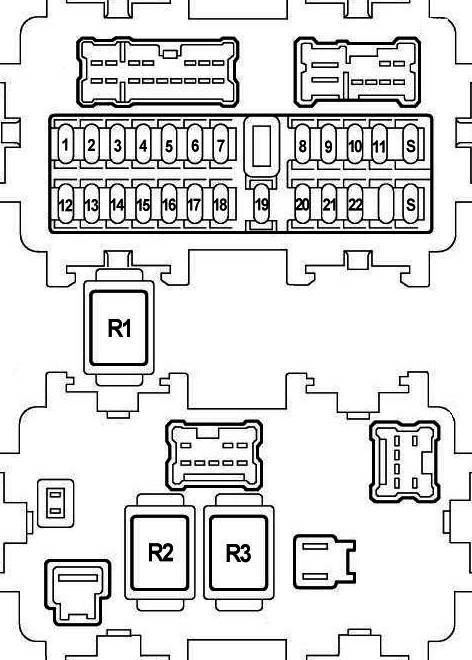

General scheme
Description
| 1 | 10A Engine control unit |
| 2 | 10A Starter signal |
| 3 | 10A Seat heating |
| 4 | 10A Audio system |
| 5 | 15A Socket |
| 6 | 10A Heated mirrors, electric mirrors, keyless entry, air conditioning, headlight range control, rear fog light, front fog lights, instrument cluster illumination, antenna, headlight washer, audio system, combination switch, taillights, AV module |
| 7 | 15A Cigarette lighter |
| 8 | 10A Heated seats, air conditioning |
| 9 | 10A Seat memory |
| 10 | 15A Air conditioner |
| 11 | 15A Air conditioner |
| 12 | 10A Cruise control, diagnostic connector, speed sensor, gear selector, gear indicators, Vehicle Dynamic Stability Control (VDC), keyless entry, Nissan Anti-Theft System (NATS), Adaptive Lighting System (AFS), rear curtain, buzzer, instrument panel illumination, instrument cluster, audio system, heated rear window, heated seats, headlight range control, taillights, air conditioning |
| 13 | 10A SRS |
| 14 | 10A Instrument cluster: instrument panel illumination, buzzer, transmission indicators, transmission selector (PNP), cruise control, diagnostic connector, manual transmission mode (CVT), ABS, vehicle dynamic control system (VDC), SRS, keyless entry, rear curtain, charging system, headlights, front fog lights, rear fog light, turn signals and hazard warning lights, tail lights, reverse lights, AV module |
| 15 | 15A Seat ventilation, headlight washer, windshield washer |
| 16 | Not used |
| 17 | 15A Central locking, cruise control, diagnostic connector, transmission control unit, transmission oil temperature sensor, engine control unit, transmission selector, continuously variable transmission (CVT), Vehicle Dynamic Stability Control (VDC), keyless entry, Nissan Anti-Theft System (NATS), trunk lock, power windows, sunroof, heated rear window, electric seats, seat memory, headlight range control, headlights, front fog lights, rear fog light, turn signals and hazard warning lights, combination switch, rear instrument switch, instrument cluster, interior lighting, buzzer, transmission indicators, AV module |
| 18 | 15A Gear selector, central locking, keyless entry, Nissan Anti-Theft System (NATS), seat memory, interior lighting, buzzer |
| 19 | 10A Engine mounts, diagnostic connector, manual transmission (CVT), Vehicle Dynamic Stability Control (VDC), keyless entry, Nissan Anti-Theft System (NATS), air conditioning, taillights, instrument panel illumination, instrument cluster, buzzer, AV module, transmission indicators |
| 20 | 10A Brake lights, brake light switch, cruise control, vehicle dynamic stability control (VDC), ABS, gear selector |
| 21 | 10A Interior lighting, sun visor mirror illumination |
| 22 | 10A Gas tank cap |
| S | Spare fuse |
Fuse number 7 at 15A is responsible for the cigarette lighter.
-
- R1 – Seat heating relay
- R2 – Heater relay
- R3 – Auxiliary equipment relay

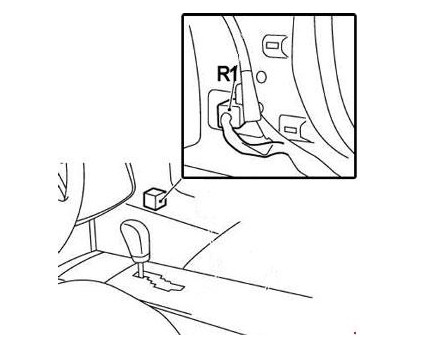

Separately, on the right side there may be a rear window heating relay.

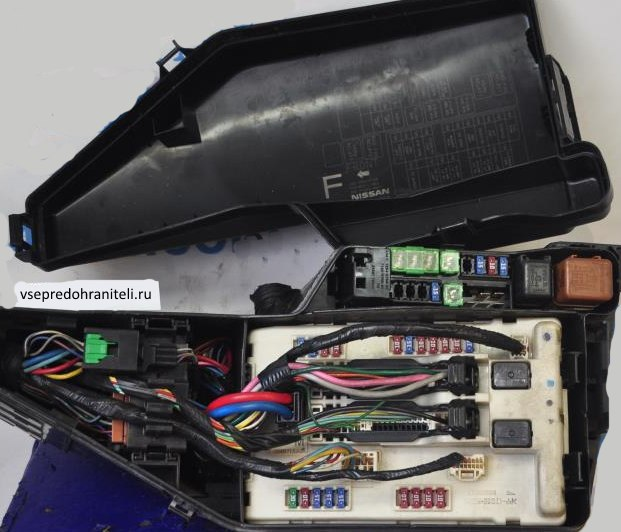

Blocks under the hood
In the engine compartment there are 2 main blocks with relays and fuses, and fuse inserts on the positive terminal of the battery.

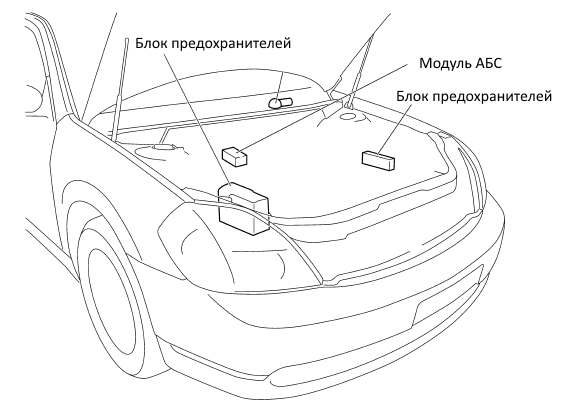

Block layout diagram

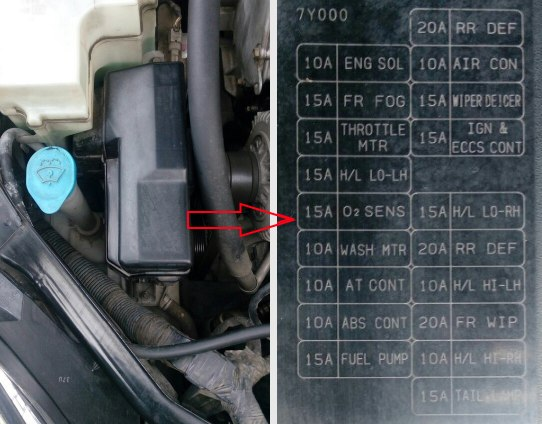

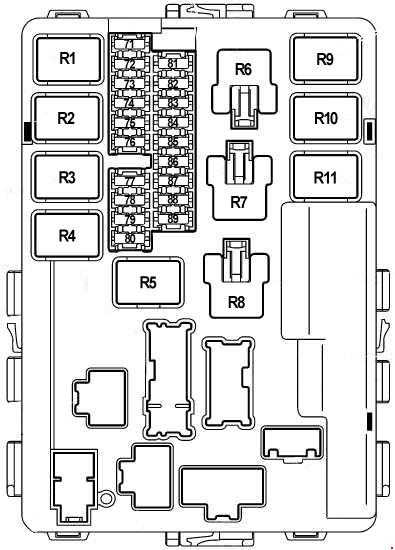

Block on the right
Located next to the barrel of washing liquid.
Scheme
Purpose of elements
| Fuses | |
| 71 | 15A Side marker lights |
| 72 | 10A High beam right side |
| 73 | 20A Slag Relay |
| 74 | 10A High beam left side |
| 75 | 20A Heated rear window |
| 76 | 10A Right-hand dipped beam |
| 77 | 15A Main relay, engine control unit, Nissan Anti-Theft System (NATS) |
| 78 | 15A Fuse and relay block |
| 79 | 10A Air conditioner relay |
| 80 | Not used |
| 81 | 15A Fuel pump relay |
| 82 | 10A Anti-lock braking system (ABS), Vehicle Dynamic Control (VDC) |
| 83 | 10A Engine control unit, speed sensor, transmission control unit, transmission oil temperature sensor, RPM sensor (CVT), starter |
| 84 | 10A Windshield wiper and washer |
| 85 | 15A heated oxygen sensor |
| 86 | 15A Low beam on the left side |
| 87 | 15A Throttle |
| 88 | 15A Front fog lights |
| 89 | 10A Engine control unit |
| Relay | |
| R1 | Main relay |
| R2 | Headlight high beam relay |
| R3 | Headlight low beam relay |
| R4 | Starter relay |
| R5 | Ignition relay |
| R6 | Cooling system fan relay 3 |
| R7 | Cooling system fan relay 1 |
| R8 | Cooling system fan relay 2 |
| R9 | Throttle valve relay |
| R10 | Fuel pump relay |
| R11 | Fog light relay |

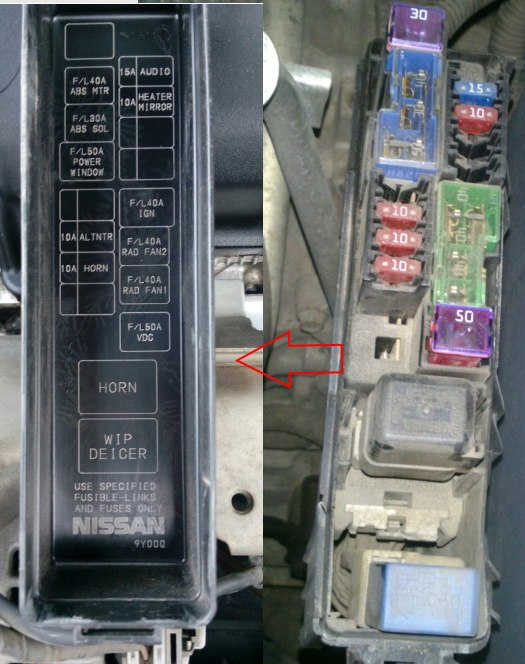

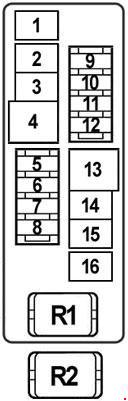

Block on the left
Located next to the battery.
Scheme
Marking
| 1 | 30A Headlight washer |
| 2 | 40A Anti-lock braking system (ABS), Vehicle Dynamic Control (VDC) |
| 3 | 30A Anti-lock braking system (ABS) |
| 4 | 50A Power windows, central locking, heated rear window, sunroof, keyless entry, Nissan Anti-Theft System (NATS), seat memory, seat ventilation, headlights, headlight range control, front fog lights, rear fog light, turn signals and hazard warning lights, rear switch, instrument panel illumination, instrument cluster, interior lighting, buzzer, transmission indicators, headlight washer |
| 5 | Not used |
| 6 | 10A Generator |
| 7 | 10A Audible signal |
| 8 | 10A Adaptive Lighting System (AFS) |
| 9 | 15A Audio system |
| 10 | 10A Rear window heating relay, mirror heating |
| 11 | Not used |
| 12 | Not used |
| 13 | 40A Ignition switch |
| 14 | 40A Cooling system fan |
| 15 | 40A Cooling system fan |
| 16 | 50A Vehicle Dynamic Stability Control (VDC) system |
- R1 – Horn relay
- R2 – Slag cleaner relay

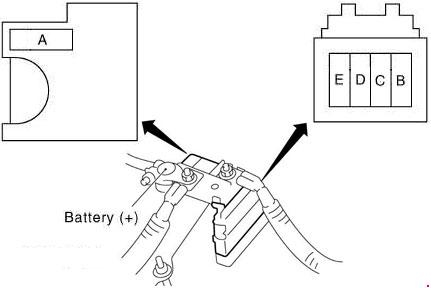

High power fuses
They are located on the positive terminal of the battery.
- A – 120A Generator, fuses: B, C
- B – 80A Fuse block in the engine compartment (#2)
- C – 60A High beam headlight relay, low beam headlight relay, fuses: 71, 75, 87, 88
- D – 80A Fuses: 17, 18, 19, 20, 21, 22 (passenger compartment fuse box)
- E – 100A Ignition relay, fuses: 77, 78, 79 (engine compartment fuse block (#1))
j32

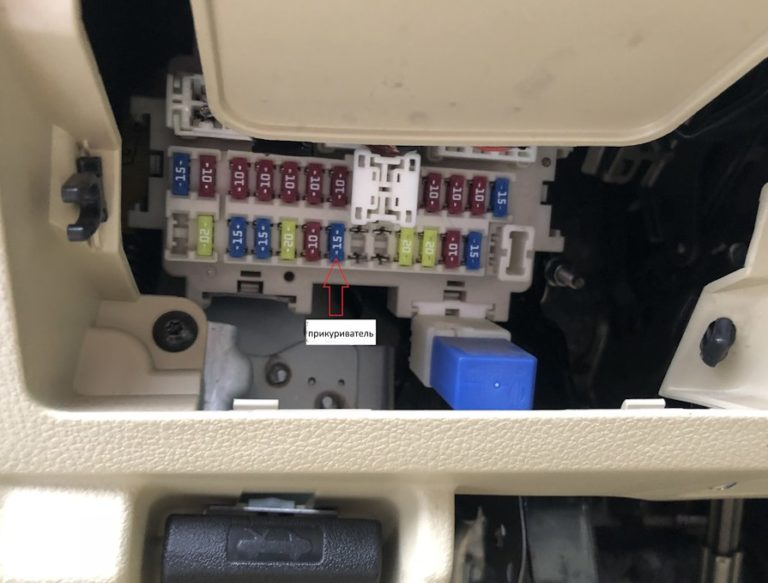

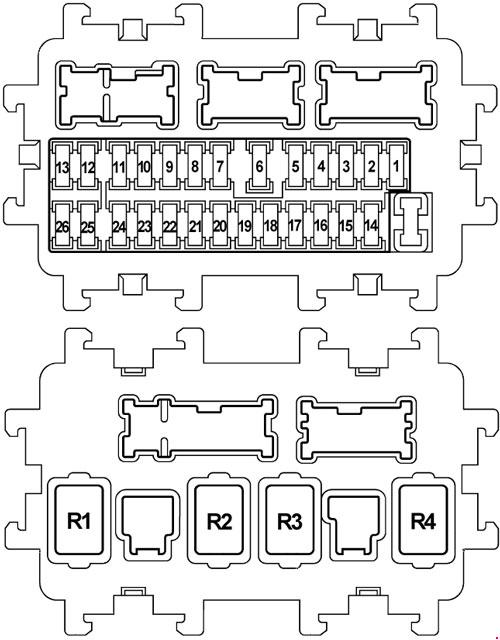

Cabin block
Located in the instrument panel, behind the glove box.
Scheme
Description
| 1 | 15A Heated front seats |
| 2 | 10A Airbags |
| 3 | 10A ASCD switch, Brake light switch, Headlight leveling switch, Diagnostic connector, Air conditioning control unit, Steering angle sensor, Body control unit (BCM), Seat heating switch, Gas sensor, Ionizer, Rear curtain, Ventilation switch Rear seat ventilation switch, Seat ventilation unit, Engine mounts |
| 4 | 10A Instrument cluster, Gear selector, Reverse lamp relay, AV module |
| 5 | 10A Gas tank cap |
| 6 | 10A Diagnostic Connector, Air Conditioner, Key Connector, Key Buzzer |
| 7 | 10A Brake lights, Body Control Module (BCM) |
| 8 | Not used |
| 9 | 10A Key socket, Start button |
| 10 | 10A Seat memory, Body control module (BCM) |
| 11 | 10A Instrument panel Transmission control unit |
| 12 | Spare fuse |
| 13 | Spare fuse |
| 14 | Not used |
| 15 | 10A Heated mirrors, Air conditioning |
| 16 | Not used |
| 17 | 20A Heated rear window |
| 18 | Not used |
| 19 | Not used |
| 20 | Cigarette lighter |
| 21 | 10A Audio system, Display, BOSE audio system, Body control module (BCM), Multifunction switch, DVD player, Mirror switch, AV module, Navigation unit, Camera, Rear passenger switch unit, Air conditioner |
| 22 | 15A Socket |
| 23 | 15A Heater relay |
| 24 | 15A Heater relay |
| 25 | Spare fuse |
| 26 | Not used |
Fuse number 20 at 15A is responsible for the cigarette lighter.
- R1 – Ignition relay
- R2 – Rear window heating relay
- R3 – Auxiliary equipment relay
- R4 – Heater relay
Blocks under the hood
The two main units are on the left, under a protective cover.

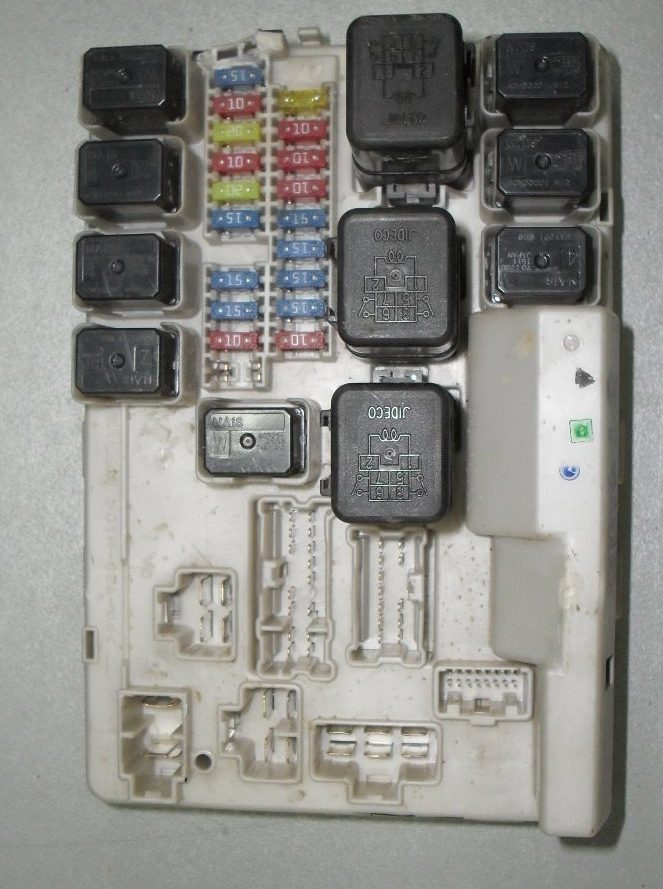

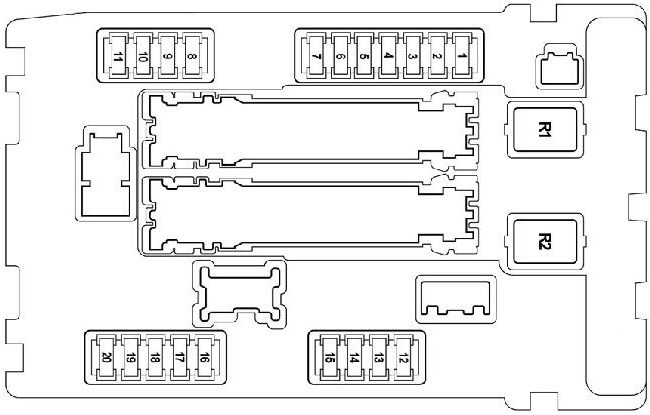

Block 1
Scheme
Transcript
| 1 | 15A Fuel pump relay, Fuel pump with fuel level sensor |
| 2 | 10A Cooling system fan relay 2.3 Gear selector |
| 3 | 10A Speed sensor (primary, secondary), Transmission control unit |
| 4 | 10A Engine control unit, Injectors |
| 5 | 10A Prowl sensor, ABS |
| 6 | 15A Lambda probe, heated oxygen sensor. |
| 7 | 10A Washer pump |
| 8 | 10A Steering column |
| 9 | 10A Air conditioner relay, Air conditioner fan |
| 10 | 15A Ignition coils, VIAS solenoid valve 1,2, Timing phase control solenoid valve, Condenser, Engine control unit, Mass air flow sensor, Adsorber purge solenoid valve |
| 11 | 15A Engine control unit, Throttle valve |
| 12 | 10A Headlight leveling, Front parking lights |
| 13 | 10A Rear parking lights, Interior lighting, License plate lighting, Glove box lighting lamp, Rear curtain switch (front/rear), Rear passenger switch block, Seat ventilation switch, Seat heating switch, Door handle connection, Air conditioning, Trunk release button, Multifunction switch, Combination switch, Hazard warning switch, Audio system, AV module, Backlight control, DVD player, Headlight leveling, Navigation unit, Mirror switch |
| 14 | 10A High beam on the left side |
| 15 | 10A High beam on the right side |
| 16 | 15A Low beam on the left side |
| 17 | 15A Right-hand dipped beam |
| 18 | 15A Front fog lights |
| 19 | Not used |
| 20 | 30A Scum cleaner |
- R1 – Cooling system fan relay 1
- R2 – Starter relay
Block 2
Scheme
Appointment
| 1 | 40A Cooling system fan |
| 2 | 40A Ignition relay, Fuse and relay box, Fuses: 1, 2, 3, 4 (passenger compartment fuse box) |
| 3 | 40A Cooling system fan relay 2.3 |
| 4 | 40A Headlight washer |
| 5 | 15A Rear seat ventilation |
| 6 | 15A Audible signal |
| 7 | 10A Generator |
| 8 | 15A Front seat ventilation |
| 9 | Not used |
| 10 | 15A Audio system |
| 11 | 15A Bose audio system |
| 12 | 15A Audio system, Display, DVD player, AV module, Navigation unit, Camera |
| 13 | 40A Body Control Module (BCM) |
| 14 | 40А ABS |
| 15 | 30А ABS |
| 16 | 50А VDC |
- R1 – Horn relay
- R2 – Cooling system fan relay

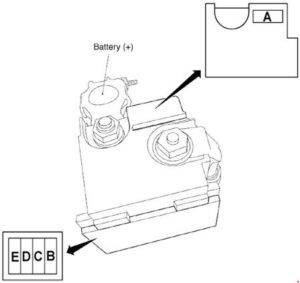

High power fuses
They are placed on the positive terminal of the battery.
Scheme
Transcript
- A – 250A Starter, Alternator, Fuse No. B, C
- B – 100A Fuse block in the engine compartment (#2)
- C – 60A Front fog lights, High beam headlight relay, Low beam headlight relay, Side light relay, Fuses: 18 – front fog lights, 20 – wiper (fuse block in engine compartment (No. 1))
- D – 100A Heater relay, Rear window heating relay, Fuses: 5, 6, 7, 9, 10, 11 (passenger compartment fuse box)
- E – 80A Ignition Relay, Fuses: 8, 9, 10, 11 (engine compartment fuse block (#1))
Maintenance and repair manual
More information about car repair and maintenance can be found in the maintenance and repair manual: “ download ”
j33

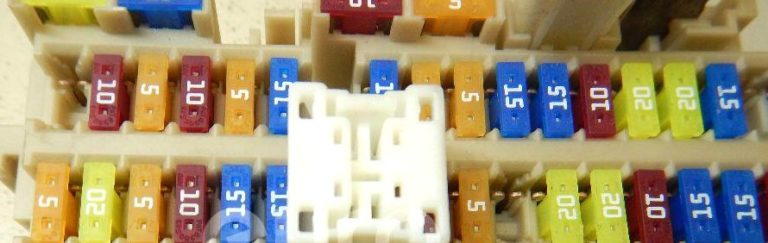

Cabin block
Located on the dashboard, as in previous generations. See the image for an example of access.

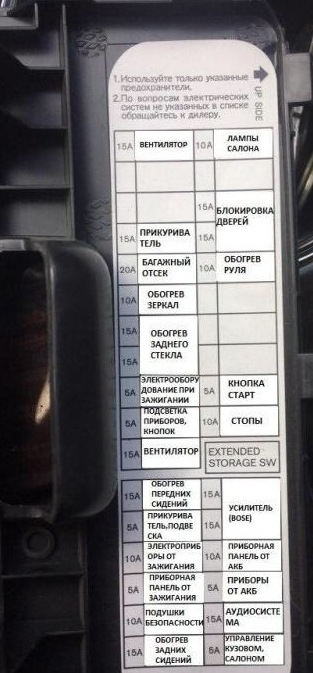

Check the designation with yours, on the back of the cover. Because different versions of the unit are possible. A 20A fuse is responsible for the cigarette lighter and there may be several.
There are also some relay elements on the back.
Blocks under the hood
They are located on the left of the engine compartment, next to the battery.

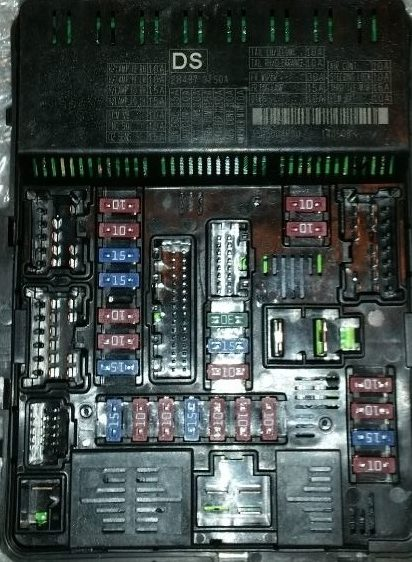

Block 1

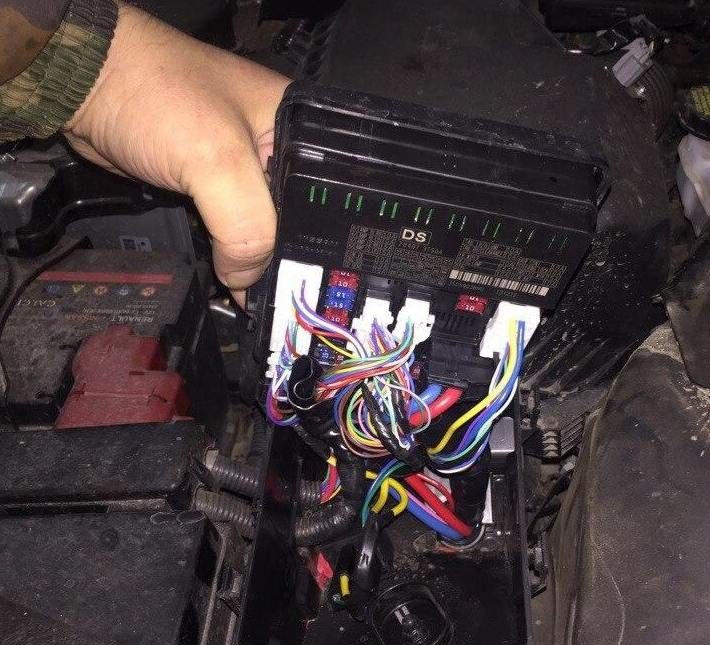

Access to the block

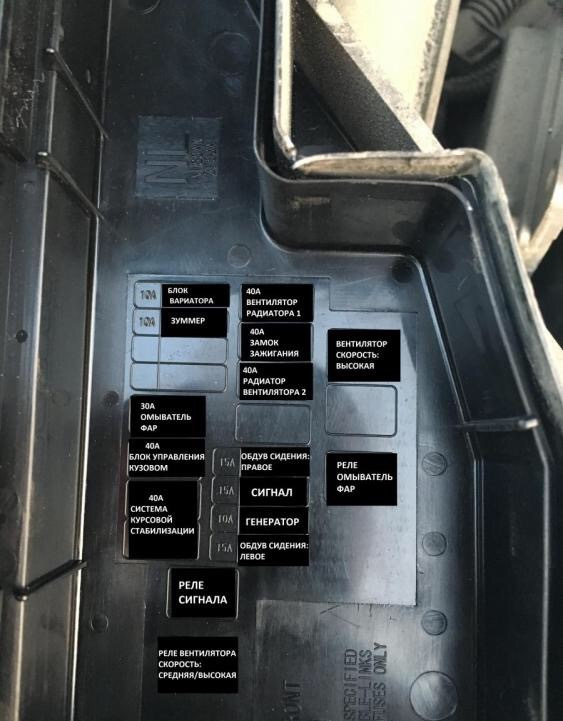

Block 2

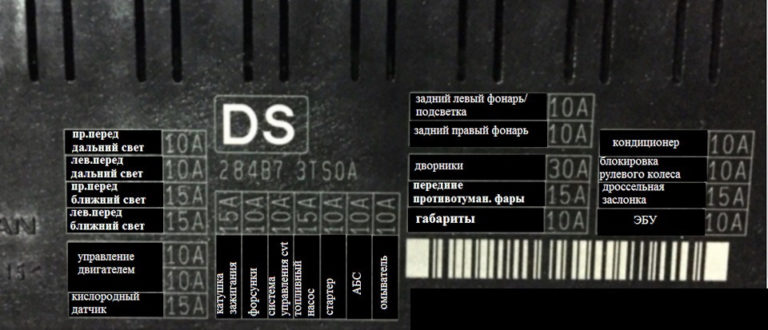

Translation of the designation
There will also be high-power fuses in the form of fuse links on the positive terminal of the battery
