Chrysler Sebring and Dodge Stratus (2001, 2002, 2003, 2004, 2005, 2006) Fuse Box Diagram and Relay Box.

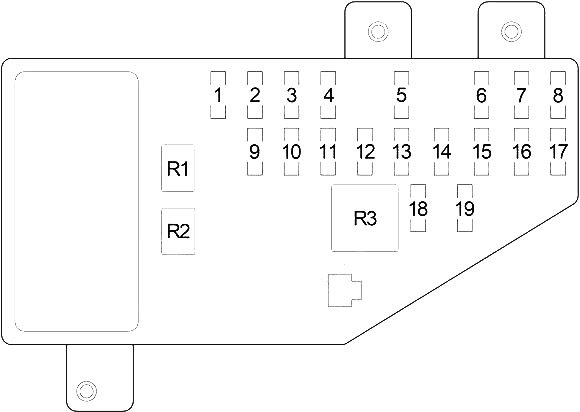

Fuse box in the passenger compartment

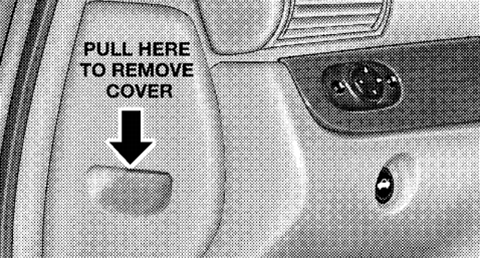

The fuse access panel is located behind the end cap on the left side of the instrument panel. To remove the panel, pull it as shown.
| No. | A | Protected component |
|---|---|---|
| 1 | 30 | Supercharger Motor Control (MTC), Supercharger Motor Control (ATC) Power Module |
| 2 | 10 | High Beam, Right Headlight (USA), Daytime Running Light Module (USA), Right Lapel Module (Export) |
| 3 | 10 | High Beam, Left Headlight (USA), Left Lapel Module (Export) |
| 4 | 15 | ABS, Reverse Light Switch (M/T), Transmission Range Sensor (A/T), Daytime Running Light Module, Driver/Passenger Door Lock Switch, Power Mirror Switch, Brake Shift Lock Solenoid, Automatic Temperature Control (ATC) Head, Compass/Mini Trip Computer |
| 5 | 10 | Data Connector, Dome Lamp, Power Mirror Switch, Driver/Passenger Door Lock Switch, Driver/Passenger Cylinder Lock Switch (VTSS), Body Control Module, Glove Box Lamp, Radio, Automatic Temperature Control Head (ATC), Compass/Mini-Trip Computer, Luggage Compartment Lamp, Power Antenna (Export), Rear Auxiliary Lamp, Upper Map/Auxiliary Lamp, Left/Right Vanity Lamp |
| 6 | 10 | Heated mirror, air conditioner heater control |
| 7 | 20 | Multi-function switch (headlamp switch (headlamp leveling switch (export), body control module, parking/turn signal lamp (USA), left/right lapel module (export), tail/brake/side marker lamp/turn signal lamp, license lamp), instrument cluster |
| 8 | 20 | Horn relay, sound amplifier |
| 9 | 15 | Door lock motors (body control unit) |
| 10 | 20 | Daytime running light module, multifunction switch (export) |
| 11 | 10 | Transmission Control Module, Body Control Module, Auto Shift Switch, Seat Heater Switch (Export), Instrument Cluster, A/C Heater Control, Data Link Connector |
| 12 | 10 | Low beam, daytime running light module, left headlight (USA), left buttonhole module (export) |
| 13 | 20 | Low beam, multifunction switch (fog light, instrument cluster), right headlight (USA), right loop module (export) |
| 14 | 10 | Radio |
| 15 | 10 | Multi-function Switch, Front Wiper Relay (High/Low), Rear Defogger Relay, Body Control Module |
| 16 | 10 | Passenger Safety Controller (Air Bag Control Module) |
| 17 | 10 | Passenger Safety Controller (Air Bag Control Module), Left/Right Side Air Bag Control Module |
| Automatic switch | ||
| 18 | 20 | Power Seat Switch |
| 19 | 30 | Power window switch, sunroof control module, power window down relay (convertible) |
| Relay | ||
| R1 | Headlight delay | |
| R2 | Horn | |
| R3 | Rear window heating | |

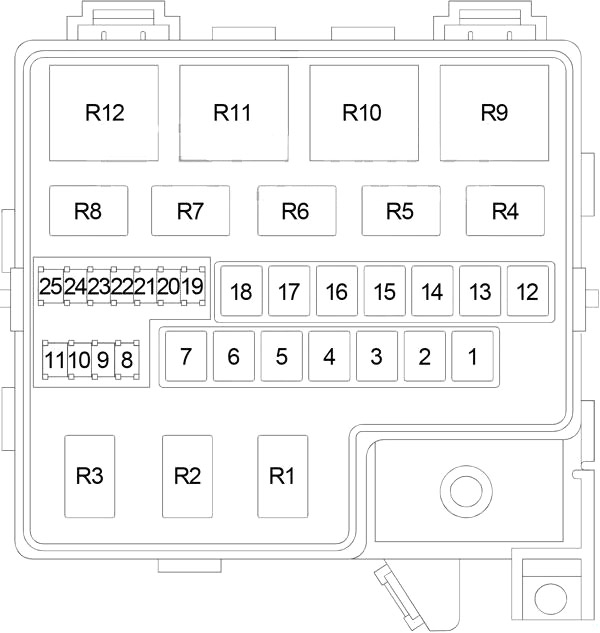

Fuse box in the engine compartment
The power distribution center is located in the engine compartment near the air cleaner.
| No. | A | Protected component |
|---|---|---|
| 1 | 40 | Ignition switch (fuse (in the passenger compartment): “1”, “4”, “16”, “19”) |
| 2 | 20 | Cigarette lighter / socket |
| 3 | 30 | Export: Headlight Washer Relay |
| 4 | 40 | Headlight delay relay, multi-function switch, fuse (passenger compartment): “9”, “10”, “18” |
| 5 | — | — |
| 6 | 40 | Rear Window Defogger Relay |
| 7 | 40 | 2.4L PZEV: Air Pump Motor Relay |
| 8 | 20 | Starter Relay, Fuel Pump Relay, Ignition Switch (Clutch Interlock/Upstop Switch (M/T), Transmission Control Module (A/T), Body Control Module, Fuse (Passenger Compartment): “14”, “15”, “17”, Fuse (Engine Compartment): “23”) |
| 9 | 20 | Transmission Control Relay, Transmission Control Module, Transmission Solenoid/Pressure Switch Assembly |
| 10 | 10 | Ignition switch (fuse (in passenger compartment): “11”), immobilizer module with security key |
| 11 | 20 | Brake light switch, fuse (passenger compartment): “5”, rear fog light relay |
| 12 | 40 | A/C Compressor Clutch Relay, Radiator Fan Relay (Low Speed), Radiator Fan Relay (High Speed) |
| 13 | 20 | Seat Heater Relay (Driver/Passenger Seat Heater Module) |
| 14 | 30 | Automatic cut-off relay (fuse: “24”, “25”), transmission control module |
| 15 | 40 | ABS |
| 16 | 40 | Fuse (Passenger Compartment): “7”, “8” |
| 17 | 40 | Convertible: Power up/down relay |
| 18 | 40 | Front Wiper On/Off Relay (Front Wiper High/Low Relay) |
| 19 | 20 | Convertible: Seat Belt Control Module |
| 20 | 20 | Multifunctional switch |
| 21 years old | — | — |
| 22 | 20 | ABS |
| 23 | 10 | Immobilizer Module with Security Key, Leak Detection Pump (USA), Transmission Control Module, Fuel Pump Relay, A/C Compressor Clutch Relay, Radiator Fan Relay (Low Speed), Radiator Fan Relay (High Speed) |
| 20 | Immobilizer Module with Security Key, Leak Detection Pump (USA), Transmission Control Module, Fuel Pump Relay, A/C Compressor Clutch Relay, Radiator Fan Relay (Low Speed), Radiator Fan Relay (High Speed) | |
| 24 | 20 | Fuel injector, ignition coil, noise suppressor, manifold regulating valve (2.7L) |
| 25 | 20 | Generator, EGR Solenoid, Oxygen Sensor, PCV Heater (2.7L) |
| Relay | ||
| R1 | Transmission control | |
| R2 | Starter | |
| R3 | Fuel pump | |
| R4 | Front wiper (high/low) | |
| R5 | Front Wiper (On/Off) | |
| R6 | Export: Rear Fog Light | |
| R7 | Air conditioning compressor clutch | |
| R8 | Heated seats | |
| R9 | Radiator Fan (Low Speed) | |
| R10 | Radiator Fan (High Speed) | |
| R11 | Automatic shutdown | |
| R12 | Headlight washer | |
