Nissan X-Trail T32 represents 3 generations of X-Trail. It was produced in 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 with both gasoline and diesel engines. During this time, the model has undergone restyling. In this material you will find a description of the fuses and relays of the Nissan X Trail T32 with block diagrams and their locations. Let’s highlight the cigarette lighter fuse.
The number of elements in the blocks and their decoding may differ from the one presented and depends on the year of manufacture and equipment of your car. Compare the description with your diagrams on the block cover.
Blocks in the cabin

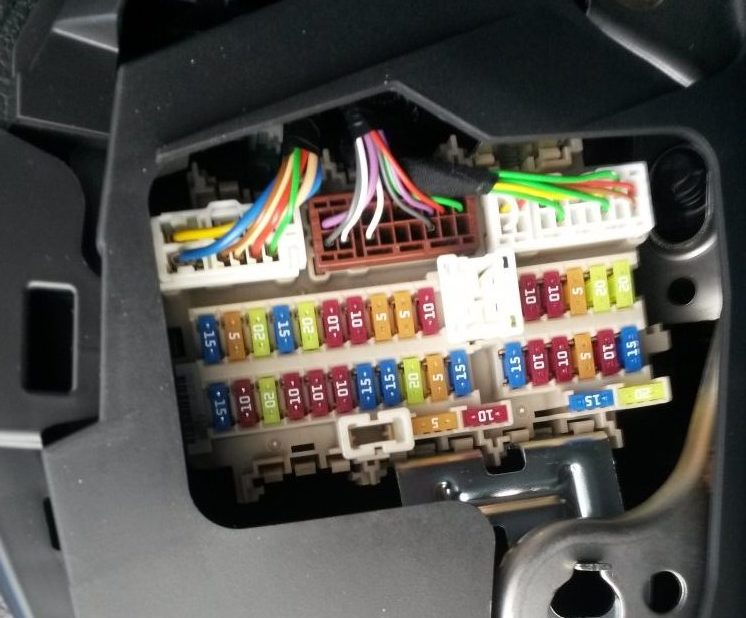

They are located at the end of the instrument panel on both sides.
Left block (main)

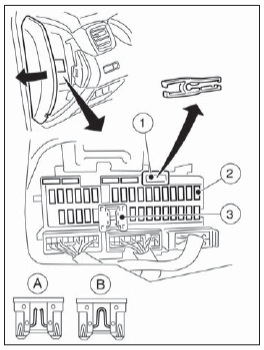

For access, you must remove the protective cover.
Description

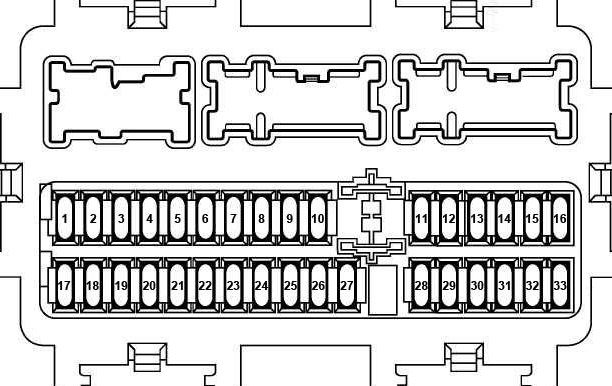

| 1 | 15A Turn signals, hazard warning lights (body control module (BCM)) |
| 2 | 5A All-wheel drive control unit |
| 3 | 20A Central locking (body control module (BCM)) |
| 4 | 15A Rear Wiper (Body Control Module (BCM)) |
| 5 | 20A Central locking (body control module (BCM)) |
| 6 | 10A Four-wheel drive control unit, diagnostic connector, parking brake |
| 7 | 10A Body Control Module (BCM) |
| 8 | 5A Clutch Switch |
| 9 | 1A Nissan Anti-Theft System (NATS) Antenna |
| 10 | 10A Brake light switch |
| 11 | 20A Audio system |
| 12 | 10A Subwoofer (optional connector) |
| 13 | 10A Instrument cluster |
| 14 | 5A Body Control Module (BCM), Siren Control Module |
| 15 | 20A Audio system, navigation control unit, surround view system |
| 16 | 20A Audio system, navigation control unit, surround view system |
| 17 | 15A Heater motor, air conditioner |
| 18 | 10A Spare fuse |
| 19 | 20A Cigarette lighter |
| 20 | 10A Air conditioning, brake pedal, brake light switch (R9M), mirror control unit |
| 21 | 10A ABS, ABS control unit, Vehicle Dynamic Control (VDC) system |
| 22 | 10A Heated mirrors |
| 23 | 15A Heated rear window |
| 24 | 15A Heated rear window |
| 25 | 20A Interior lighting relay (body control module (BCM)), optional connector |
| 26 | 5A Navigation control unit, headlight range control, audio system |
| 27 | 15A Heater motor, air conditioner, Bypass relay |
| 28 | 15A Heated front seats |
| 29 | 10A DC/DC converter |
| 30 | 10A Brake light switch. steering angle sensor, Sonar control unit, ESP control unit, four-wheel drive control unit, diagnostic connector, audio system, navigation control unit, Around View Monitor system, parking brake. chassis module, auto-dimming mirror, optional connector, combination switch, fuel heating relay. distance sensor, front camera, PTC relay: 1, 2, 3 |
| 31 | 5A Instrument cluster, diode |
| 32 | 10A Airbags |
| 33 | 15A Windshield washer, combination switch |
Fuse number 19 at 20A is responsible for the cigarette lighter.
Individual relay elements are located on the back of the unit: Ignition, Heater, Rear window heating, Auxiliary relay.
Right block
It is mainly found in cars with a start-stop system.

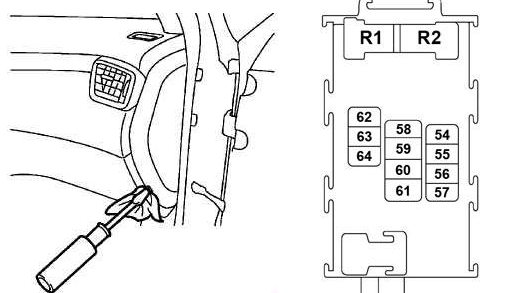

Scheme
Marking
| 54 | 10A Steering wheel angle sensor |
| 55 | 10A Diode |
| 56 | 10A Audio system, Around View Monitor, distance sensor, front camera |
| 57 | 10A Engine control unit, transmission control unit, transmission range sensor, engine compartment fuse box, neutral position sensor, primary speed sensor, secondary speed sensor, rpm sensor, reverse speed switch |
| 58 | Not used |
| 59 | 10A Air conditioner |
| 60 | 10A ABS, ABS control unit, Vehicle Dynamic Control (VDC) system |
| 61 | Not used |
| 62 | Not used |
| 63 | 20A Audio system, navigation control unit, Around View Monitor system |
| 64 | Not used |
- R1 – Auxiliary relay
- R2 – Ignition
Blocks under the hood

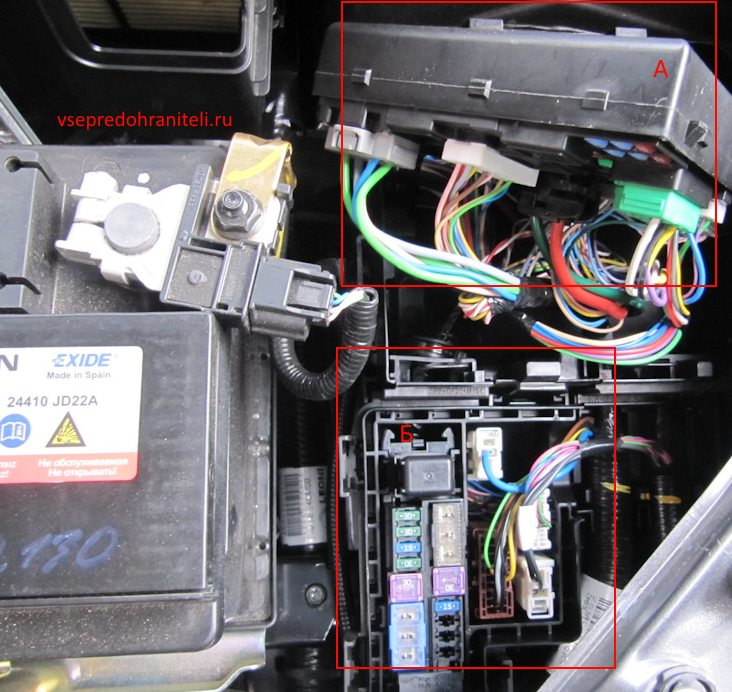

There are 4 fuse blocks in the engine compartment. 2 mounting blocks are located next to the battery, high-power fuses are located on the battery terminal and one additional one is located behind the bumper on the side under the headlight.
Block A

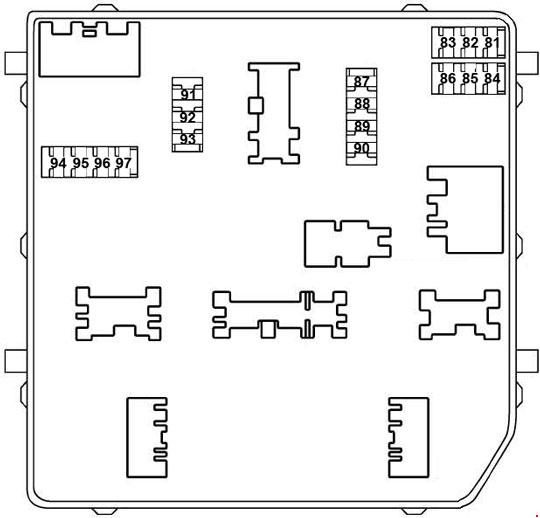

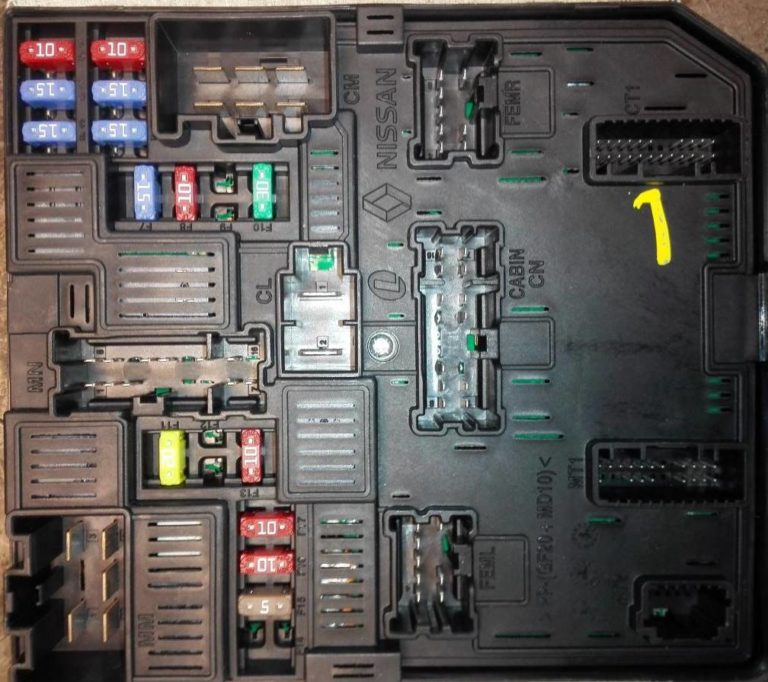

Example of execution
Transcript
| 81 | 10A Engine control unit |
| 82 | 15A Engine control unit, |
| 83 | 15A Throttle body, engine control unit, canister (EVAP) valve, mass air flow sensor, ignition coils, main relay, exhaust valve, intake valve, high-pressure fuel pump, injectors, engine compartment fuse box, air ratio sensor, fuel, fuel heater, water in fuel sensor, coolant bypass valve |
| 84 | 10A Engine control unit, intake manifold valve, exhaust timing valve, intake timing valve, intermediate timing valve |
| 85 | 15A Air fuel ratio sensor, heated oxygen sensor, turbocharger valve, engine control unit, glow plug control unit |
| 86 | 15A Injectors, ignition coils, fuse block |
| 87 | 15A Air conditioner compressor relay |
| 88 | Not used |
| 89 | Not used |
| 90 | 30A Front wiper relay, front wiper motor |
| 91 | 20A Fuel pump relay |
| 92 | Not used |
| 93 | 10A Engine control unit, transmission control unit, transmission range sensor, engine compartment fuse box, neutral position sensor, primary speed sensor, secondary speed sensor, rpm sensor, reverse/neutral gear sensor |
| 94 | Not used |
| 95 | 5A Steering wheel lock unit |
| 96 | 10A Restart Relay (Start-Stop) |
| 97 | 10A Front right combination lamp, front left combination lamp, compressor, transmission range sensor, engine compartment fuse box, neutral position sensor, reverse speed switch, reverse/neutral sensor |
Block B

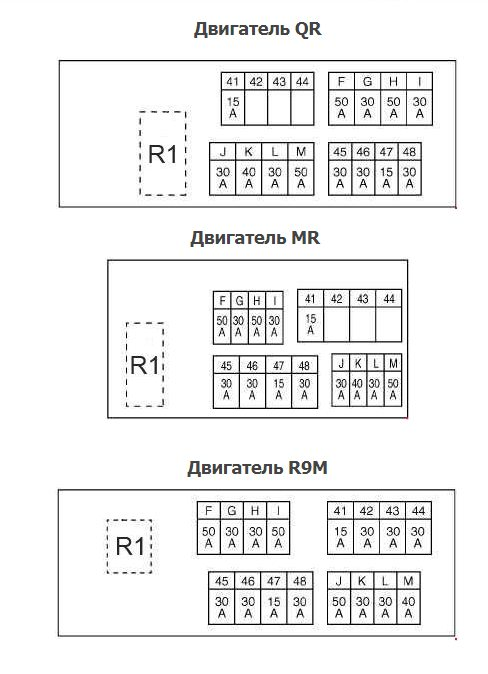

Scheme
Table with description
| 41 | 15A Audible signal |
| 42 | 30A R9M: PTC Relay 2 |
| 43 | 30A R9M: PTC relay 3 |
| 44 | 30A R9M: PTC relay 1 |
| 45 | 30A Parking brake |
| 46 | 30A Optional connector |
| 47 | 15A Audible signal |
| 48 | 30A Parking brake |
| F | 50A ESP |
| 50A R9M: Power windows, sunroof, sunshade, electric seats | |
| G | 30А ABS |
| H | 50A ESP |
| 30A R9M: Engine cooling fan relay | |
| I | 30A Starter |
| 50A R9M: ESP | |
| J | 30A Electric tailgate |
| 50A R9M: ESP | |
| K | 40А ABS |
| 30A R9M: Engine cooling fan relay | |
| L | 30A Starter, fuse block (E14) |
| M | 50A Power windows, sunroof, blind, electric seats |
| 40А R9M: ABS |
Block behind the bumper

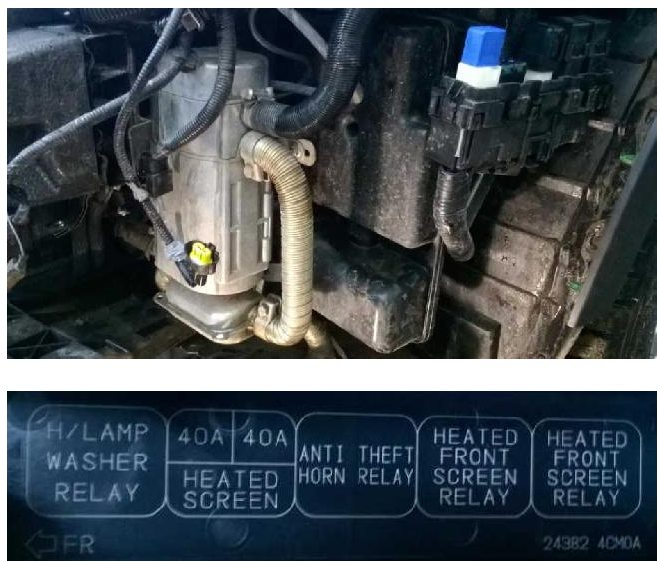

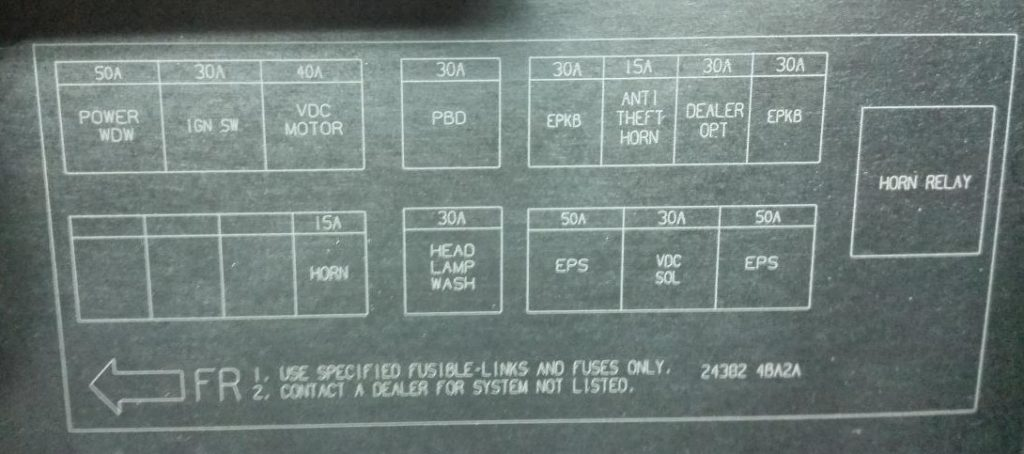

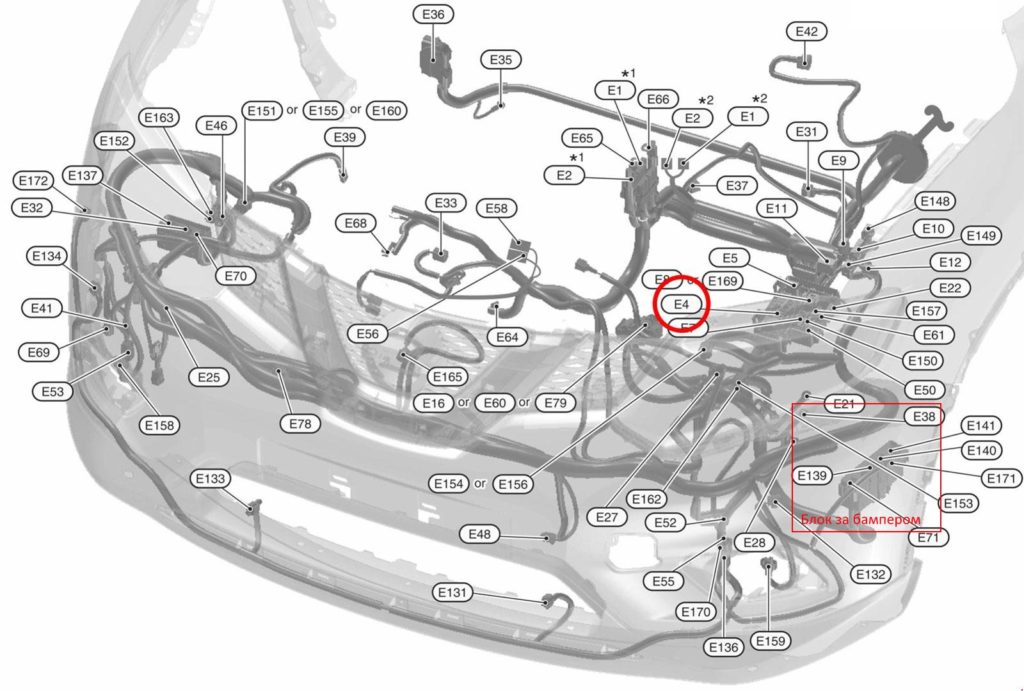

Photo example and diagram on the back of the cover
| HEATED SCREEN | Glass heating |
| H/LAMP WASHER RELAY | Headlight washer relay |
| ANTI THEFT HORN RELAY | Anti-theft alarm relay |
| HEATED FRONT SCREEN RELAY | Windshield heating relay |
Battery-powered unit

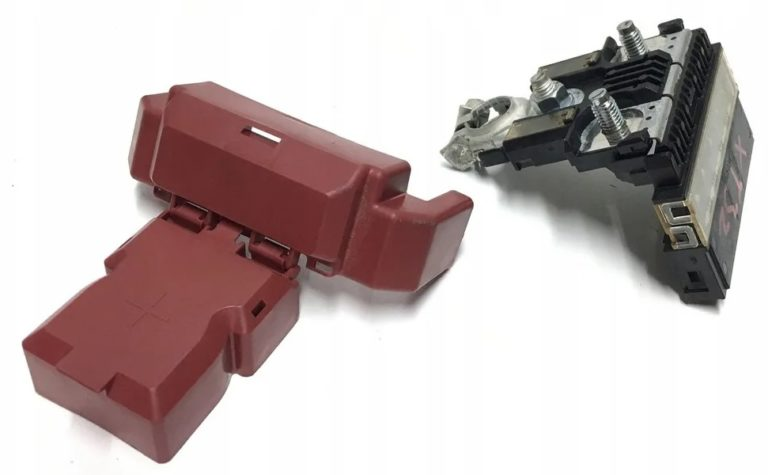

It is located on the positive terminal of the battery, so this unit can be called simply – the positive terminal and consists of fuses made in the form of a high-power fuse insert.

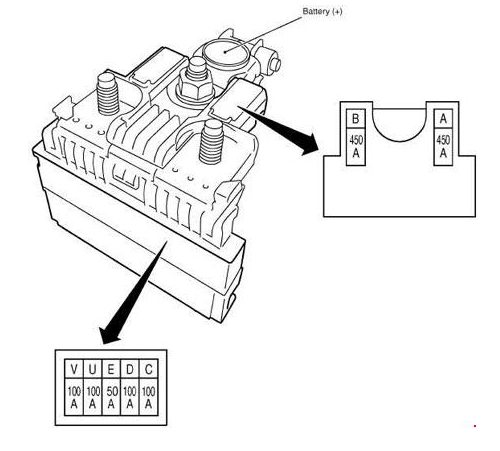

Scheme
Appointment
| A | 450A Alternator, starter (QR, MR), restart relay (start-stop), fuse No. F (ESP) |
| B | 100A Alternator, starter, restart relay (start-stop), fuse No. F (ESP) |
| 450A Alternator, starter, restart relay (start-stop), fuse No. F (ESP) | |
| C | 100A Ignition, passenger compartment fuse box |
| D | 80A Engine compartment fuse block #3 |
| 100A Fuse block, fuse block (E137 – thermal plunger (R9M engine)) | |
| AND | 100A Fuse box in the passenger compartment |
| 50A Engine compartment fuse block #2 (F116) | |
| IN | 100A Engine compartment fuse block #2 (F116), #3, ignition |
| In | 100A ESP |
