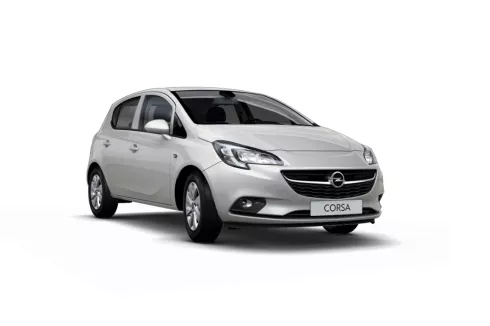

Opel Corsa E represents the 5th generation of the Corsa model range, which was produced in 2014, 2015, 2016, 2017, 2018, 2019. Also known as Vauxhall
Corsa E. In this article, you will find a description of the fuses and relays of the Opel Corsa E with block diagrams, photo examples of execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.
The purpose of the fuses in the blocks, as well as their number, may differ from that shown and depends on the year of manufacture, the level of electrical equipment and the region of delivery of your car.
Blocks in the cabin

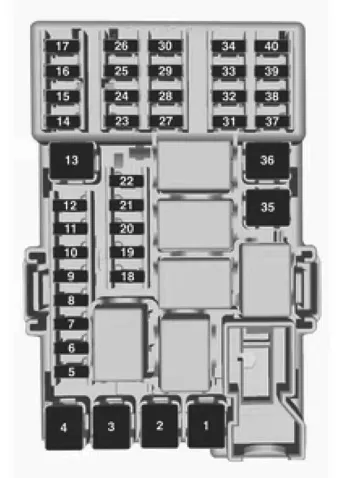

In the car’s interior, the fuse box is located on the left side at the bottom of the instrument panel. In right-hand drive cars, it is in the glove compartment.
| No. | Description |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Electric windows |
| 4 | Voltage converter |
| 5 | Body Equipment Control Module 1 |
| 6 | Body Equipment Control Module 2 |
| 7 | Body Equipment Control Module 3 |
| 8 | Body Equipment Control Module 4 |
| 9 | Body Equipment Control Module 5 |
| 10 | Body Equipment Control Module 6 |
| 11 | Body Equipment Control Module 7 |
| 12 | Body Equipment Control Module 8 |
| 13 | – |
| 14 | Back door |
| 15 | Airbag system |
| 16 | Data Channel Connection |
| 17 | Ignition |
| 18 | Air conditioner |
| 19 | Sunroof |
| 20 | Parking assistance system/Rain sensor/Front camera |
| 21 | Brake switch |
| 22 | Audio system |
| 23 | Display |
| 24 | – |
| 25 | Auxiliary jack |
| 26 | Dashboard |
| 27 | Driver’s seat heating |
| 28 | – |
| 29 | – |
| 30 | Instrument cluster/Heated seats/FlexDock |
| 31 | Signal |
| 32 | Heated passenger seat |
| 33 | – |
| 34 | Heated steering wheel |
| 35 | Tire repair kit |
| 36 | – |
| 37 | Rear wiper |
| 38 | Cigarette lighter |
| 39 | Electric windows/sunroof/Automatic gearbox display |
| 40 | – |
Fuse number 38 is responsible for the operation of the cigarette lighter.
Block under the hood

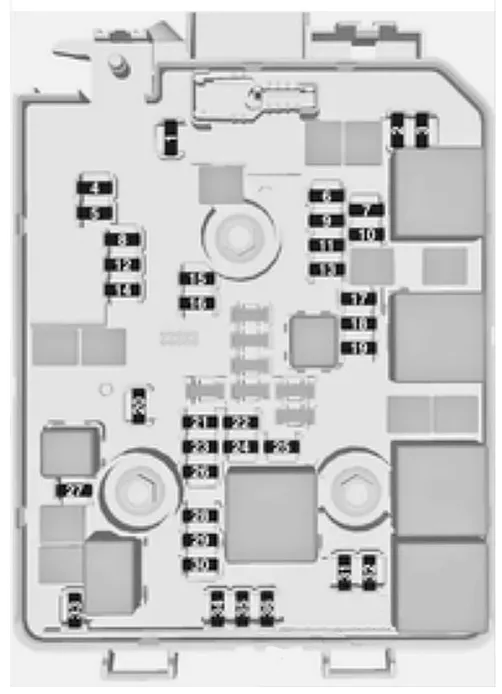

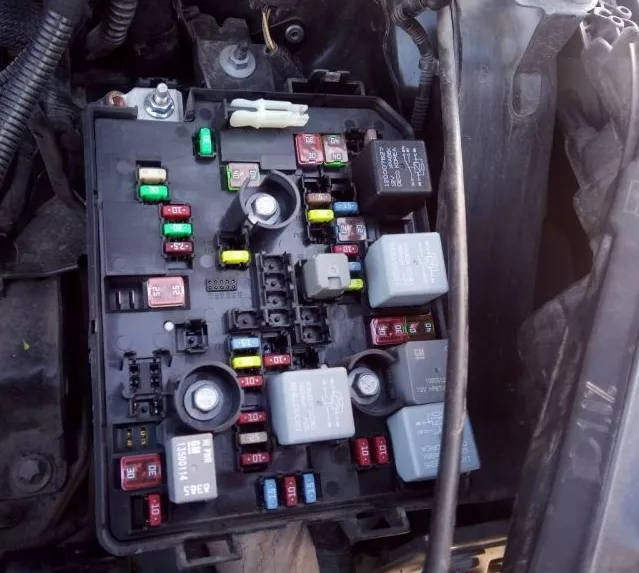

Under the hood, in the engine compartment on the right side, under the protective cover is the main fuse and relay block.
| No. | Designation |
|---|---|
| 1 | Trailer Interface Module, Rear Carrier System |
| 2 | – |
| 3 | Battery sensor |
| 4 | Chassis Control Module Fuel Pump |
| 5 | ABS |
| 6 | Low beam and daytime running lights on the left, xenon high beam flaps on the left and right |
| 7 | – |
| 8 | MTA Transmission Control Module, LPG Control Module |
| 9 | Body Control Module Voltage Detection |
| 10 | Headlight adjustment |
| 11 | Rear wiper |
| 12 | Rear window heating |
| 13 | Low beam and daytime running light on the right |
| 14 | Heated outside mirror |
| 15 | – |
| 16 | Brake booster kit |
| 17 | Ignition, crank power supply |
| 18 | Engine Control Module |
| 19 | Fuel pump |
| 20 | – |
| 21 | Engine solenoids, engine sensors |
| 22 | – |
| 23 | Injection system |
| 24 | Washing system |
| 25 | – |
| 26 | Engine sensors |
| 27 | Heater shut-off valve |
| 28 | Engine Control Module |
| 29 | Engine Control Module |
| 30 | Engine Control Module |
| 31 | High beam on the left, low beam xenon on the left |
| 32 | High beam on the right, low beam xenon on the right |
| 33 | Engine Control Module |
| 34 | Signal |
| 35 | Air conditioning compressor clutch |
| 36 | Front fog lights |

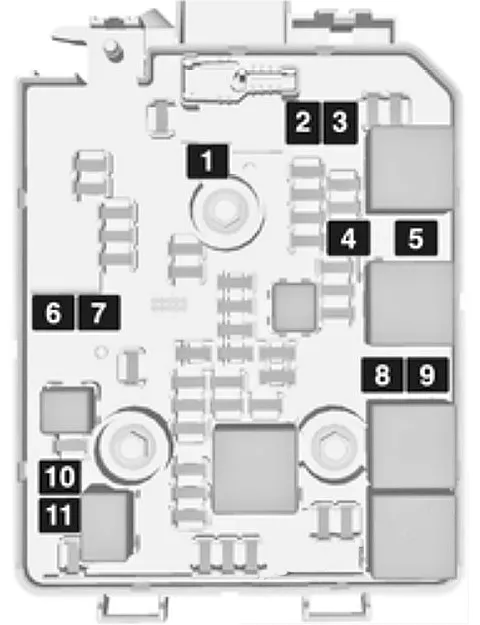

| No. | Purpose |
|---|---|
| 1 | ABS pump |
| 2 | Front wiper |
| 3 | Fan |
| 4 | Instrument panel |
| 5 | – |
| 6 | Diesel fuel heater |
| 7 | Transmission |
| 8 | Cooling fan low |
| 9 | Cooling fan, high level |
| 10 | Cooling fan |
| 11 | Starter |
