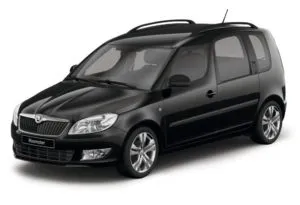

Skoda Roomster is a compact van with a cargo-passenger body. It was produced in 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015. During this period, the car was restyled. The cargo version of the roomster with blind sides is called Skoda Praktik. In this publication, we will present for review a description of the fuse boxes and relays for the Skoda Roomster, with photographs and diagrams of the blocks in which they are located, we will separately highlight the cigarette lighter fuse.

Blocks in the cabin

Fuse box

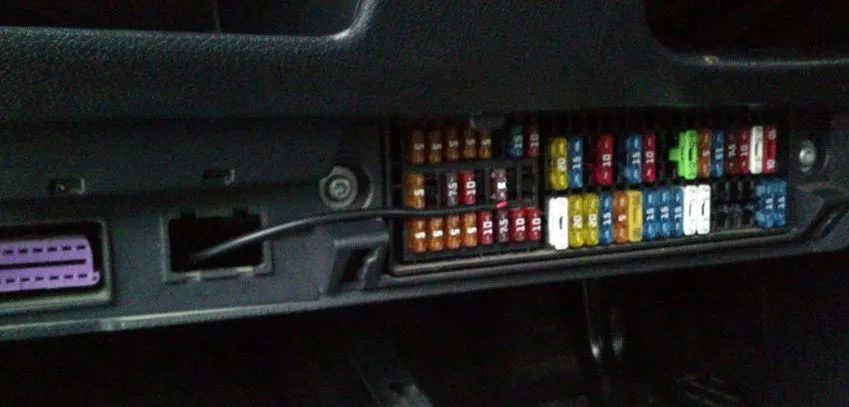

It is located at the bottom of the dashboard, behind a protective cover.

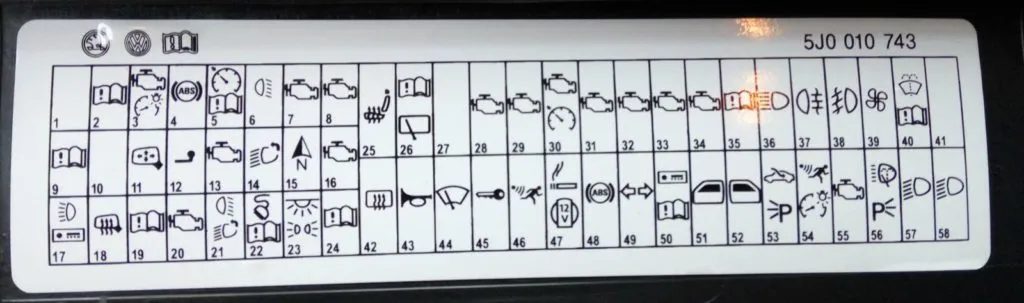

On the back of the cover there may be an up-to-date description of the fuses in the form of a brochure. Here is one of the decoding options.

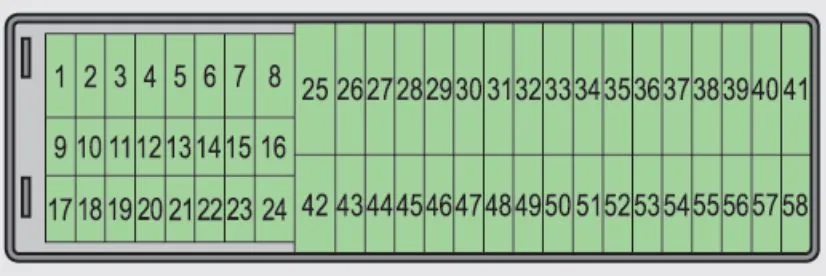

Description for models up to 2010

  1. 5A Electro-hydraulic power steering
  2. 5A Instrument panel, headlight range adjustment
  3. 5A Engine Control Unit – Petrol
  4. 5A ABS Control Unit
  5. 5A Petrol engine: brake light switch, “Tempomat” device 5
  6. Not busy
  7. 15A Engine Control Unit 1.2L
  8. 10A Valve injectors -1.4 l; 1.6 l
  9. 5A Heater control panel, air conditioning control unit, parking aid equipment, dynamic headlight control unit
  10. 7.5A PCV valve
  11. 7.5A Mirror control device, window lifter
  12. 10A Reverse light
  13. 10A Engine Control Unit (Automatic Transmission)
  14. 10A Dynamic Headlight Motor
  15. 5A PDA Navigation
  16. Not busy
  17. 5A Left parking light, number plate light
  18. 5A Parking light right
  19. 5A Radio receiver, central control unit for electrical on-board network
  20. 5A Instrument cluster, steering wheel angle sensor, ESP, central control unit for electrical on-board network
  21. 10A Stop lights
  22. 7.5A Heater Control Panel, Air Conditioning Control Unit, Parking Aid Equipment, Telephone
  23. 10A Lighting for the interior of the vehicle, glove compartment and trunk
  24. 10A Trunk lid lock
  25. 20A Seat heating
  26. 15A Heated Windscreen Washer Nozzles, Windscreen Washers
  27. Not busy
  28. 10A Petrol engine: AKF valve, diesel engine regulating flap
  29. 10A Injection – 1.2L Engine
  30. 15A Fuel Pump – Petrol Engine
  31. 10A Lambda probe
  32. 5A Diesel Engine: Brake and Clutch Light Switch, Tempomat Device, Fuel Pump Relay + Glow Plug Relay
  33. 30A Engine Control Unit – Diesel Engine
  34. 30A Engine Control Unit 1.4L; 1.6L, 15A Fuel Pump – Diesel Engine
  35. Not busy
  36. 15/5A High beam headlights
  37. 7.5A Rear Fog Light
  38. 10A Fog lights
  39. 25A Heater Fan
  40. 10A Rear Window Wiper
  41. Not busy
  42. 25A Rear window heating
  43. 20A Horn
  44. 20A Windscreen wipers
  45. 15A Electrical Equipment Control Unit “Comfort”
  46. 5A Engine control unit 1.4 l; 1.6 l
  47. 15A Cigarette lighter , socket in the trunk
  48. 5A ABS
  49. 15A Direction indicators
  50. 10A Radio Receiver, Telephone Preparation, Multifunctional Module
  51. 25A Electric window lift (front – rear) – left side
  52. 25A Electric window lift (front – rear) – right side
  53. Not busy
  54. 15A Anti-theft alarm
  55. Not busy
  56. 25A Headlight Washers
  57. 15A Low beam headlight left
  58. 15A Low beam headlight right

Fuse number 47, 15A, is responsible for the cigarette lighters.

Designation for models from 2010

1Contact S
2Start-stop, climate control
3Instrument cluster, headlight range control
4ABS control unit, Start-stop button
5Petrol engine: cruise control
6Reversing light (manual transmission)
7Ignition, engine control unit, automatic transmission
8Brake pedal switch, radiator fan
9Heater control, climate control unit, parking assistant, adaptive lighting control unit, radiator fan, washer nozzles
10Windscreen washer
11Mirror adjustment
12Trailer Recognition Control Unit
13BU automatic transmission
14Headlight motor with lens with adaptive lighting function
15PDA navigation system
16Electro-hydraulic power steering
17Start-stop (head unit), daytime running light
18Heated mirrors
19Contact S
20Alert
21Reversing light, fog lights with CORNER function
22Heater control, climate control unit, parking assistant, telephone, instrument cluster, steering angle sensor, ESC, on-board power supply control unit, multifunction steering wheel
23Interior, glove box and luggage compartment lighting, side lights
24Central control unit
25heated seats
26Rear window wiper
27Telephone connection kit
28Petrol engine: canister valve, diesel engine: regulating flap
29Injection, cooling system pump
30Fuel pump, ignition, cruise control, auxiliary heater relay control (RTS)
31Lambda probe
32Fuel injection pump, pressure valve
33Engine BU
34Engine control unit, vacuum pump
35Power supply for ignition switch
36High beam
37Rear Fog Light, DC/DC Start-Stop Converter
38Fog lights
39Heater fan
40-41not used
42Rear window heating
43sound signal
44Windshield wiper
45Central control unit for comfort systems
46Engine control unit, fuel pump
47Cigarette lighter , socket in the luggage compartment
48ABS, Start-stop converter (DC/DC)
49Direction indicators, brake lights
50Start-stop converter (DC/DC), Infotainment, head unit
51Electric windows (front and rear) – left side
52Electric windows (front and rear) – right side
53Parking lights – left side, electric sunroof
54Start-stop (instrument cluster), alarm
55BUAKP
56Headlamp Washer, Parking Lights – Right Side
57Low beam left, headlight range control
58Low beam right

Fuse number 47 is responsible for the cigarette lighter.

Relay block

It is located under the panel itself, behind the fuse box.

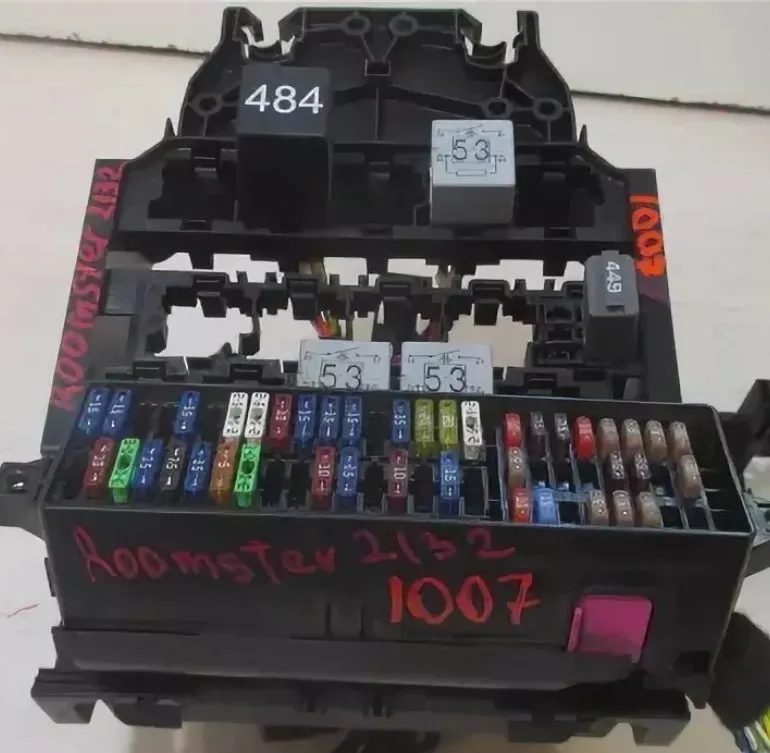

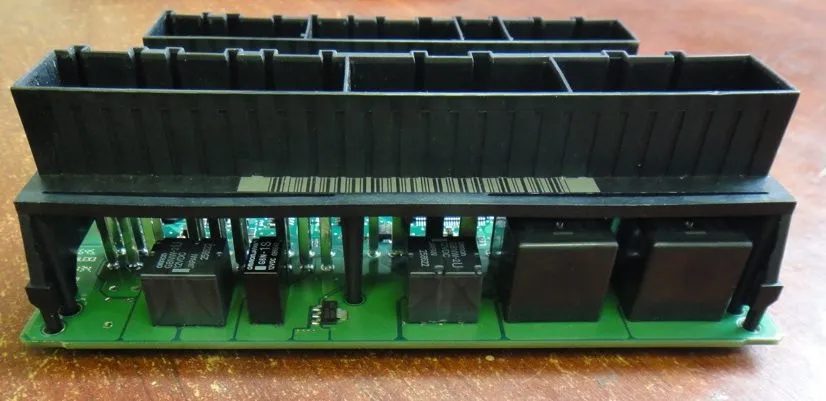

Photo – example

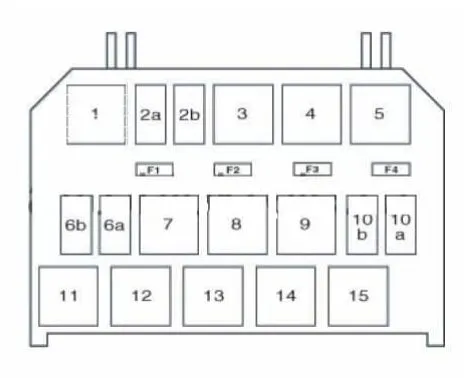

1
10aStarter relay (fuel system)
10bHeadlight switching relay
11Start inhibit switch relay
12Headlight Wiper/Washer Relay
13Engine Management System Relay
14Fuel pump relay
15
2a
2b
3
4Main Ignition Circuit Relay
5
6a
6b
7
8
9
F1
F2
F3
F4(25A) Trailer Electrical Socket

Some non-removable relays may be located in the comfort unit, such as the windshield wiper relay.

Block under the hood

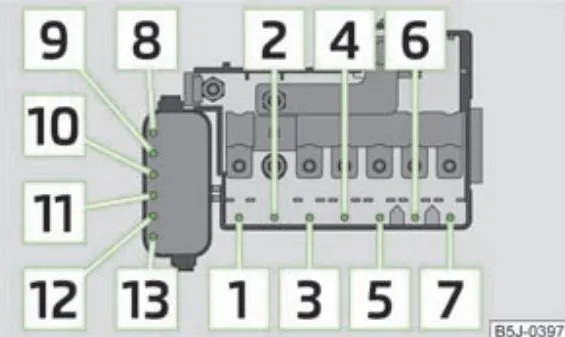

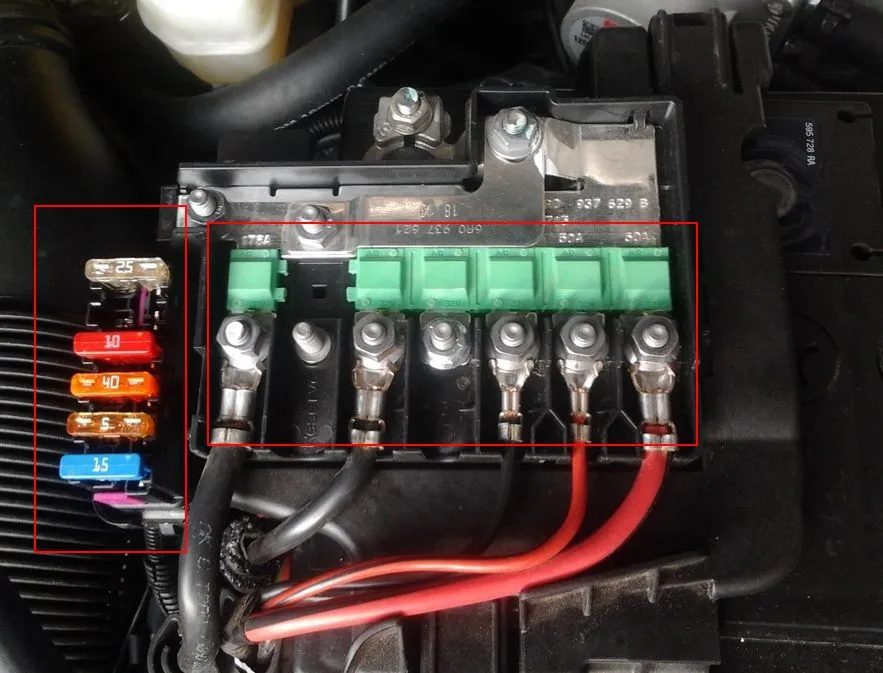

It is located on the positive terminal of the battery and consists of a section with high-power fuses and a section with fuses, which can be located on different sides.

1(175A) Charging system
2
3(80A) Salon
4(60A) Additional heater
5(40A) Salon
6(50A) Spark plugs, radiator fan
7(50A) Power steering
8(25A) ABS/ESP system
9(30A) Radiator Fan
10(5A) Electric motor of the cooling system fan / automatic transmission
11(40A) ABS/ESP system
12Voltage stabilizer block
13(30A) Additional heater / Automatic transmission

Scheme. Option 2.

1(175A) Three Phase AC Generator
2(80A) Interior of the vehicle
3(60A) Additional heater
4(40A) ABS/ESP
5(50A) Power steering
6(50A) Glow Plugs
7(25A) ABS/ESP system
8(30A) Cooling fan motor
9(5A) Air Conditioner
10(40A) ABS/ESP System / Coolant Fan
11(5A) Voltage stabilizer unit, Central control unit for electrical
on-board network
12(5A/30A) Automatic transmission / auxiliary
resistive heater
