Mitsubishi Space Star was produced in 1998, 1999, 2000, 2001, 2002, 2003, 2004 and 2005. In this article you will find a description of the fuses and relays of the Mitsubishi Space Star with block diagrams, photos and their locations. Let’s highlight the fuse responsible for the cigarette lighter.
Check the assignment of elements with your diagrams on the protective cover of your Mitsubishi Space Star.
Blocks in the cabin
Fuse and relay block

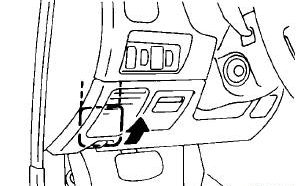

It is located under the dashboard on the driver’s side, behind the glove compartment. To get it, you need to squeeze it lightly from the sides.

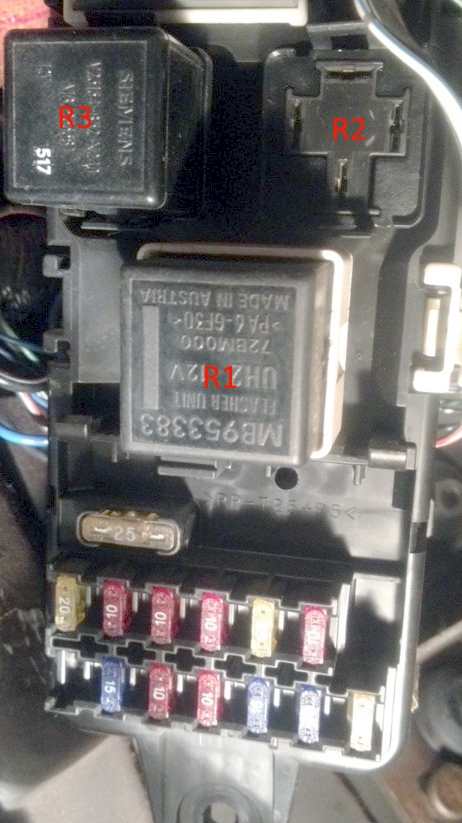

Photo – example

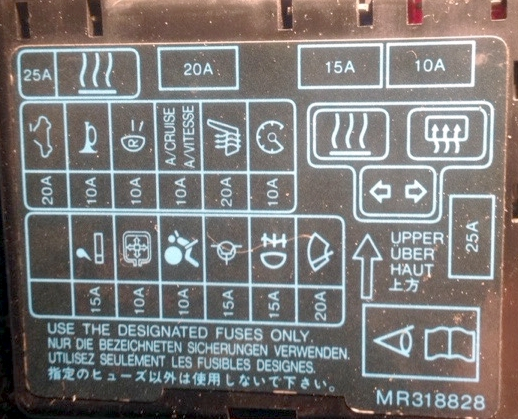

Schematic with designation from the fuse compartment cover

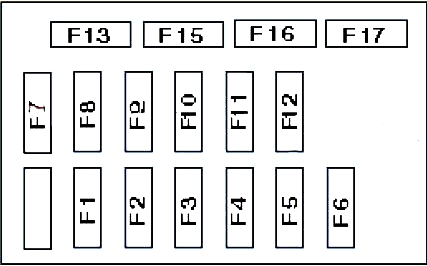

Scheme
Fuse description
| F1 | 15A Cigarette lighter , clock |
| F2 | 10A Electric door mirrors, central locking signal control |
| F3 | 10A Immobilizer, turn signals, alarm, SRS system (airbag) |
| F4 | 15A Air conditioning system, headlight washers, sunroof, daytime running lights |
| F5 | 15A Central lock |
| F6 | 20A Windshield wiper, windshield washer, rear window wiper, rear window washer |
| F7 | 20A Sunroof, central locking signal control |
| F8 | 10A Audible signal |
| F9 | 10A Reversing lights, gearbox control, SRS system (airbag) |
| F10 | 10A Cruise control, audio system, ABS system, anti-skid system, electric windows |
| F11 | 20A Seat heater |
| F12 | 10A Instrument cluster, traction control system, ABS system, cruise control system, antenna, SRS system (airbag) |
| F13 | 25A Air conditioner fan motor |
Fuse number 1 at 15A is responsible for the cigarette lighter.
Relay designation
- R1 – Turn signal and hazard warning relay
- R2 – Rear window heating relay
- R3 – Heater fan motor relay
Relay block
Installed next to the fuse and relay block.

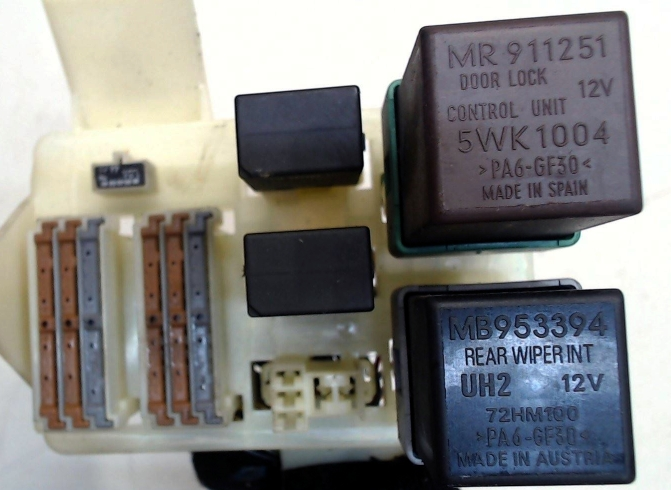

Photo – example
The following relays can be mounted here:
- Door lock – Central lock relay
- Rear wiper – Windshield wiper relay
- Fog light relay, etc.

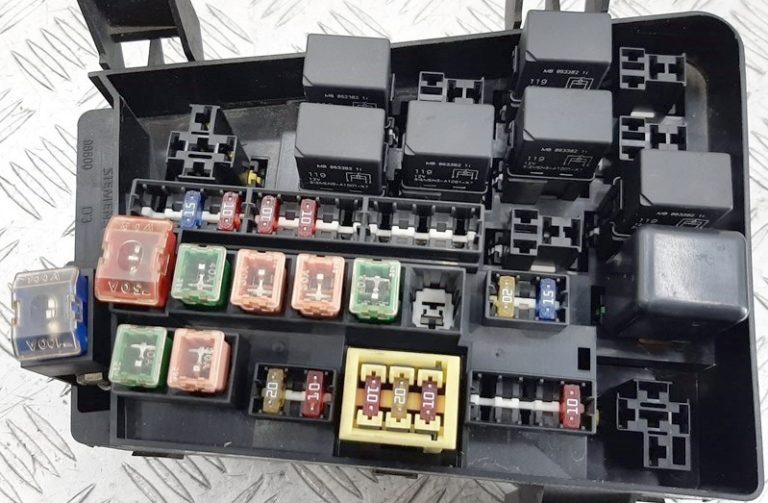

Block under the hood
It is located on the left side, next to the counter.

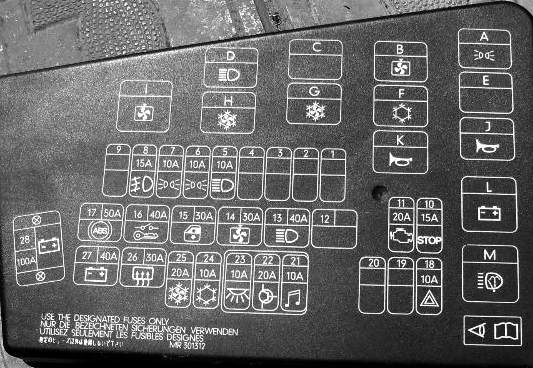

Scheme
Purpose of fuses
| 1 | Reserve |
| 2 | Reserve |
| 3 | Reserve |
| 4 | Reserve |
| 5 | 10A High beam |
| 6 | 10A Left dimension |
| 7 | 10A Right dimension |
| 8 | 15A Fog lamp |
| 9 | Reserve |
| 10 | 15A Stop signals |
| 11 | 20A Injection system |
| 12 | Reserve |
| 13 | 40A Headlights |
| 14 | 30A Engine cooling fan |
| 15 | 30A Electric window motor |
| 16 | 40A Ignition switch |
| 17 | 50A ABS |
| 18 | 10A Hazard warning lights and turn signals |
| 19 | Reserve |
| 20 | Reserve |
| 21 | 10A Audio system |
| 22 | 20A Central locking |
| 23 | 10A Interior lighting |
| 24 | 10A Air conditioner compressor |
| 25 | 20A Condenser fan |
| 26 | 30A Rear window heater |
| 27 | 40A Fuse Group |
| 28 | 100A Generator |
Relay
- A – Dimension relay
- B – Cooling system fan
- C – Reserve
- D – Headlight high beam relay
- E – Reserve
- F – Air conditioning compressor
- G – Air conditioning relay
- H – Air conditioner relay
- I – Cooling system fan
- J, K – Signal and alarm signal relays
