Skoda Rapid is a five-door liftback, belongs to the golf class cars. It has been produced since 2013. In Russia and the CIS countries, official deliveries were carried out in 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 and to the present. Rapid is sold with both gasoline and diesel engines. In our material, we will present a description of the fuses and relays of the Skoda Rapid. We will show the locations of the fuse boxes and relays, their photographs and diagrams with decoding of the elements. We will highlight the fuse responsible for the cigarette lighter and windshield washer.

Block in the cabin

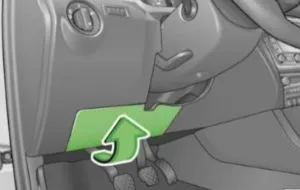

The fuse box is located under the instrument panel and is covered with a protective cover.

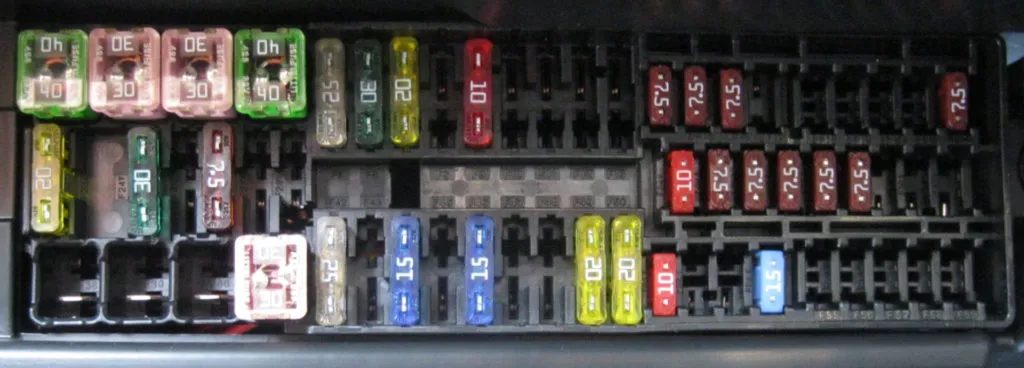

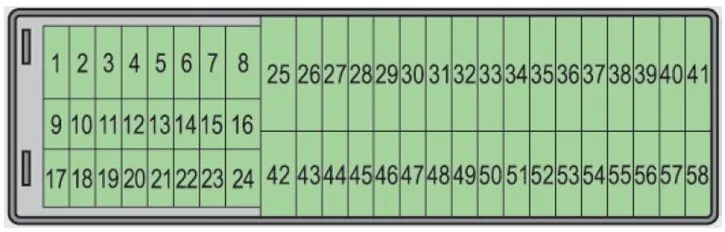

Option 1. Models before 2015.


15A Contact S
25A START/STOP system
37.5A Instrument cluster, headlight range control, telephone, oil level sensor
45A ABS/ESC Control Unit
55A Petrol Engine: Cruise Control
610A Reversing light (manual transmission)
710A Ignition, engine control unit, automatic transmission
85A Brake Pedal Switch, Clutch Pedal Switch, Radiator Fan
95A Heater control, climate control unit, parking assistant, window lifters, radiator fan, washer nozzles
10DC/DC converter
115A Mirror adjustment
12Trailer Recognition Control Unit
1310A Automatic transmission control unit, automatic transmission selector
1410A Headlight Corrector
15not used
165A Power steering, speed sensor, engine control unit
1710A Head unit (Start-stop), daytime running light
185A Heated mirrors
197.5A Ignition switch
2015A Engine Control Unit, Fuel Pump Control Unit, Fuel Pump
2110A Reversing light (automatic transmission), fog lights with CORNER function
227.5A Heater control, climate control unit, telephone, instrument cluster, steering wheel angle sensor, multifunction steering wheel, ignition key removal lock
2315A Interior, glove box and luggage compartment lighting, side lights
245A Central control unit
25not used
2615A Rear Window Wiper
27not used
2810A Petrol engine: Evaporative canister solenoid valve, additional electric heater RTS
2910A Injection, cooling system pump
3020A Fuel pump, ignition, cruise control
3110A Lambda probe
3220A Fuel injection pump, pressure valve
3320A Engine Control Unit
34Engine control unit, vacuum pump
355A Switch illumination, number plate light, parking lights, headlight cleaning system
3615A High beam
375A Rear Fog Light DC/DC Converter
3810A fog lights
3930A Heater Fan
40not used
4120A Heated Front Seats
4230A Rear window heating
4315A Sound signal
4430A Windscreen Wiper
4520A Tailgate Lock, Central Locking
467.5A Alarm signal
4715A Fuse for cigarette lighter , socket in luggage compartment
4815A ABS
4915A Direction indicators, brake lights
5010A DC/DC Converter Head Unit
5130A Electric windows (driver door + rear left door)
5230A Electric windows (front passenger door + rear right door)
5315A Washer
545A Start-stop system, instrument cluster, steering column paddle shifters, multifunction steering wheel
5530A BU automatic transmission
5625A Headlight Washer
5715A Low beam left headlight
5815A Low beam right

In this version, fuse number 47 is responsible for the cigarette lighter, and fuse number 53 is responsible for the washer.

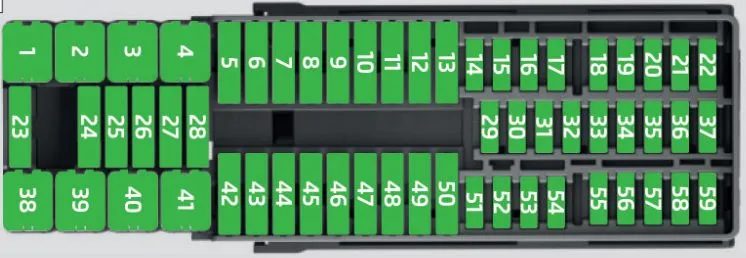

Option 2. Models from 2016.

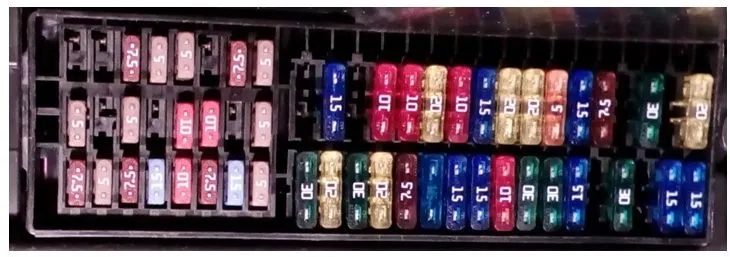

Photo – example

140A Left light (high beam)
230A Central locking, windscreen and rear window washers (only with KESSY or heated windscreen)
340A/30A Ignition system relay
440A Right light (high beam)
525A Driver’s window
630A Central BU – internal lighting
720A Sound signal
8TSU – left light (towbar)
910A Steering column lever, engine control unit, ESC, TSU, electric power steering
10Rear left door window lifter
11Headlight washer
12Display of the head unit, navigation system
13Equipment for taxi
147.5A Steering column lever, light switch, light signal, rain sensor
157.5A Air conditioning, diagnostic connector, heated windshield
167.5A Instrument cluster, emergency call
17Alarm, sound signal
18Rear seat heating
19not used
20not used
21not used
2210A Windscreen and rear window washers (without KESSY or without heated windscreen)
2320A Heated Front Seats
2430A Air Conditioner Fan, Heater, Air Conditioner
25not used
267.5A Front seat heating button
27Rear window wiper
28not used
2910A Airbags
307.5A Electric windows, reversing light switch, climate control, parking assistant, outside rearview mirror adjustment, power supply for the center key panel, power supply for the side key panel, inside rearview mirror, hazard warning light switch
317.5A Fuel pump, radiator fan, washer relay
327.5A Diagnostic connector, headlight corrector, steering column switch, interior lighting
337.5A Starter Relay, Clutch Pedal Switch
347.5A Windscreen washer nozzle heating
35not used
36USB charging function
37Radar
38not used
39Additional electric heater
40not used
4130A Rear window heating
4225A Passenger window lifter
43TSU – contact in the socket
4420A Cigarette lighter , 12V socket in the passenger compartment, 12V socket in the luggage compartment
45Rear right door window lifter
4615A Windscreen washer, steering column lever
47TSU – contact in the socket
48TSU – right light (towbar)
4920A Fuel Pump
5020A GU (head unit), Infotainment System
5110A Heated Mirrors
52KESSY
53Steering wheel lock
5415A ABS, ESC
55not used
56not used
57not used
58Rear seat heating
59not used

In this version, fuse number 44 is responsible for the cigarette lighter, and fuse number 46 is responsible for the washer.

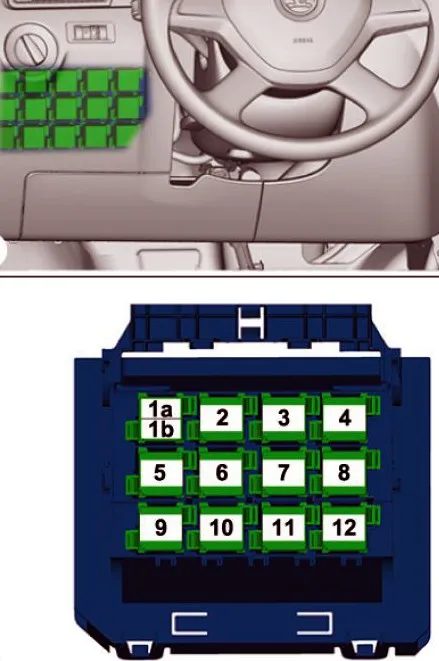

Relay block

It is attached to a special block under the instrument panel itself, behind the fuse box.

The following relays may be located here:

  • 1A/646 – Fuel pump relay
  • 1B/646/645/644 – Local relay
  • 5/645 – High Voltage Heating Element Relay (PTC)
  • 6/645 – Headlight washer relay

Other relays are located under the hood (glow plug relay, fog lights, etc.).

Block under the hood

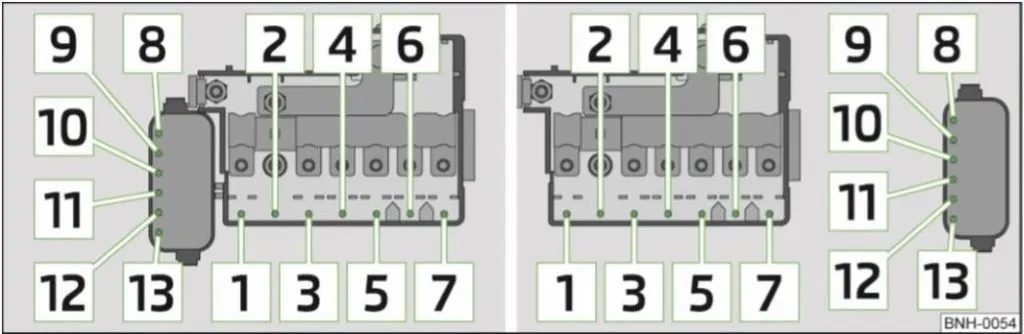

Option 1. Models before 2015.

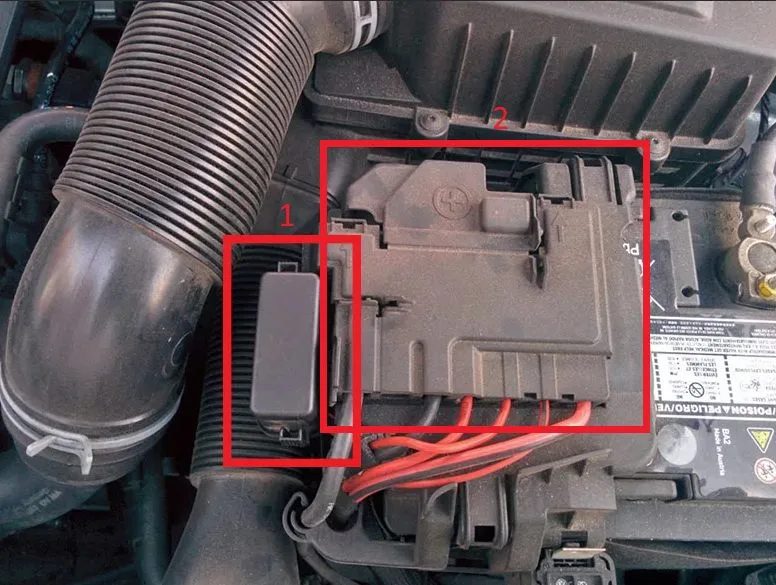

In the engine compartment, this unit is located on the positive terminal of the battery and consists of 2 sections (a fuse section and a high-power fuse section.) Depending on the engine version, the 1st unit can be located either to the left or to the right of the battery.

1175A Generator
280A not used
360A Salon (Option 1), Fuse Box Power (Option 2]
440A Additional electric heater (option 1) Salon (option 2)
5Salon
6Radiator fan, pre-glow control unit
7Electro-hydraulic power steering
830A ABS
9Radiator fan
10Automatic transmission
115A ABS
1240A Central Control Unit
13Additional electric heater

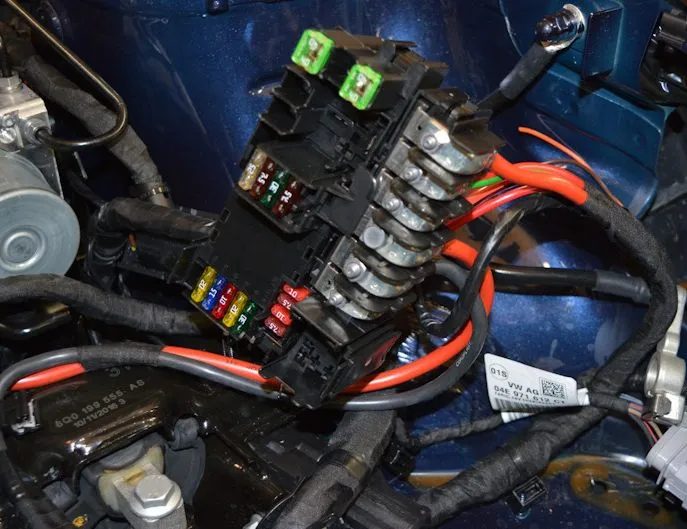

Option 2. Models from 2016.

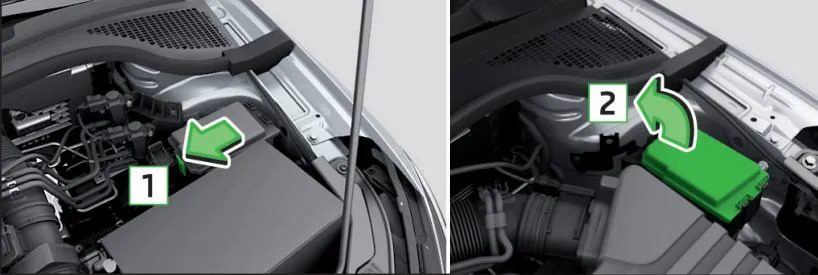

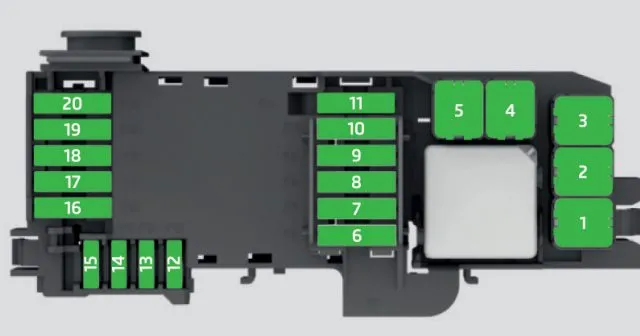

The unit is located on the left side of the engine compartment under the protective cover. See the picture for access options. High-power fuses in the form of fusible inserts are attached to it on the side. The windshield heating relay may be located in the corner.

  1. Radiator fan
  2. Pre-heating system
  3. ABS or ESC
  4. Electric additional heater – circuit 2, windshield heater
  5. Electric additional heater – circuit 3, windshield heater
  6. Automatic transmission
  7. Engine management system
  8. Windscreen wiper
  9. Central control unit, battery control module
  10. ABS or ESC
  11. Brake system vacuum pump
  12. Injectors, fuel metering valve, fuel pressure regulator, engine components
  13. Brake pedal limit switch
  14. Fuel pump, radiator fan, charge air cooling pump, engine components
  15. Engine management system
  16. Starter
  17. Engine management system
  18. Intake manifold flap valve, wastegate, engine oil temperature, canister valve, oil pressure regulating valve, engine components
  19. Lambda probe
  20. Pre-heating system, crankcase exhaust ventilation heating
