The compact crossover Mitsubishi ASX was produced in 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021. During this time, the model has been updated. In this article, you will find a description of the fuses and relays of the Mitsubishi ASX with block diagrams and their locations. Let’s highlight the fuse responsible for the cigarette lighter.
There may be other purposes for the elements in the blocks in your Mitsubishi Asx. Check the description of the fuses and relays with your technical documentation or the diagrams on the back of the cover, and in case of difficulties, contact an authorized dealer.
Cabin block
Located under the driver’s panel, remove the protective cover for access.

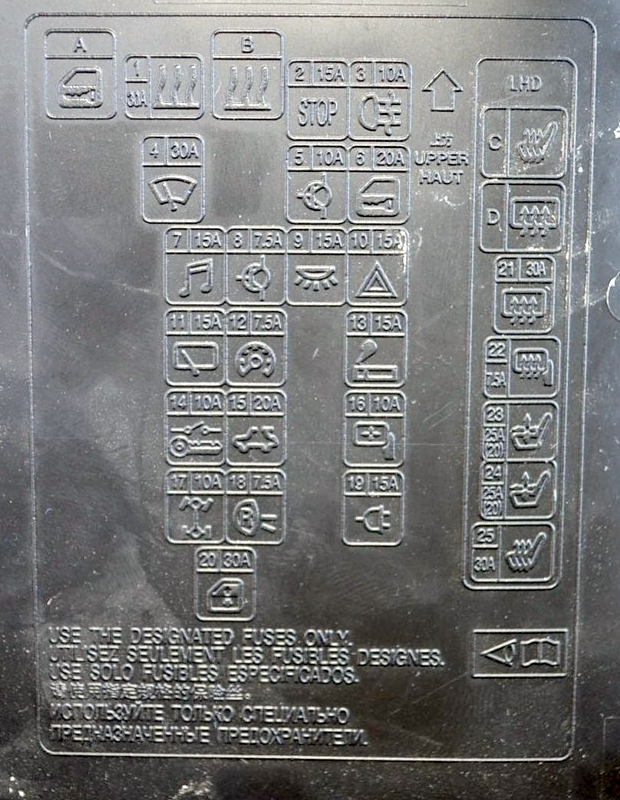

Example of a circuit from the cover

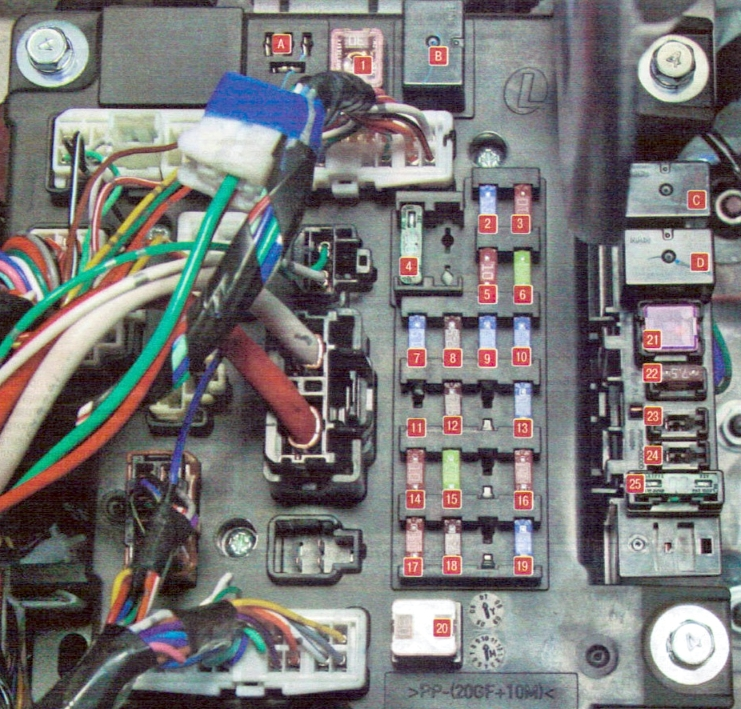

Photo – diagram
Fuse description
| 1 | 30A Heater fan motor |
| 2 | 15A Stop signals (stop signal lamps) |
| 3 | 10A Rear fog light |
| 4 | 30A Windshield wiper |
| 5 | 10A Accessory Circuits |
| 6 | 20A Electric door lock actuator |
| 7 | 15A Audio system |
| 8 | 7.5A Control unit relay |
| 9 | 15A Interior lighting lamps (ceiling lights) |
| 10 | 15A Emergency light alarm |
| 11 | 15A Rear window wiper |
| 12 | 7.5A Control and measuring instruments |
| 13 | 15A Cigarette lighter |
| 14 | 10A Ignition switch |
| 15 | 20A Panoramic roof |
| 16 | 10A Exterior rear-view mirrors |
| 17 | 10A All-wheel drive system |
| 18 | 7.5A Reversing lights |
| 19 | 15A Power outlet |
| 20 | 30A Electric window lifts |
| 21 | 30A Rear window heater |
| 22 | 7.5A Heated exterior rear-view mirrors |
| 23 | 15A AC Power Supply |
| 24 | 20/25A Electric seats |
| 25 | 30A Seat heating |
Fuse number 13 at 15A is responsible for the cigarette lighter, and fuse number 19 is responsible for additional sockets.
Relay designation
- A – Central locking relay
- B – Heater relay
- C – Seat heating relay
- D – Heater fan relay
Block under the hood
The main fuse and relay block is installed in the engine compartment on the left side, next to the battery.
Example of a circuit from the block cover

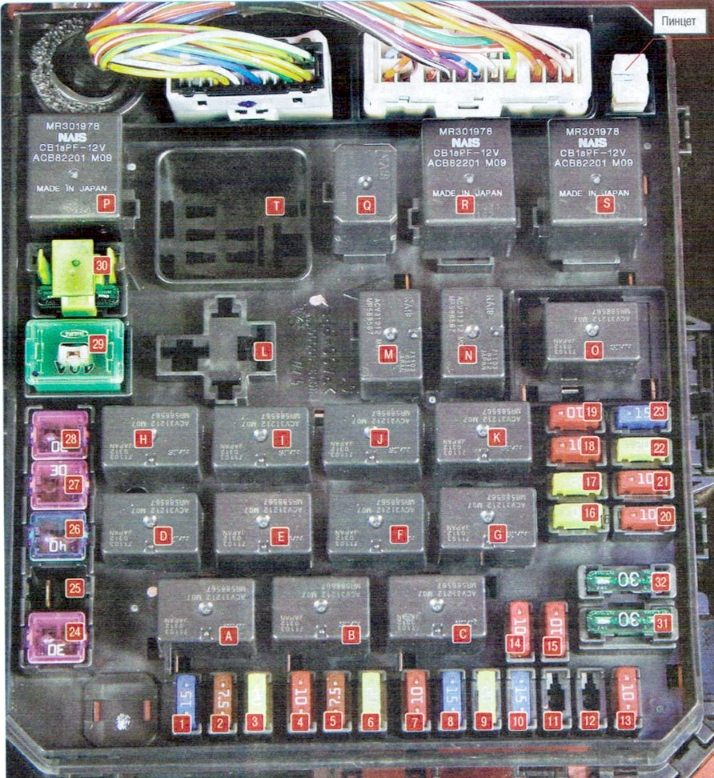

Scheme
Purpose of fuses
| 1 | 15A Fog lights |
| 2 | 7.5A Motor |
| 3 | 20A Automatic transmission |
| 4 | 10A Audible signal |
| 5 | 7.5A Generator |
| 6 | 20A Headlight washers |
| 7 | 10A Air conditioner |
| 8 | 15A Throttle/oil cooler fan (Twin Clutch SST robotic transmission) |
| 9 | 20A Anti-theft alarm sound |
| 10 | 15A Wiper blade heater |
| 11 | Reserve |
| 12 | 30A Electric tailgate drive |
| 13 | 10A Daytime exterior lighting system |
| 14 | 10A High beam headlight (left) |
| 15 | 10A High beam headlight (right) |
| 16 | 20A Low beam headlight (left) with gas discharge lamp |
| 17 | 20A Low beam headlight (right) |
| 18 | 10A Low beam headlight (left) |
| 19 | 10A Low beam headlight (right) |
| 20 | 10A Engine electrical equipment power supply circuit |
| 21 | 10A Ignition coil |
| 22 | 20A Engine electrical power supply circuit 25A Fuel rail heater |
| 23 | 15A Fuel pump |
| 24 | 30A Starter |
| 25 | Reserve |
| 26 | 40A ABS |
| 27 | 30A ABS |
| 28 | 30A Condenser fan motor |
| 29 | 40A Engine cooling system fan motor |
| 30 | 30A Input/Output Device |
| 31 | 30A Audio system amplifier |
Relay
- A – Fog light relay
- B – Horn relay
- C – Air conditioner compressor electromagnetic clutch relay
- D – Additional equipment
- E – Automatic transmission control relay
- F – Additional equipment
- G – Headlight high beam relay
- H – Throttle control relay
- I – Additional equipment
- J – Daytime exterior lighting system relay
- K – Fuel pump relay
- L – Additional equipment
- M – Air conditioner radiator fan relay
- N – Starter relay
- O – Headlight low beam relay
- P – Engine cooling fan relay
- R – Additional equipment
- S – Main relay of the engine control system
- T – Additional equipment
- Q – Condenser Fan Relay

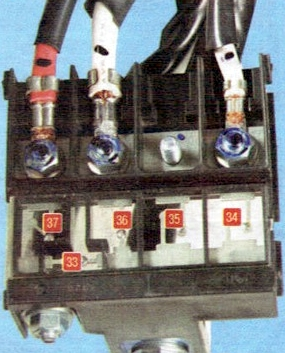

An additional power fuse block is attached to the positive terminal of the battery.
