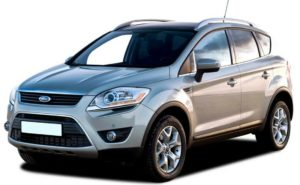

The compact crossover Ford Kuga 1st generation was produced in 2008, 2009, 2010, 2011 and 2012 with diesel and gasoline engines. In our material we will show the location of all electronic control units, describe in detail the fuse blocks and relays Ford Kuga 1. Let’s highlight the fuse responsible for the cigarette lighter.

The purpose of the relays and fuses in the blocks may differ from the one presented and depends on the year of manufacture of the Ford Kuga 1.

Location of all blocks

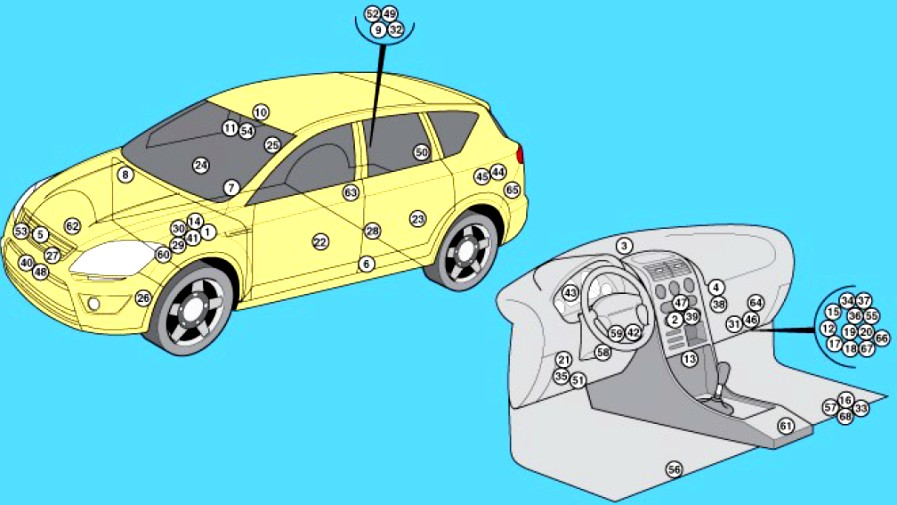

General layout of electronic control units

Description

1ABS electronic control unit
2Electronic air conditioning control unit (with automatic temperature control)
3Sunlight sensor (air conditioning system) (with automatic temperature control)
4Air conditioner/heater fan motor control unit (with automatic temperature control) – next to the fan motor
5Impact sensor (SRS)
6Side impact sensor, driver’s side – in the B-pillar
7Side impact sensor, passenger side – in the B-pillar
8Anti-theft alarm (with additional battery)
9Anti-theft alarm (without additional battery) – in the right side of the luggage compartment
10Volume change sensor (anti-theft system) – in the interior light bulb – if equipped
11Sunlight sensor – if available
12Automatic lighting system circuit control relay – in the fuse/relay block under the instrument panel
13Additional heater (electric) – if available
14Rechargeable battery
15Battery current control relay – in the fuse/relay box under the instrument panel
16CD changer – under the passenger seat
17Central locking relay – in the fuse/relay box under the instrument panel
18Central locking relay (driver’s door) – in the fuse/relay block under the instrument panel
19Central locking relay (unlock) – in the fuse/relay box under the instrument panel
20Central locking relay, double locking system relay – in the fuse/relay box under the instrument panel
21Diagnostic Connector (DLC)
22Driver’s door electrical control unit
23Left rear door electrical control unit
24Passenger door electrical control unit
25Right rear door electrical control unit
26Electronic engine control unit – behind the wheel arch
27Cooling system fan motor control unit
284WD electronic control unit – on the rear gearbox
29Fuse/relay block, engine compartment 1
30Fuse/relay block, engine compartment 2 – near battery
31Fuse/relay block, instrument panel
32Fuse/relay block, luggage compartment – ​​on the right side of the luggage compartment
33Acceleration sensor (lateral) (with ESP)
34High beam headlight relay – in the fuse/relay block under the instrument panel
35Headlight range control unit (with xenon headlights)
36Headlight low beam relay – in the fuse/relay block under the instrument panel
37Rear window heater relay – in the fuse/relay block under the instrument panel
38Heater fan motor resistor (without automatic temperature control) – next to the fan motor
39Heater control unit (without automatic temperature control)
40Audible signals
41Ignition main circuit relay 2 – built into the fuse/relay block in the engine compartment 1
42Block in the immobilizer board
43Instrument cluster control unit
44Control unit for remote central locking and engine start system – in the left side of the luggage compartment – ​​if equipped
45Remote start control unit (keyless) – in the left side of the luggage compartment – ​​if equipped
46Multifunctional control unit – in the fuse/relay box under the dashboard – functions: Air conditioning, anti-theft system, sunlight sensor, backlight, automatic lighting control system, additional heater, Battery current monitoring system, low brake fluid level indicator, central locking, charging system, cruise control system, diagnostic system, fog lights, parking brake indicator, hazard warning light, headlight washers, rear-view mirror heater, rear window heater, seat heater, windshield heater, interior lighting heaters, ambient air temperature sensor, pedal unit adjustment system, rain sensor, rear window wiper/washer, reversing lights, rear door unlocking, windshield wiper/washer
47Navigation system control unit – in the navigation system display
48Ambient air temperature sensor
49Parking system control unit – on the right side of the luggage compartment
50Rear view camera for parking – in the rear doors
51Parking system speaker, front – if equipped
52Parking system speaker, rear – on the right side of the luggage compartment – ​​if equipped
53Power steering control unit (electric power steering) – in the power steering pump.
54Rain sensor – in sunlight sensor – if available
55Rear window wiper/washer relay – in the fuse/relay block under the instrument panel
56Driver’s seat heating control unit – under the driver’s seat
57Passenger seat heating control unit – under the passenger seat
58Steering column lock control unit
59Steering wheel position sensor (ESP)
60Steering wheel position sensor (electric power steering) – on the steering rack
61SRS electronic control unit
62Body height sensor (front) – with xenon headlights
63Body height sensor (rear) – with xenon headlights
64Telephone control unit
65Trailer electrical control unit – in the left side of the luggage compartment – ​​if available
66Windshield Wiper Motor Relay 1 (Low Speed) – In the fuse/relay block under the instrument panel
67Windshield Wiper Motor Relay 2 (High Speed) – in the fuse/relay block under the instrument panel
68Lateral displacement sensor (with ESP) – in the acceleration sensor

Cabin block

It is located under the dashboard on the passenger side, under the glove compartment.

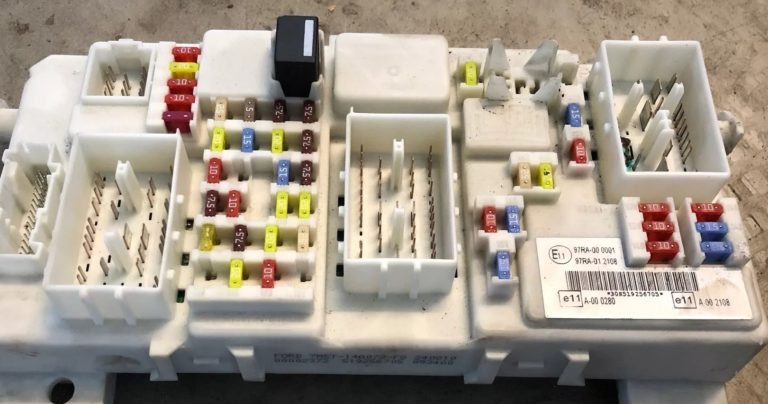

Photo – example

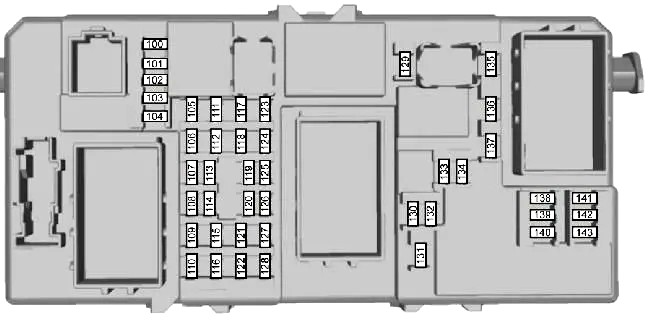

Scheme

Marking

10010A Electronic modules (powered by ignition switch)
10120A Electric driver’s seat
10210A Heater control, remote control receiver
10310A Power supply for external lighting controls from the battery
10410A Energy saving system, interior lighting shades
10525A Rear window heater
10620A Keyless engine start
10710A Battery power for instrument cluster, on-board diagnostics
1087.5A Additional functions of the instrument cluster (audio system and navigation system)
10920A Cigarette lighter, additional electrical socket at the rear
11010A Power supply for the outdoor lighting switch during the day from the generator
1115A Fuel pump (diesel engine only)
11115A Fuel pump (petrol engine only)
11215A Audio modules (battery powered)
11310A Daytime running lights (side lights)
11410A Power supply for the instrument cluster from the generator, engine immobilizer
1157.5A Power supply for external lighting controls from the generator
11620A Fog lights/lamps
1177.5A License plate light
11820A Door electrical module (left rear)
11915A Additional power socket in the luggage compartment
11925A Additional power socket in the luggage compartment (vehicles with trailer towing module)
12020A Door electrical module (right rear)
12120A Electric front seat heating
12210A Airbag module
1237.5A Electric heated exterior rear-view mirrors
1247.5A Rear and front parking lights, brake lights (left side)
1257.5A Rear and front position lights, brake lights (right side)
12620A Keyless Lock Control System
127Reserve
128Reserve
12920A Windshield wipers
13010A AWD Module
13115A Rear window wiper
13215A Stop signals
13325A Central locking relay, passenger door module
13420A Central locking system relay, driver’s door module
13520A Daytime running lights
13615A Windshield washer pump, heated windshield washer jets
13710A Emergency battery power activation speaker
13810A Powertrain Control Module, Accelerator Pedal, Automatic Transmission, IGN Keyless Module Monitoring
13910A High beam headlights, right side
14010A High beam headlights, left side
14110A Reversing light
14215A Low beam headlights (right side)
14315A Low beam headlights (left side)

Fuse number 109 at 20A is responsible for the cigarette lighter.

Block under the hood

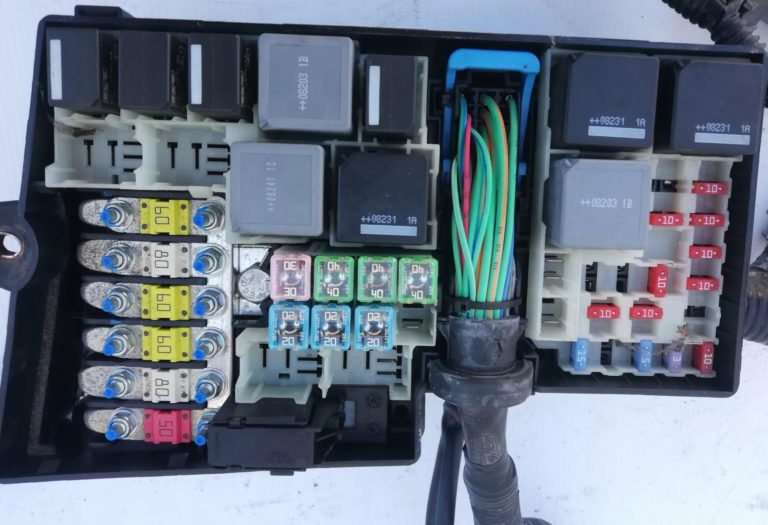

Located under the protective cover on the left, next to the battery.

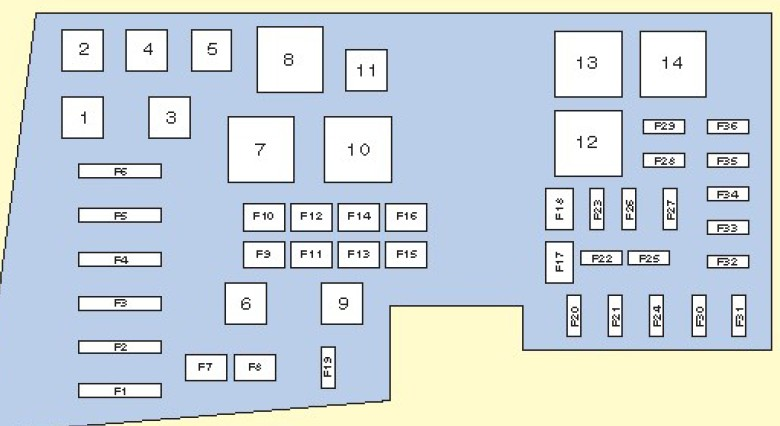

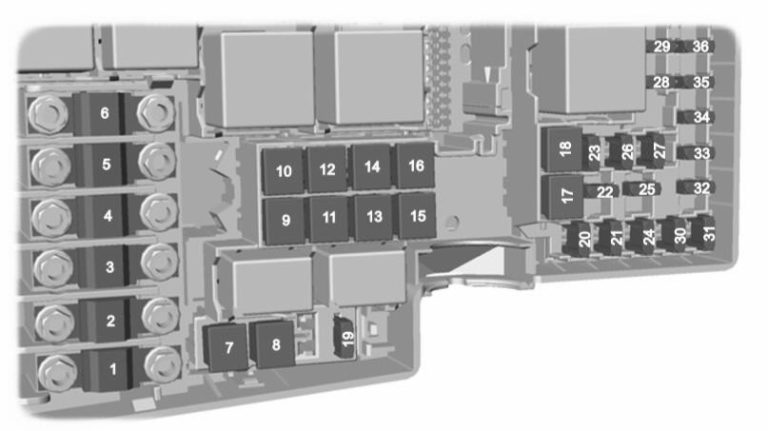

Scheme

Purpose of fuses

150A Electric engine cooling fan
280A Power steering
360A Internal fuse block 1
460A Internal fuse block 2
580A PTC Heater
660A Glow plugs (only for vehicles with diesel engines)
730A ABS anti-lock braking system, dynamic stabilization system pump
820A Anti-lock braking system (ABS), dynamic stabilization system valves
920A Powertrain Control Unit
1030A Climate control fan
1120A Ignition switch (starter and instruments)
1240A Relay 15 ignition
1320A Starter motor winding
1440A Windshield heater, right side
15Reserve
1640A Heated windshield, left side
17Reserve
1830A Power Converter
1910A ABS Module
2015A Audible signal
2120A Auxiliary heater
2210A Power Steering Module
2330A Headlight washers
2415A Auxiliary heater (only for vehicles with diesel engines)
2510A Ignition relay
2610A Automatic transmission
2710A Air conditioning compressor clutch
2810A Glow plug control (only for vehicles with diesel engines)
2910A Separate climate control system
303A Powertrain control unit, automatic transmission
3110A Intelligent battery charging
3210A Automatic transmission
3310A heated oxygen sensors (only for cars with gasoline engines)
3310A Intercooler bypass valve (only for vehicles with diesel engines)
3410A Injectors, ignition coils
1010A Powertrain control unit, valve, solenoid valve
3610A Powertrain Control Unit

Relay

  1. Reserve
  2. Horn relay
  3. Reverse light relay
  4. Reserve
  5. Fuel heater relay
  6. Reserve
  7. Windshield heater relay
  8. Main ignition circuit relay
  9. Headlight washer pump relay
  10. Heater fan motor relay
  11. Throttle full open position relay
  12. Glow plug relay
  13. Starter relay
  14. Engine control system relay
