The compact crossover Renault Arkana was produced in 2019, 2020, 2021, 2022, 2023, 2024. In our material, we will present a description of the fuses and relays of Renault Arkana with block diagrams, their locations and photo examples of execution. We will highlight the fuse responsible for the cigarette lighter.

The purpose of the fuses and relays may differ from that shown and depends on the year of manufacture and the level of electrical equipment of your car.

Block in the cabin

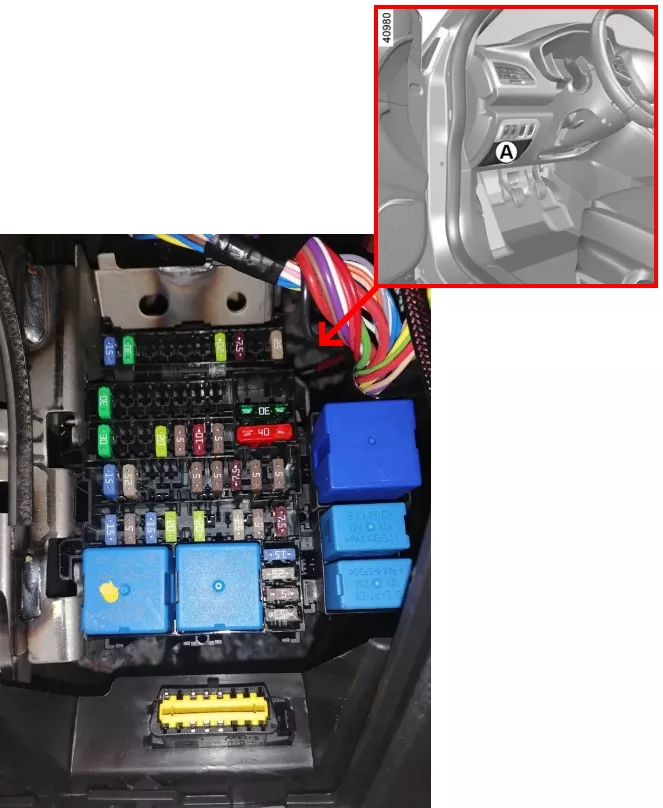

In the car’s interior, the fuse and relay box is located under the instrument panel on the left side behind a protective cover. To access it, you need to remove the protective cover. The box itself will look something like this.

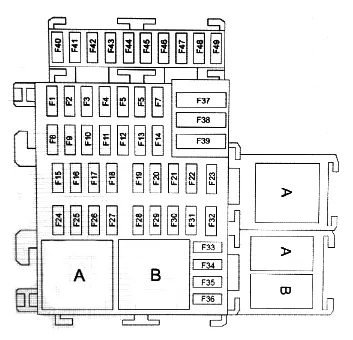

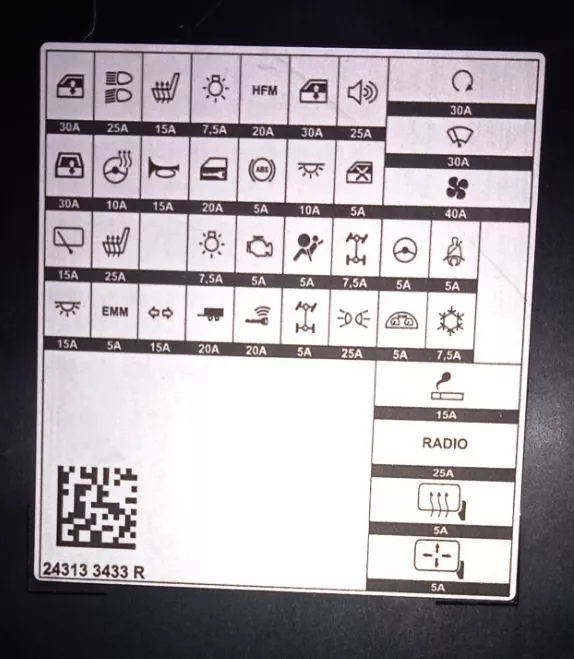

Check the assignment with your diagrams on the back of the block cover.

F21

No.ADescription of fuses
F130AFront door window lifts.
F2Reserve
F3Reserve
F4Reserve
F5Reserve
F6Reserve
F725ASubwoofer
F830ARear door window lifts.
F910AHeated steering wheel.
F10Reserve.
F1120ACentral locking for all 4 doors.
F125AClutch pedal position sensor, immobilizer receiver ring – in the key version. ABS control unit and trajectory stabilization system fuse.
F1310AInterior lighting lamps, climate control ECU.
F145ARain and light sensor, child safety system relay control – rear door window lock.
F1515ACentral electronics control system, windscreen wiper and washer.
F1625AHands-free function ECU, CAN master gateway, all-round cameras, heated seats.
F17Reserve
F187.5AFor cars with key only – brake light
F195AInjection system ECU
F205ASRS unit
F217.5AECU for all-wheel drive, reversing light
F225AEUR
F235AHeating element for interior heater, ECU for standard parking sensors, seat belt indicator, heated rear window, headlight corrector, heated windshield.
F2415APower supply for fuses F12, F13, F14, F36
F255AEnergy consumption ECU, Telemetry system ECU, CAN master gateway
F2615ARear lights, automatic transmission selector, electric drive for exterior mirrors
F2720APower supply for the towbar wiring matching unit
F2820APower supply circuit of fuses F32-F33
F29Reserve
F3025AHeadlights, cruise control, rear fog lights, rear power windows, all-wheel drive mode switch, license plate light, blind spot monitoring system, climate control panel, cigarette lighter, power for outside mirror switch.
F315AInstrument panel
F327.5AElectric heater fan
F3315ACigarette lighter
F3425ADiagnostic connector, audio system
F355AElectric drive of exterior mirrors
F365AElectric drive of exterior mirrors
F3730AFor cars with a key – starter
F3830AWindscreen cleaner
F3940AFor vehicles with a Start-Stop button – control of the power consumer relay.
F4015AHorn relay, hands-free access control unit.
F4130ADriver’s door window closer.
F425AAll-wheel drive ECU
F43Reserve
F44Reserve
F45Reserve
F4620ARelay after ignition switch, power consumption control unit, power supply for fuses F19-F23.
F477.5AFor keyless vehicles – brake light.
F4815AHeated seats
F4925AHeadlights and fog lights.
Purpose of the relay
A70Awindow lift switch
A20Atime relay “+” battery
B20Ahorn relay
A40Aheater fan relay
A40Arear window heating

Fuse number 33 for 15A is responsible for the operation of the cigarette lighter.

Blocks under the hood

Fuse and relay box

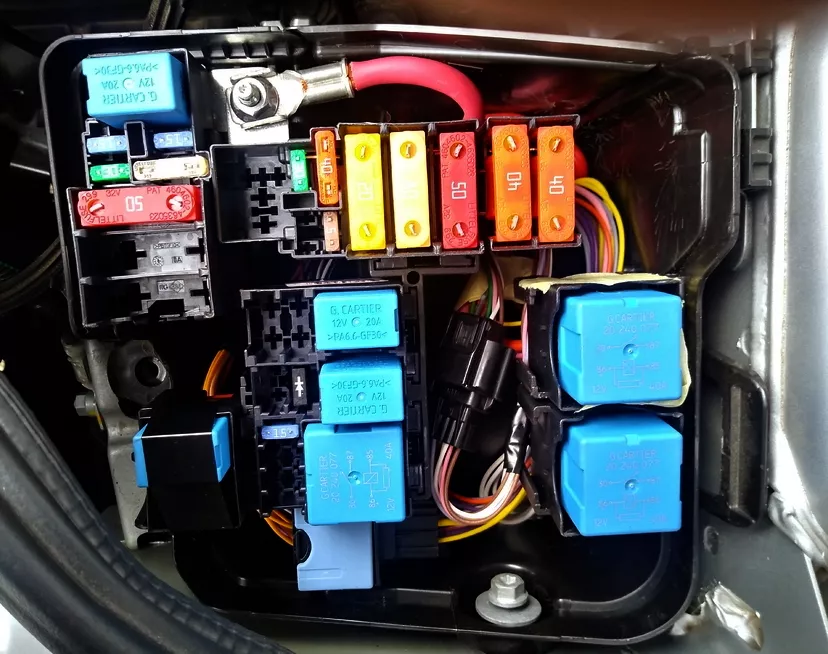

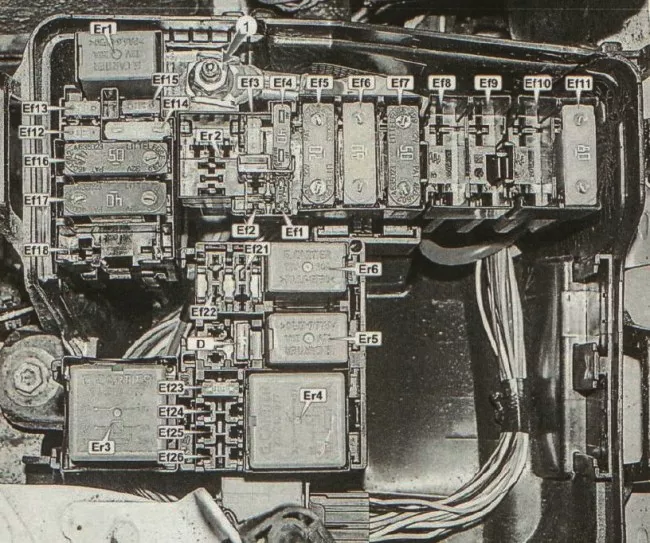

This block with fuses and relays is located next to the battery. To remove the cover, you need to open the cover latches on the sides.

No.ADesignation of fuses
Ef15AWasher nozzle heating 7.5A Electrical equipment control unit
Ef2Reserve
Ef325/30AABS/ESP Electronic Stability Program Control Unit
Ef440ARear window defroster, exterior mirror defrosters, fuse circuits F38 and F47
Ef520A/70APassenger compartment fuse and relay box, fuse circuits F5/ F23/ F24/ F25/ F26/ F27/ F42/ F44
Ef680AFuse and relay box in the passenger compartment, Heater heating element relay
Ef750AABS/ESP stability control unit / 50A Power supply for fuse F7, F9 in the passenger compartment unit
Ef8Reserve
Ef980AAdditional heater
Ef1040AHeated windshield, right side
Ef1140AHeated windshield, left side
Ef1230AStarter
Ef1315AAutomatic transmission control unit
Ef1425AInjection ECU and engine circuit protection, power supply to fuse F5, engine injectors, fuel gauge, fuel pump, ignition coils
Ef1515AA/C Compressor Clutch Relay, A/C Compressor Clutch
Ef1650AElectric fan of the cooling system
Ef1740AElectric fan for cooling the working fluid of automatic transmission
Ef1880AElectric power steering pump
Ef19Reserve
Ef20Reserve
Ef21Reserve
Ef22Reserve
Ef2315AEngine management system, Fan control unit, Air conditioning compressor relay control.
Ef24Reserve
Ef25Reserve
Ef26Reserve
DAC Compressor Clutch Diode
Relay
Er1Starter relay
Er1Reverse light relay
Er2Security alarm siren relay
Er3Starter relay
Er3Cooling Fan Relay
Er3Reverse light relay
Er4Engine Management System Main Relay
Er5Air conditioning compressor electromagnetic clutch relay
Er6Fuel pump relay

Power block

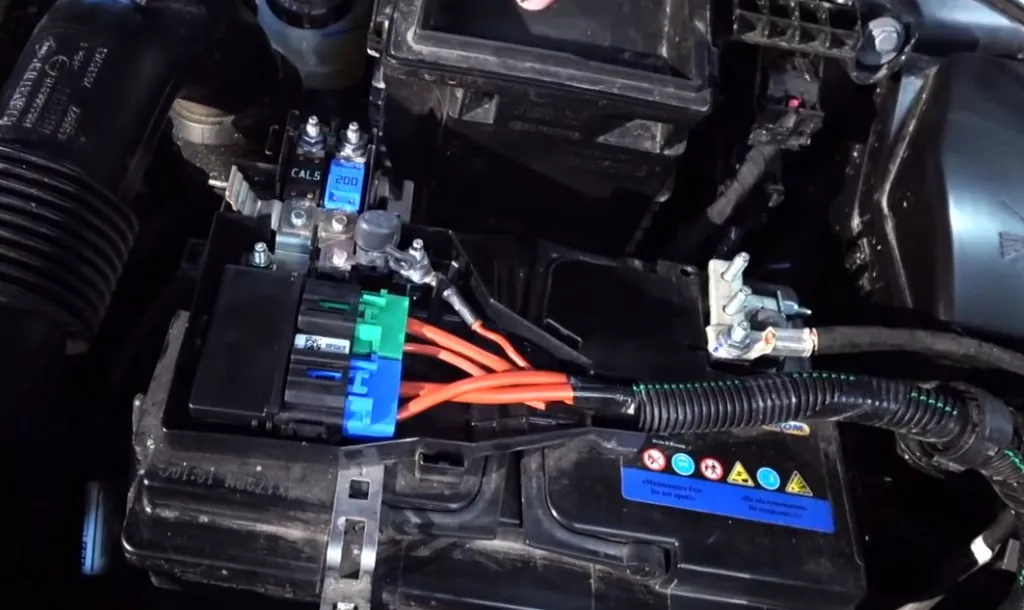

A high-power fuse block is installed on the positive terminal of the battery.

No.ADesignation of fuses
F1200APower supply for fuses F1-F7 in the fuse box under the hood.
F2300AGenerator, starter
F380AElectric power steering
F480APower supply for passenger compartment fuses
F550AABS and Trajectory Stabilization System ECU
F680APower supply for passenger compartment fuses
F77.5APower supply for the UECBS
