Skoda Felicia is a subcompact car produced in 1994, 1995, 1996, 1997, 1998, 1999, 2000 and 2001 with hatchback, station wagon (Felicia combi), van bodies. Most often, they were equipped with 1.3, 1.6 petrol and 1.9 diesel engines. We will show the location of the fuse box and relay in the Skoda Felicia, its diagram with a description of the purpose of the elements.

Block in the car interior

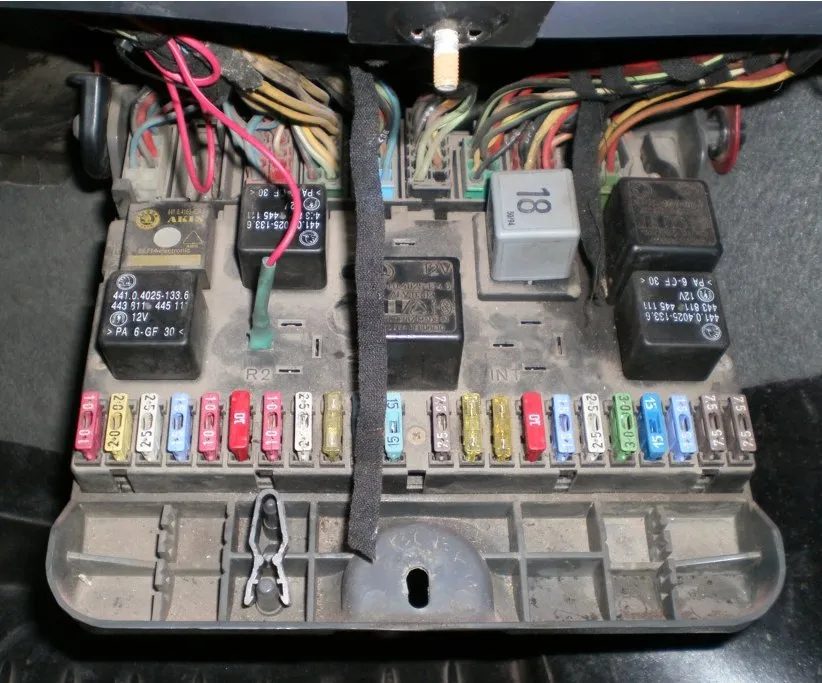

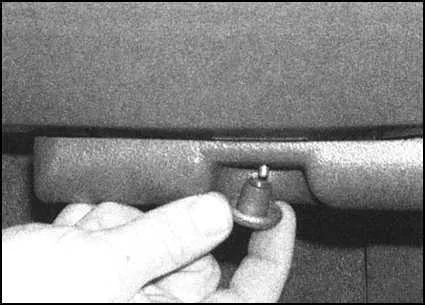

The main fuse and relay box is located under the dashboard on the passenger side. To access, unscrew the cover fastener.

Description of fuses

  1. 10A – Power supply for the injection control unit
  2. 20A — Windscreen wipers and washers for the front and rear windows
  3. 25A — Heater fan, air conditioner
  4. 15A — Power supply for engine control unit systems
  5. 10A – Right front fog light
  6. 10A – Left front fog light, indicator lamp
  7. 10A – Right low beam headlight
  8. 10A – Low beam left headlight, indicator lamp
  9. 10A – Right headlight high beam
  10. 10A – Left headlight high beam, indicator lamp
  11. 7.5A — Right front and rear side lights, buzzer for warning system about side lights not being switched off
  12. 7.5A – Rear fog lights, indicator lamp
  13. 30A – Rear window heating, indicator lamp, heated side mirrors with heating
  14. 15A — Brake signal, turn signals when the hazard warning lights are on, ABS/EDS
  15. 15A – Cigarette lighter, interior light, clock
  16. 15A — Headlight washer pump, central locking control unit
  17. 25A — Coolant radiator fan, high beam “blinking”, signal
  18. 25A – Electric windows
  19. 15A — Illumination of the side light switch in the off state, brake fluid level sensor, power supply for the buzzer of the warning system about the side lights not being switched off, low oil pressure indicator lamps, handbrake, battery charging system (generator), rear window heating, airbags, drive for electrically controlled side mirrors, seat heating
  20. 15A — Power supply for carburetor or injection control unit, immobilizer, high voltage unit
  21. 15A – Turn signals, reverse signal
  22. 7.5A — Left front and rear side lights, license plate light, trunk light, all button illumination, instrument panel, cigarette lighter, electric mirror control switch, side light indicator light, radio

Fuse number 15 for 15A is responsible for the cigarette lighter.

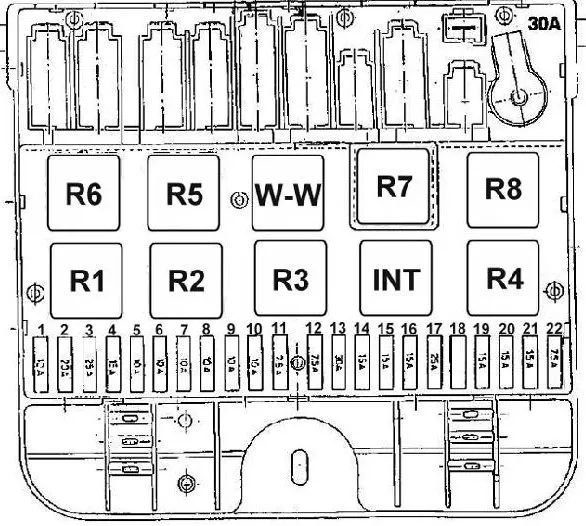

Purpose of the relay

R1High beam relay
R2Front Fog Light Relay
R3Rear Fog Light Relay
R4Rear window heating relay
R5Bosch Mono-Motronic injection system relay
R6Ignition system lock relay (with open door – only on some models) AKIN, SPDP
R7Ignition Switch Unloader Relay (X-Relay)
R8Alarm relay
INTRear wiper and washer relay
WWFront wiper relay
