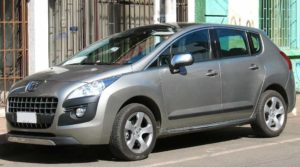

Peugeot 3008 is a compact front-wheel drive crossover. The first generation was produced in 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016. After that, the second generation entered the market, which is produced today. We suggest you familiarize yourself with the description of the Peugeot 3008 fuses and their locations.
Fuses in the Peugeot 3008 cabin

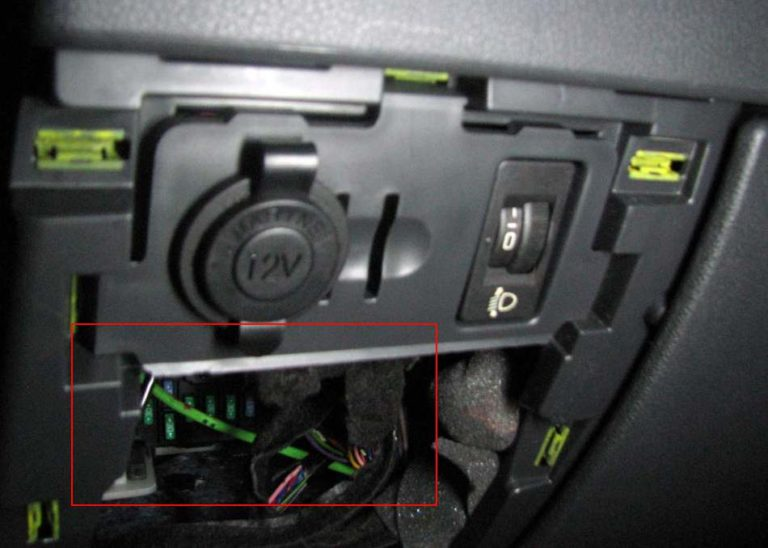

This unit is located in the instrument panel, on the left. To access it, remove the protective cover.
Appointment
| № | A | Protected chain |
| 1 | 15 | Rear window wiper |
| 2 | – | Free |
| 3 | 5 | Airbag ECU |
| 4 | 10 | Interior photosensitive rear-view mirror, air conditioning, security system switching unit, rear multimedia devices |
| 5 | 30 | Front power windows |
| 6 | 30 | Rear power windows |
| 7 | 5 | Front and rear lights, individual lighting lights, rear spotlights, mirror illumination on sun visors, glove box illumination, center armrest illumination, 12 V luggage compartment relay circuit |
| 8 | 20 | Car radio, radio telephone, CD changer, multifunction display, tire pressure monitoring system, alarm siren, alarm ECU, telematics ECU |
| 9 | 30 | 12 V socket front, cigarette lighter, 12 V socket rear |
| 10 | 15 | Steering wheel switches |
| 11 | 15 | Ignition switch low current circuit |
| 12 | 15 | Trailer sensor, rain/light sensor, fuse power supply F32, F34, F35 |
| 13 | 5 | Engine ECU, airbag ECU |
| 14 | 15 | Instrument panel, instrument panel display, fuse power supply F33 |
| 15 | 30 | Locking and superlocking |
| 17 | 40 | Heated rear window, fuse power supply F30 |
| SH | – | Shunt PARC |
| 29 | – | Free |
| 30 | 5 | Heated exterior mirrors |
| 31 | 30 | 12V socket for trunk |
| 32 | 5 | Sequential gearbox lever |
| 33 | 10 | Head-up display, speakerphone, air conditioning |
| 34 | 5 | Seat belt warning lights |
| 35 | 10 | Parking assistance system, Hi-Fi amplifier |
| 36 | 10 | Trailer ECU processor, driver’s door panel |
| 37 | 20 | Hi-Fi amplifier |
| 38 | 30 | Electric driver’s seat adjustment |
| 39 | 20 | Panoramic roof blind |
| 40 | – | Free |
Fuse number 9, 30 A, is responsible for the front and rear cigarette lighters.
Fuse and relay blocks under the hood

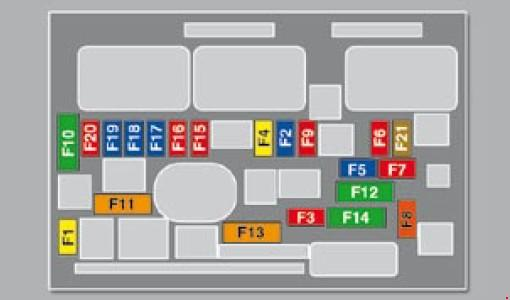

Main unit with relays and fuses
It is located on the left, near the counter.
Description
| № | A | Protected chain |
| 1 | 20 | Engine ECU power supply, fuel injection pump solenoid valves and EGR exhaust gas recirculation systems (on 2L HDI engine), injectors (on 2L HDI engine) |
| 2 | 15 | Sound signal |
| 3 | 10 | Front and rear window washer |
| 4 | 10 | Daytime running lights |
| 5 | 15 | Solenoid valves for the adsorber unloading, electric pressure reducing valve of the turbocharging system (on the 1.6 l THP engine), oil vapor heater (1.6 l THP), diesel fuel heater (1.6 l HDI) |
| 6 | 10 | Diagnostic connector, adaptive headlights, diesel particulate filter additive pump (on diesel), Distance Alert interval sensor, engine coolant level sensor, electric mirror drive |
| 7 | 10 | Power steering ECU, automatic transmission, adaptive headlight regulator drive |
| 8 | 20 | Starter switch |
| 9 | 10 | Clutch and brake pedal contactors |
| 10 | 30 | Components of the electronic engine control system (on gasoline: ignition coils, solenoid valves, oxygen sensors, injectors, heating system elements, fuel pump, electronic thermostat; on diesel: solenoid valves, heating system elements) |
| 11 | 40 | Air conditioning fan |
| 12 | 30 | Low/high speed windshield wiper |
| 13 | 40 | Power supply for the intelligent switching unit (+ from the ignition switch) |
| 14 | 30 | Turbocharger pressure solenoid valve |
| 15 | 10 | Right high beam headlight |
| 16 | 10 | Left high beam headlight |
| 17 | 15 | Left dipped beam headlight |
| 18 | 15 | Right dipped beam headlight |
| 19* | 15 | Oil vapor heater (1.6 l VTI), turbo boost pressure regulator solenoid valve (on diesel), coolant level sensor (on diesel) |
| 20 | 10 | Electronic thermostat, fuel control solenoid valves, turbo boost pressure control solenoid valve (diesel), coolant level sensor (diesel) |
| 21 | 5 | Power supply for the engine cooling fan relay, Valvetronic system switch relay (1.6 l VTI), turbo boost cooling (1.6 l THP), air flow sensor (1.6 l HDI) |

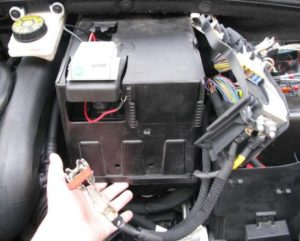

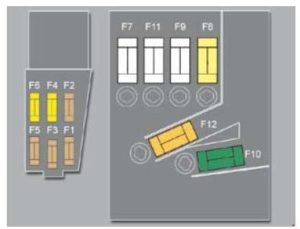

Fuses on the battery
Another block is placed next to the battery.
Transcript
| 1 | – | Free |
| 2 | 5 | Dual-function brake system contactor |
| 3 | 5 | Battery charging system ECU |
| 4 | 25 | ABS/CDS solenoid valves |
| 5 | 5 | ABS/CDS system processor |
| 6 | 15 | Automatic transmission and sequential transmission ECU |
| 7 | 80 | Electric power steering pump |
| 8 | 60 | Engine cooling system fan |
| 9 | 80/30 | Heating system ECU (on diesel), Valvetronic system electric drive (1.6 l THR) |
| 10 | 40 | ABS/CDS system electric pump |
| 11 | 100 | Protection system switching unit |
| 12 | 30 | Sequential gearbox electric pump |
Please note that, in addition to high-power fuses, there are also fusible ones on the cover.
Description of high-rated fuses
| MF1 | – | Free |
| MF2 | 30 | Trailer electrical circuit ECU |
| MF3 | 50 | Fuse box in the passenger compartment |
| MF4 | 80 | Intelligent switching unit |
| MF5 | 80 | Intelligent switching unit |
| MF6 | 30 | Electric parking brake |
| MF7 | 30 | Heated front seats |
| MF8 | 20 | headlight washer |
Photo of the block cover
