Peugeot 206 was produced in 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 and 2011 x SW, CC coupe. The car was equipped with gasoline and diesel engines. We offer for your review a description of the fuse blocks and relays of the Peugeot 206 with diagrams and locations where they are located.
Depending on the configuration and year of manufacture, several options for block design and relay placement are possible.
Fuses and relays under the hood

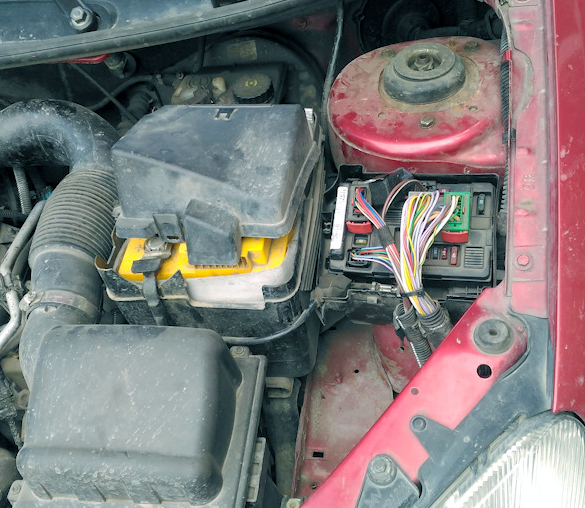

The main unit is located in the engine compartment on the left side.
Option 1 (before 2002)

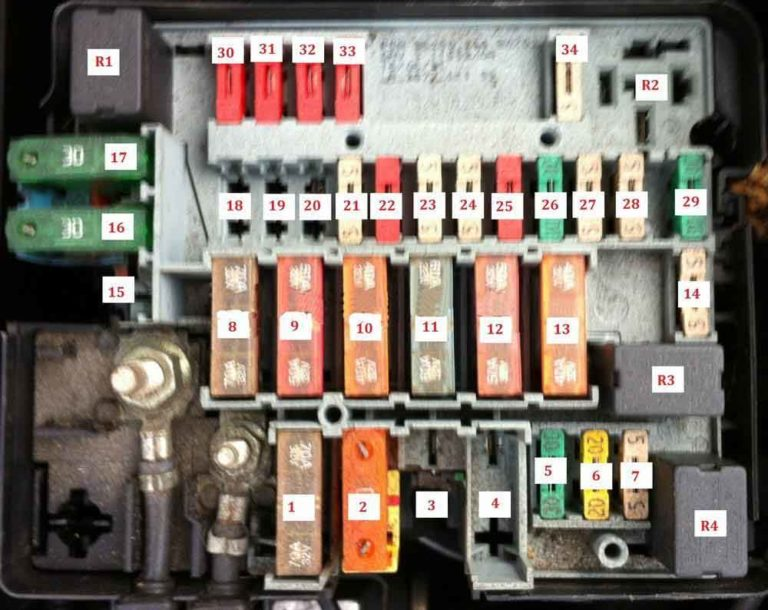

Photo-scheme
Description
| R1 | Fog light relay |
| R2 | Air pump relay (AIR) |
| R3 | Engine control relay |
| R4 | Horn relay |
| F1 | (70A) Multifunction control module |
| F2 | (40A) Engine Coolant Fan Relay 1 |
| F3 | (70A) Engine coolant heater-HDi |
| F4 | – |
| F5 | (20A/30A) Front fog lights, signal, side/tail lights |
| F6 | (5A / 10A / 20A) Air conditioning (AC), daytime running lights, heated front seats |
| F7 | (5A / 20A) Engine Coolant Fan Motor (Non-AC), Fan Motor Relay – Some Models (AC) |
| F8 | (70A) Fuse block |
| F9 | (50A) Multifunction control module |
| F10 | (40A) Light switch |
| F11 | (60A) Fuse block |
| F12 | (50A) ignition switch |
| F13 | (40A) ignition switch |
| F14 | (5A / 30A) Alarm, Data Link Connector (DLC), Daytime Running Lights, Headlight Washers |
| F15 | – |
| F16 | (30A) Anti-lock braking system (ABS) |
| F17 | (30A) Anti-lock braking system (ABS) |
| F18 | (20A) Headlight washers – some models |
| F19 | – |
| F20 | (15A) Fuel heater – HDi some models |
| F21 | (5A) AC control unit, AC/heater function control panel, HFY/HFZ/KFX/NFZ engine fan motor control module |
| F22 | (10A / 30A) Engine management-LPG, rear power windows-some models |
| F23 | (5A) Anti-lock braking system (ABS) |
| F24 | (5A) Engine control, glow plug timer relay |
| F25 | (10A) Fuel pump, inertia fuel cut-off switch (IFS) |
| F26 | (10A / 30A) Engine control, fuel pump |
| F27 | (5A/10A/20A) Engine management-HDi, automatic transmission (AT) |
| F28 | (5A) Throttle body heater |
| F29 | (20A / 30A) Engine Coolant Fan Motor – Some Models, Secondary Air Injection (AIR) Relay |
| F30 | (10A) Front fog light, right, front fog lights with indicator light on |
| F31 | (10A) Front fog light left |
| F32 | (10A) automatic transmission (AT), data link connector (DLC), HDi engine coolant heater, engine coolant level sensor, injector, reversing lamp/s, vehicle speed sensor (VSS) |
| F33 | (10A) Automatic transmission (AT) |
| F34 | (5A / 15A) Motor control |

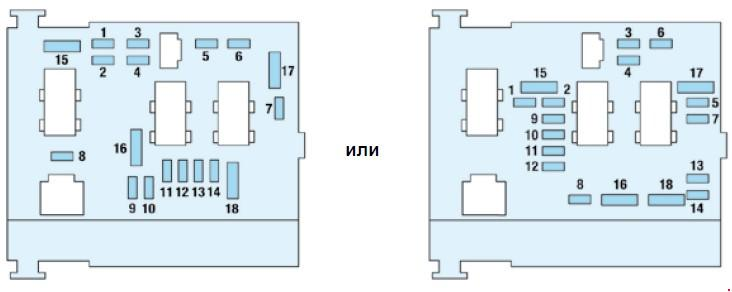

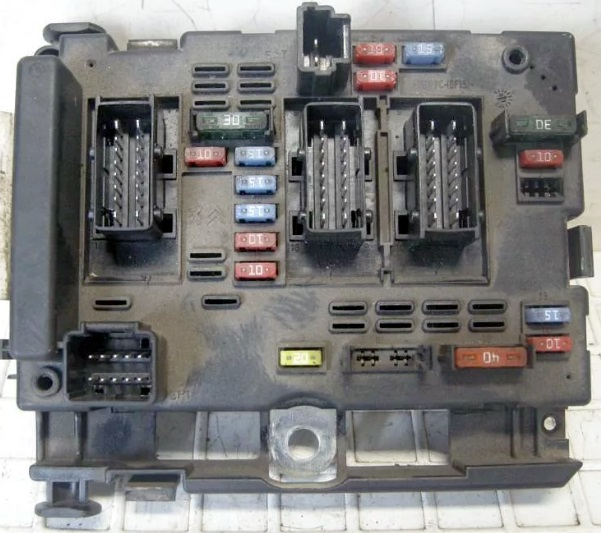

Option 2 (since 2002)
There are also 2 possible options in this block. Although the diagram may look different, the decoding is the same.

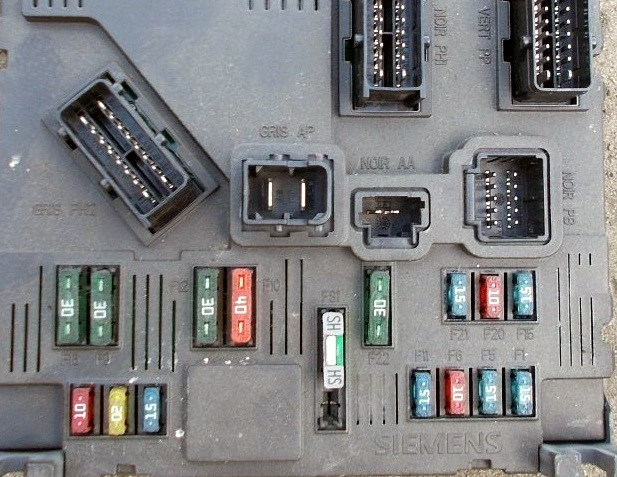

Table with designation
| 1 | 10A Diesel engine glow plug electronic unit, water in diesel fuel sensor, reverse light switch, speed sensor, diesel engine air flow meter |
| 2 | 15A Absorber solenoid valve, fuel pump |
| 3 | 10A ABS computer |
| 4 | 10A Automatic transmission computer, engine computer |
| 5 | Not used |
| 7 | 20A Headlight washer pump |
| 8 | 20A Engine cooling fan relay, engine computer, diesel engine fuel injection pump, diesel engine high-pressure fuel regulator, engine solenoid valve |
| 9 | 15ALeft dipped beam headlight |
| 10 | 15A Right dipped beam headlight |
| 11 | 10A Left high beam headlight |
| 12 | 15A Right high beam headlight |
| 13 | 15A Audible signals |
| 14 | 10A Windshield and rear window washer pumps |
| 15 | 30A Throttle body heater unit, diesel engine fuel injection pump, oxygen sensor, engine computer, air flow meter, ignition coil, engine solenoid valve, diesel fuel heater unit, injectors |
| 16 | 30A Compressor relay |
| 17 | 30A Maximum and low speed wiper |
| 18 | 40A Electric fan for heating and ventilation systems |
Some relays are located inside the unit.
Individual relays are located near the equipment that serves them. For example, a relay for the engine cooling fan.

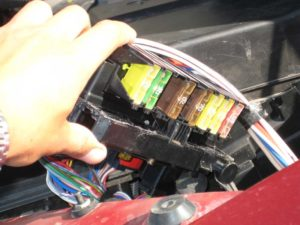

Maxi fuses
Separately (on the back) are high-power fuses. They are designed for high current, providing additional protection for electrical equipment circuits.
Description
- (20A) Cooling fan relay
- (70A) ABS control module
- (30A) ABS control module
- (70A) Fuse box/relay plate, fascia (F9-F12/F16), multifunction control module
- (70A) Fuse block/relay plate, fascia (F1/F4/F5/F7/F14/F15/F23)
- (30A) Power steering pump
- (30A) Ignition switch
- (30A) Audio device output amplifier

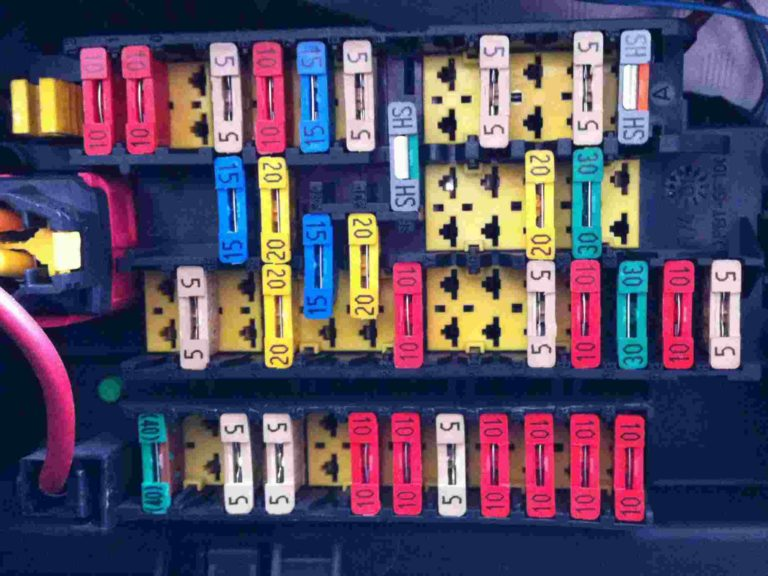

Fuse box in the Peugeot 206 cabin

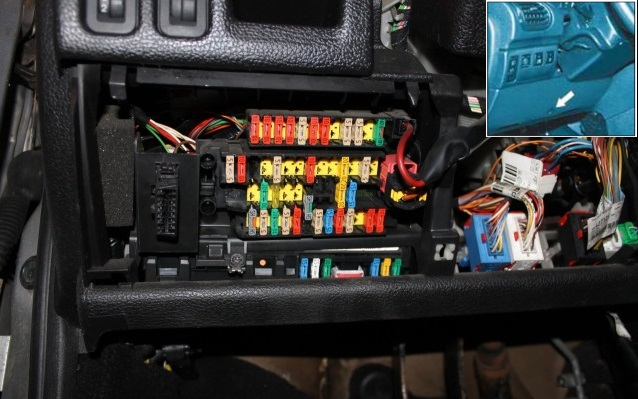

It is located under the dashboard, on the left behind a protective cover. To access it, you need to turn the mount.
Option 1 (before 2002)
Scheme
The numbering goes from right to left and top to bottom. The number is also indicated on the fuse mounting label.
Transcript
| F1 | (50A) Anti-lock braking system (ABS) |
| F2 | (5A) Instrument panel |
| F3 | – |
| F4 | (5A) Multifunction control module |
| F5 | – |
| F6 | (5A) Engine control, immobilizer |
| F7 | (15A) Convertible (folding roof) |
| F8 | (10A) Security alarm LED, digital multi-function display, hazard warning lights, instrument panel, interior lights |
| F9 | (5A) Multifunction control module |
| F10 | – |
| F11 | (10A) LH brake light, center light |
| F12 | (10A) Brake light RH |
| F13 | – |
| F14 | (30A) Rear power windows |
| F15 | (20A) Side lights, trailer socket |
| F16 | – |
| F17 | – |
| F18 | (10A) Audio device backlight lamp, cigarette lighter lamp, clock, instrument backlight, digital multi-function display, license plate lamps, switch backlight, gear shift switches, lamp |
| F19 | (5A) Rear fog lights |
| F20 | – |
| F21 | – |
| F22 | (10A) Alternator indicator lamp, clock, digital multifunction display, glove box lamp, instrument panel, interior lamps, navigation system, rain sensor, power windows |
| F23 | (20A) Cigarette lighter |
| F24 | (15A / 20A) Audio system |
| F25 | (20A) Rear window washer/wiper system, windshield washer/wiper system |
| F26 | – |
| F27 | (5A) Multifunction control module |
| F28 | – |
| F29 | (10A) LH high beam headlight |
| F30 | (10A) RH high beam headlight, high beam headlight signal lamp |
| F31 | (10A) LH low beam headlight |
| F32 | (10A) RH headlight – low beam, low beam headlight “on” indicator lamp |
| F33 | (5A) Headlight washers |
| F34 | (10A) Side lamp LH, tail lamp LH |
| F35 | (10A) RH side lamp, RH tail light |
| F36 | – |
| F37 | (5A) HFY/HFZ/KFX/NFZ/WJZ Engine Fan Motor Control Module |
| F38 | (5A) AC refrigerant triple pressure switch, motor fan relay 2 |
| F39 | – |
| F40 | (20A) Heater/Air Conditioner (AC) |
| F41 | (5A) Spare |
| F42 | (10A) Spare |
| F43 | (30A) Spare |
| F44 | (20A) Spare |
| F45 | (15A) Spare |
Fuse number 23 at 20A is responsible for the cigarette lighter.

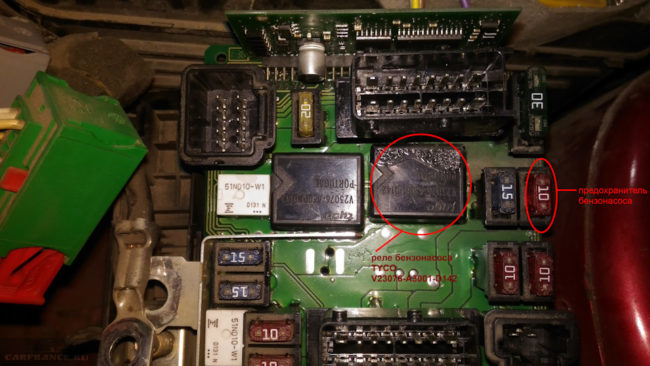

Option 2 (since 2002)
Description
| 1 | 15A Electric seat heating, security alarm siren |
| 4 | 20A Multifunction display, on-board navigation system computer, trunk lighting, car radio |
| 5 | 15A Automatic transmission diagnostic unit |
| 6 | 10A Coolant level sensor, automatic transmission unit, car radio |
| 7 | 15A Additional devices and equipment of the training vehicle, security alarm unit |
| 9 | 30A Rear door power windows |
| 10 | 40A Electric rear window and exterior mirror heaters |
| 11 | 15 Rear window wiper |
| 12 | 30A Front windows, sunroof |
| 14 | 10A Electronic engine control unit, airbags, steering wheel switches, rain sensor |
| 15 | 15A Instrument panel, multifunction display, on-board navigation system computer, climate control unit, car radio |
| 16 | 30 Door lock/unlock control unit |
| 20 | 10A Right brake light |
| 21 | 15A Left brake light, third brake light |
| 22 | 30A Front general lighting and rear lighting (206 SW), local lighting, glove box lighting, cigarette lighter, rear 12 V socket (206 SW) |
| S1 | Shunt “PARC” |
Fuse number 22 at 30A is responsible for the cigarette lighter.
