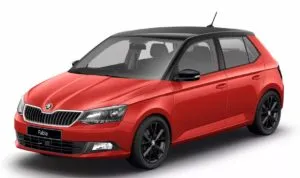

Skoda Fabia 3rd generation (Mk3) was produced in 2014, 2015, 2016, 2017, 2018, 2019 and to the present day with hatchback and station wagon (fabia combi) bodies. The new “sharp” design added sportiness to the third generation Fabia. In this publication, we will show where the fuse boxes are located in the 3rd generation Skoda Fabia car and their diagrams with a description of the purpose of the elements.

Block in the cabin

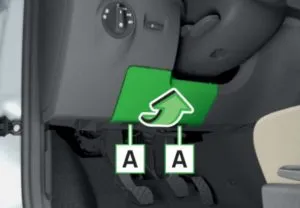

It is located on the bottom side of the front panel under the cover. To access it, remove the fuse box cover in the direction of the arrow.

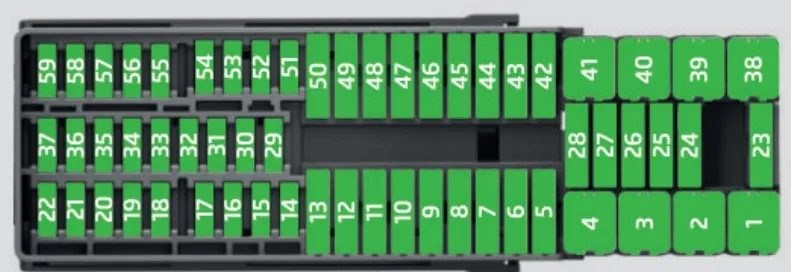

  1. Left side light, side lights, high brake light
  2. Central lock
  3. Ignition system relay
  4. Right side lighting, rear fog light, light, number plate light
  5. Electric window lift driver’s door
  6. Central control unit, interior lighting lamps
  7. Sound signal
  8. TSU – left light
  9. Steering column lever, engine control unit (only vehicles without KESSY), automatic transmission (only vehicles without KESSY), automatic transmission selector lever (only vehicles without
    KESSY), ESC (only vehicles without KESSY), trailer detection control unit (only vehicles without KESSY), power steering (only vehicles
    without KESSY), airbag (only vehicles without KESSY)
  10. Electric window lift rear left door
  11. Headlight washer
  12. Head unit display
  13. 12V socket in the luggage compartment
  14. Steering column lever, light switch, ignition key removal lock (automatic transmission vehicles), diagnostic
    connector, light signal, SmartGate system control unit, rain sensor, light sensor
  15. BU climate control system, automatic transmission selector lever
  16. Instrument cluster
  17. Security alarm, sound signal
  18. Not used
  19. Not used
  20. Not used
  21. Not used
  22. Windshield and rear window washer
  23. Not used
  24. Air conditioning fan, heater, BU air conditioning, heater
  25. Not used
  26. Heated front seats
  27. Rear window wiper.
  28. Not used
  29. Airbag (only vehicles with KESSY)
  30. Electric windows, light switch, reversing light switch, climate control unit,
    parking autopilot control unit, outside mirrors, power supply for middle key panel, power supply for side key panel, inside
    rearview mirror
  31. Fuel pump, radiator fan control unit, cruise control, windshield and rear window washer relay coil
  32. Diagnostic connector
  33. Starter Relay Coil, Clutch Pedal Switch
  34. Heated windshield washer nozzles
  35. Not used
  36. Heated front seats
  37. Radar
  38. Not used
  39. Additional electric heater
  40. Not used
  41. Rear window heating
  42. Electric window lift front passenger door
  43. TSU – contact in the socket
  44. Cigarette lighter, 12V socket
  45. Electric window lift rear right door
  46. Front and rear window washer, steering column lever
  47. TSU – contact in the socket
  48. TSU – right lamp
  49. Fuel pump control unit
  50. Head unit
  51. Heated exterior mirrors
  52. KESSY control unit
  53. Steering column lock KESSY
  54. Not used
  55. Heated front seats
  56. Not used
  57. Not used
  58. Not used
  59. Not used

Fuse number 44 is responsible for the cigarette lighter.

Block under the hood

It is located near the left wing.

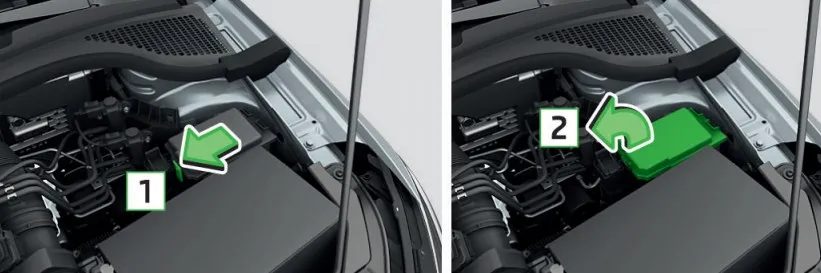

Press the cover lock in the direction of arrow 1 and lift the cover itself as shown in illustration 2.

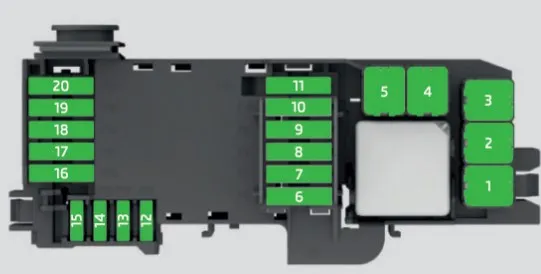

Scheme

  1. Radiator fan
  2. Bulkhead heating system
  3. ABS or ESC control unit
  4. Additional electric heater
  5. Additional electric heater
  6. Automatic transmission
  7. Engine BU
  8. Windscreen wiper
  9. Central control unit
  10. ABS or ESC control unit
  11. Not used
  12. Engine components
  13. Brake pedal limit switch
  14. Engine Components, Fuel Pump Relay Coil
  15. Engine BU
  16. Starter
  17. Engine BU
  18. Engine components, auxiliary electric heater relay coils, radiator fan
  19. Lambda probe
  20. Engine components, pre-heating system control unit, crankcase ventilation heating
