Renault Clio 3 generation was produced in 2005, 2006, 2007, 2008, 2009, 2010, 2011 and 2012. During this time, the model was updated. In this article, we will show the location of electronic control units, a description of the fuses and relays of Renault Clio 3 with block diagrams, their locations and photo examples of execution. We will highlight the fuse responsible for the cigarette lighter.
The purpose of fuses and relays may differ from that shown and depends on the year of manufacture, level of electrical equipment and region of delivery of your vehicle.

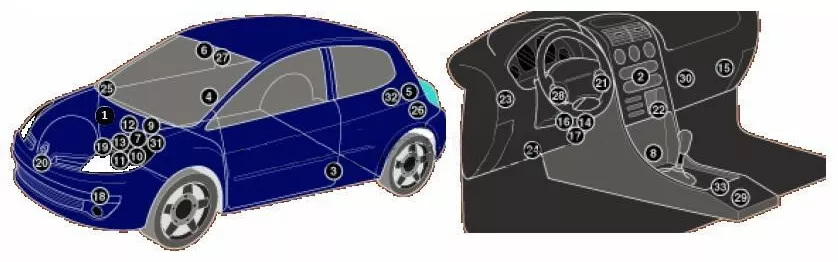

Location
| No. | Description |
|---|---|
| 1 | Electronic control unit ABS |
| 2 | Electronic air conditioning control unit |
| 3 | Side impact sensor, left |
| 4 | Side impact sensor, right |
| 5 | Anti-theft system (if installed): |
| 6 | Light sensor |
| 7 | Battery |
| 8 | Diagnostic Link Connector (DLC) |
| 9 | Electronic engine control unit |
| 10 | Fuse/Relay Box, Engine Compartment 1 |
| 11 | Fuse/Relay Box, Engine Compartment 2 |
| 12 | Fuse/Relay Box, Engine Compartment 3 |
| 13 | Fuse/Relay Box, Engine Compartment 4 |
| 14 | Fuse/Relay Box Instrument Panel 1 |
| 15 | Fuse/Relay Box Instrument Panel 2 |
| 16 | Fuse/Relay Box Instrument Panel 3 |
| 17 | Fuse/Relay Box Instrument Panel 4 |
| 18 | Xenon headlight control unit |
| 19 | Glow Plug Control Unit |
| 20 | Sound signals |
| 21 | Ring antenna immobilizer – without keyless entry system |
| 22 | Keylessentry system control unit |
| 23 | Multifunctional control unit 1 – functions: Air conditioning, brake lights, central locking, double door locking – RHD, fog lights, hazard warning lights, rear window defroster, direction indicators, instrument cluster, interior lights, remote central locking system, outside air temperature sensor, sunroof, windshield washer |
| 24 | Multifunctional control unit 2 – functions: Central locking, fog lights, hazard warning lights, direction indicators, rain sensor, temperature gauge display, remote central locking system, sunroof, power windows |
| 25 | Ambient air temperature sensor – in the right door mirror |
| 26 | Parking system control unit |
| 27 | Rain sensor |
| 28 | Steering wheel electrical control unit |
| 29 | SRS Electronic Control Unit |
| 30 | Phone Interface Control Unit |
| 31 | Electronic control unit of the gearbox |
| 32 | Tire pressure monitoring system control unit |
| 33 | Lateral displacement sensor |
Blocks under the hood
There may be 3 fuse and relay boxes installed under the hood in the engine compartment.
Fuse and relay box

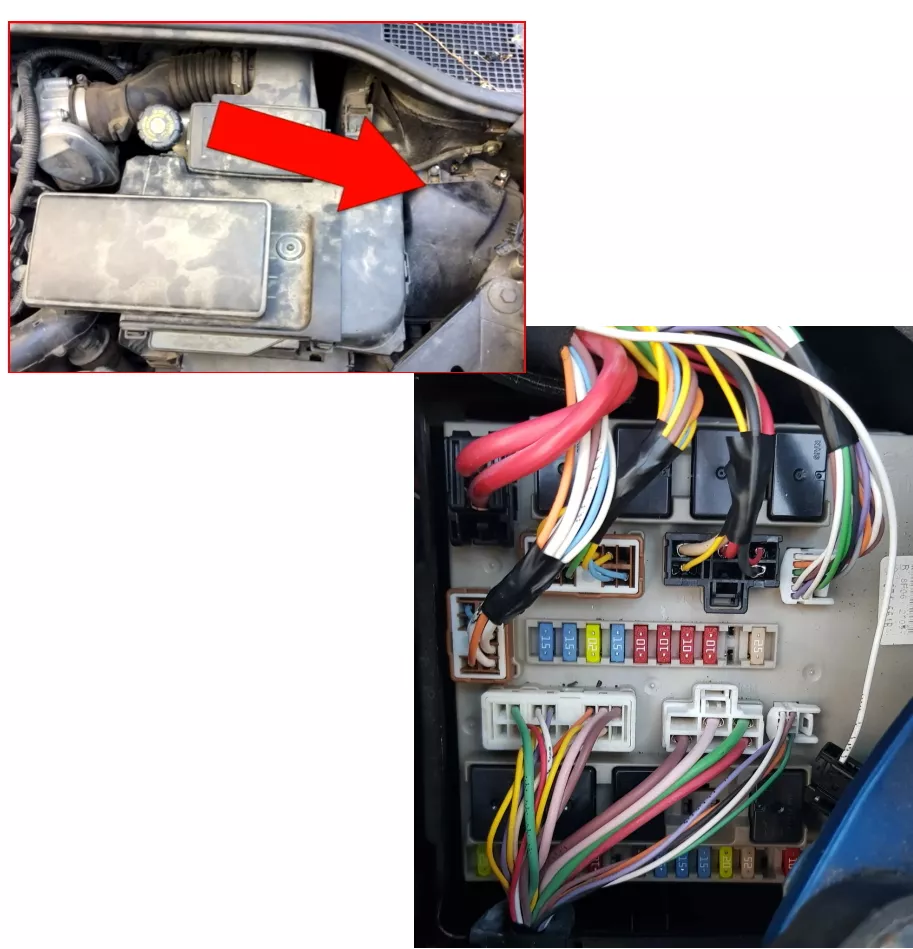

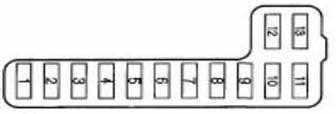

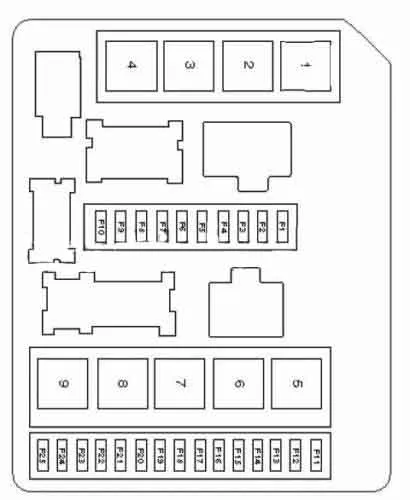

The fuse and relay box is on the left side and is covered with a protective cover. It should look something like this.
| No. | A | Designation |
|---|---|---|
| 1 | (25A) | Electronic control unit ABS |
| 2 | — | |
| 3 | (10A) | Right headlight high beam |
| 4 | (10A) | Left headlight high beam |
| 5 | (10A) | Air conditioning control unit, central locking, cruise control switch, electric windows, rear right, ABS/ESP system, multi-function display, front/rear right side lights |
| 6 | (10A) | Audio system, central locking, cigarette lighter, electric door mirror switch, two-position driver’s door window lifter switch, electric window lifter, rear left, window lifter switch, passenger door, headlight range control unit, number plate light, parking system, front/rear left side lights, traction control system |
| 7 | (15A) | Additional heater relay 1/2, cruise control switch (cruise control, when reverse gear is engaged), diagnostic connector (DLC), electric power steering, xenon headlight control unit, multi-function display, automatic transmission mode selector switch, gear selector illumination lamp, tire pressure monitoring system control unit |
| 8 | (20A) | Windshield wiper motor |
| 9 | (15A) | Headlight corrector (right), low beam (right) |
| 10 | (15A) | Headlight corrector (left), low beam (left) |
| 11 | (10A) | Air conditioning compressor electromagnetic clutch |
| 12 | — | |
| 13 | (25A) | Starter solenoid relay |
| 14 | (20A) | Electronic control unit of the gearbox |
| 15 | — | |
| 16 | (15A) | Rear window defroster |
| 17 | (15A) | Headlight Washer Pump Relay |
| 18 | (5A) | Electronic control unit of the gearbox |
| 19 | — | |
| 20 | (10A) | Reversing lights |
| 21 | (20A) | Ignition coils |
| 22 | (20A) | Electronic engine control unit |
| 23 | (10A) | SRS Electronic Control Unit |
| 24 | (10A) | Electronic engine control unit, steering column lock solenoid valve – with keyless entry system |
| 25 | (20A) | Fog lights |
| Relay | ||
| 1 | Rear Window Defogger Relay | |
| 2 | Engine Management System Relay – Except K9K764 | |
| 3 | Low beam headlight relay | |
| 4 | Fog light relay | |
| 5 | Starter relay | |
| 6 | – | |
| 7 | Cooling Fan Motor Relay High Speed 1 | |
| 8 | Cooling Fan Motor Relay Low Speed 2 | |
| 9 | Relay 2 main ignition circuits | |
Fuse box

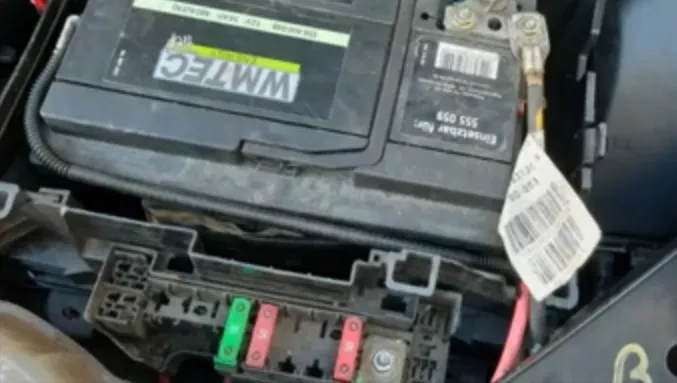

This fuse box is located next to the battery, in front.
| No. | A | Purpose |
|---|---|---|
| F1 | (30) | Engine Management System Relay – K9K764 |
| F2 | (30A) | Gearbox pump relay – D4F764 (sequential manual transmission) |
| F3 | (30A) | Electric motor of the cooling system fan – K9K766, D4F764 (sequential manual transmission) |
| F4 | (30A) | Electric motor of the cooling system fan – K4M, K4J, D4F(M^^ |
| F5 | (50A) | Fuse/Relay Box, Instrument Panel 2 – Fuses ^2^4 |
| F6 | (80A) | Additional heater 1/2 |
| F7 | ||
| F8 | (50A) | Electronic control unit ABS |
| F9 | ||
| F10 | ||
| F11 | ||
| F12 | (10A) | Xenon headlight relay |

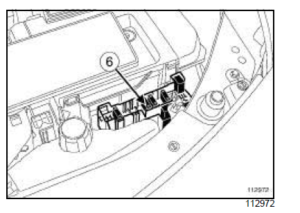

There may be some relays on the side, on the right.
- Headlight Washer Pump Relay 1
- Headlight Washer Pump Relay 2
- Xenon headlight relay
Power fuse box

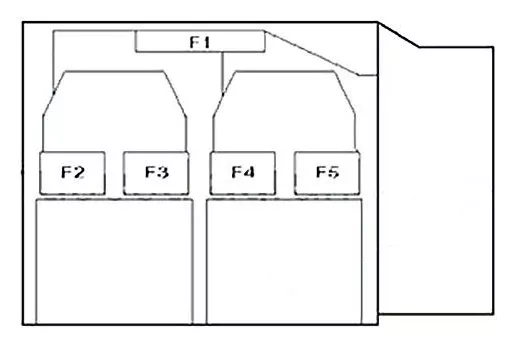

Another block of high power fuses can be installed on the battery cover.
| No. | A | Purpose |
|---|---|---|
| F1 | 350A | Fuse/Relay Box, Engine Compartment with 2 Fuses F2-F8, Fuse/Relay Box, Engine Compartment with 3 Fuses F2/F3 |
| F2 | 70A | Fuse/Relay Box, Panel 1-Fuses F16-F18, Fuse/Relay Box, Engine Compartment 2-Fuse F1 |
| F3 | 60A | Electric power steering |
| F4 | 70A | Fuse/Relay Box Panel 1 – Fuses F1-F6/F20, Relay 1 |
| F5 | 60A | Multifunctional control module |
Blocks in the salon
Fuse box

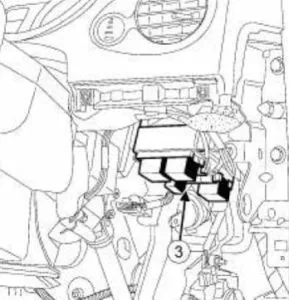

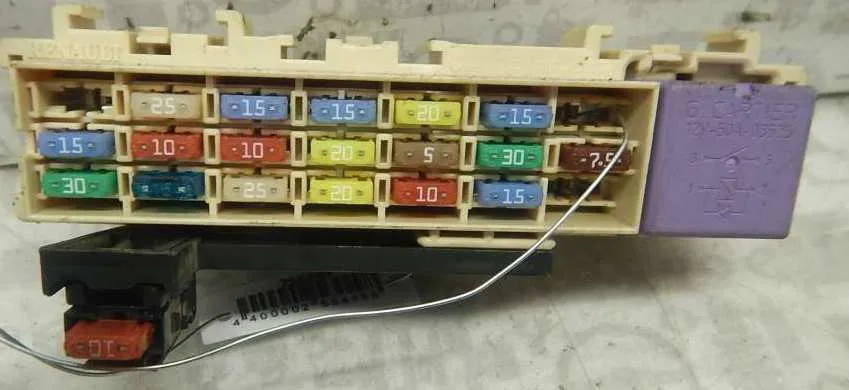

The main fuse box is located at the bottom of the dashboard, behind a protective cover.

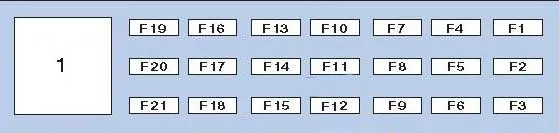

| No. | A | Designation |
|---|---|---|
| F1 | (30A) | Direction indicators |
| F2 | (15A) | Electronic air conditioning control unit, additional equipment, instrument cluster |
| F3 | (7.5A) | Rear view mirror control unit, interior lighting lamps, vanity mirror lighting lamps |
| F4 | (15A) | Diagnostic Link Connector (DLC), beeps |
| F5 | (10A) | Glove compartment light, luggage compartment light |
| F6 | (25A) | Central locking, electric window motor, driver’s side |
| F7 | (25A) | Driver’s door window lifter drive switch on two positions |
| F8 | (10A) | Electronic control unit ABS |
| F9 | (15A) | Cigarette lighter |
| F10 | (20A) | Air conditioner/heater fan motor control unit (manual temperature control) |
| F11 | (20A) | Air conditioner/heater fan motor control unit (automatic temperature control) |
| F12 | (15A) | Air conditioning electronic control unit, air conditioning/heating control panel, anti-theft alarm horn, audio system, fuse box/relay, instrument panel 2- relay 6/7, seat heating, multifunction control unit, rear window washer pump, steering wheel electrical equipment control unit, telephone control unit, windshield wiper motor |
| F13 | (10A) | Brake Light Switch (Brake Pedal Position Sensor), Fuse/Relay Box, Instrument Cluster 2 – Relay 3 |
| F14 | (5A) | Sun sensor, electric door mirror control unit, interior lights, rain sensor, vanity mirror lights, windshield wipers |
| F15 | (20A) | Rear window wiper motor |
| F16 | (15A) | Electronic immobilizer control unit |
| F17 | (30A) | Central lock |
| F18 | (15A) | Multifunctional control unit |
| F19 | (5A) | Cabin Air Temperature Sensor Fan |
| F20 | (25A) | Passenger door window lifter drive motor |
| F21 | Rear window lifter electric drive diode | |
| Relay | ||
| 1 | Main Ignition Circuit Relay | |
Fuse number 9 is responsible for the cigarette lighter.
Fuse and relay box

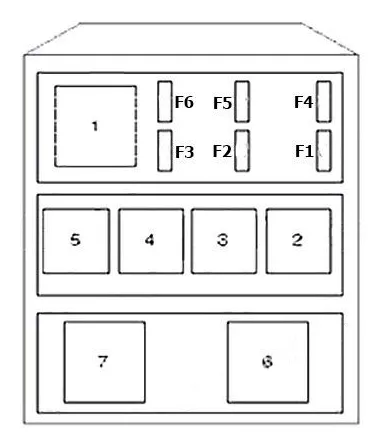

Another block with fuses and relays is located separately.
| No. | A | Designation |
|---|---|---|
| F1 | – | |
| F2 | 20A | Heated seats |
| F3 | 15A | Sunroof |
| F4 | 25A | Electric windows at the rear |
| F5 | – | |
| F6 | – | |
| Relay | ||
| 1 | Electric window relay, driver | |
| 2 | – | |
| 3 | Brake light relay | |
| 4 | – | |
| 5 | – | |
| 6 | Rear window lift relay 1 | |
| 7 | Window Lift Relay – Rear 2 | |
