Renault Logan 2 belongs to the class of budget cars. In Europe, it is also known as Dacia Logan 2. It was produced with station wagon and sedan bodies. It was produced in 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 and to the present. During this time, the model has undergone restyling. In this publication, we will show where the fuse boxes and relays of the 2nd generation Renault Logan are located , their photographs and diagrams with a description of the purpose of the elements, and we will also show how to replace the cigarette lighter fuse.

Please note that the number of elements, as well as their location in the blocks, depends on the configuration and year of manufacture of the vehicle and may differ from the information provided.

Block under the hood

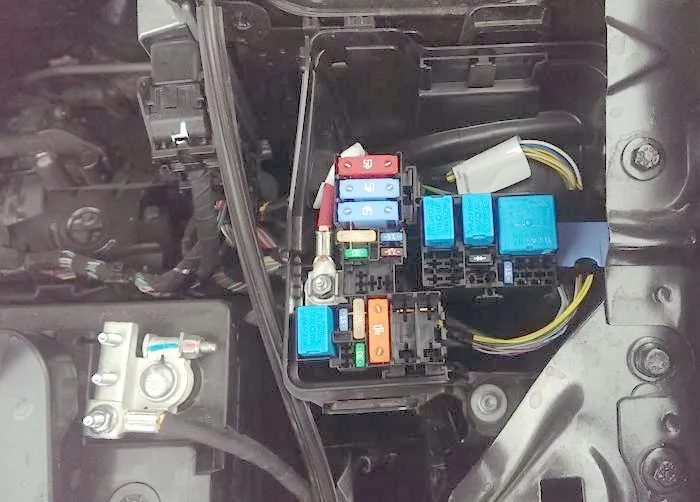

The mounting block is located on the left side, next to the battery and is covered with a plastic cover.

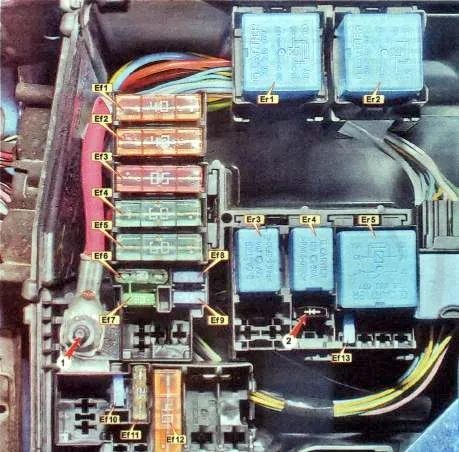

  1. Battery terminal
  2. Air Conditioning Compressor Diode
Ef140A Right windshield heating element
Ef240A Left windshield heating element
Ef350A ABS/ESP
Ef460A Immobilizer, passenger compartment fuse supply circuit F28-F31
Ef560A Power supply for fuse circuits in the passenger compartment F11, F23 – F27, F34 and F39
Ef630A ABS/ESP
Ef730A Heated rear window and mirrors
Ef815A Front fog lights
Ef915A Seat heating
Ef1015A Air conditioner clutch (equipment with air conditioner) / 25A First speed electric fan (equipment without air conditioner)
Ef1125A Engine Management System Relay Fuse
Ef1240A Electric cooling fan
Ef1315A Engine Management System
Er135A Left glass heating relay
Er235A Right glass heating relay
Er320A Fuel Pump Relay
Er420A Relay for air conditioning compressor or first speed electric fan (depending on configuration)
Er535A Engine Control Relay

Block in the cabin

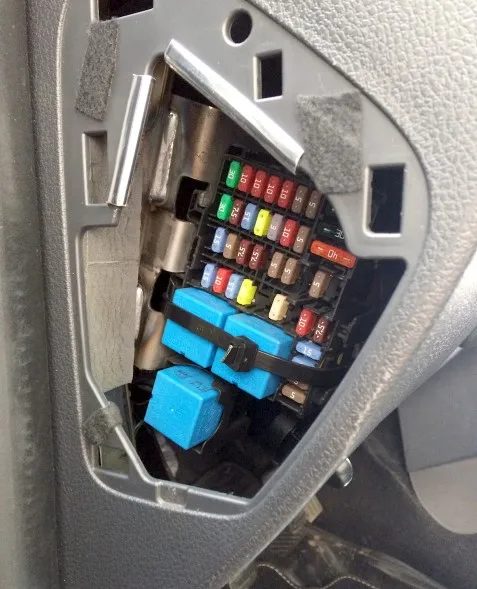

Just like in the 1st generation, this block is installed at the end on the left.

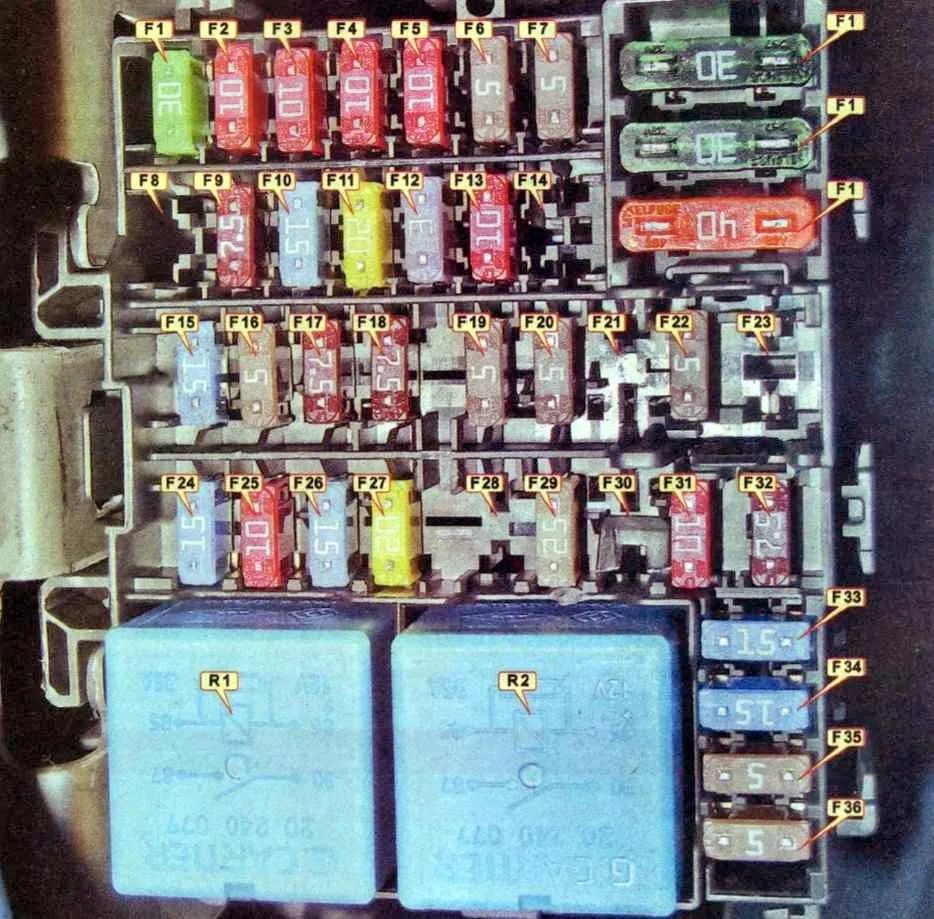

F130A electric window lifts front
F210A high beam left headlight
F310A high beam right headlight
F410A low beam left headlight
F510A high beam right headlight
F65A rear side lights, number plate light, backlight
F75A front side lights
F830A electric window lifts rear
F97.5A Rear Fog Light
F1015A sound signal
F1120A central locking
F123A ABS/ESP
F1310A interior lighting, climate control
F145A steering angle sensor
F1515A glass washer, parking radar, reversing light
F165A audio system, heated glass, speed limiter
F177.5A DRL
F187.5A brake light
F195A control system
F205A airbags
F217.5A reverse lights, AMT control unit
F225A Electric Power Steering Pump
F23reserve
F2415A direction indicator
F2510A anti-theft system
F2615A electrical equipment control unit
F2720A steering column switches (low beam input)
F28reserve
F2925A steering column switches (input for high beam)
F30reserve
F3110A instrument cluster
F327.5A audio system
F3315A cigarette lighter
F3415A diagnostic socket
F355A heated exterior mirrors
F365A mirror drive
F3730A starter
F3830A windshield wiper
F3940A air conditioner
R135A air conditioner relay
R235A Rear Window Defogger Relay

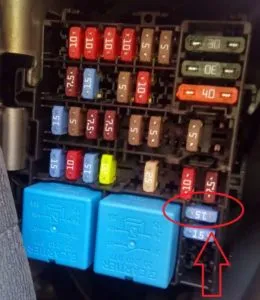

Fuse 33 for 15A is responsible for the cigarette lighter.
