Dodge Monaco, Eagle Premier and AMC Premier (1988, 1989, 1990, 1991, 1992) Fuse Box Diagram and Relay Box.

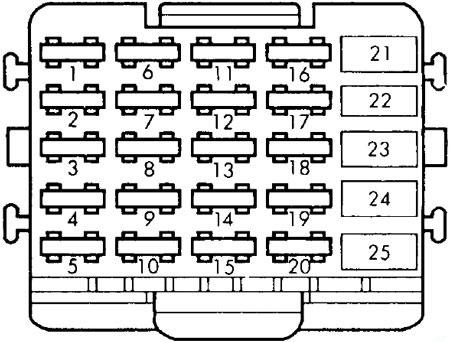

Cabin Fuse Box Diagram

No.AThe chain is protected
131991-1992: Left and right blocks, cluster light, console, radio, disc player
2101988-1989: Mirrors, Chime, VM Module, Trip Computer, Radio, Heater, Heater and A/C Controls, Digital Instrument Cluster, Clock (Memory Battery)
151990: Mirrors, Bell, IOD, VM Module, Aux Light, Trip Computer Radio, Lid Release, Dome Light, Light Module, Underhood Light, Glove Box Light, Trunk Light, VDS Module, Keyless Entry
31991-1992: trip computer, VM module, climate control, control display, CD player with radio.
351988-1990: Reversing lights
201991-1992: Intermittent wiper module
451988-1990: Vanity Lighting
101991-1992: Radio, CD
5201988-1990: Radio, cigarette lighter
31991-1992: Lighting control module.
6201991-1992: Bell, Clock, Keyless Entry, VM Module, Trip Computer, Power Mirrors, Under Hood, Courtesy, Rear, Glove Box, Dome/Reading, Trunk, Vanity Light, Power Door Locks, ATC Control Module, Radio, Illuminated Entry, Deck Lid Release Solenoid
77.51988-1990: Automatic transmission
51991-1992: Bell, clock, instrument cluster, cruise indicator, VM module, illuminated input, trip computer, cruise control servo.
8151988-1990: Trip Computer, VM Module, Clock, Horn Light Input, Rear Heater Relay, Reversing Lights, Transmission Computer (Ignition)
201991-1992: Power mirrors
9151988-1990: Lighting control system (ignition)
201991-1992: ABS, console, horns, restraint module, power antenna, diagnostic connector.
10101988-1990: Instrument cluster, light cut-off, module, heater and air conditioner controls, passive restraint module
7.51991-1992: Right side lights.
11 —
12201988-1990: brake lights, turn signals, hazard lights, parking lights, side lights and marker lights (left side)
101991-1992: Center brake light, brake switch.
137.51988-1989: LCD instrument cluster display
31990: LCD instrument cluster display
147.51988-1989: Instrument cluster and clock
31990: Instrument cluster and clock
151991-1992: Climate module and display, EGR solenoid, light cut-off module, air management module, daytime running lights, HEVAC module.
15101988-1990: Instrument cluster
101991-1992: Lamp cut-off module, left, front and rear exterior lamps
16301988-1990: Rear window defogger, power antenna
17151988-1989: Interior lighting, glove box lighting, trunk lighting, underhood lighting.
18201988-1990: Horn, brake light switch.
19101988-1990: Passive Restraint System
101991-1992: Right low beam headlight
20201988-1990: brake lights, turn signals, hazard lights, parking lights, side lights and marker lights (right side)
101991-1992: Left low beam headlight.
Automatic switch
21 years old1988-1990: Headlights
1991-1992: headlights, daytime running lights.
2230Power seats, power door locks, passive latching motors (1991-1992)
23301988-1990: Motor protection system and relays, passive restraint system (1990)
24301988-1990: Intermittent wiper/washer
301991-1992: Electric windows
25301988-1990: Power windows and sunroof

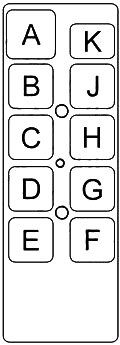

Relay box in the cabin

No.Relay
APower Antenna
BRear window heating
CLow beam headlight
DHigh beam headlight
E —
FIlluminated entrance
gramHorn
HOURCruise control
JParking light
K —

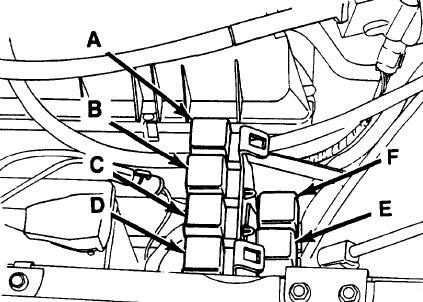

Engine Bay Relay Box (1988-1990)

No.Relay
AIgnition
BStarter
CRadiator fan
DAir conditioning compressor clutch
EB + latch
FFuel pump

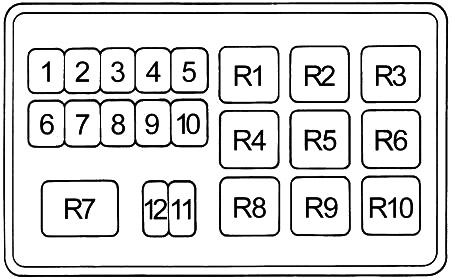

Engine Compartment Fuse Box (1991-1992)

No.AProtected component
1 —
240Headlights
320Lamps of the left park
440Ignition switch, starter relay, ABS
540Radiator Fan Relay
6 —
740ABS pump motor relay
820Right park lights
940Fan motor
1030Automatic Shutdown Relay, Fuel Pump Relay, Single Board Engine Controller (SBEC), Fuel Injectors, EGR Solenoid, Direct Ignition Coil, CAM Sensor, Crankshaft Sensor, Heated O2 Sensor, Throttle Position Sensor, Coolant Temperature Sensor, Automatic Idle Motor, MAP Sensor, Charge Temperature Sensor
117.5Ignition, fuel pump relay, generator, heated oxygen sensor
1220ABS system relay
Relay
R1 —
R2Air conditioning compressor clutch
R3Fuel pump
R4 —
R5Starter
R6Automatic shutdown
R7ABS pump motor
R8ABS warning light
R9ABS system
R10Radiator fan
