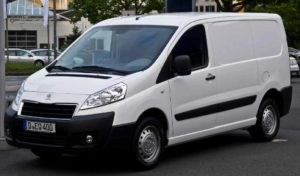

The Peugeot Expert minivan appeared on the market in 1995. During the entire production period, the car has changed three generations. We suggest that you familiarize yourself with the description of the Peugeot Expert 2 fuses and the block diagram, and also note the fuse responsible for the cigarette lighter. This information is relevant for cars 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 years of manufacture. Since 2018, 3 generations of the model have been in production.

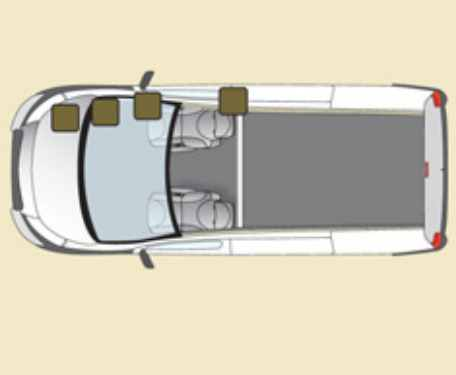

All fuse block locations are marked in the drawing.

Block under the hood

To access this unit, slide the washer reservoir bracket.

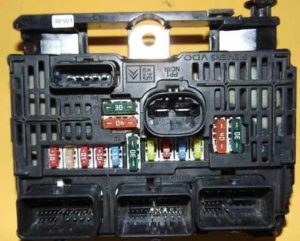

Block photo

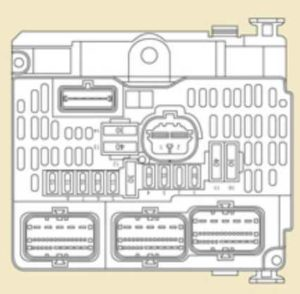

Description

  1. Engine ECU, components, power and air supply systems, cooling system fan 20A
  2. Audible signal 15A
  3. Windshield and rear window washer pump 10A
  4. Headlight washer pump 20A
  5. Fuel system components 15A
  6. Power steering, second brake pedal sensor 10A
  7. Brake system (ABS/ESP) 10A
  8. Starter switch 20A
  9. First brake pedal sensor 10A
  10. Components of the power and air supply system, components of the toxicity reduction system 30A
  11. Cabin ventilation 40A
  12. Windshield wiper 30A
  13. Intelligent switching unit 40A
  14. 30A not involved

Cabin block

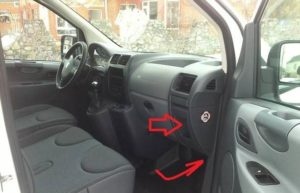

To access the unit in the panel, lower the glove box and pull it hard.

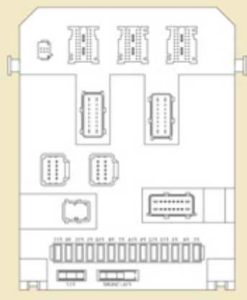

Marking

  1. 15A Rear window wiper
  2. Free
  3. 5A airbag ECU
  4. 10A Steering wheel position sensor, diagnostic connector, ESP system sensor, manual climate control, clutch sensor, headlight range control, diesel particulate filter additive pump
  5. 30A Electric mirror drive, front right door window motor
  6. 30A Power supply for front door windows
  7. 5A Ceiling lights and glove box lamp
  8. 20A Multifunction display, alarm siren, car radio, CD changer, radio telephone, trailer switching unit (optional), ECU for modification of the platform with a cabin
  9. 10A Socket in the cargo area
  10. 30A Rear suspension height adjuster, steering column switch unit, instrument cluster
  11. 15A Diagnostic connector, ignition switch
  12. 15A Wireless hands-free headset, airbag ECU, parking assist ECU
  13. 5A Engine ECU, Trailer Switch Unit
  14. 15A Rain sensor, interior ventilation, climate control, instrument cluster
  15. 30A Door locking/unlocking/deadlocking
  16. Free
  17. 40A Rear window heater, mirror heaters
  18. 10A Mirror heaters

If the cigarette lighter does not work, check the fuses in this block and in particular number 9.

Block next to the battery

For access, simply remove the battery compartment cover.

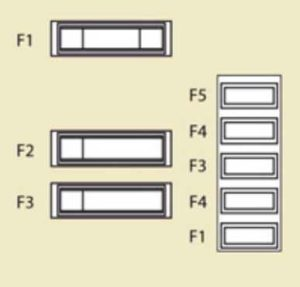

General scheme

Decoding the elements

№Protected chain
130A Seat heaters
220A 12V socket in the third row of seats (minibus) or not used (van)
340A Trailer switch box (optional), ECU for cab platform modification
4Not involved
3615A Door Locks
3710A Door locks
3820A Rear door wiper
39Interior ventilation (minibus) or not engaged (van)
405A Folding mirrors

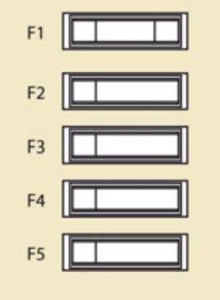

Additional unit

It is installed to protect the trailer’s electrical circuits, as well as to connect the wiring harnesses on models with a modified body and platforms with a cab. The unit is located on the right side behind the cargo partition. The number of elements may vary depending on the design features.

  • 15A Free
  • 15A Ignition switch and optional generator relay
  • 15A Power supply 12 V trailer electrical circuit
  • 15A Live circuit for use in modifications
  • 10A Hazard warning lights
