The 2nd generation Ford Kuga was produced in 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020. During this time, the Kuga 2 underwent restyling and since 2016 has been assembled at a plant in Russia, Yelabuga. In this article, we will show a description of the fuse and relay blocks of the Ford Kuga 2 with diagrams and photos – examples of execution. We will highlight the fuse responsible for the cigarette lighter.

The design of the blocks and the number of elements in them may differ from the one presented and depends on the year of manufacture and equipment level of your Ford Kuga 2.

Block under the hood

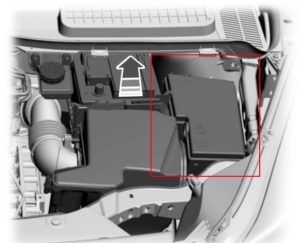

It is located in the left part of the engine compartment and is covered by a protective cover.

How to remove the fuse box cover

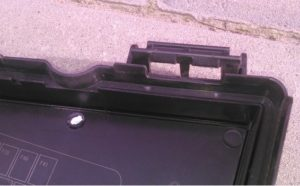

In order to remove the fuse box cover under the hood of the Ford Kuga 2, you need to find the corresponding latches on the back.

Then simply pull away from you and up. The current block diagram will be printed on the inside of the cover.

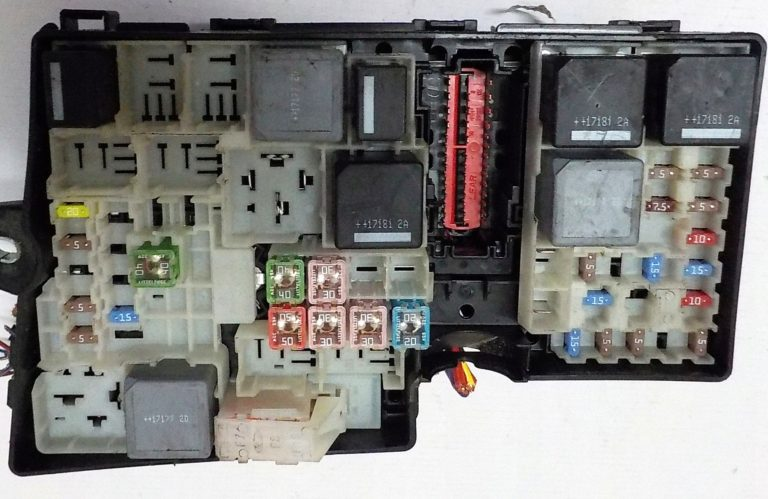

Photo – example

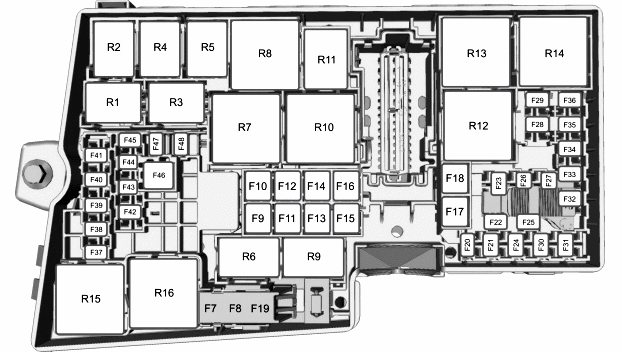

Scheme

Description

F1Reserve
F2Reserve
F3Reserve
F4Reserve
F5Reserve
F6Reserve
F740A Anti-lock braking system, dynamic stability control
F830A Electronic dynamic stabilization system
F920A Headlight washers
F1040A Heater fan motor
F1130A Power quality module, body control unit
F1230A Powertrain Control Module
F1330A Starter Relay
F1440A Right side heated windshield
F1520A Front cigarette lighter, additional power sockets
F1640A Left heated windshield circuit
F1720A Additional heater
F18Reserve
F195A Anti-lock braking system, dynamic stability control
F2015A Audible signal
F215A Brake light switch
F2215A Battery Monitoring System
F235A Relay Solenoids
F245A Lighting control
F25Reserve
F265A Power supply to the engine management system relay coil (cars with gasoline engines)
F2615A Power supply for the engine management system relay coil (diesel vehicles), transmission management system (diesel vehicles)
F2715A Air conditioning compressor clutch
F285A Adaptive cruise control system (vehicles with auto-start-stop system)
F2925A Rear window heater
F30Reserve
F31Reserve
F3215A Engine Control Module
F3310A Engine Control Module
F3410A Engine Control Module
F3515A Engine Control Module
F365A Active radiator shutters
F375A Passenger airbag deactivation indicator power supply
F385A Engine control module, transmission control module
F395A Headlights, headlight range adjustment
F405A Electric power steering
F4120A Body systems control unit
F4215A Rear window wiper
F4315A Headlights
F445A Adaptive cruise control system (vehicles without auto start-stop system)
F4510A Heated washer spray.
F4640A Automatic wiper operation mode
F47Reserve
F4815A Diesel fuel evaporator
R1Reserve
R2Horn relay
R3Diesel fuel evaporator relay
R4Reserve
R5Reserve
R6Reserve
R7Power relay – Windshield de-icer
R8Reserve
R9Headlight washer relay
R10Starter relay
R11Air conditioning compressor clutch – relay
R12Power relay – Cooling system fan
R13Heater fan – mini relay
R14Engine control system relay
R15Power relay – Rear window heater
R16Power Relay – Ignition

Fuse number F15 at 20A is responsible for the cigarette lighter.

Cabin block

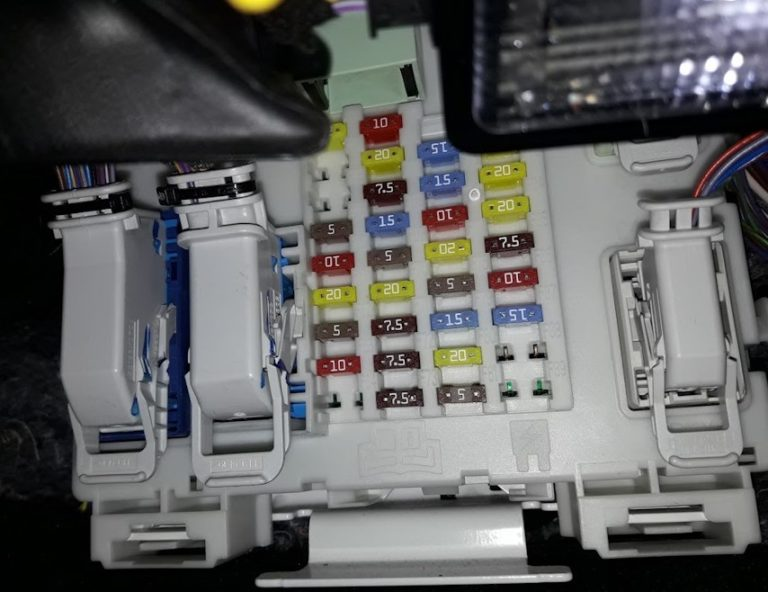

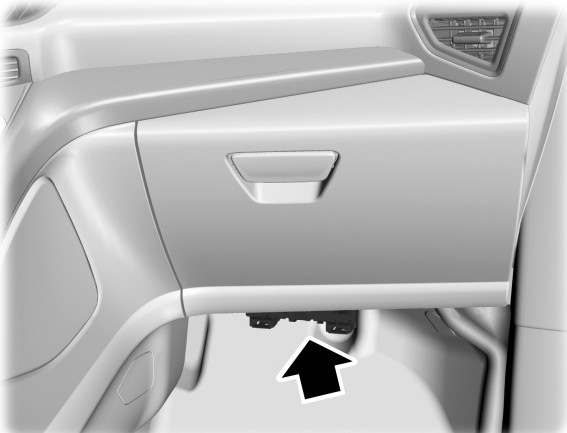

It is located under the glove compartment on the passenger side.

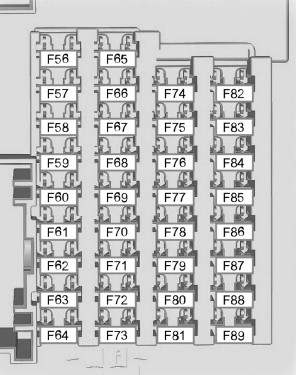

Appointment

5620A Fuel pump
57Reserve
58Reserve
595A Passive anti-theft system receiver
6010A Interior lighting, driver’s door switch block, glove box lighting, overhead console switch block
61Reserve
625A Automatic wipers, auto-dimming mirror
6310A Adaptive Cruise Control System (Front Sensor Module)
64Reserve
6510A Unlocking the liftgate latch
66Reserve
677.5A SYNC module, multifunction display, global positioning system module
6815A Electric steering column lock
695A Instrument panel
70Reserve
7110A Heater control unit (manual control module in the air conditioning system), dual-zone electronic automatic climate control
727.5A Steering wheel module
735A Data connector, standalone sound system
7415A High beam headlights
7515A Fog lights/lamps
7610A Reversing light
7720A Washer pump
785A Ignition switch, start button
7915A Audio unit, navigation DVD player, touch screen, hazard warning light switch, door lock switch
8020A Transparent hatch
815A Radio frequency radio receiver, interior motion sensor
8220A Washer pump
8320A Central locking system
84Reserve
857.5A Ignition switch
8610A Airbag module, passenger presence recognition system, passenger airbag deactivation indicator
87Reserve
88Reserve
89Reserve

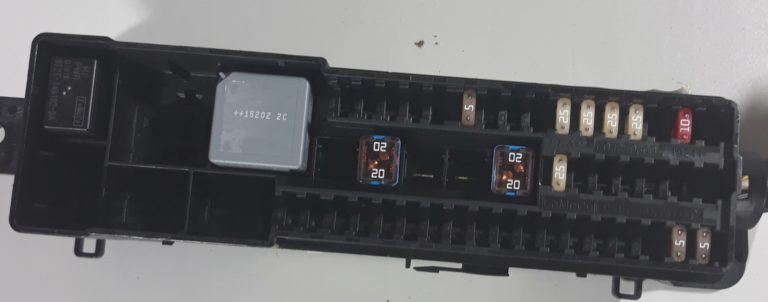

Block in the trunk

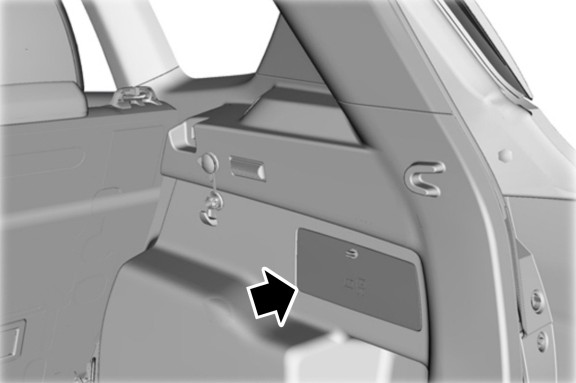

It is located in the luggage compartment behind the chassis niche and is covered by a protective cover.

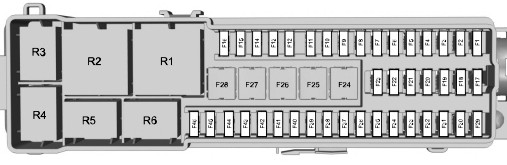

Marking

F15A Touchless liftgate opening system
F210A Keyless Entry Module
F35A Car door handles with remote keyless entry
F425A Left front door control module
F525A Right front door control module
F625A Left rear door control module
F725A Right rear door control module
F8Reserve
F925A Driver’s seat electric motor
F10Reserve
F115A Rear ignition relay coil power supply
F1210A Climate control system (cars with auto-start-stop system)
F135A Instrument panel (cars with auto-start-stop system)
F147.5A Infotainment display, SYNC module, Global Positioning System module (vehicles with auto-start-stop system)
F1515A Audio unit (cars with auto-start-stop system)
F16Reserve
F17Reserve
F18Reserve
F19Reserve
F20Reserve
F21Reserve
F22Reserve
F23Reserve
F2430A Additional DC and AC power sockets
F2420A Rear auxiliary power sockets
F2525A power-operated upward opening door
F2640A Auxiliary equipment, trailer towing module
F2720A Additional luggage compartment power sockets
F28Reserve
F295A Blind Spot Monitoring System, Front Camera Sensor, Adaptive Cruise Control System, Parking Assist Rear View Camera, Voltage Quality Module Ignition Signal
F305A Parking assistance system
F31Reserve
F325A Ignition signal for additional DC and AC power sockets
F33Reserve
F3420A heated driver’s seat
F3520A heated passenger seat
F36Reserve
F37Reserve
F38Reserve
F39Reserve
F40Reserve
F41Reserve
F42Reserve
F43Reserve
F44Reserve
F45Reserve
F4610A Blind Spot Monitoring System, Front Camera Sensor, Adaptive Cruise Control System, Rear View Camera of Parking Assist System (vehicles with Auto Start-Stop System)
R1Power relay – Ignition switch
R2Reserve
R3Reserve
R4Reserve
R5Reserve
R6Reserve
