Ford Galaxy 3 – fuses and relays

Ford Galaxy 3rd generation has been assembled since 2016. Years of production 2017, 2018, 2019, 2020, 2021 and to date. In this publication we will show the location of the blocks and a description of the fuses and relays of the Ford Galaxy 3rd generation, with diagrams and their photos. We will indicate the fuses that are responsible for the cigarette lighter.

The actual purpose of fuses and relays may differ from the one presented and depends on the year of manufacture and the level of electrical equipment of your car.

Cabin block

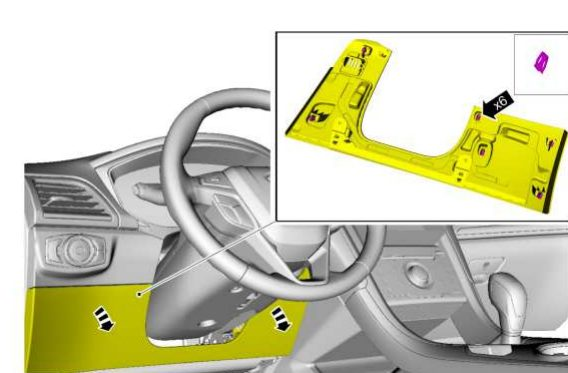

It is located on the instrument panel on the left side and is connected to the BCM (body control module). For comfortable access, you need to remove part of the protection.

Arrangement

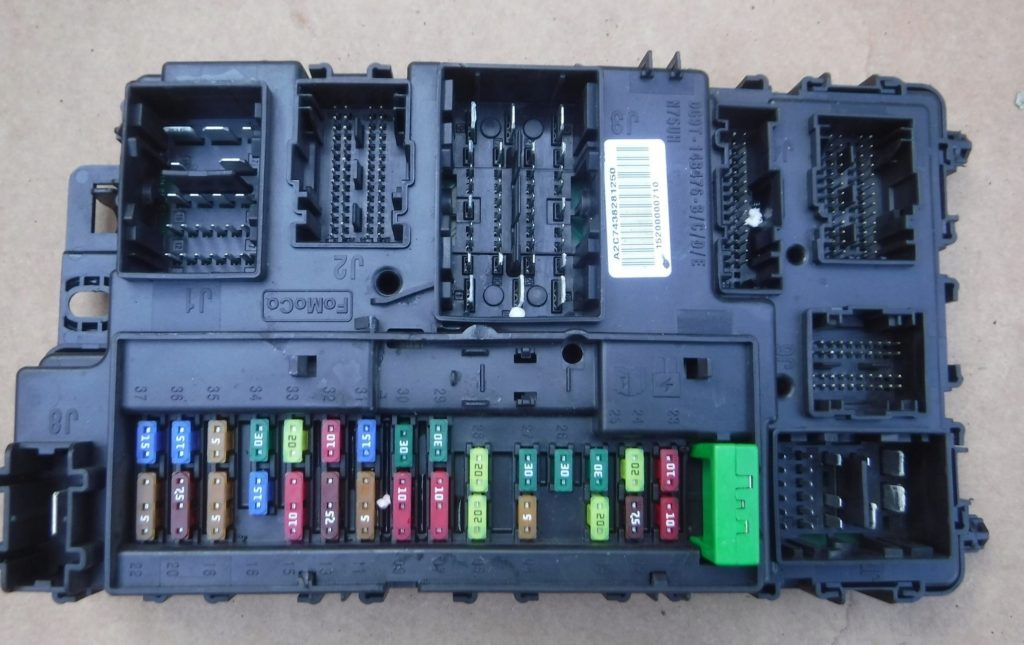

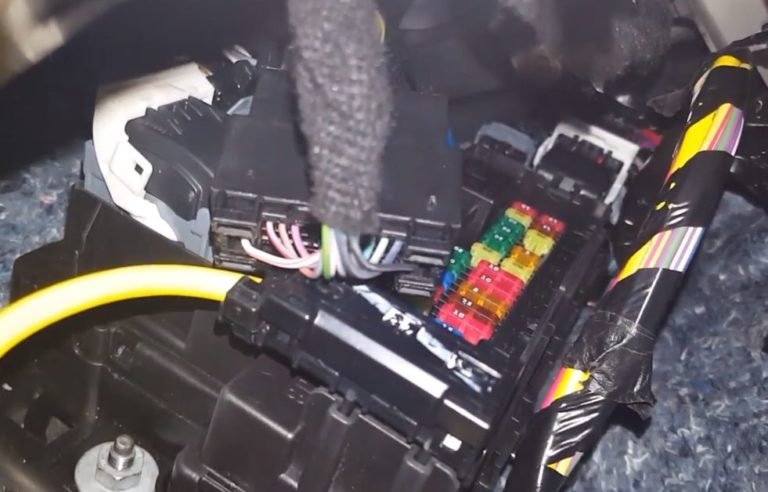

Photo example

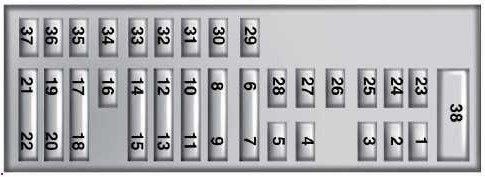

Scheme

Appointment

1	10A Background lighting, Glove box lamp, Vanity mirror lamp, Ceiling lamp, Luggage compartment lamp
2	7.5A Seat with memory function, Lower support for the driver’s seat backrest, Electric mirrors
3	20A Driver’s door unlock
4	5A Electronic trailer brake
5	20A Ignition switch, Start button
6	10A Seat heating
7	10A Reserve
8	10A Reserve
9	10A Reserve
10	5A Power tailgate module
11	5A Reserve
12	7.5A Integrated front control module (climate control system and radio receiver)
13	7.5A Steering column, Instrument panel, Diagnostic connector
14	10A Reserve
15	10A Data Channel Gateway
16	15A Child lock, Unlocking the luggage compartment lift window
17	5A Reserve
18	5A Ignition switch, Push button ignition switch
19	7.5A Passenger airbag off indicator, Gear range indicator
20	7.5A Reserve
21	5A Humidity and temperature sensor in the car, Blind/Dead Zone Monitoring Systems, Rear Camera, Adaptive Cruise Control System
22	5A Passenger classification sensor
23	10A Auxiliary equipment off delay power supply circuit
24	20A Lock/Unlock
25	30A Driver’s door window, Driver’s door mirror
26	30A Front passenger door window, Front passenger door mirror
27	30A Luke
28	20A Amplifier
29	30A Driver’s side rear door window
30	30A Passenger side rear door window
31	15A Reserve
32	10A Global Positioning System Module, Voice Control (SYNC), Infotainment Display, Radio Frequency Radio, Adaptive Cruise Control System
33	20A Radio
34	30A Start/Run Bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker)
35	5A Airbag and seat belt system control module
36	15A Auto-dimming interior mirror, Heated rear seat module, All-wheel drive system
37	15A Voltage Stabilization Module
38	30A Not used

Block under the hood

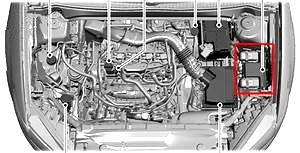

It consists of 2 compartments and is located on the left side, next to the rack and covered with a protective cover.

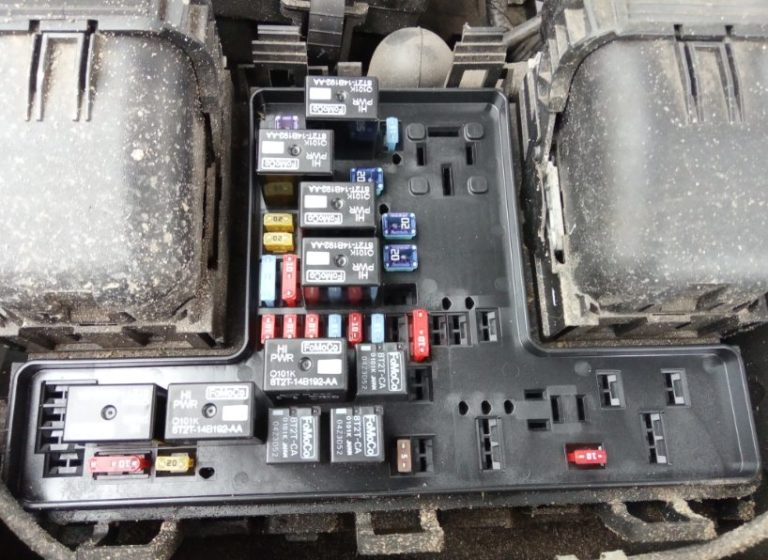

Upper section

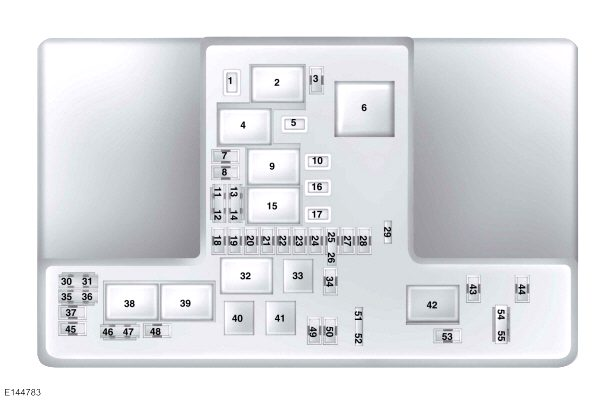

Scheme

Marking

1	25A Windshield wiper 30A Sunroof
2	Starter relay
3	15A Automatic operation mode of windshield wipers, rain sensor, rear wipers
4	Electric fan relay.
5	20A Auxiliary power outlet on the rear of the console
6	Auxiliary heater relay
7	20A Powertrain Control Module
8	20A Powertrain Control Module
9	Powertrain control module relay
10	20A Front additional driver power sockets
11	15A Powertrain Control Module
12	15A Powertrain Control Module
13	10A Powertrain Control Module
14	10A Powertrain Control Module
15	Run/Start Relay
16	20A Auxiliary power outlet on console, cigarette lighter
17	20A Additional power socket in the luggage compartment
18	10A Powertrain Control Module
19	10A Power steering
20	10A Start/stop position lighting, cruise control
21	15A Transmission control module, transmission oil pump
22	10A Air conditioning system
23	15A. Start/stop, blind spot warning system, rear view camera, adaptive cruise control, proximity warning signal, power quality module, air quality sensor
24	10A Reserve
25	10A Anti-lock braking system, ABS
26	10A Powertrain Control Module.
27	10A Reserve
28	10A Rear window washer pump.
29	5A Air flow meter
30	Reserve
31	Reserve
32	Cooling fan relay
33	Air conditioning relay
34	15A Electric steering column lock.
35	Reserve
36	Reserve
37	Reserve
38	Cooling fan relay
39	Cooling fan relay
40	Horn relay
41	Horn relay
42	Fuel pump relay
43	Christmas
44	5A Heated washer sprayer.
45	Reserve
46	10A Generator
47	10A Brake switch
48	20A Audible signal
49	5A Air flow sensor 20A Diesel heating element
50	10A Cooling system fan, junction box 20A Signal
51	Reserve
52	Reserve
53	10A Electric seats.
54	5A Fuel-operated remote heater, 10A Brake switch
55	10A ALT sensor

Fuses 17, 16, 10 and 5 to 20A are responsible for the operation of cigarette lighters and USB sockets.

Lower section

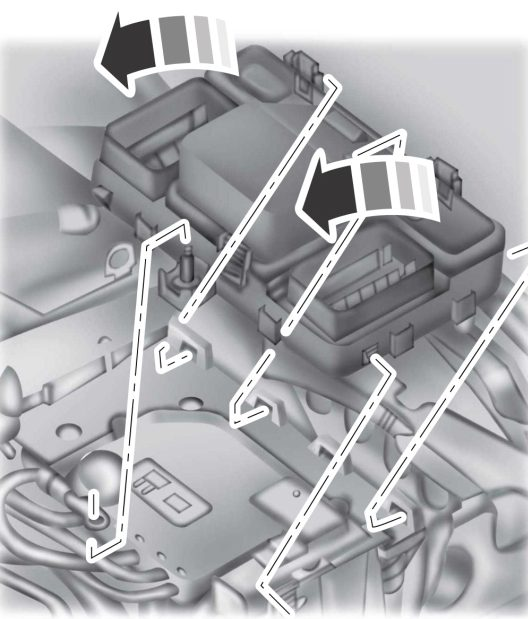

Access example

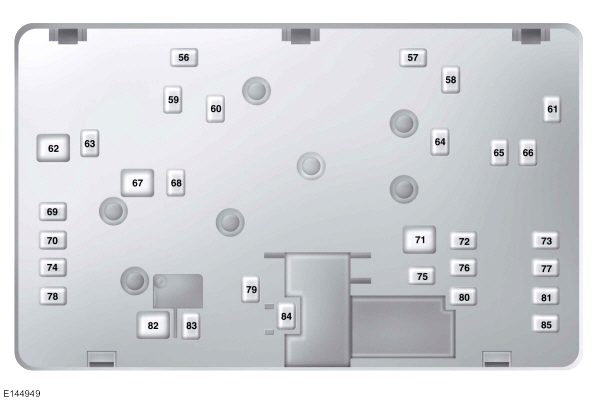

Scheme

Appointment

56	30A Fuel pump
57	20A Diesel fuel evaporator
58	Reserve
59	30/40A Cooling system fan (DW10F and 2.0L GTDI AU)
60	30/40A Cooling system fan (DW10F and 2.0L GTDI AU)
61	40A Windshield heater (left side)
62	50A Body systems control unit
63	20/30A Cooling system fan (DW10F and 2.0L GTDI AU)
64	30A Additional heater
65	20A. Heated front seats
66	40A Windshield heater (right side)
67	50A Body systems control unit
68	40A Heated rear window
69	30A Anti-lock brake system
70	30A Passenger seat
71	60A Additional heater
72	20A Fuel pump 30A Sunroof or Rear seats
73	20A Rear heated seat
74	30A Driver seat module
75	30A Additional heater
76	20A Transmission oil pump
77	30A Climate-controlled seat module
78	40A Trailer Towing Module
79	40A Electric blower fan.
80	30A Power module in the luggage compartment.
81	40A Inverter 220 V.
82	60A Anti-lock brake system pump.
83	25A Electric cleaner motor
84	30A Starter Solenoid.
85	20A Fuel heater 60A Anti-lock brake system pump
