Renault Modus was produced in 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 and 2012. After restyling, it is also known as Grand Modus. We will show the location of the fuse boxes and relays in Renault Modus, their photos, diagrams and purpose of the elements. We will highlight the fuse responsible for the cigarette lighter

Fuses and relays in the passenger compartment

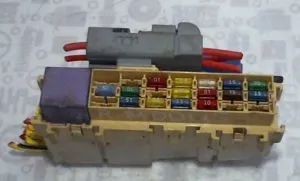

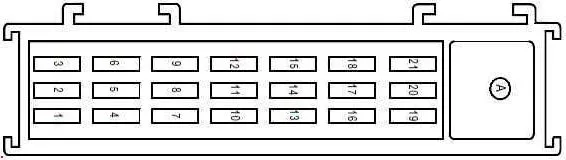

Block 1

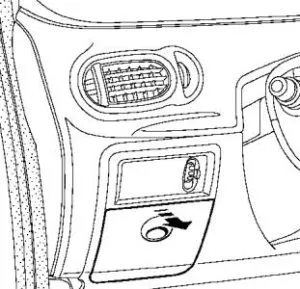

This unit is installed in the passenger compartment in the lower left part of the instrument panel.

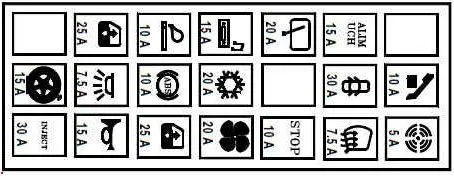

On the back of the protective cover there will be a current diagram describing the location of the fuses.

F130A UECBS
F215A Instrument cluster, air conditioning control unit, fuse and relay box
F3Not used
F4Main electromagnetic signal, diagnostic connector, display
F57.5A UCHBS
F625A Driver’s window motor, child seat safety control
F725A Driver’s electric window control
F810A ABS, ESP
F910A Cigarette Lighter
F1020A Passenger Fan
F1120A Passenger Fan
F1215A Air conditioning control unit, radio, steering wheel control, telephone, heated seats, alarm.
F1310A Passenger Compartment Fuse and Relay Box
F14
F1520A Rear wiper motor
F1630A Electric mirrors
F1730A UCHBS
F1815A UCHBS, engine immobilizer
F195A Rain and light sensor, interior motion sensor
F2010A Instrument cluster, radio, alarm, air suspension pressure monitoring system

Fuse number 9 is responsible for the cigarette lighter.

Block 2

This unit is mounted on the dashboard crossbar, under the passenger airbag.

F120A Relay for emergency opening of driver and passenger doors
F220A Driver and passenger seat heating
F315A Sunroof
F425A Electric window lifter relay
F5Not used
F6Not used

Fuse boxes under the hood

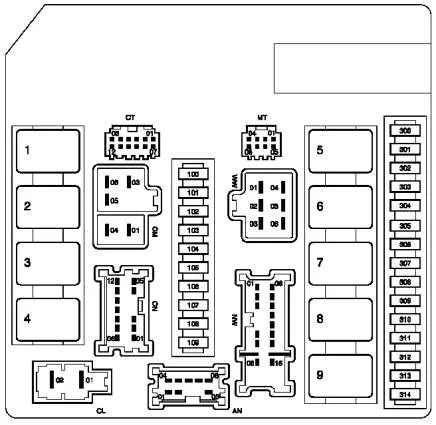

Block 1

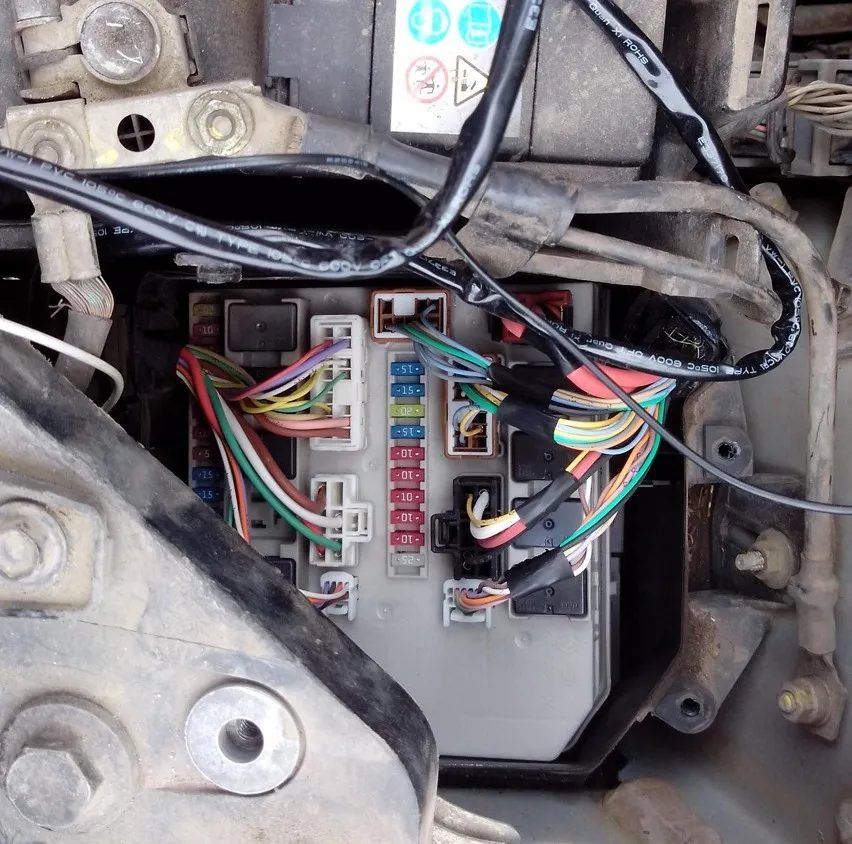

This unit is located in the engine compartment behind the left headlight. To access the unit, remove the tray under the air intake grille.

10025A ABS Computer or Electronic Stability Program
101Not used
10210A Right high beam headlights
10310A Left high beam headlight
10410 Right light, right seat heating control, electronic stabilization on/off button, rear right electric window control, climate control panel, air conditioning control unit, central door locking, electric door mirror and window lifter control.
10510A Left side light, left seat heating, first row cigarette lighter, display with gear lever, power window control
10615A Direction indicators, independent heater relay, power shift lever, hands-free kit, telephone, tire pressure indicator
10720A Windscreen Wiper Motor
10815A Right headlight drive / right headlight range adjustment
10915A Left headlight motor / left headlight
30010A Air Conditioner
301Not used
30225A Starter
30320A Computer
304Not used
30515A Rear window heating
30615A Headlight Washer Power Relay (Relay A and B on PCB)
3075A Computer
308Not used
30910A Reversing Lights
31020A Ignition Coils
31120A Power Supply
31210A Airbag
31310A Computer
31420A Front left and right fog lights
Relay
1Rear window heating
2Injection blocking
3Low beam headlights
4Headlights
5Starter
6Not used
7High speed engine cooling fan
8Low speed engine cooling fan
9Ignition supply

Block 2

This unit is located on the front wall of the shelf under the battery.

F130A Central injection unit power supply relay on K9K or 764 engine
30 Preheating
F330A Air Conditioner Fan
30A Air Conditioner Fan, Pump Relay
F550A Fuses F1, F2, F3, F4
F680A Additional passenger heater
F760A Additional passenger heater
F850A Computer ABS
F9Not used
F10Not used
F11Not used
F1210A Left Headlight Power Sensor
Relay
A20A Headlight Washer Pump
B20A Headlight Washer Pump Relay
C20A headlights

Block 3

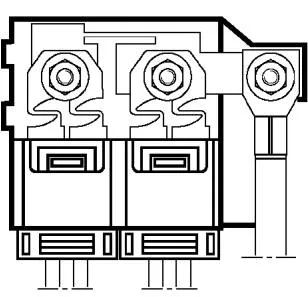

This fuse block is located on the positive terminal of the battery.
