Hyundai Tucson 2nd generation also known as Hyundai ix35 2 was produced in 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016 and was delivered all over the world. During this time, the model has undergone restyling. In this material you will find a description of the fuses and relays of the Hyundai ix35 (Hyundai Tucson) with block diagrams and their locations. We note the fuse responsible for the cigarette lighter.
Check the actual purpose for your model with your diagrams on the back of the protective cover.
Cabin block

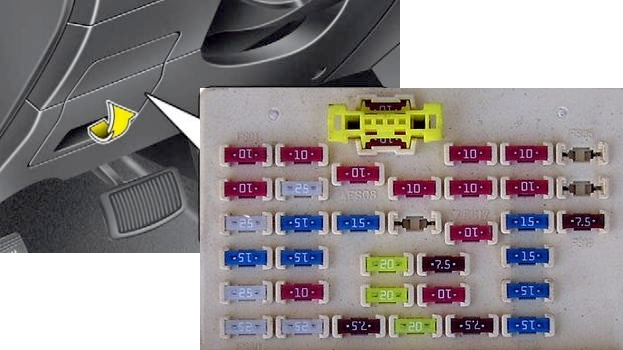

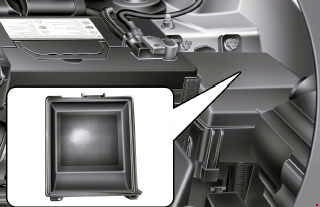

It is located under the instrument panel, to access it, remove the protective cover in the direction of the arrow.

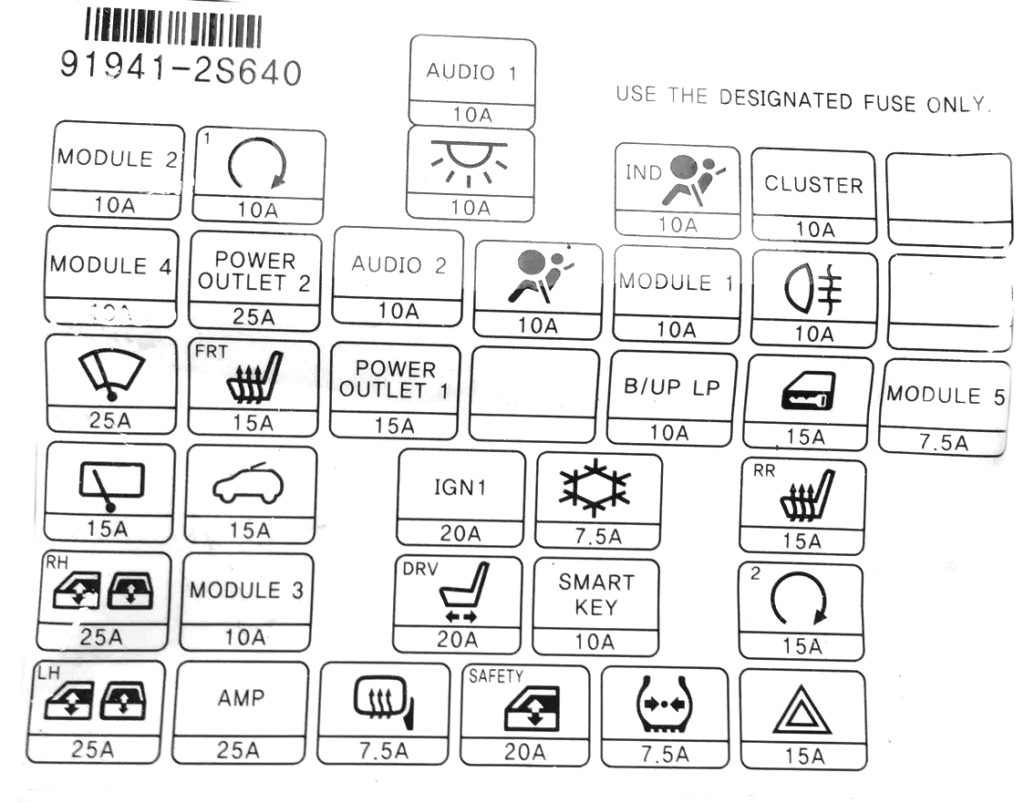

Description
| AUDIO 1 | Audio system, audiovisual head unit with navigation, converter |
| Cabin lighting ceiling | VCM, air conditioning ECU, data link connector, driver/passenger side vanity mirror lamp, directional light lamp, interior light cover, instrument cluster (indicator), ignition switch light and door opening sensor, automatic lighting control sensor and photocell, trunk light cover, interior light cover relay, air conditioning ECU |
| MODULE 3(2) | Automatic module |
| Starter | Engine compartment relay and fuse block (relay 4), transmission range switch, ignition lock switch, EBUD, electronic key ECU |
| Airbag indicator | Instrument cluster (indicator) |
| CLUSTER | Instrument cluster, generator, console switch, VCM, audio system, seat belt reminder switch, ISG switch, audio visual head unit with navigation |
| Steering wheel heating | Spring contact (heated steering wheel) |
| MODULE 4 | Engine compartment relay and fuse block (relay 1, relay 11, relay 14), diesel unit (relay 2, relay 3), air conditioning ECU, ionizer on the instrument cluster, sunroof electric motor, rain sensor |
| POWER OUTLET 2 | Cigarette lighter and front power socket, rear power socket |
| AUDIO 2 | Amplifier, electric door mirror regulator, electronic key ECU, VCM, converter |
| Airbag | SRS ECU, passenger airbag indicator |
| MODULE 1 | IPS ECU (ON/START input), 4WD ECU, DBC switch, multi-function switch, steering angle sensor, ESP OFF switch, brake light switch (petrol engine), rear right (outer) parking assist sensor, front left/right parking assist sensor, TPMS unit (tire pressure monitoring system), front left/right (center) parking assist sensor, intelligent parking assist ECU, converter |
| Rear PTF | ICM relay block (rear fog lamp relay) |
| Front windshield wiper | Engine compartment relay and fuse block (relay 12, relay 13), front windshield wiper motor, multifunction switch (windshield wiper) |
| Front seat heater | Console switch |
| POWER OUTLET 1 | Cigarette lighter and front power socket |
| MDPS | MDPS Block |
| Reversing lights | Rear left/right (inner) combination lamp, electrochromic rearview mirror, BCM, audio system, audiovisual head unit with navigation |
| MODULE 2 | VSM, electronic key ECU |
| Rear window wiper | ICM relay unit (rear wiper relay), rear wiper motor, multifunction switch (wiper) |
| Top hatch | Electric motor of the upper hatch |
| IG 1 | Engine compartment relay and fuse block (fuse – F23, F24, F25) |
| Air conditioning | Air conditioning ECU, fan motor |
| Rear seat heater | ICM relay block (rear left seat heater relay, rear right seat heater relay) |
| Right electric window lifter | Power window master switch, passenger power window switch, rear right power window switch |
| Mirrors | Electric exterior mirror adjuster |
| Electric driver’s seat | Manual driver’s seat adjustment |
| SMART KEY | Electronic key ECU, START/STOP button |
| PDM | Electronic key ECU |
| Left window lifter | Main power window switch, passenger power window switch, rear left power window switch |
| AMP | Amplifier, converter |
| Heated mirrors | PCM/EBD, rear window heater switch, driver/passenger side power exterior mirror |
| Glass lifts with anti-pinch protection | Driver’s power window lift module with pinch protection |
| Module 5 | Automatic transmission gear lever, reverse parking assist buzzer, TPMS unit (tire pressure monitoring system) |
| Emergency alarm | ICM relay block (horn relay, turn signal relay and hazard warning relay), BCM |
The fuses marked POWER OUTLET are responsible for the cigarette lighter and USB sockets.
This block can also accommodate individual non-removable relays:
- Interior light bulb relay
- Door lock relay
- Door unlock relay
- Trunk lid relay
- Electric window lift relay

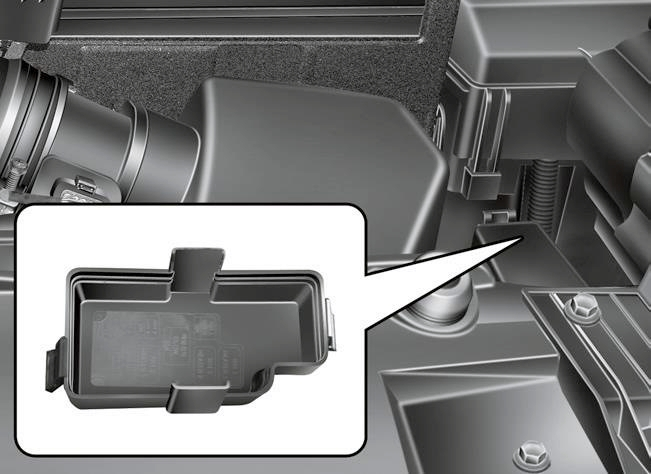

Blocks under the hood

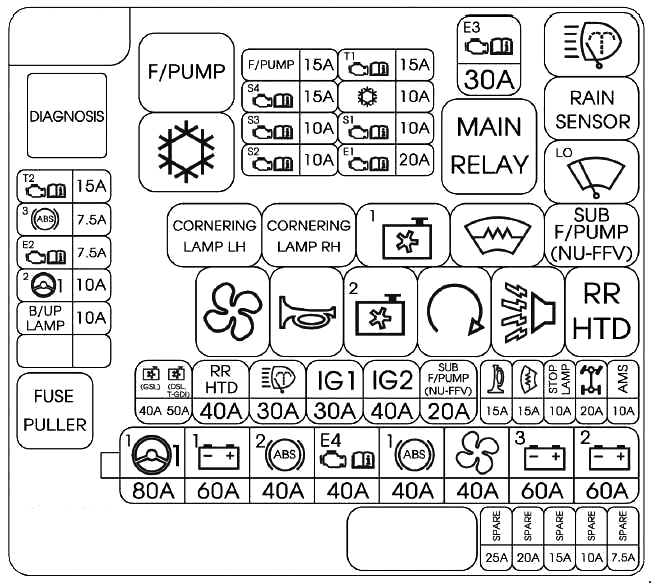

Main unit

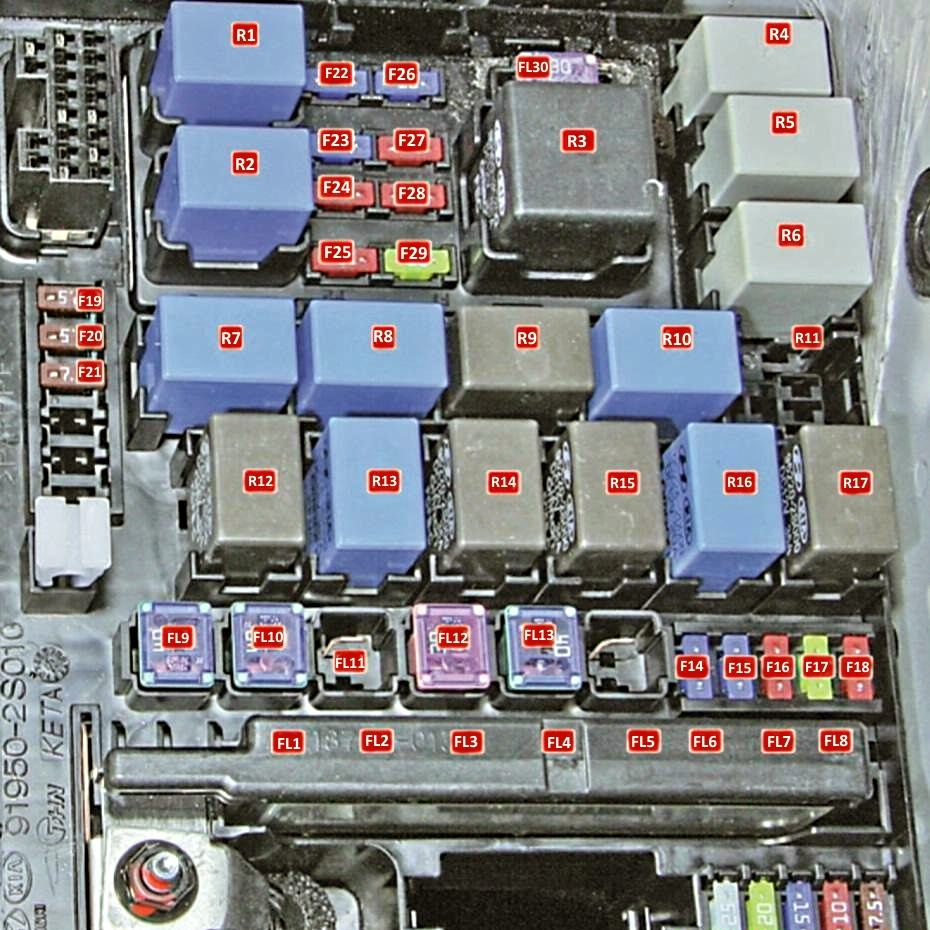

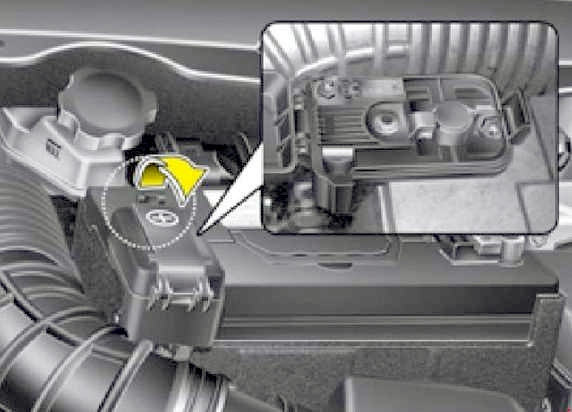

Located on the left side of the engine compartment behind the battery.
Marking
| FL1 | 80A Electric power steering |
| FL2 | 60A Instrument panel junction box |
| FL3 | 40A ESP and ABS control unit |
| FL4 | 40A EMS Box |
| FL5 | 40A ESP and ABS control unit |
| FL6 | 40A Heater fan relay |
| FL7 | 60A Instrument panel junction box |
| FL8 | 60A Instrument panel junction box |
| FL9 | 40A Electric cooling system fan |
| FL10 | 40A Heated tailgate glass |
| FL11 | 30A Headlight Washer |
| FL12 | 40A Ignition switch (lock) |
| FL.13 | 40A Starter relay, ignition switch |
| F14 | 15A Security alarm siren relay |
| F15 | 15A Heated windshield |
| F16 | 10A Stop light |
| F17 | 20A All-wheel drive system control unit |
| F18 | 20A Ignition coils, capacitor |
| F19 | 7.5A Starter relay, automatic transmission park/neutral relay, mass air flow sensor, multifunction switch |
| F20 | 7.5A ESP, ABS and ICM control units, multi-purpose switch, glow plug relay unit, water in fuel filter sensor, fuel filter heater relay |
| F21 | 7.5A Automatic transmission selector switch |
| F22 | 15A Fuel pump |
| F23 | 15A Oxygen concentration sensor, cooling system fan*.Fuel pressure regulator valve**.Immobilizer module, camshaft position sensor, fuel pump relay, fuel pressure regulator valve, rail pressure regulator valve*** |
| F24 | 10A Air conditioning, injectors*.Stop signal, oxygen sensor, air conditioning, cooling fan relay**. Crankshaft position sensor, oxygen sensor, air conditioning*** |
| F25 | 10A Brake light switch*** |
| F26 | 15A RSM*TCM*** |
| F27 | 10A Air conditioner |
| F28 | 10A Engine immobiliser module, injection control solenoid valve, crankshaft position sensor, camshaft position sensor, oil supply control valve, canister purge solenoid valve*.EGR (exhaust gas recirculation) cooling bypass solenoid valve, VGT (gas distribution) electric starter, engine immobilizer module, camshaft position sensor, glow plug relay unit, oil level sensor**. EGR (exhaust gas recirculation) cooling bypass solenoid valve, VGT (gas distribution) electric starter, oil level sensor, engine cooling fan*** |
| F29 | 20A Ignition coils*, ECM**, ECM*** |
| FL30 | 30A Engine Control Relay |
| R1 | Fuel pump relay |
| R2 | Air conditioner relay |
| R3 | Engine control relay (main relay) |
| R4 | Emergency brake warning system relay / Headlight washer relay |
| R5 | Wiper relay (rain sensor) |
| R6 | Wiper relay (slow mode) |
| R7 | Fan relay |
| R8 | Horn activation relay |
| R9 | Relay – high speed electric cooling fan |
| R10 | Windshield heating relay |
| R11 | Engine control relay |
| R12 | Electric fan of the climate system |
| R13 | Horn activation relay |
| R14 | Cooling fan relay (lower) |
| R15 | Starter relay |
| R16 | Sound alarm relay |
| R17 | Rear window heating relay |

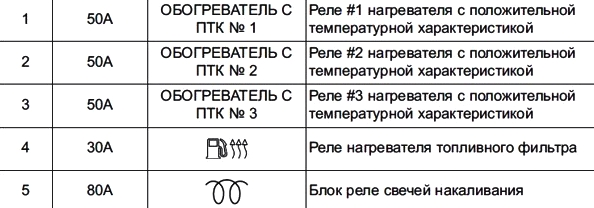

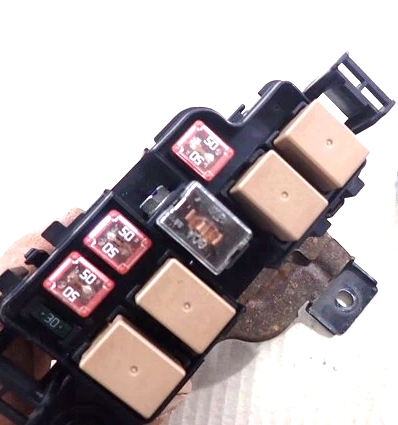

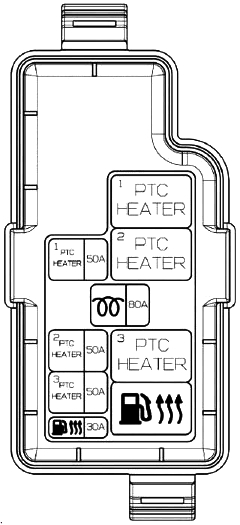

Additional unit
Installed on models with a diesel engine.

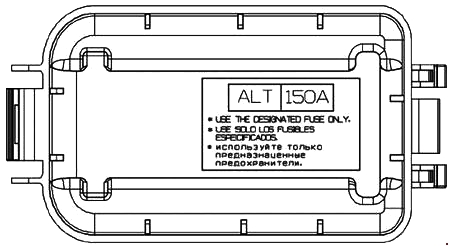

Main fuse
On many Hyundai ix35 cars, the main power fuse is located on the positive terminal of the battery, made in the form of a high-power fuse.
