The compact car Renault Fluence was introduced in 2009. It was supplied to Russia and the CIS countries in 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018. During this period, the Fluence model was restyled twice. The exterior changed a lot. We provide complete information about the fuses and relays of the Renault Fluence. We will show where the blocks are located, their photos and diagrams with a description of the purpose, and also separately highlight the cigarette lighter fuse.
Deviations in the presented material and your units are possible. The manufacturer can make changes depending on the electrical equipment, engine and year of manufacture of the car.
Fuses and relays under the hood

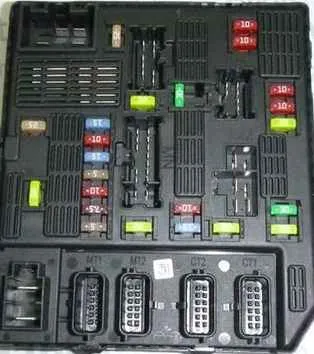

Mounting block

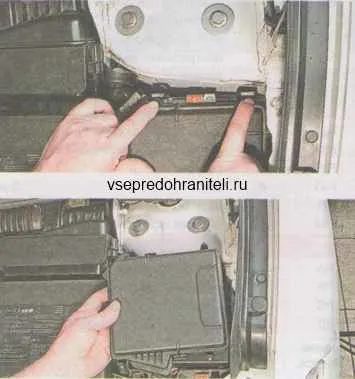

It is located next to the rack and is covered with a protective cover (communications section). You can see how to open it in the picture.
- 10A – Side light (right headlight, right rear light, headlights), license plate lights, cigarette lighter light, electric window switch light, audio system, navigation system control unit, instrument panel switch and switch light
- 10A – Side light (left headlight, left rear light), left light on the luggage compartment door
- 15A – Headlight washer pump
- 20A – Fog lights
- 10A – High beam (left headlight)
- 10A – High beam (right headlight)
- 15A – Diagnostic connector, rear window heating relay, automatic transmission mode selector, electric headlight corrector, gas discharge lamp control unit, additional heater control unit, speed limiter, automatic parking brake, automatic parking system control unit, dimming mirror in the passenger compartment
- 30A – ABS, ESP control unit
- 30A – Front wiper
- 10A – Airbag control unit
- 20A – Not used
- 7.5A – Automatic transmission control unit
- 25A – Engine management system
- 15A – Oxygen concentration sensors – heating
- 20A – Automatic transmission control unit
- 5A – Brake lights, electrical equipment control unit, electric power steering
- 10A – Automatic transmission mode sensor, electric headlight corrector, reverse light relay
- 15A – Electrical equipment control unit
- 30A – Starter
- – Not used
- 20A – Fuel module, ignition coils
- 10A – Air conditioning compressor electromagnetic clutch
- 5A – Injection system control unit
- 20A – Low beam (left headlight), electric corrector
- 20A – Low beam (right headlight), electric corrector

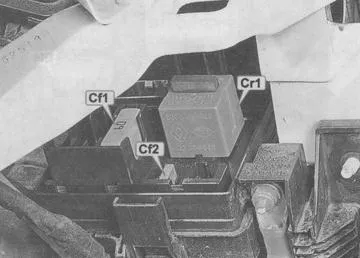

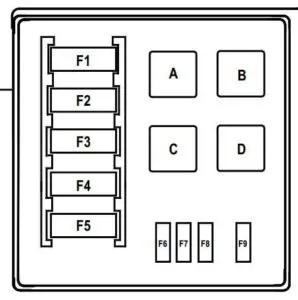

Additional block
It is located in the switching unit in the engine compartment under the protection and switching unit.
- A – Not used
- B – Fuel heater relay (450)
- C – Reverse light relay (602)
- D – Not used
- F1 – 80A Heater Interface Unit (1550)
- F2 – 70A pre-heating unit (257)
- F3 – 50A Gearbox ECU (119)
- F4 – 80A Heater Interface Unit (1550)
- F5 – 60A Electric fan (188) via high speed electric fan relay (234)
- F6 – 20A Fuel heater (449)
- F7 – Not used
- F8 – 30A – Electric fan relay control (234)
- F9 – Not used

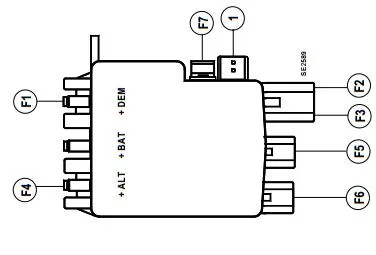

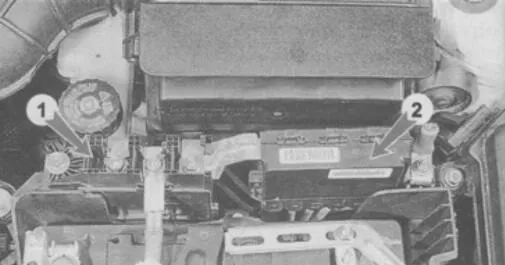

Blocks near the battery
- F1 – 190A Starter
- F2 – 50A fuse and relay box in the passenger compartment
- F3 – 80A fuse and relay box (control and switching unit) in engine compartment 1, fuse and relay box in the passenger compartment
- F4 – 300A / 190A Engine Compartment Fuse and Relay Box 2 / Generator
- F5 – 80A Electric Power Steering
- F6 – 35A Electronic Engine Control Unit (ECU) / Fuse and Relay Box (Control and Switching Unit) in the Engine Compartment 1
- F7 – 5A fuse and relay box (control and switching unit) in the engine compartment 1

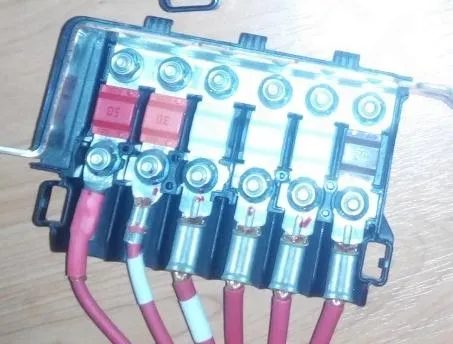

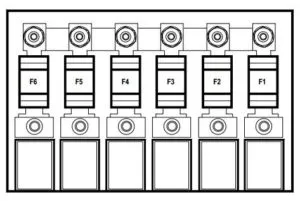

High Power Fuse Block(2)
- 70A – additional interior heater
- 80A – fuse and relay box in the passenger compartment
- 80A – fuse and relay box in the passenger compartment
- 80A – fuse and relay box (control and switching unit) in engine compartment 1, fuse and relay box in the passenger compartment
- 30A – additional heater
- 50A – ABS ECU with ESP
The relay for the electric fan of the engine cooling system can be located separately, next to the electric fan itself.

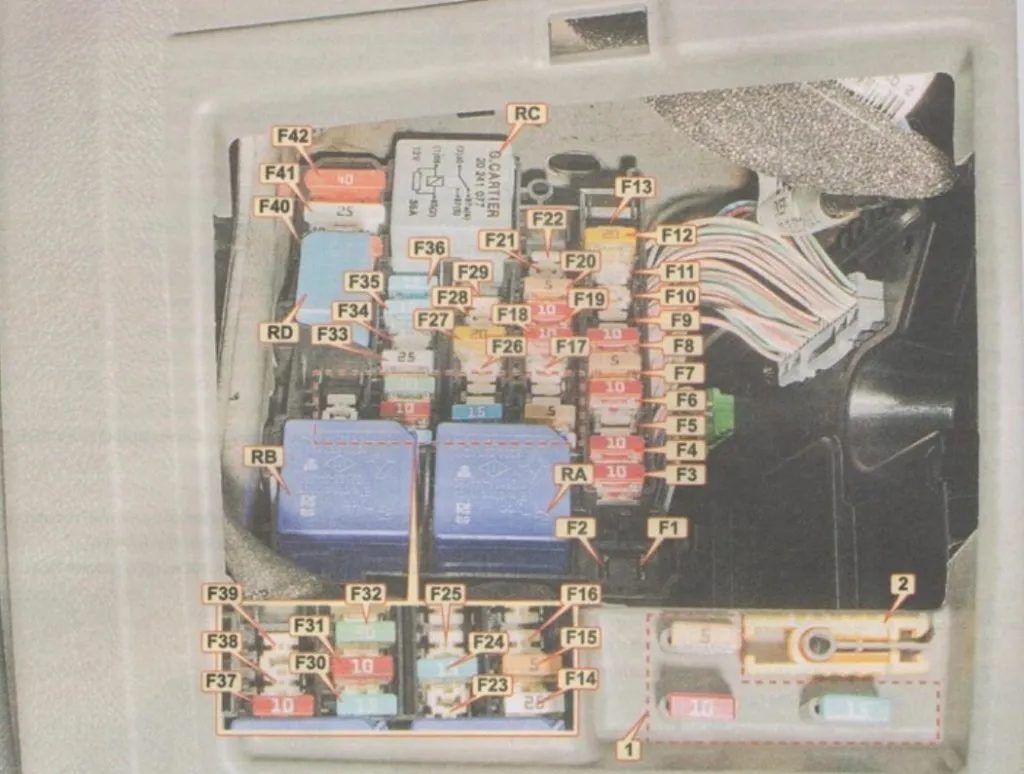

Renault Fluence Cabin Fuse Box

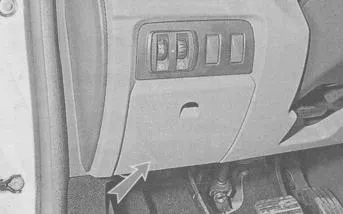

It is located on the left side of the steering wheel, behind the cover.
| F1 | reserve |
| F2 | reserve |
| F3 | 10A cigarette lighter |
| F4 | 10A rear socket |
| F5 | 10A socket in the luggage compartment |
| F6 | 10A audio system |
| F7 | 5A heated exterior mirrors |
| F8 | 10A windshield washer, door open indicator |
| F9 | 30A Automatic Parking Brake |
| F10 | 10A instrument panel |
| F11 | 25A electric seat, steering column switches |
| F12 | 20A Electric heated passenger seat |
| F13 | reserve |
| F14 | 25A electric window lifter front passenger door |
| F15 | 5A Brake Light Switch, Brake Pedal Position Sensor, ABS/ESP Control Unit |
| F16 | 25A electric window lifter right rear door |
| F17 | 25A electric window lift left rear door |
| F18 | 10A glove compartment light, left luggage compartment light, door lights, sun visor mirror lights, rain sensor |
| F19 | 10A clock, outside temperature indicator, seat belt reminder, audio system connector |
| F20 | 5A climate control unit |
| F21 | 3A Sun Visor Mirror Lights |
| F22 | 3A interior lights, rain and light sensor |
| F23 | 20A trailer socket |
| F24 | 15A rear wiper |
| F25 | 3A Interior Rearview Mirror |
| F26 | 30A 10A navigation system, CD changer, audio system |
| F27 | 20A audio system, parking brake control unit |
| F28 | reserve |
| F29 | reserve |
| F30 | 15A direction indicators |
| F31 | 10A instrument panel |
| F32 | 30A electric window lift driver’s door |
| F33 | 25A central locking |
| F34 | reserve |
| F35 | 15A clock, outside temperature indicator, phone display |
| F36 | 15A diagnostic connector, horn relay, alarm control unit, siren |
| F37 | 10A brake lights, electrical equipment control unit |
| F38 | 30A Automatic Parking Brake |
| F39 | reserve |
| F40 | 40A air conditioning fan |
| F41 | 25A sunroof electric drive |
| F42 | 40A rear window heating |
- RA 70A – power relay (+battery) with shutdown delay (without power shutdown at startup)
- RB 70A – power relay (+battery) with shutdown delay (with power shutdown at startup)
- RC 40C – Rear Window Heated Relay
- RD 20A – horn relay
Cigarette lighter fuse
The front cigarette lighter is controlled by fuse number 3, and the rear socket is controlled by fuse number 4, rated at 10A.
Additional elements

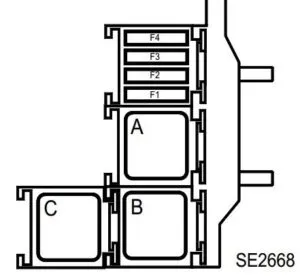

Block 1
Located in the passenger compartment, in the lower left part of the instrument panel, on the side of the steering column.
Scheme
- F1 – 40A fuse for power supply of electric window relay (703), control of child safety system relay (750)
- F2 –
- F3 –
- F4 –
- A – 40A Electric window lifter relay
- B – 40A Rear Electric Window Child Safety Relay (750)
- C – 70A 2 relays “+” with the engine running (1616) to power the electric fan of the passenger compartment
Front Seat Heating Relay
This relay block is located under the passenger seat: 40A relay “+” when the engine is running to power the heating elements of the driver and passenger seats.
