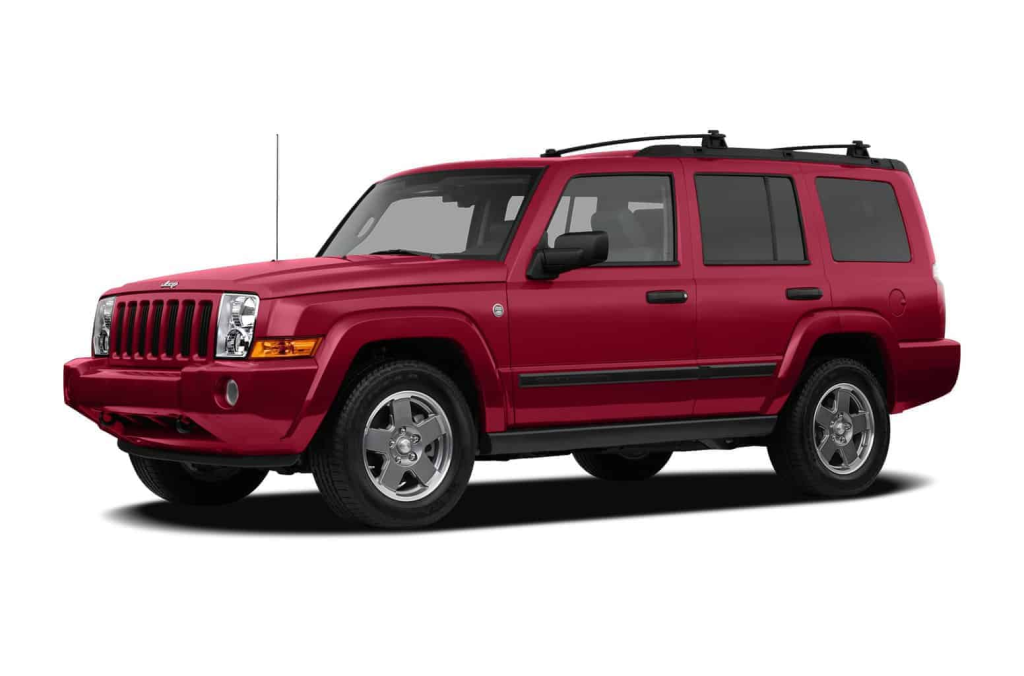

Jeep Commander (2007) – Fuse Box Diagram
Year of release: 2007
Internal fuses
The fuse panel is located in the instrument panel at the bottom, to the left of the steering column.
| Deepening | Cartridge fuse | Mini fuse | Description |
| 1 | | 30 | Audio amplifier (B+) |
| 2) | | 15 | Sunroof (B+) |
| 3) | | 10 | High Mirror (EBL) |
| 4 | | 20 | Power output (B+) |
| 5 | | 10 | Rr HVAC (R/O) |
| 6 | | Spare (B+) | |
| 7 | | 20 | Door locks (B+) |
| 8 | | 15 | Control lock Col (B+) |
| 9 | | 20 | Power socket (B+) |
| 10 | | 10 | FDCM, Heater Vent, HVAC, Switch Block, Transmission Switch, O/H, Heater Vent, HVAC Relay, Rear Parking Assist |
| 11 | | Spare (B+) | |
| 12 | | 10 | Door modifications, Sw mem. , O/H lamps, IP lamps, glove compartment lamp (B+) |
| 13 | | 10 | Automatic cleaning (R/A) |
| 14 | | 20 | Cigar Ltr (R/A) |
| 15 | | 10 | Tire Pressure Sensors (R/O) |
| 16 | | 10 | Steering Control Module (SCM), Diagnostic Connector, Cluster (B+) |
| 17 | | 15 | Flipper glass (B+) |
| 19 | | Spare (R/S) | |
| 20 | | 10 | Sentry Key Remote Login Module (SKRIM), Cluster (R/S) |
| 21 | | Spare (acceleration delay) | |
| 22 | | 15 | Rear wiper (B+) |
| 24 | | 10 | Power Distribution Center (PDC) Relay, Front Transmission Control Module (FDCM), Front Control Module (FCM) (R/S), A580 (R/S) |
| 25 | | 10 | Gear Shifter Assembly (BTSI), Front. Gear Shifter, ESP/ABS, Brake Release Solenoid (R/S). |
Underground fuses (distribution center)
| Deepening | Cartridge fuse | Mini fuse | Description |
| 1 | 40 | | HVAC blower |
| 2) | 30 | | Electrical outlets |
| 3) | 30 | | Rr Windscreen Wiper/Ignition R/O |
| 4 | 30 | | ABS pump |
| 5 | 50 | | Cabin Htr 1 (diesel engine only) |
| 6 | 50 | | Automatic shutdown (ASD) |
| 7 | 30 | | Rear HVAC (XK only) |
| 8 | 40 | | Acc Delay / Places |
| 9 | 40 | | Rear Door Power Supply (XK Only) |
| 10 | 40 | | Starter/Junction Block (JB) Power Supply |
| 11 | 30 | | Cigarettes / T-Tow |
| 12 | 40 | | Rear Window Defogger (EBL)/Highway Mirror |
| 13 | 40 | | Distribution Block Power (JB) |
| 14 | 50 | | Cabin Htr 2 (diesel only) |
| 15 | 50 | | Htr 3 Cab (Diesel Engine Only) |
| 16 | | 25 | Integrated Power Module (IPM)/Coils |
| 17 | | Spare | |
| 18 | | 20 | EATX/AC connection |
| 19 | | 20 | Ignatius the Saint |
| 20 | | 20 | PCM Batt (petrol only) |
| 21 | | 30 | ABS valves |
| 22 | | 20 | T-Tow (BUX) |
| 23 | | 20 | Final Drive Control Module (FDCM) |
| 24 | | 20 | Fuel pump |
| 25 | | 20 | Final Drive Control Module (FDCM) |
| 26 | | 15 | Powertrain Control Module (PCM) Automatic Shutdown (ASD) (Diesel Only) |
| 27 | | 15 | Stop lights/brake lights |
| 28 | | 25 | Next Generation Controller (NGC)/Injectors |
| 29 | | | Spare |
| 30 | | | Spare |
Fuses under the hood (integrated power module)
| Deepening | Cartridge fuse | Mini fuse | Description |
| 8 | | 10 | Lieutenant Park Lamps |
| 9 | | 10 | Trailer Park Lamps |
| 10 | | 10 | RT Park Lighting |
| 12 | | 20 | Front Control Module (FCM) Battery #4 |
| 13 | | 20 | Front Control Module (FCM) Battery #2 |
| 14 | | 20 | Adjustable pedal |
| 15 | | 20 | Fog lights |
| 16 | | 20 | Horn |
| 17 | | 20 | Rear fog lights |
| 18 | | 20 | Front Control Module (FCM) Battery #1 |
| 19 | | 20 | Stop/turn trailer Lt |
| 20 | | 20 | Front Control Module (FCM) Battery #3 |
| 21 | | 20 | Rt T-Tow Stop/Turn |
| 22 | 30 | | MOD. Final Drive Control Module (FDCM) MOD. |
| 23 | 50 | | Radiator fan |
| 27 | | 15 | Draw on Ignition Off (IOD) #1 |
| 28 | | 20 | Ignition Off Display (IOD) #2 |
| 29 | | 10 | Occupant Restriction Controller (ORC) R/S |
| 30 | | 10 | R/O Occupant Restriction Controller (ORC) |
