The Suzuki Swift subcompact car has been produced in three generations since 1984. The first generation was not officially supplied to Europe. Therefore, we will not consider it in this article. The second generation was assembled in 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 and 2010. Then, in 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020, the 3rd generation Suzuki Swift was assembled. In this publication, you will find a description of the fuse and relay blocks of the Suzuki Swift, their location, photos and diagrams. We will separately note the fuses responsible for the cigarette lighter.
The purpose of the fuses in the blocks may differ from the one presented and depends on the year of manufacture, equipment level and country of delivery of the Suzuki Swift. Check the description on the protective cover.

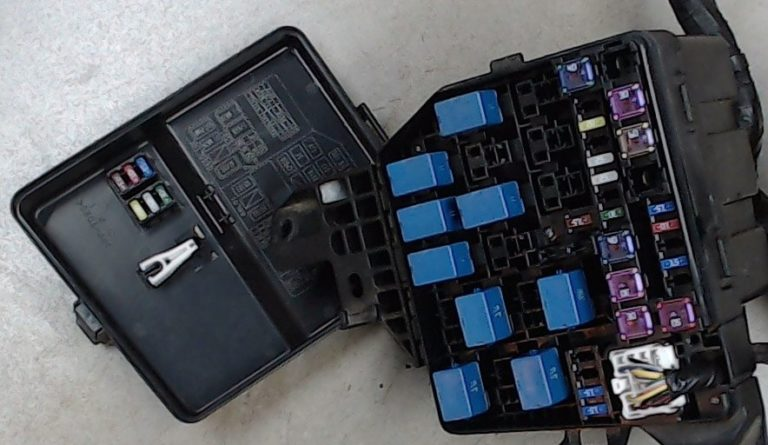

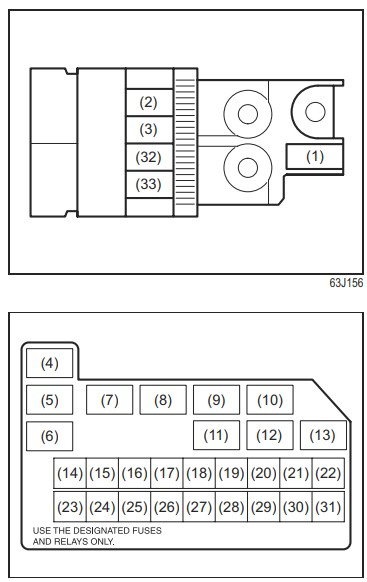

Block under the hood

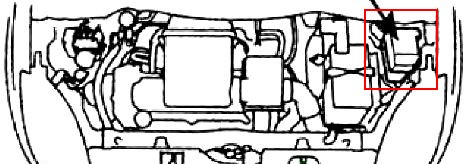

It is located on the left side, next to the counter.

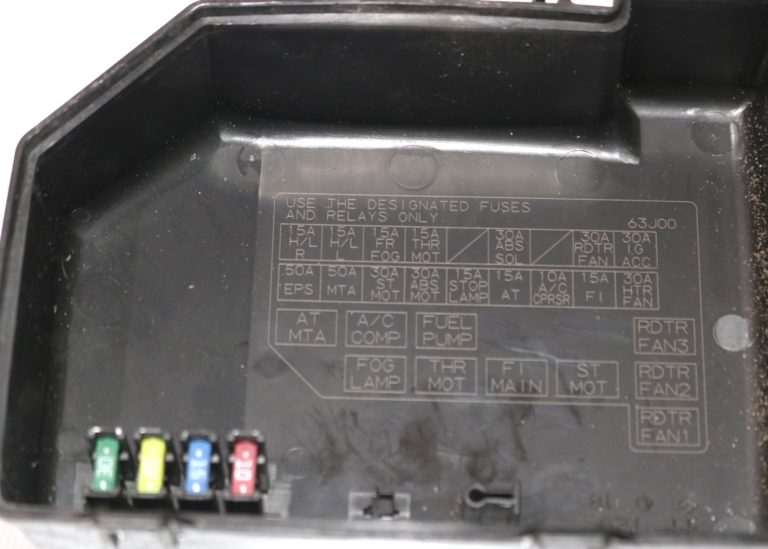

Description
| 1 | 80A All electrical circuits |
| 2 | 50A Power windows, ignition, starter, wiper |
| 3 | Rear dimensions, rear door glass heater, central locking, horn, interior lighting |
| 4 | Radiator fan relay #1 |
| 5 | Radiator fan relay #2 |
| 6 | Radiator fan relay #3 |
| 7 | Starter relay |
| 8 | Main relay |
| 9 | Throttle valve relay |
| 10 | Fog light relay |
| 11 | Fuel pump relay |
| 12 | Air compressor relay |
| 13 | Reserve |
| 14 | 30A Heater |
| 15 | 15A Injection system |
| 16 | 10A Air Compressor Relay |
| 17 | Reserve |
| 18 | 15A Stop signal |
| 19 | 30А ABS |
| 20 | 30A Starter |
| 21 | Reserve |
| 22 | 50A Electric power steering |
| 23 | 30A Ignition switch |
| 24 | 30A Cooling system fan |
| 25 | Reserve |
| 26 | 30А ABS |
| 27 | Reserve |
| 28 | Reserve |
| 29 | 15A Fog lights |
| 30 | 15A Headlight (left) |
| 31 | 15A Headlight (right) |
| 32 | 80A Heater, electric power steering |
| 33 | 80A Cooling system fan, fog lights, headlights |

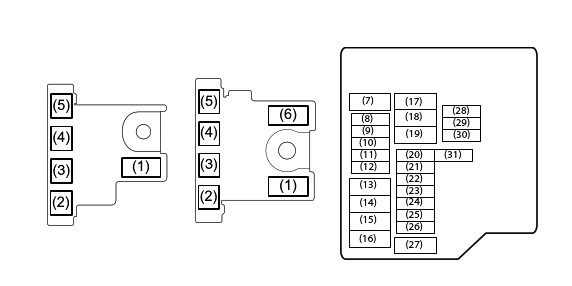

Option 2

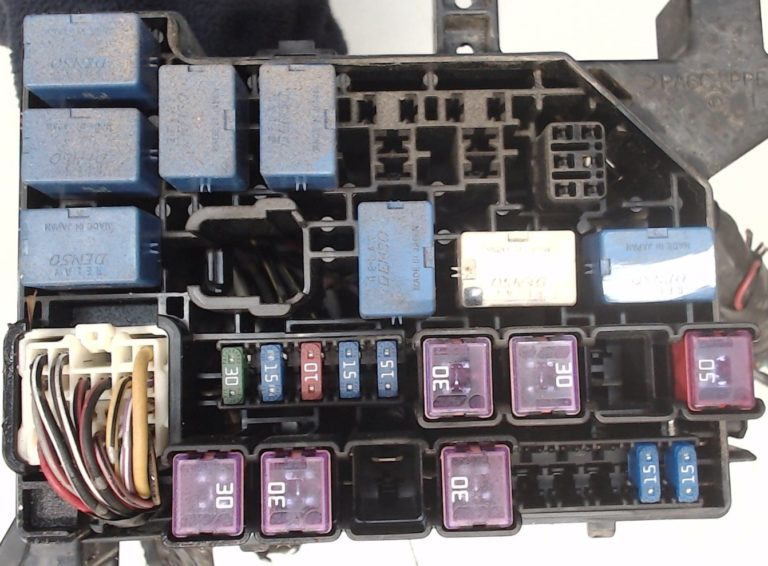

Photo – example
Marking
| 1 | 100/120А FL1 |
| 2 | 100A FL2 |
| 3 | 100A FL3 |
| 4 | 50A FL4 |
| 5 | 80A FL5 |
| 6 | 100A FL6 |
| 7 | 50A Ignition switch -2 |
| 8 | 7.5A ECM |
| 9 | Reserve |
| 10 | 20A F/P (diesel) |
| 11 | 10A Air Compressor |
| 12 | 15A FI (petrol) |
| 13 | 30A FI (DIESEL) |
| 14 | 60A Power steering |
| 15 | 30A Radiator fan |
| 16 | 40A ABS motor |
| 17 | 30A Fan |
| 18 | 30A Engine start |
| 19 | Reserve |
| 20 | 30A Auxiliary equipment |
| 21 | Reserve |
| 22 | 15A Headlight (left) |
| 23 | 25A ABS control unit |
| 24 | 15A Headlight (right) |
| 25 | 20A Front fog lamp |
| 26 | Reserve |
| 27 | 40A Ignition switch |
| 28 | 20A Engine control unit / ignition |
| 29 | 10A FI 2 (DIESEL) |
| 30 | Reserve |
| 31 | 7.5A Start signal |

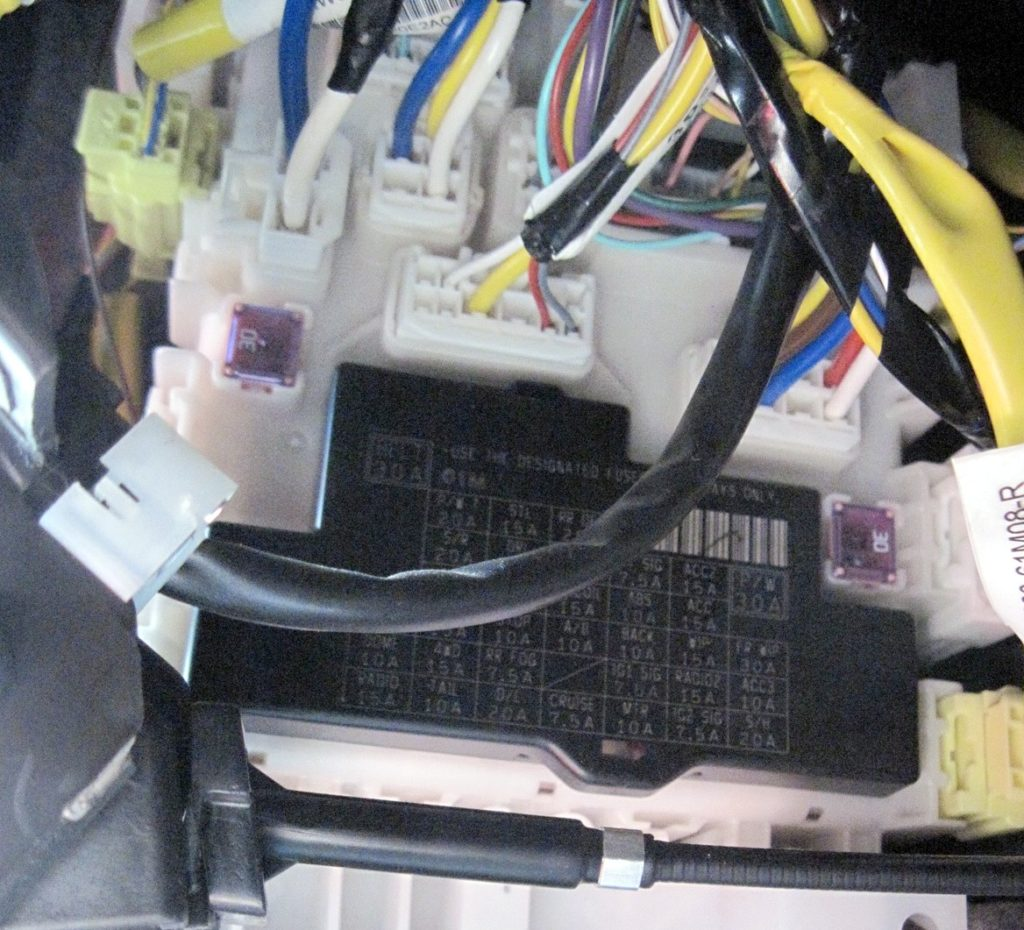

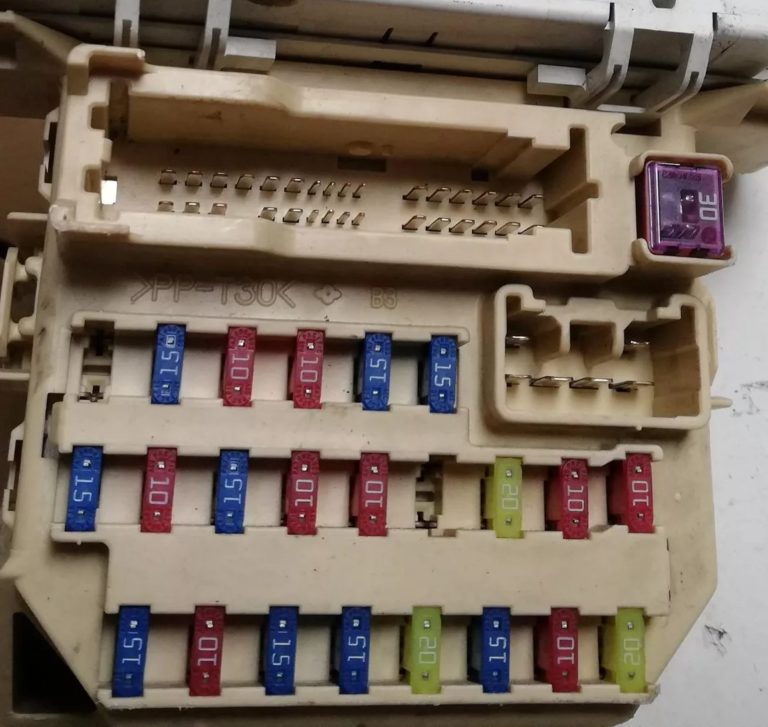

Cabin block

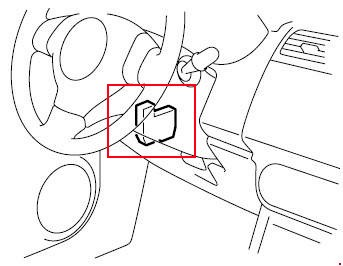

It is located under the dashboard, next to the rack.

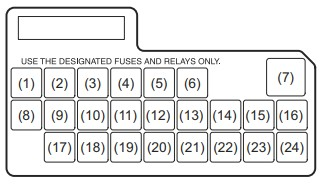

Option 1

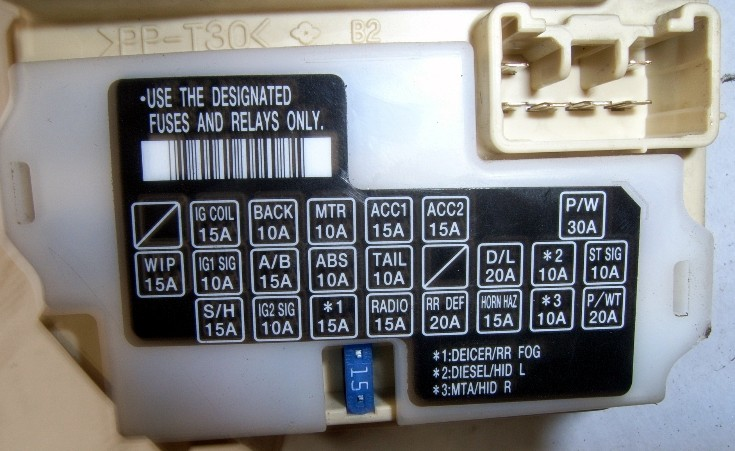

The current decryption will be printed on the block cover.
Appointment
| 1 | 15A Reserve |
| 2 | 10A Ignition coil |
| 3 | 10A Reversing light |
| 4 | 15A Instrument cluster |
| 5 | 15A Side rear-view mirrors |
| 6 | 15A Cigarette lighter or connector for connecting additional equipment |
| 7 | 15A Window regulators |
| 8 | 15A Windshield wiper and washer |
| 9 | 10A Electric power steering |
| 10 | 15А SRS |
| 11 | 10А ABS |
| 12 | 10A Side lights |
| 13 | Not used |
| 14 | 20A Door locks |
| 15 | 10A Headlight (left) |
| 16 | 10A Starter |
| 17 | 15A Front seat heater |
| 18 | 10A Heater |
| 19 | 15A Rear fog lights |
| 20 | 15A Radio, interior lighting |
| 21 | 20A Rear door glass heater |
| 22 | 15A Audible signal |
| 23 | 10A Headlight (right) |
| 24 | 20A “Timer” for disabling the power window drive |
Fuse number 6 at 15A is responsible for the operation of the cigarette lighter.

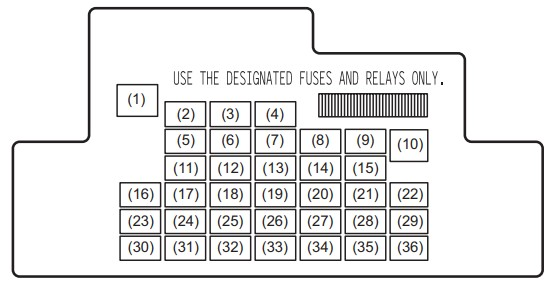

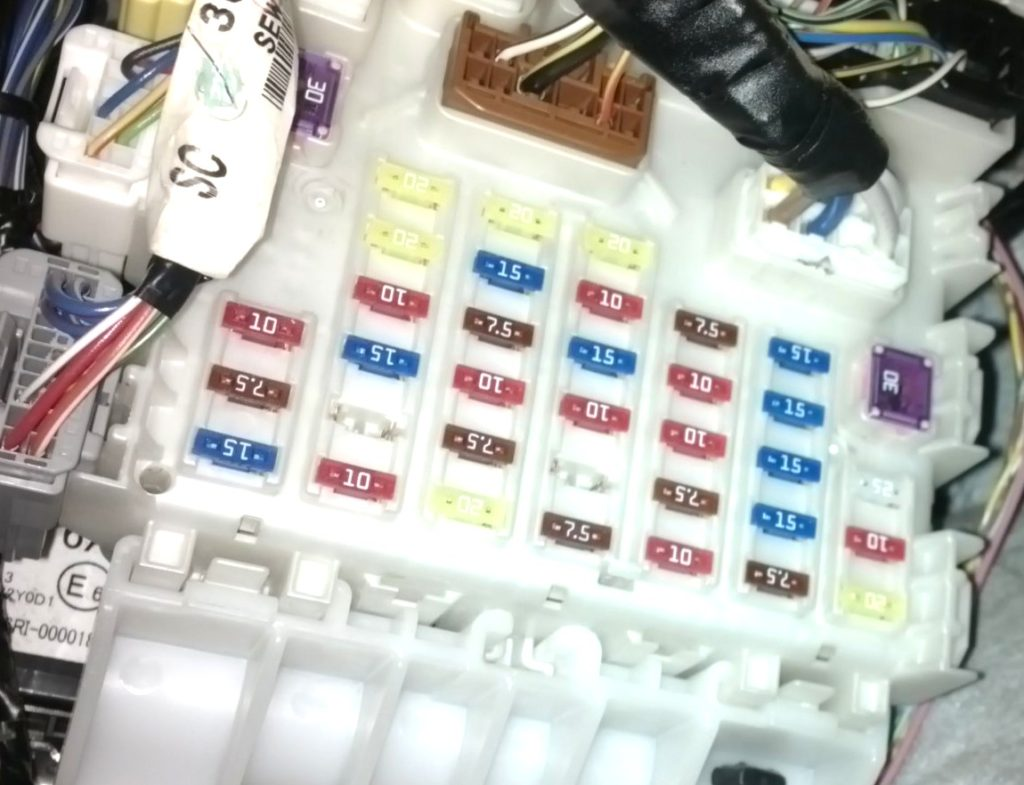

Option 2
Transcript
| 1 | 30A Seat belt |
| 2 | 20A Power window timer |
| 3 | 15A Steering column lock |
| 4 | 20A Rear window heater |
| 5 | 20A Hatch |
| 6 | 10A DRL |
| 7 | 10A Exterior mirror heater |
| 8 | 7.5A Start signal |
| 9 | 15A Accessory socket 2 |
| 10 | 30A Electric window regulator |
| 11 | 10A Emergency alarm |
| 12 | 7,5A BCM |
| 13 | 15A Ignition coil |
| 14 | 10A ABS control module |
| 15 | 15A Cigarette lighter socket |
| 16 | 10A A-STOP Controller |
| 17 | 15A Audible signal |
| 18 | 10A Brake light |
| 19 | 10A Airbag |
| 20 | 10A Reversing light |
| 21 | 15A Cleaner/washer |
| 22 | 30A Front wiper |
| 23 | 10A Ceiling lamp |
| 24 | 15A 4WD |
| 25 | 7.5A Rear fog lights |
| 26 | Reserve |
| 27 | 7.5A Ignition – 1st signal |
| 28 | 15A Radio 2 |
| 29 | 10A Accessory socket 3 |
| 30 | 15A Radio |
| 31 | 10A Tail light |
| 32 | 20A D/L |
| 33 | 7.5A Cruise control |
| 34 | 10A Measuring instrument |
| 35 | 7.5A Ignition – 2nd signal |
| 36 | 20A Seat heating |
Fuse number 15 at 15A is responsible for the cigarette lighter, and fuse numbers 9 and 29 are responsible for the additional sockets.
