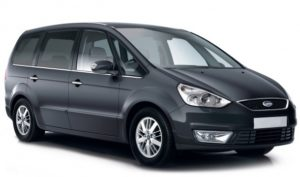

Ford Galaxy 2nd generation was produced in 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016 with both gasoline and diesel engines. During this time, the car was restyling once. In our material you will find a description of the fuse blocks and relays of the Ford Galaxy 2nd generation with block diagrams and photo examples of their execution. Let’s highlight the fuse responsible for the cigarette lighter.
Cabin block

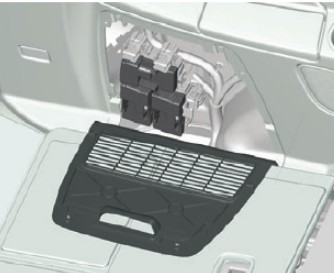

It is located under the glove compartment and is secured with 2 screws – latches that must be turned to gain access to the unit.
Option 1

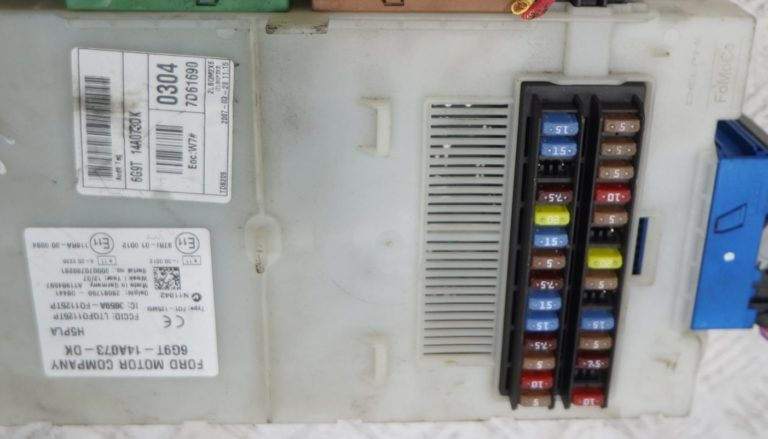

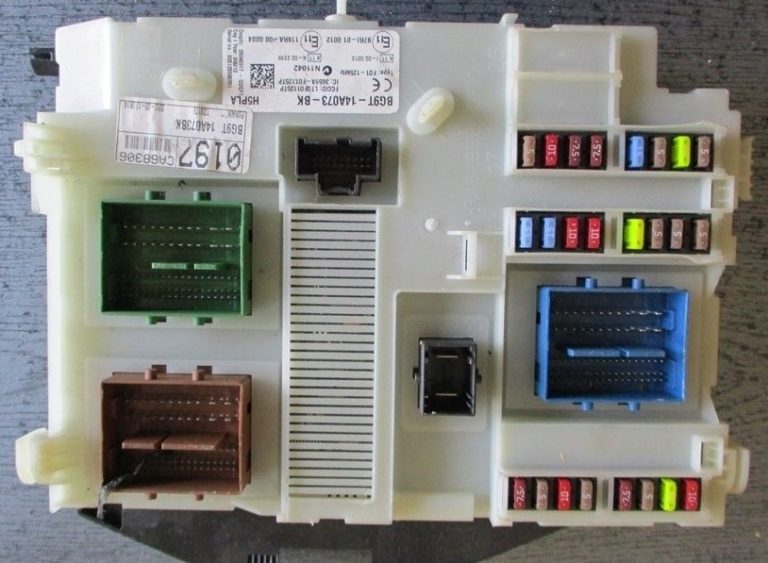

Photo – example

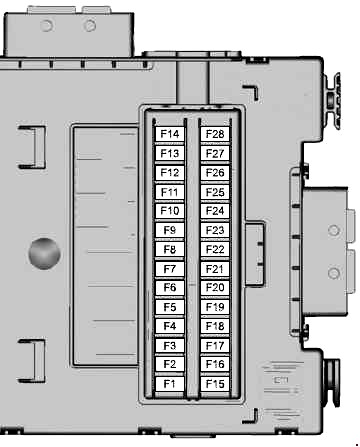

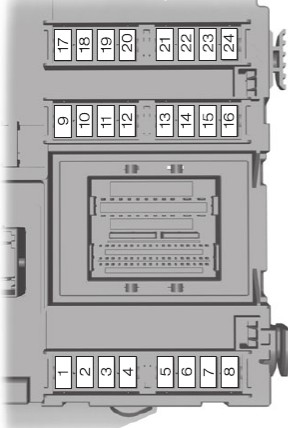

Scheme
Description
| F1 | 5A Rain sensor |
| F2 | 10A SRS (airbags) |
| F3 | 5A ABS, ESP, EPB, accelerator pedal |
| F4 | 7.5A Power supply, accelerator pedal, electronic fuse |
| F5 | 15A Rear wiper |
| F6 | 15A Audio system |
| F7 | 7.5A Steering wheel module |
| F8 | 5A Instrument cluster |
| F9 | 15A High beam headlights |
| F10 | 2 Luke |
| F11 | 7.5A Reverse lights |
| F12 | Reserve |
| F13 | 15A Front fog lights |
| F14 | 15A Windshield washer |
| F15 | 10A Adaptive Cruise Control (ACC) System |
| F16 | Reserve |
| F17 | 10A Interior lighting |
| F18 | 5A Immobilizer |
| F19 | 15A Cigarette lighter |
| F20 | Reserve |
| F21 | 5A 2006-2007: Radio, rain sensor, 2008-2009: Radio receiver, interior motion sensor |
| F22 | 7.5/20A Fuel pump |
| F23 | Reserve |
| F24 | 5A Ignition switch |
| F25 | 10A Fuel filler flap |
| F26 | 5A Autonomous sound system (security alarm system), OBD II (on-board computer diagnostics) |
| F27 | 5A Steering column assembly, climate control unit |
| F28 | 5A Brake light switch |
The cigarette lighter is controlled by fuse F19 at 15A.
Option 2
Scheme
Appointment
| F1 | 7.5A Steering wheel module |
| F2 | 5A Instrument panel |
| F3 | 10A Interior lighting ceiling lamps |
| F4 | 5A Engine immobilizer |
| F5 | 7.5A Adaptive cruise control (ACC) |
| F6 | 5A Rain sensor |
| F7 | 15/20A Cigarette lighter |
| F8 | 10A Fuel filler flap unlock circuit power supply |
| F9 | 15A Windshield washers – rear |
| F10 | 15A Windshield washers – front |
| F11 | 10A Power supply for the trunk door unlock circuit |
| F12 | 10A Fuel filler flap closing circuit power supply |
| F13 | 20A Fuel pump |
| F13 | 7.5/20A Fuel Pump (2.2L Duratorq-TDCi Stage V) |
| F14 | 5A Remote frequency reception, Interior motion sensor |
| F15 | 5A Ignition switch |
| F16 | 5A Autonomous sound system (security alarm system), OBD II (on-board computer diagnostics) |
| F17 | 5A Steering wheel vibration drive |
| F18 | 10A SRS system power supply (airbags) |
| F19 | 7.5A ABS, yaw sensor (ESP), electric parking brake (EPB), accelerator pedal power supply |
| F20 | 7.5A Electronic subsystem power supply, electronic subsystem fuse, auto-dimming mirror, lane departure warning system |
| F21 | 15A Audio system (including voice control) |
| F22 | 5A Brake light switch |
| F23 | 20A Roof hatch |
| F24 | 5A Steering column assembly, climate control unit |
Fuse number 7, 15A or 20A, is responsible for the cigarette lighter.
Block under the hood

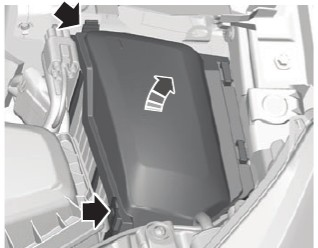

Located on the left side, under the protective cover.

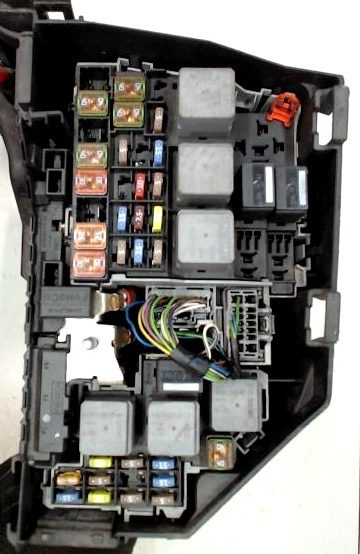

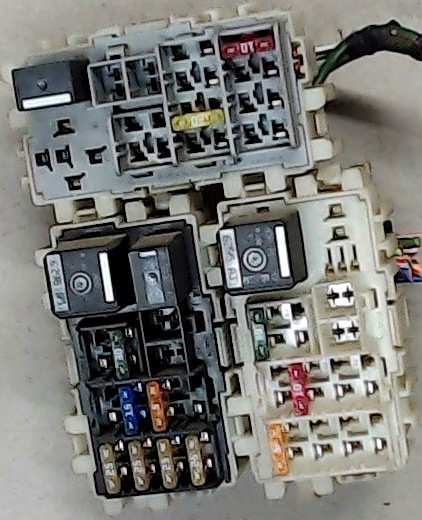

Photo – example

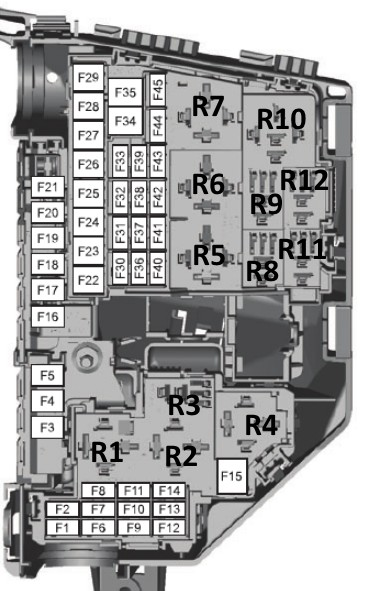

Scheme
Marking
| F1 | 10/15A Transmission Control Module |
| F2 | 5A Glow plug control |
| F3 | 70/80A Engine cooling fan – dual fan (2.3L Duratec-HE and 2.2L Duratorq-TDCi (automatic)) Electro-hydraulic power steering (EHPAS) |
| F4 | 60A Glow plugs |
| F5 | 60/70A Engine Cooling Fan (1.6L Duratorq-TDCi, 2.0L Duratorq-TDCi, 2.0L Duratorq-TDCi Stage V, 2.2L Duratorq-TDCi (Manual), 2.0L Duratec-HE, 2.3L Duratec-HE and 2.0L EcoBoost SCTi) Engine Cooling Fan – Dual Fan (1.6L EcoBoost SCTi) |
| F6 | 7.5/10A HEGO sensor, CMS sensor, oxygen sensor 20A Evaporator glow plug |
| F7 | 5A Relay Solenoids |
| F8 | 10/15/20A Powertrain Control Module, Fuel Metering, MAF Sensor, Fuel Rail Pressure Control Valve (Engine Management System) |
| F9 | 7.5/10/15A Cooling system air purge valve, TMAF sensor, active radiator shutters, bypass valve, relay coil, auxiliary water pump, MAF sensor, EGR valve, fuel pump evaporator |
| F10 | 7.5/10A Engine Control Module (2.0L Duratorq-TDCi) Auxiliary Water Pump (1.6L EcoBoost SCTi) |
| F11 | 10A PCV valve, VCV valve, water in fuel sensor, purge valve, swirl valve, variable intake valve, EGR valve, IVVT oil control valve (engine management system) T.MAF sensor, variable exhaust timing valve, active radiator shutters, canister purge valve, turbocharger control valve, boost pressure regulator (engine management system) 7.5A Fuel manifold pressure, fuel metering, active radiator shutters (2.2L Duratorq-TDCi Stage V) 10A Turbocharger control valve, radiator MAF sensor, EGR valve, VCV valve (1.6L Duratorq-TDCi) |
| F12 | 10A Coil assembly with spark plug; canister purge valve, power steering system pressure sensor (engine management system) |
| F12 | 10A Exhaust Gas Recirculation (EGR) Throttle, Rotary Vane Turbocharger Control System (2.0L Duratorq-TDCi) 5A Relay Coil 15A Ignition Coils |
| F13 | 15A Air conditioning |
| F14 | 15A Diesel filter heater (2.0L Duratorq-TDCi, 2.0L Duratorq-TDCi Stage V and 1.6L Duratorq-TDCi) 10A Exhaust gas oxygen sensors (2.2L Duratorq-TDCi Stage V) |
| F15 | 40A Starter Relay |
| F16 | 80A Diesel auxiliary heater (PTC) |
| F17 | 60A Power A of the central fuse block |
| F18 | 60A Power Supply In the central fuse block |
| F19 | 60A Power From the central fuse block |
| F20 | 60A Power D of the central fuse block |
| F21 | 30A VQM/without VQM: instrument panel/audio unit/AC/FLR |
| F22 | 30A Wiper Blade Module |
| F23 | 25/30A Electric rear window heating |
| F24 | 30A Headlight washers |
| F25 | 30A ABS valves |
| F26 | 40A ABS pump |
| F27 | 25/30A Auxiliary fuel heater |
| F28 | 40A Heater fan |
| F29 | Reserve |
| F30 | 5A Power supply ABS 30 |
| F31 | 15A Audible signal |
| F32 | 5A Fuel heater – remote control |
| F33 | 5A Lighting control unit, underhood fuse box solenoids |
| F34 | 40A Heated windshield, left side |
| F35 | 40A Windshield heater, right side |
| F36 | 5A ABS 15A Rear wiper power supply |
| F37 | 7.5/10A Front washer nozzle heating |
| F38 | 5A Adaptive Cruise Control (ACC) System 10A PCM/TCM/EHPAS Power Supply |
| F39 | 15A Adaptive Front Lighting System (AFS) |
| F40 | 5A Headlight range adjustment/Adaptive Headlight System (AFS) module |
| F41 | 20A Control panel |
| F42 | 10A Engine control unit, transmission control unit, electro-hydraulic power steering (EHPAS) 5A IP shield |
| F43 | 5A Headlight range adjustment/Adaptive Headlight System (AFS) module 15A Audio unit/Brake Valve Control (BVC) module/Digital Audio Broadcasting (DAB) module |
| F44 | 20A Power steering (2.0L Duratorq-TDCi), vacuum pump (2.5L Duratec-ST) 5A Automatic air conditioning (AC) / manual air conditioning (AC) |
| F45 | 5A Rear wiper, FLR (start/stop) |
Relay
- R1 – starter relay
- R2 – ECR relay
- R3 – climate control system compressor relay
- R4 – glow plug relay for diesel models
- R5 – engine cooling fan relay
- R6 – windshield heating relay
- R7 – relay terminals 15
- R8 — Windshield wiper high/low speed relay
- R9 – horn relay
- R10 – headlight washer relay
- R11 — windshield wiper on/off relay
- R12 – AT selector lock relay.
Block in the trunk
It is located on the side, behind a protective cover.
Photo – example of execution

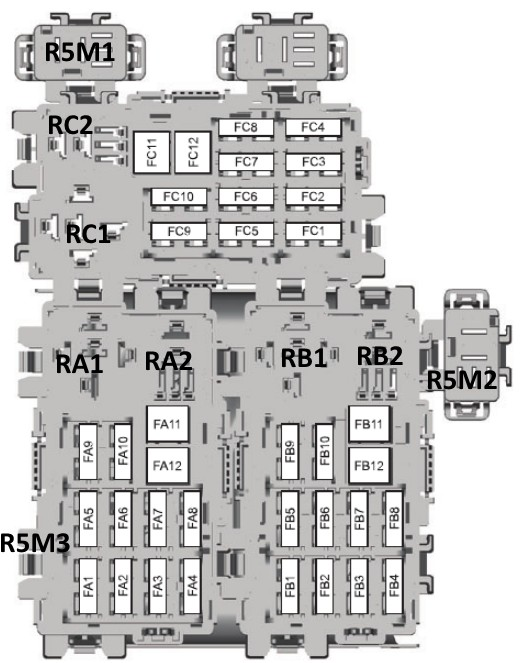

General scheme
Transcript
| FA1 | 25A Left front door control unit (power windows, central locking, mirror folding, mirror heating) |
| FA2 | 25A Right front door control unit (windows, central locking, mirror folding, mirror heating) |
| FA3 | 25A Left rear door control unit (windows) |
| FA4 | 25A Right rear door control unit (power windows) |
| FA5 | 10A Locking the rear door locks without the participation of the door control units |
| FA6 | 15A Power sockets for connecting additional equipment |
| FA7 | 5A Relay Solenoids |
| FA8 | 20A 2010-2015: Car Keyless Entry Module |
| FA9 | 5A 2011-2015: VQM relay coils (start/stop) |
| FA10 | 30A 2006-2010: Driver’s seat electric adjustment |
| FA11 | 20A Accessories, trailer module |
| FA12 | 30A 2011-2015: Driver’s seat electric adjustment |
| FB1 | 15A 2011-2015: Sun blind system 5 2006-2010: Parking assist system, BLIS |
| FB2 | 15A Suspension control unit |
| FB3 | 15A Driver’s seat heating |
| FB4 | 15A Front passenger seat heating |
| FB5 | Reserve |
| FB6 | 10A Rear passenger zone climate control system |
| FB7 | Reserve |
| FB8 | 5A 2011-2015: Parking assistance system, BLIS 10A Sun blind system |
| FB9 | 30A Electric adjustment of the front passenger seat position |
| FB10 | 10A Anti-theft alarm |
| FB11 | Reserve |
| FB12 | Reserve |
| FC1 | 7.5A Electric windows for rear side windows |
| FC2 | 30A Electric parking brake (EPB) |
| FC3 | 30A Electric parking brake (EPB) |
| FC4 | 10A Rear air conditioning |
| FC5 | 20A 2011-2015: Vehicle with keyless engine start system 7.5A 2006-2010: Rear seat multimedia system/CD changer |
| FC6 | 20A Rear passenger compartment air conditioning fan |
| FC7 | 5A Seat position memory function module |
| FC8 | 7.5A 2011-2015: Rear seat multimedia system/CD changer 20A 2010: Vehicle with keyless engine start system |
| FC9 | 20A Audio Amplifier |
| FC10 | 10А Sony audiophile |
| FC11 | Reserve |
| FC12 | Reserve |
