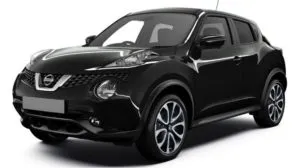

The first generation Nissan Juke mini crossover was produced in 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020. Currently, the 2nd generation of the model has entered assembly. The 2014 update has largely affected the appearance. In our material, we will show where the fuse boxes and relays of the Nissan Beetle are located, their photographs, diagrams and a description of the purpose of the elements, we will separately note the cigarette lighter fuse.
General arrangement of blocks

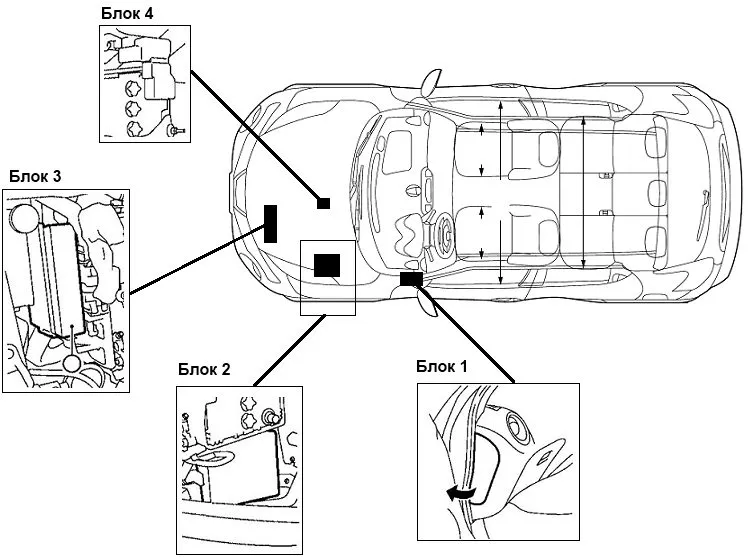

The Nissan Beetle has 4 fuse and relay boxes. One in the cabin and 3 under the hood. Their location is shown in the diagram.
Scheme
Fuses and relays in the passenger compartment

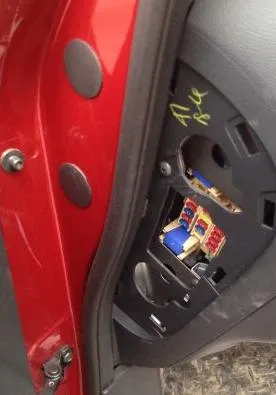

This block, number 1 on the diagram, is located at the end of the instrument panel, behind the protective cover.

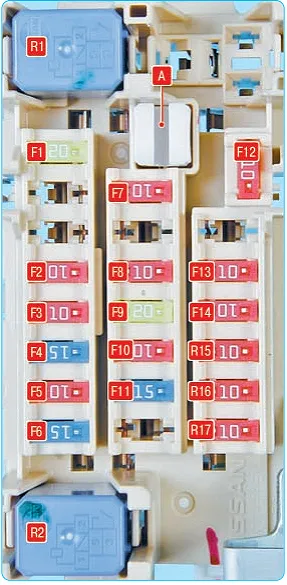

| F1 | 20A Socket for connecting additional equipment, cigarette lighter, audio system, electric drive of outside rear-view mirrors |
| F2 | 10A Audio System |
| F3 | 10A Engine Compartment Mounting Block |
| F4 | 15A Blower Fan Relay |
| F5 | 10A Air Conditioner |
| F6 | 15A Blower Fan Relay |
| F7 | 10A Additional equipment |
| F8 | 10A Instrument cluster |
| F9 | 20A Trailer Electrical Equipment |
| F10 | 10A Interior light |
| F11 | 15A Seat heating |
| F12 | 10A Heated exterior rearview mirrors |
| F13 | 10A Instrument cluster |
| F14 | 10A Additional equipment |
| F15 | 10A Additional equipment |
| F16 | 10A Washers |
| F17 | 10A Supplementary Restraint System (SRS) |
| R1 | Relay additional interior equipment |
| R2 | Air blower electric fan relay |
Fuse number 1, 20A, is responsible for the cigarette lighter.

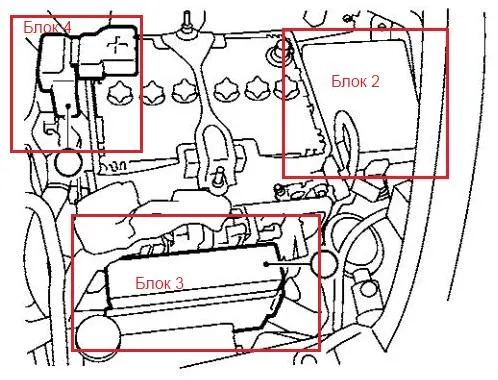

Blocks under the hood of a Nissan Juke
Scheme

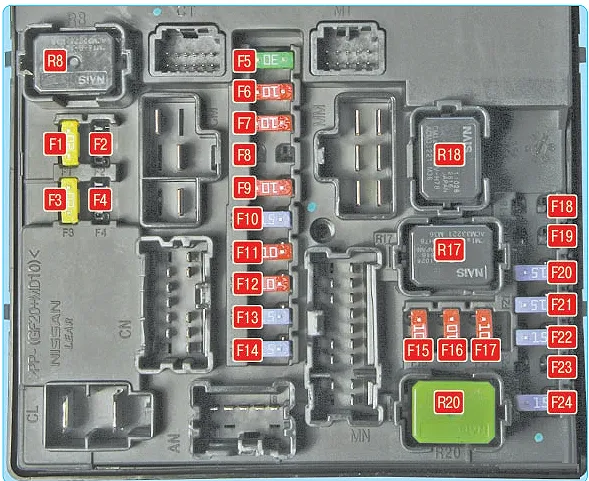

Mounting block

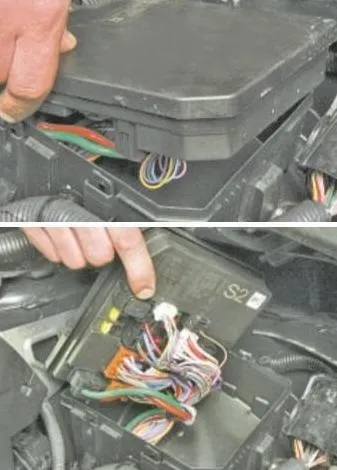

On the diagrams it is marked as number 2. It is located at the very edge of the engine space. To access it, you need to remove the air filter sleeve.
| F1 | 20A Rear door glass heating, rear view mirror heating |
| F2 | Not used |
| F3 | 20A Engine Management System |
| F4 | Not used |
| F5 | 30A Windscreen wiper, wipers |
| F6 | 10A Right side lights |
| F7 | 10A Left side lights |
| F8 | Not used |
| F9 | 10A Air Conditioning Compressor Clutch |
| F10 | 15A Fog lights |
| F11 | 10A Right headlight high beam |
| F12 | 10A Left headlight high beam |
| F13 | 15A Low beam left headlight |
| F14 | 15A Right headlight low beam |
| F15 | 10A Engine Management System |
| F16 | 10A Reverse Light Bulbs |
| F17 | 10A Anti-lock Braking System |
| F18 | Not used |
| F19 | Not used |
| F20 | 15A Fuel pump |
| F21 | 15A Ignition system |
| F22 | 15A Injection system |
| F23 | Not used |
| F24 | 15A Power Steering |
Relay designation
- R8 Rear Door Heater Relay
- R17 Cooling system fan speed reduction (-) relay
- R18 Cooling system fan speed increase (+) relay
- R20 Ignition system relay
Fuse box

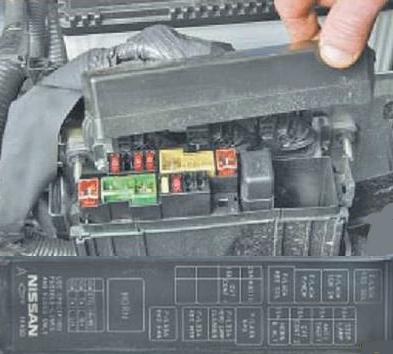

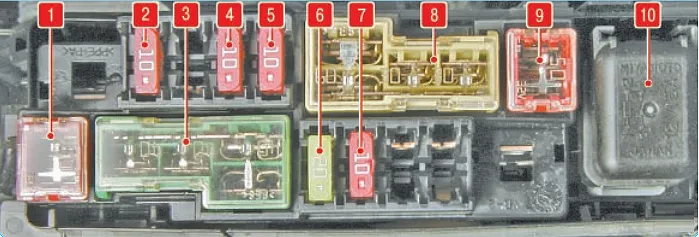

Marked with number 3. To access the fuses of the block on the casing of the electronic engine control unit, press the cover lock. On the inside of which, the current layout diagram of the elements will be applied.
- 50A ABS Hydroelectronic Module
- 10A Stop signal
- 40A Ignition system, Glass lifters, ABS
- 10A Variator Control
- 10A Sound signal, generator
- 20A Audio system, radio
- 10A Variator Control
- 60A Electric power steering, headlight washer (30A), ABS (30A)
- 50A Radiator Fan Cooling System
- Sound signal relay
Power fuse box

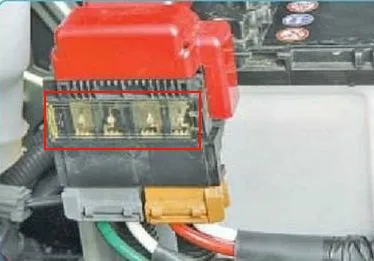

It is located on the positive terminal of the battery and is a group of fuses that protect the fuse boxes in the passenger compartment and under the hood. It is designated as number 4 on the diagrams. In case of complete absence of voltage, we recommend starting the check with them.
