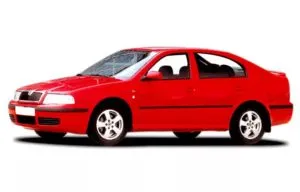

Skoda Octavia 1st generation is created on the platform a4 . This car was produced in 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004 with liftback and station wagon bodies. In some countries, production continued until 2010 under the name Octavia Tour . This generation was equipped with petrol engines of 1.4 1.6 1.8 2.0 liters and 1.9 liter diesel engines. This publication will provide a description of the fuses and relays of the Skoda Octavia Tour 1st generation, the location of the blocks, their diagrams and photographs.
Blocks in the cabin
Fuse box

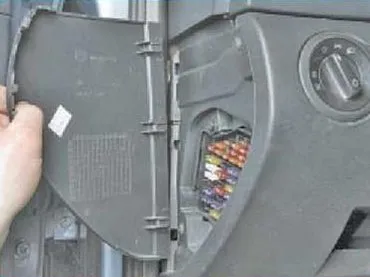

It is located at the end of the instrument panel, on the driver’s side behind the protective cover.

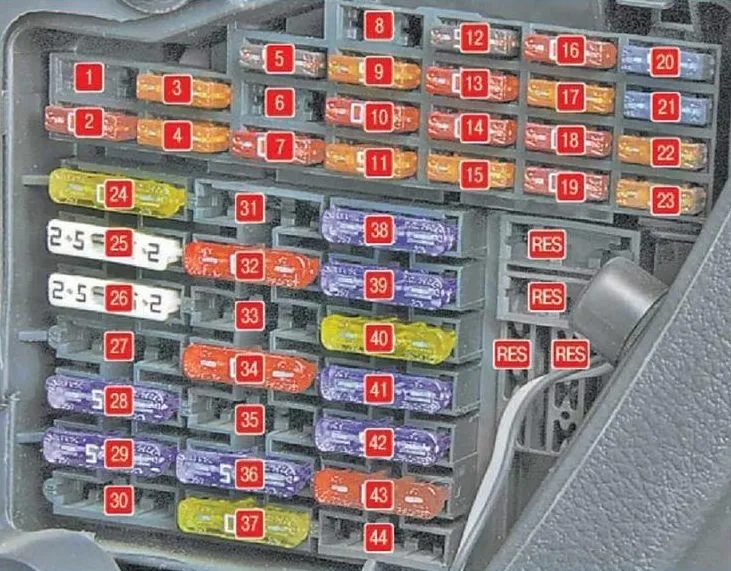

| 1 | 10A Heated mirrors, cigarette lighter relay, electric seats and windshield washer jets |
| 2 | 10A Direction indicators, headlights with xenon lamps |
| 3 | 5A Glove compartment lighting |
| 4 | 5A License plate light |
| 5 | 7.5A Heated seats, Climatronic, recirculated air flap, heated exterior mirrors, Tempomat regulator |
| b | 5A Central Control Locking System |
| 7 | 10A Reversing lights, parking sensors |
| 8 | 5A Telephone |
| 9 | 5A ABS, ESP |
| 10 | 10A Ignition |
| 11 | 5A Instrument panel |
| 12 | 7.5A Power supply for diagnostic system |
| 13 | 10A Brake Lights |
| 14 | 10A Interior body lighting, central locking system, interior body lighting (without central locking system) |
| 15 | 5A Instrument cluster, steering wheel angle sensor, rearview mirror |
| 16 | 10A Air Conditioner |
| 17 | 5A Sprayer Nozzle Heating, 30A Daytime Running Light |
| 18 | 10A Right high beam headlight |
| 19 | 10A Left high beam headlight |
| 20 | 15A Right low beam headlight, headlight height adjustment |
| 21 | 15A Left low beam headlight |
| 22 | 5A Right parking light |
| 23 | 5A Left parking light |
| 24 | 20A Front windscreen wipers, windscreen washer motor |
| 25 | 25A Heater Fan, Air Conditioner, Climatronic |
| 26 | 25A Heated trunk lid glass |
| 27 | 15A Rear Window Wiper |
| 28 | 15A Fuel pump |
| 29 | 15A Control Unit: Petrol Engine, 10A Control Unit: Diesel Engine |
| 30 | 20A Electric Sunroof |
| 31 | Not occupied |
| 32 | 10A Petrol engine – valve injectors, 30A Diesel engine high pressure fuel pump, control unit |
| 33 | 20A Headlight Washer |
| 34 | 10A Petrol Engine: Control Unit, 10A Diesel Engine: Control Unit |
| 35 | 30A Trailer Socket, Socket in the Trunk |
| 36 | 15A Fog lights |
| 37 | 20A Petrol Engine: Control Unit, 5A Diesel Engine: Control Unit |
| 38 | 15A Trunk light, central locking, interior lighting |
| 39 | 15A Emergency Lighting System |
| 40 | 20A Sound signal (horn) |
| 41 | 15A Cigarette Lighter |
| 42 | 15A Radio receiver, telephone |
| 43 | 10A Petrol Engine: Control Unit, Diesel Engine: Control Unit |
| 44 | 15A Seat heating |
Fuse number 41, 15A, is responsible for the cigarette lighter.

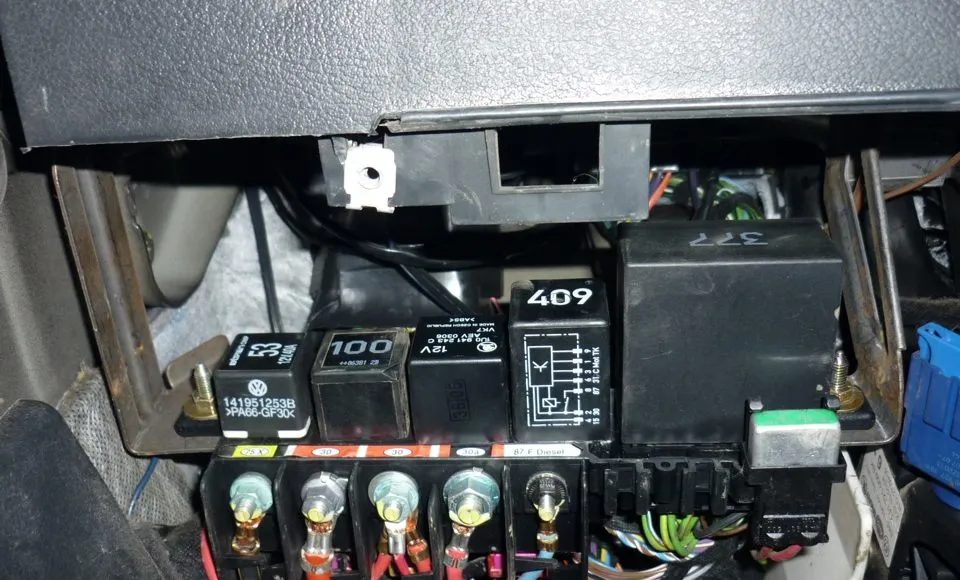

Relay block

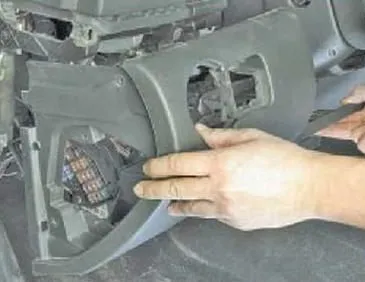

Located under the panel itself behind the trim cover.

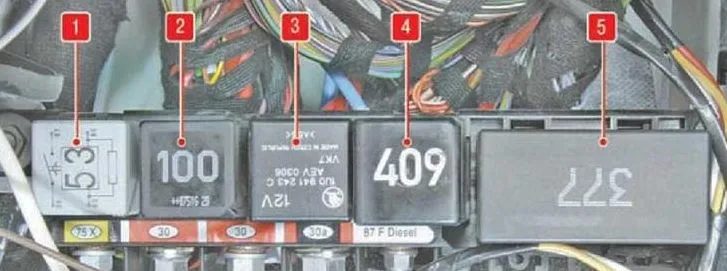

- horn relay;
- switching relay;
- Lighting amplifier;
- fuel pump relay;
- Windscreen wiper control unit.
In cars with richer electrical equipment, another panel is installed – an additional one (attached on top), filled with classic relay elements.
Block under the hood

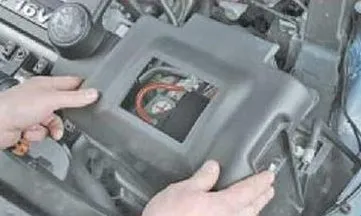

It is located in the cover located on the battery and consists of fusible links (high power) and fuses.

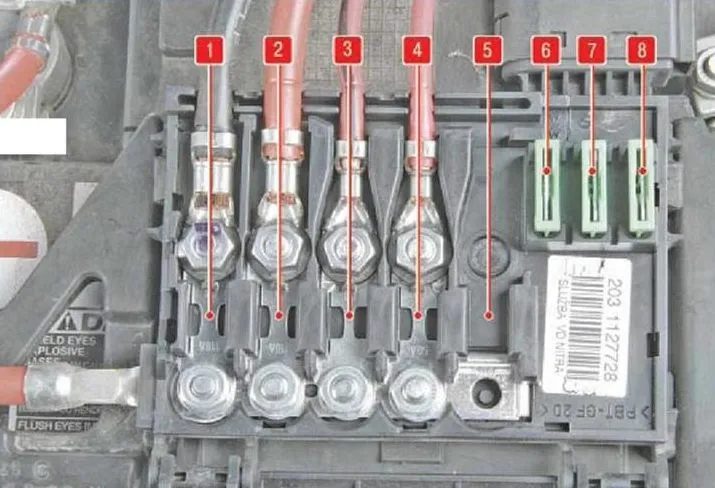

| 1 | 110/150A Generator |
| 2 | 110A Interior Lighting Control Unit |
| 3 | 40/50A Electric motor of the engine cooling system |
| 4 | 50A Electronic control unit |
| 5 | 50A Diesel Engine Glow Plugs |
| 6 | 30A Engine cooling system electric motor |
| 7 | 30A ABS Control Unit |
| 8 | 30A ABS Control Unit |
