Peugeot 207 was produced in 2006, 2007, 2008, 2009, 2010, 2011 and 2012. In 2009, it was recognized as the best-selling car in Europe in its class, and received a restyling that affected both the interior and exterior. It was produced with body versions: hatchback, SW (wagon) and SS (coupe-convertible). We suggest you familiarize yourself with the Peugeot 207 fuse block diagrams and their detailed description, we will show the locations, and also highlight the cigarette lighter fuse.

This model has 2 blocks with fuses and relays.

Fuse box in the passenger compartment

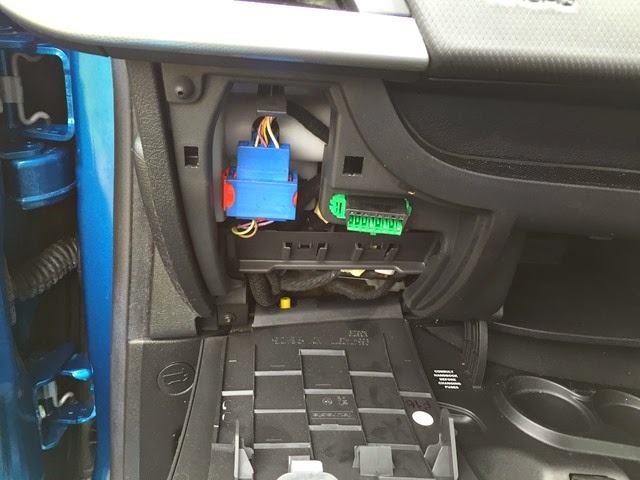

It is located under the dashboard on the left side. To gain access, you need to remove the cover from the latches by pulling on its upper part and then completely removing it.

The fuses themselves are located at the bottom. The serial number is indicated on the side.

Photo – diagram

Marking

  1. 15 A Rear window wiper
  2. Free.
  3. 5 A Airbag ECU and pyrotechnic tensioners.
  4. 10 A Clutch pedal contactor, diagnostic connector, photosensitive rearview mirror, air conditioner, steering wheel position sensor, pump for supplying additive to the particulate filter (on diesel engines).
  5. 30 A Power windows, sunroof, rear panoramic sunroof (SW).
  6. 30 A Front impulse power windows, power supply for the side rear-view mirror drive.
  7. 5 A Front lights, backlight and rear lights on the sun visor, individual visor lights, glove box lighting.
  8. 20 A Car radio display, clock, steering wheel radio telephone switches, multi-function, trailer switching unit.
  9. 30 A 12 V socket front, 12 V socket rear (SW).
  10. 15 A Free.
  11. 15 A Diagnostic connector, low current circuit of the ignition switch, automatic transmission ECU.
  12. 15 A Rain/light sensor, amplifier, trailer switch box, training vehicle module.
  13. 5 A Engine switching unit, ABS relay, dual-function brake system contactor.
  14. 15 A Safety instrument cluster, corrector, headlight panel, air conditioning, belt warning lamps, hands-free system, parking sensors ECU, airbags.
  15. 30 A Locking the locks.
  16. Free
  17. 40 A Heated rear window and exterior mirrors.
  18. SH – Shunt PARC.

Fuse number 9 at 30 A is responsible for the cigarette lighter.

Separately located: G39 – 20 A Free and G40 – 20 A Driver and passenger seat heating.

Fuses and relays under the hood

This unit is located in the engine compartment on the left side near the battery under a protective cover, see the video for more details. There are also relays inside it.

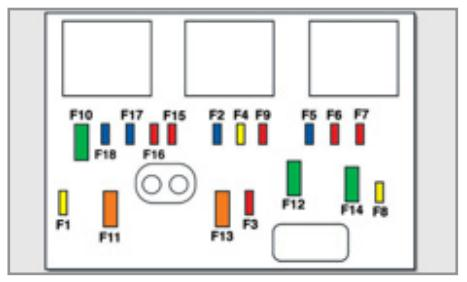

Scheme

Marking

  • F1 20 A Power supply for the engine ECU and the cooling system fan motor relay, solenoid valves of the
    distribution system and adsorber (1.6 l THP 16V), air flow sensor (on diesel engines), high-pressure fuel pump (on diesel engines), water sensor in diesel fuel, solenoid valves of the exhaust gas recirculation system, air heating (on diesel engines).
  • F2 15 A Sound signal.
  • F3 10 A Windscreen and rear window washers.
  • F4 20 A Headlight washer.
  • F5 15 A Fuel pump (on petrol engines), turbocharging system solenoid valves (1.6 l THP 16V).
  • F6 10 A Vehicle speed sensor, automatic transmission.
  • F7 10 A Electric power steering, switch relay with protection system (on diesel engines).
  • F8 25 A Starter switch.
  • F9 10 A ABS/ESP ECU, brake pedal contactor.
  • F10 30 A Engine ECM system components (gasoline engine: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, controlled thermostat) (diesel engine: solenoid valves, heaters).
  • F11 40 A Air conditioning fan.
  • F12 30 A Windshield wiper slow/fast speed.
  • F13 40 A Power supply for the intelligent switching unit (+ after the ignition switch).
  • F14 30 A Diesel fuel heater.
  • F15 10 A Left high beam headlight.
  • F16 10 A Right high beam headlight.
  • F17 15 A Left dipped beam headlight.
  • F18 15 A Right dipped beam headlight.

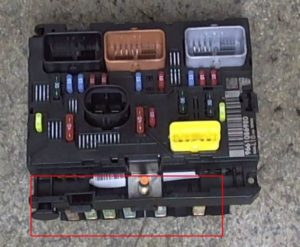

At the bottom of the unit are high-power fuses (maxi fuses – MF).

Transcript

MF1 70 A Cooling system fan.
MF2 20 A/30 A ABS/ESP pump.
MF3 20 A/30 A ABS/ESP solenoid valves.
MF4 60 A Intelligent switching unit power supply.
MF5 60 A Intelligent switching unit power supply.
MF6 30 A Additional engine cooling system fan (1.6 l THP 16V).
MF7 80 A Passenger compartment fuse box.
MF8 30 A Free.
MF9 80 A Heating system unit (on diesel engines).
MF10 80 A Electric power steering.
MF11 40 A Valvetronic electric motor (1.6 l THP 16V).
