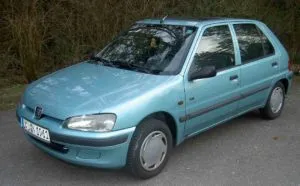

Peugeot 106 , a city super compact car, appeared on the market in 1991. It was produced further in 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 and 2003. During this period, this model was completely updated. The 107 model is used as a successor . We will provide a description of the fuse boxes and their diagrams for the Peugeot 106.

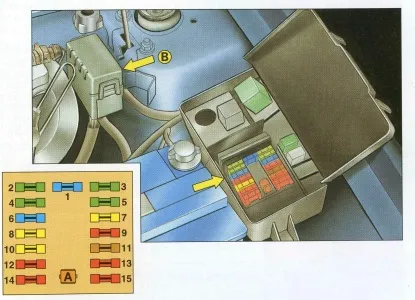

Fuses under the hood of a Peugeot 106

Located near the stand under a protective cover.

  1. 10/15A – Fuel injection system
  2. 30A – Engine cooling fan
  3. 10/30A – ABS
  4. 30A – Engine cooling fan
  5. 10/30A – ABS
  6. 15/20A – front fog lights
  7. 15A – High beam
  8. 30A – Headlight washer
  9. 10A – Fuel pump
  10. 15/20/30A – Automatic transmission
  11. 5A – Lambda probe
  12. 10A – Left high beam headlight
  13. 10A – Right high beam headlight
  14. 10A – Left low beam headlight
  15. 10A – Right low beam headlight

Depending on the configuration and year of manufacture, there may be additional high-power fuses for the lighting switches, the main fuse box and the anti-theft device, as well as a relay.

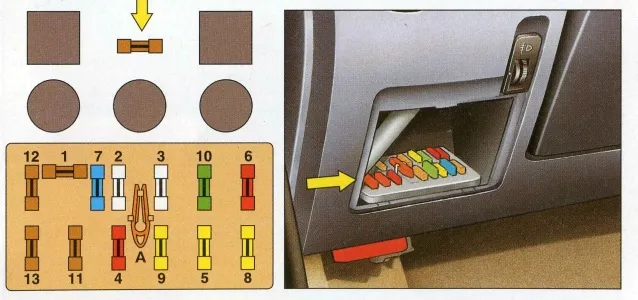

Fuse box in the passenger compartment

It is located on the left side of the instrument panel. To access it, press the latch on top and pull it towards you.

Scheme

Designation

  1. 5A – Headlight washer. Corrector of vertical direction of headlight beams.
  2. 25A – Ventilation and heating system fan.
  3. 15A – Air conditioner compressor, air conditioner recirculation switch, rear window and seat heater switch.
  4. 15A – Car radio, local lighting, vanity mirror lighting.
  5. 30A – Rear window heater, cigarette lighter, horn.
  6. 10A – Emergency light signaling.
  7. 10A – Reversing lights, dashboard indicators and warning lights, tachometer, anti-theft alarm switch, ECU
  8. 20A – Car radio, central electric door lock, electronic anti-theft code, alarm, clock in the dashboard, air conditioning control unit, ceiling light, trunk light.
  9. 30A – Windscreen wiper switch, horn for forgotten side lights, rear window wiper motor, electric window and mirror adjustment switch, instrument panel, door storage pocket lighting.
  10. 30A – Power supply for electric front door windows.
  11. 5A – Rear fog light and its indicator on the instrument panel.
  12. 5A – Rear left and, if applicable, right side lights. Instrument panel lighting (rheostat).
  13. 5A – License plate light, rear right side lights, ignition switch, heating and ventilation control panel, car radio, seat heating.

Fuse number 5, 30A, is responsible for the cigarette lighter.
