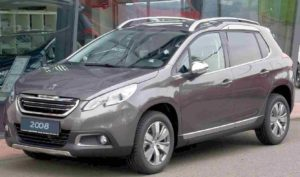

The Peugeot 2008 mini crossover appeared on the market back in 2013. It was produced in 2014, 2015, 2016, 2017, 2018, 2019 and to the present. The update slightly changed only the front grille. We will show the location of the fuse blocks of the Peugeot 2008 with diagrams and their detailed description, we will note which one is responsible for the cigarette lighter, and at the end of the material we will provide operating instructions.

Fuses under the hood

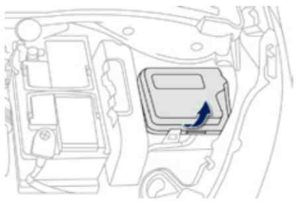

This fuse box is located in the engine compartment near the battery (on the left). To access it, you must remove the protective cover.

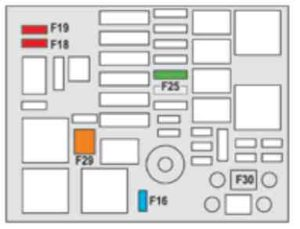

Description of the main elements

  • F16 15 A Fog lights.
  • F18 10 A Right high beam headlight.
  • F19 10 A Left high beam headlight.
  • F25 30 A Headlight washer relay (non-standard installation).
  • F29 40 A Windscreen wiper motor.
  • F30 80 A Glow plugs (on diesel versions).

Blocks in the Peugeot 2008 interior

Unit in the instrument panel

Located on the left, covered by a protective cover.

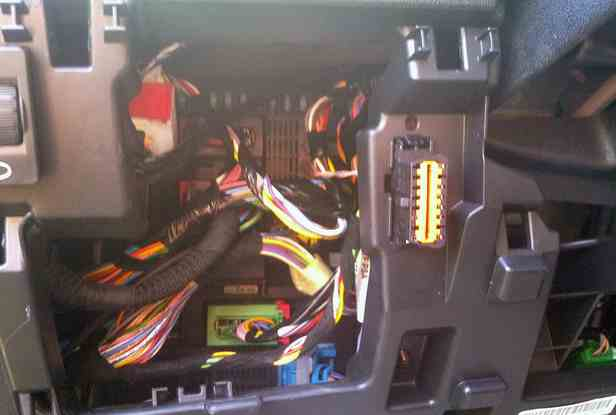

Block placement photo

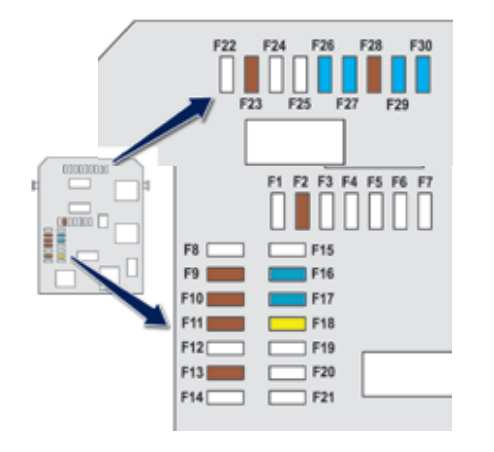

Marking

  • F2 5A Exterior mirrors, headlights, diagnostic connector.
  • F9 5A Security alarm.
  • F10 5A Autonomous on-board telematics unit, trailer electrical system ECU.
  • F11 5A Auto-dimming interior rear-view mirror, additional heating.
  • F13 5A Hi-Fi amplifier, parking assist.
  • F16 15A 12 V socket (front).
  • F17 15A Standard car radio, car radio (non-standard installation).
  • F18 20A Touch screen.
  • F23 5A Glove box light, vanity mirror light, individual ceiling lights.
  • F26 15A Audible signal.
  • F27 15A Windshield washer pump.
  • F28 5A Ignition switch with steering column lock.
  • F29 15A Air conditioning compressor.
  • F30 15A Rear window wiper.

Fuse number 16 at 15A is responsible for the front cigarette lighter.

Block near the glove compartment

It is located behind the glove box and is also covered by a protective cover.

Location and layout

Transcript

F01 40 A Heated rear window.
F02 10 A Heated exterior mirrors.
F03 30 A Front power windows.
F04 – Not used.
F05 30 A Rear power windows.
F06 10 A Folding mirrors.
F07 10 A Folding mirrors.
F08 – Not used.
F09 15 A Heated front seats.
F10 20 A Hi-Fi amplifier.
F11 – Not used.
F12 – Not used.
