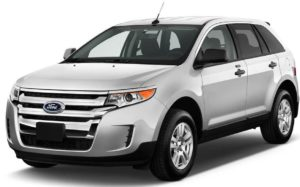

Ford Edge is a mid-size crossover produced from 2006 to the present in 2 generations. In our publication, we will provide information describing the fuse and relay blocks of the 1st generation Ford Edge, produced in 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015.

Check the actual purpose of the fuses and relays with the technical documentation or description on the back of the cover.

Block under the hood

It is located under the hood on the left side, next to the battery, under a protective cover.

Photo – example

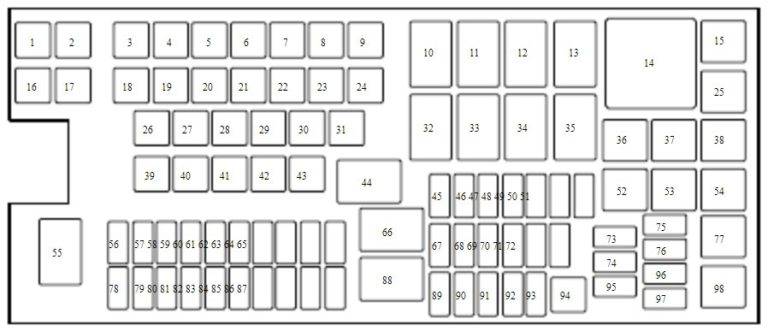

Scheme

Description

  1. Not used
  2. Not used
  3. Not used
  4. 30 A – Scum cleaners
  5. 40 A – Anti-lock brake system (ABS) pump
  6. Not used
  7. 30 A – Power liftgate
  8. 20 A – Transparent hatch
  9. 20 A – Power socket 2 (rear of console)
  10. Not used
  11. Rear window heater and heated mirror relay
  12. Not used
  13. Starter relay
  14. Not used
  15. Fuel pump relay
  16. Not used
  17. Not used
  18. 40 A – Front blower fan motor
  19. 30 A – Starter
  20. 20 A – Power socket 1 (front of console)
  21. 20 A – Power socket (luggage compartment)
  22. Not used
  23. 30 A Driver’s seat
  24. Not used
  25. Not used
  26. 40 A – Rear window heater
  27. 20 A – Power socket in the front of the cabin or cigarette lighter
  28. 30 A – Climate-controlled seats
  29. Not used
  30. Not used
  31. Not used
  32. Not used
  33. Not used
  34. Fan motor circuit relay
  35. Not used
  36. Rear seat unlock relay
  37. Right turn signal/trailer brake light relay
  38. Not used
  39. 40 A – Cooling system fan (on vehicles with towbar) 60 A – Cooling system fan (on vehicles without towbar)
  40. 40 A – Cooling system fan (only on vehicles with towbar)
  41. Not used
  42. 30 A – Passenger seat
  43. 25 A – Anti-lock brake system (ABS) valves
  44. Rear window washer relay
  45. 5 A – Rain sensor
  46. Not used
  47. Not used
  48. Not used
  49. Not used
  50. 15 A Heated mirror
  51. Not used
  52. Brake light relay
  53. Trailer left turn signal/brake light relay
  54. Not used
  55. Slag cleaner relay
  56. 15 A – Transmission Control Module (2.0L Engine)
  57. 20 A – Left headlight with high-intensity discharge lamp
  58. 10 A – Generator Sensor
  59. 10 A – Brake on/off switch
  60. 15 A – Brake lights
  61. 10 A – Rear seat unlocking
  62. 10 A – Air conditioning switch
  63. 15 A – Trailer turn signal/brake light relay
  64. 20 A – Rear window wiper motor
  65. 15 A – Fuel pump
  66. Powertrain control module relay
  67. 20 A – Vehicle power supply 2
  68. 15 A – Vehicle power supply 4
  69. 15 A – Vehicle 1 Power (3.5/3.7L engines) 20 A – Vehicle 1 Power (2.0L engines)
  70. 10 A – Air Conditioning Relay, Vehicle Power 3, All Wheel Drive Module (3.5/3.7L Engines), Power Blinds (2.0L Engine)
  71. Not used
  72. Not used
  73. Not used
  74. Not used
  75. Air Conditioning Switch Light (3.5/3.7L Engines)
  76. Not used
  77. Trailer light relay
  78. 20 A – Right headlight with high-intensity discharge lamp
  79. 5 A – Adaptive Cruise Control System
  80. Not used
  81. Not used
  82. 15 A – Rear window washer
  83. Not used
  84. 20 A – Trailer parking lights
  85. Not used
  86. 7.5 A – Powertrain Control Module Relay, Constant Power (3.5/3.7L Engines)
  87. 5 A – Start relay
  88. Start relays
  89. Not used
  90. 5 A – Headlight Leveling Motors (China Only) 10 A – Powertrain Control Module Relay, Transmission Control Module (2.0L Engine)
  91. 10 A – Adaptive Cruise Control System (3.5/3.7L Engines) 5 A –
    Automatic Transmission Fluid Heater (2.0L Engine)
  92. 10 A – Anti-lock brake system module
  93. 5 A – Rear window defroster/fan motor relay
  94. 30 A – Passenger compartment fuse panel operation/start
  95. Not used
  96. Solenoid diode for blowing the adsorber (2.0L engine)
  97. Transmission fluid heater diode for automatic transmission (2.0L engine)
  98. Air conditioning switch relay

Fuse number 27 at 20A is responsible for the front cigarette lighter.

Also on the battery itself, or more precisely on its positive terminal, there are power fuses in the form of fuses.

Cabin block

It is located under the dashboard on the driver’s side.

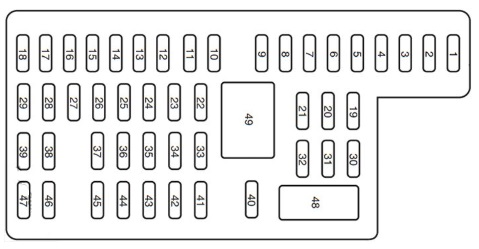

Scheme

Appointment

  1. 30 A – Driver’s front smart window
  2. 15 A – Not used (spare)
  3. 30 A – Not used (spare)
  4. 10 A – On-demand light relay
  5. 20 A – Not used (spare)
  6. 5 A – Radio frequency module
  7. 7.5 A – Power mirror switch, memory seat switch, driver’s seat
  8. 10 A – Not used (spare)
  9. 10 A – Power liftgate
  10. 10 A – Auxiliary equipment operating mode/power supply mode relay
  11. 10 A – Instrument panel, overhead display
  12. 15 A – Interior lighting, footwell lights, backlight
  13. 15 A – Right turn signals
  14. 15 A – Left turn signals
  15. 15 A – Reverse lights, brake lights, upper brake lights
  16. 10 A – Low beam headlights (right)
  17. 10 A – Low beam headlights (left)
  18. 10 A – Keyboard backlight, gearshift lock, start button operation indicator, passive anti-theft system, powertrain control module activation, power supply for the second row
  19. 20 A – Amplifier (Sony)
  20. 20 A – Lock/Unlock Relay – for vehicles without smart access keys
  21. 10 A – Not used (spare)
  22. 20 A – Horn Relay
  23. 15 A – Steering wheel control module, intelligent access, headlight switch
  24. 15 A – On-board diagnostics
  25. 15 A – Liftgate opening mechanism
  26. 5 A – Global Positioning System (GPS) module
  27. 20 A – Intelligent Access Key
  28. 15 A – Ignition switch (without smart access), immobilizer, engine start button (if smart access system is available)
  29. 20 A – Radio, multifunction information display, electronic processing panel, SYNC module
  30. 15 A – Headlights, additional lights.
  31. 5 A- Not used (spare)
  32. 15 A – Lock switch illumination, sunroof, power window (driver’s door), compass/auto-dimming rearview mirror
  33. 10 A – Not used (spare)
  34. 10 A – Rear parking assist, rear view camera, blind spot monitor
  35. 5 A – Head-up display, headlight range adjustment
  36. 10 A – Not used (spare)
  37. 10 A – Climate Control System (3.5L/3.7 Engines)
  38. 10 A – Not used (spare)
  39. 15 A – High beam headlights
  40. 10 A – Tail lights, license plate lights
  41. 7.5 A – Occupant classification sensor, airbag and
    seat belt restraint system control module
  42. 5 A – Lift Touch Assist Switch (2.0L Engine)
  43. 10 A – Not used (spare)
  44. 10 A – Not used (spare)
  45. 5 A – Not used (spare)
  46. 10 A – Climate control system
  47. 15 A – Mirrors with turn signals
  48. 30 A – circuit breaker Power windows
  49. Auxiliary equipment power off delay relay
