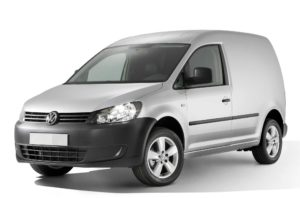

Volkswagen Caddy is a light commercial vehicle produced in two body styles: van and minivan, in 4 generations since 1980. In our material you will find a description of fuses and relays for the third generation Volkswagen Caddy (Caddy Typ 2K), which was produced in 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011,20. We will also show where the blocks are located, their photos and diagrams. We will separately highlight the fuse responsible for the cigarette lighter.
Due to the fact that the Volkswagen Caddy was produced with different body variants, trim levels and electrical equipment, and also underwent a facelift in 2010, there is no single general description for all units. We will present the most common ones for your reference.

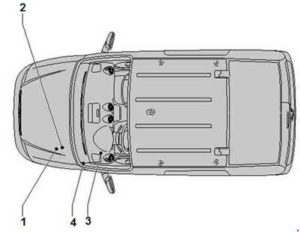

General arrangement of blocks
- Fuses in the fuse block (A -SA-), additional relay block under the switching block
- Fuses and relays in the switchboard (B-SB-)
- Fuse and relay block under the front panel on the left (C-SC-)
- Relay in the footwell
Blocks under the hood

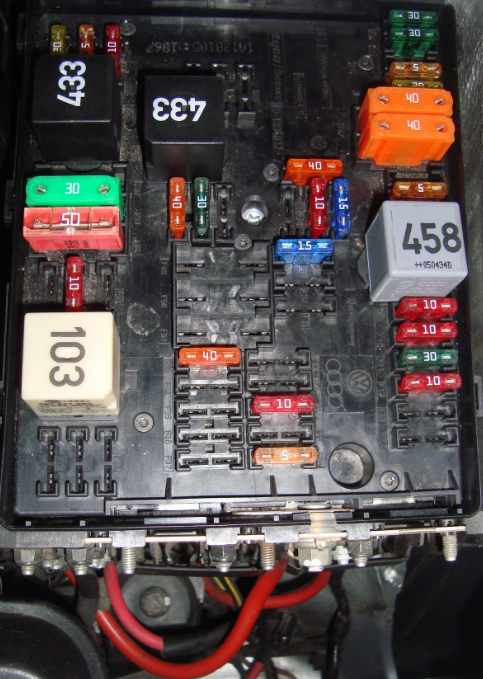

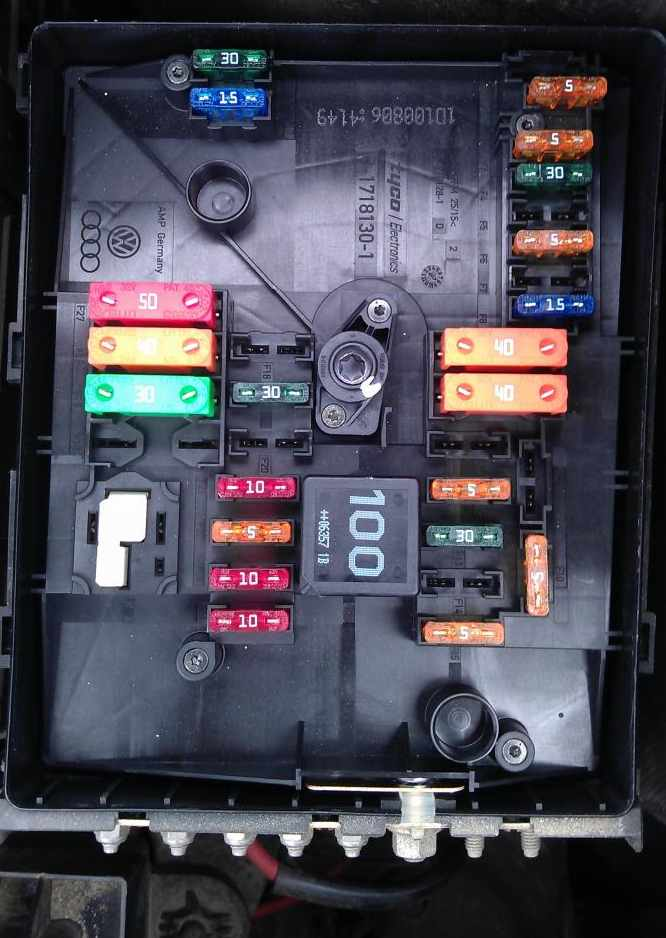

Fuse and relay block
Located next to the battery. Consists of high-power fuses connected to the battery and a compartment with fuses and relays.

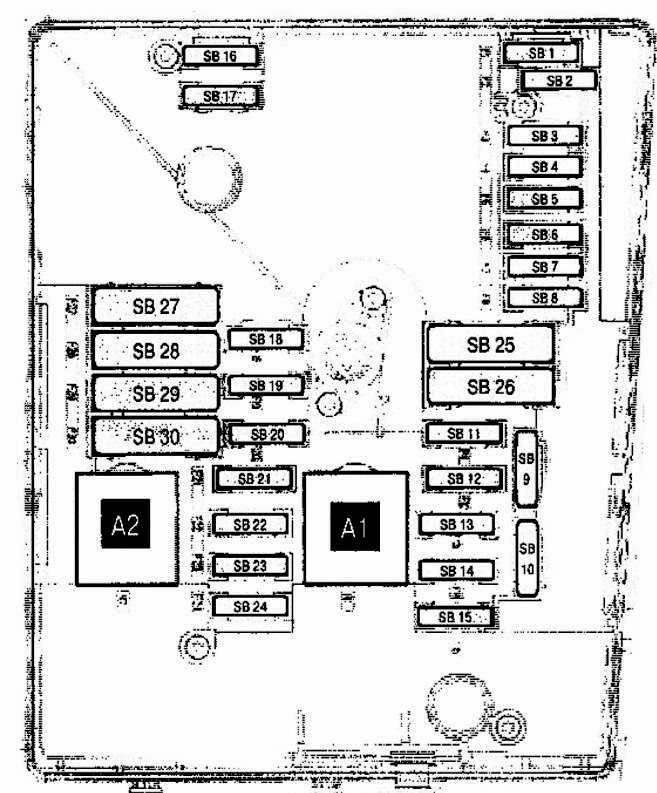

Option 1
Description
Fuses
| 1 | – |
| 2 | 30A Mechatronic unit DSG gearbox |
| 3 | 5A Battery control unit On-board network control unit |
| 4 | 20A ABS control unit ABS hydraulic unit |
| 5 | 15A Mechatronic unit DSG gearbox |
| 6 | 5A Instrument cluster control unit Steering column control unit |
| 7 | 40A Power supply relay terminal 15Fuse block C-SC- |
| 8 | 15A Control unit with radio navigation system display Main unitVoltage stabilizerControl unit with radio navigation system displayMain unitFuse 57, 58 in fuse block C-SC- |
| 9 | 5A Mobile phone control electronics control unit |
| 10 | 5A Main relay Engine control unit Engine electronic components power supply relay |
| 11 | 30A Auxiliary heater control unit |
| 12 | 5A Diagnostic data bus interface |
| 13 | 15A Engine control unit (petrol)30A Engine control unit (diesel) |
| 14 | 15A Fuel pressure regulator (diesel)20A Ignition coil |
| 15 | 5A Heating relay Fuel pump relay Electric fuel pump relay 2 Glow plug control unit10A Lambda probe heating element, gas supply valve15A High pressure valve, Gas supply valve |
| 16 | 30A On-board network control unit, battery, ABS, headlight and turn signals |
| 17 | 15A Horn Relay |
| 18 | 30A Control unit for special vehicles |
| 19 | 30A Wiper motor control unit |
| 20 | 10A Fuel tank shut-off valve Coolant circulation pump |
| 21 | 10A Lambda sensor heating element (diesel)15A Fuel pump control unit, Lambda sensor heating element |
| 22 | 5A Clutch pedal position sensor Brake light switch |
| 23 | 5A Auxiliary cooling system pump relay10A Air flow meter (diesel vehicle) Boost pressure limit solenoid valve (diesel vehicle) EGR radiator switching valve (diesel vehicle) Gas control unit Shut-off valve relay Gas high-pressure valve15A Fuel pressure regulator |
| 24 | 10A Radiator fan control unit Secondary air pump relay Additional cooling system pump relay Adsorber solenoid valve 1 Coolant control valve Intake manifold geometry change system valve Coolant circulation pump 2 Cylinder injectors |
| 25 | 40A ABS hydraulic pump ABS control unit |
| 26 | 30A On-board network control unit, headlight and turn signal lamps |
| 27 | 40A Secondary air pump motor50A Glow plug control unit |
| 28 | – |
| 29 | 30/50A Fuses in fuse block C-SC- |
| 30 | 50A Fuse Block C-SC- |
Relay
- A1 – Main relay, Relay for powering the engine electronic components
- A2 – Secondary pump relay, Additional cooling system pump relay, Gas shut-off valve relay, Jumper

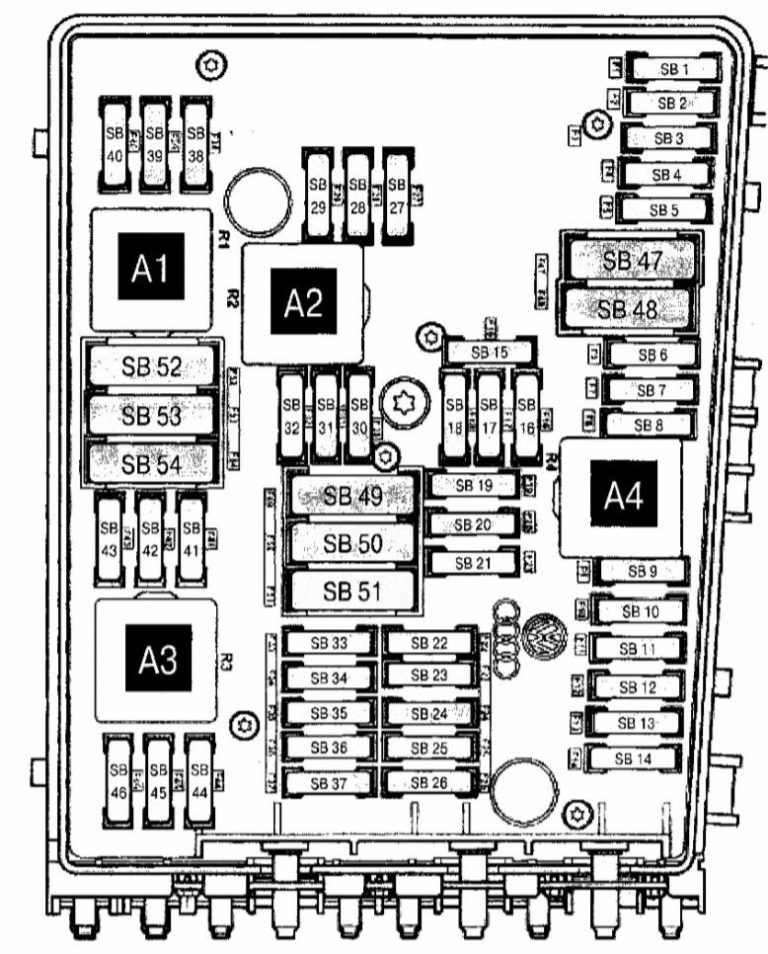

Option 2
Marking
| 1 | 30A ABS control unit |
| 2 | 30A ABS control unit |
| 3 | not used |
| 4 | 5A on-board network control unit |
| 5 | 20A signal, horn relay |
| 6 | 20A ignition coil |
| 7 | 5A brake pedal switch, engine control units, clutch pedal position sensor |
| 8 | 10A exhaust gas recirculation valve, absorber solenoid valve 1, radiator fan control unit, intake air flap drive motor |
| 9 | 10A fuel pump relay (BDJ, BJB) |
| 10 | 10A exhaust gas recirculation valve, boost pressure limiting solenoid valve, switching valve of the exhaust gas recirculation system radiator |
| 11 | 25/30A Motronik control unit (BCA, 8GU), diesel engine injection system control unit (BDJ. BJB) |
| 12 | 10A lambda probe (BSA), lambda probe after the catalyst (BSA) |
| 13 | not used |
| 14 | not used |
| 15 | 40A starter (50 power circuit) |
| 16 | 15A steering column control unit |
| 17 | 10A instrument cluster control unit |
| 18 | not used |
| 19 | 15A R radio, control unit with radio navigation system display |
| 20 | 10A mobile phone control electronics control unit |
| 21 | not used |
| 22 | not used |
| 23 | not used |
| 24 | 10A diagnostic data bus interface |
| 25 | 25A reserve, 10A Motronik control unit |
| 26 | 5A power supply relay terminal 30 |
| 27 | 10A crankcase ventilation system heating resistor |
| 32 | 40A glow plug 1, 2, 3 |
| 33 | 15A glow plug 4, fuel pump |
| 34 | not used |
| 35 | not used |
| 35 | not used |
| 37 | not used |
| 38 | 10A headlight range adjuster actuator motor |
| 39 | 5A oil level and temperature sensor, instrument cluster control unit |
| 40 | 20A Fuse power supply in the passenger compartment |
| 41 | 5A fuel pump relay |
| 42 | 10A glow plug relay, air flow meter |
| 43 | not used |
| 44 | not used |
| 45 | 15A lambda probe |
| 46 | not used |
| 47 | 40A on-board network control unit, Left headlight (vehicles with central locking) |
| 48 | 40A on-board network control unit, Right headlight (vehicles with central locking) |
| 49 | not used |
| 50 | 50A glow plugs |
| 51 | 40A glow plugs, secondary air pump relay, secondary air pump motor |
| 52 | not used |
| 53 | 25A driver’s door control unit, front passenger door control unit |
| 54 | 50A radiator fan control unit |
Separately, under the unit itself is the glow plug control unit.

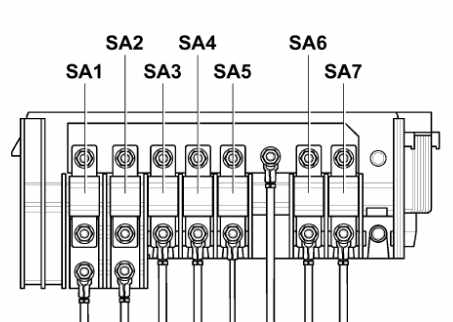

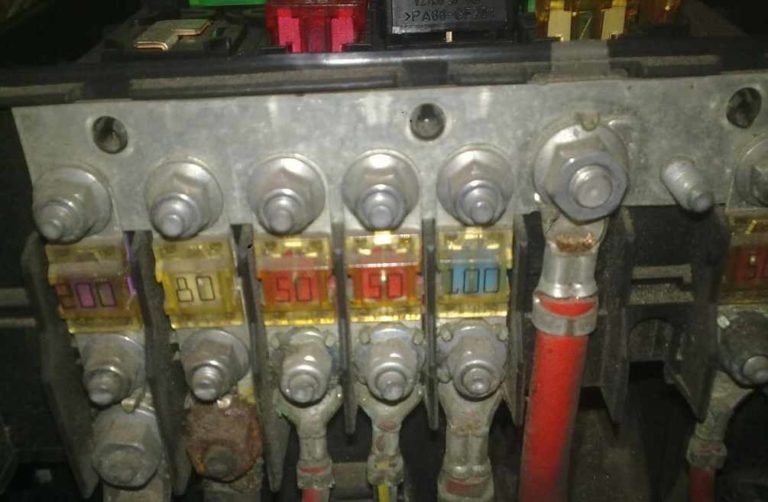

High power fuse links
Transcript
- 150/200A – Generator
- 50/80A -Power steering control unit
- 50A – Radiator fan control unit
- 80A – Contact X Unloading Relay or Fuse Block C -SC-
- 80A – Not used or Fuse Block C-SC-
- 100A – Fuse Block C-SC – or 40A – Low Power Heating Relay
- 80A – High Power Heating Relay or Fuse Block C-SC-
Blocks in the cabin

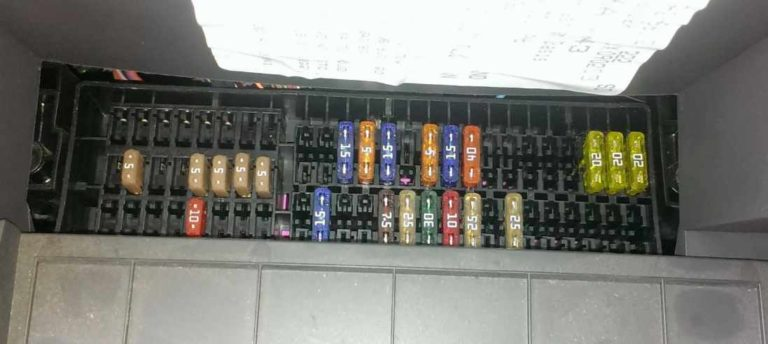

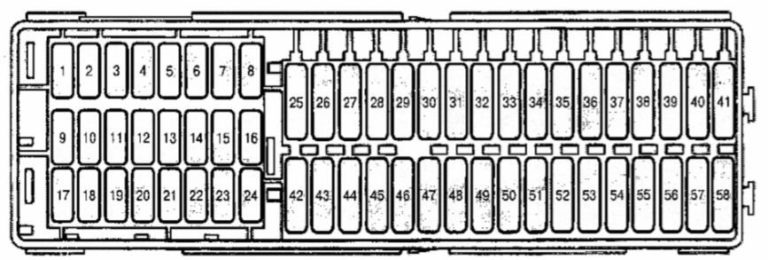

The main unit with fuses and relays is located under the instrument panel on the driver’s side.
Decoding the elements
| 1 | 15A engine start button |
| 2 | 5A trailer recognition control unit |
| 3 | 5A heater and mode selector switch, high pressure sensor |
| 4 | 5A control unit for mobile phone control electronics |
| 5 | 15A air flow meter |
| 6 | 5A airbag control unit |
| 7 | driver and passenger seat heating regulator, air conditioning control unit |
| 8 | 5A heating resistor for left and right windshield washer jets |
| 9 | 5A airbag control unit, power steering unit |
| 10 | 5A mobile phone control electronics control unit, 10A reversing light switch |
| 11 | 10A power steering control unit |
| 12 | not used |
| 13 | not used |
| 14 | 5A ASR switch, ASR and ESP off button, ABS control unit with EDS |
| 15 | 10A reversing light switch, relay for operation in autonomous heater mode (from May 2004) |
| 16 | 5A diagnostic data bus interface |
| 17 | 7.5A left side marker light and rear fog light bulb (vehicles without central locking) |
| 18 | not used |
| 19 | not used |
| 20 | not used |
| 21 | 5A selector |
| 22 | 5A radio signal receiving device for additional liquid heater |
| 23 | 10A brake light switch, left brake light bulb, right brake light bulb, upper brake light bulb, ABS control unit |
| 24 | 10A light switch, air conditioning control unit, diagnostic connector (T16/16) |
| 25 | 30A driver’s seat heating control unit, front passenger’s seat heating control unit |
| 26 | 10A engine control units, injectors |
| 27 | 15A rear window wiper motor (from May 2004) |
| 28 | 5A light switch (vehicles with central locking) |
| 30 | 20A fog light switch, lighting switch |
| 31 | 25A relay for operation in autonomous heater mode (until April 2004), after – on-board network control unit |
| 32 | 15A washer pump |
| 33 | 40A heater and mode selector switch, air conditioning control unit |
| 34 | not used |
| 35 | 40A supply fan, relay for operation in autonomous heater mode |
| 36 | not used |
| 37 | 15A right dipped beam headlight bulb (vehicles without central locking) |
| 38 | 15A left dipped beam headlight bulb (only vehicles without central locking) |
| 39 | not used |
| 40 | 20A trailer recognition control unit |
| 41 | 20A socket TSU |
| 42 | 15/30A 12V socket (next to the parking brake lever), socket (12V) on the left in the luggage compartment |
| 43 | 15A electric fuel pump relay 2 (BCA, BGU), fuel pump |
| 44 | 5A interior security system sensor, vehicle tilt sensor |
| 45 | 5A antenna selection control unit |
| 46 | 7.5A on-board network control unit |
| 47 | 25A cigarette lighter |
| 48 | 20A headlight cleaning system relay, headlight washer pump |
| 49 | 10A driver’s door control unit, front passenger door control unit |
| 50 | 25A central control unit for comfort systems |
| 51 | 30A seat heating control unit |
| 52 | 25A supply fan relay, on-board network control unit |
| 53 | 25A central control unit for comfort systems / 30A Lamps |
| 54 | not used |
| 55 | not used |
| 56 | not used |
| 57 | 30A emergency data logger |
| 58 | not used |
The cigarette lighter is protected by fuse number 47 at 25A. Please note that the fuses for additional sockets are separate.

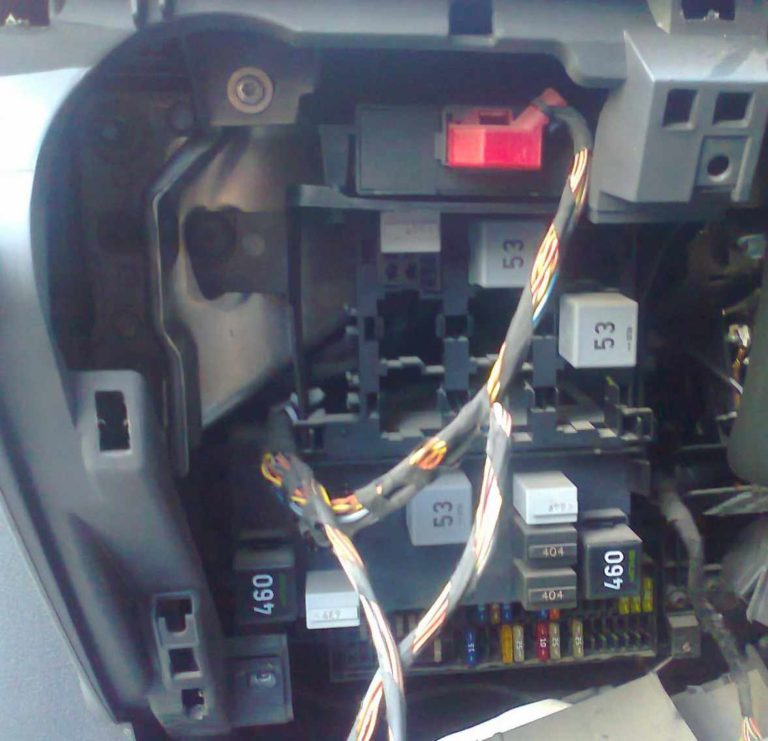

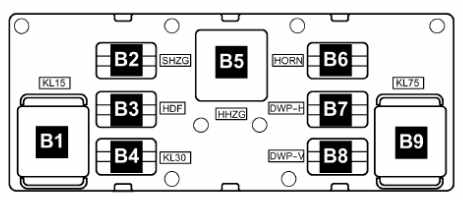

Relay block
Scheme
Description
- B1 – J681 – relay 2 power supply terminal 15 (460)
- B2 – not used
- B3 – not used
- B4 – J689 – relay 2 power supply terminal 30 (449)
- B5 – J9 – rear window heating relay (53)
- B6 – J413 – horn relay (449)
- B7 – J729 – Dual Washer Pump Relay 1 (395/404)
- B8 – J730 – Dual washer pump relay 2 (395/404)
- B9 – J59 – contact X unloading relay (460)

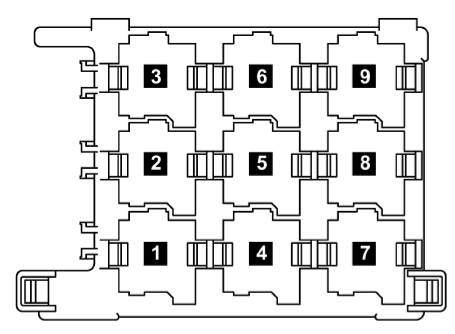

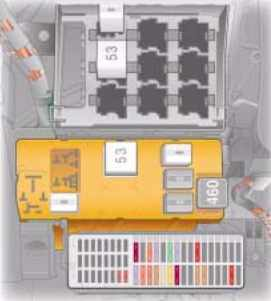

Scheme
Marking
| 1 | Headlight cleaning system relay (646) |
| 2 | Fuel pump relay (646), headlight cleaning system relay (53) |
| 3 | Power supply relay terminal 50 (645), Starter relay 1 (645) (from November 2011), Fuel pump relay (449) |
| 4 | Relay for operation in the autonomous heater mode (645) (until October 2011), Relay for unloading contact X (644) (from November 2011), Relay for heating the rear window (645) (from May 2012) |
| 5 | Fuel supply relay on the pressure line (646), Fuel pump shutdown relay (404) |
| 6 | Starter relay 2 -J907- (507) (from November 2011) |
| 7 | High power heating relay (644) (until October 2011), Terminal 15 power supply relay (645) (from November 2011), Auxiliary heater operation relay (53) |
| 8 | Electric fuel pump relay 2 (646), Fuel pump cut-off relay (646) |
| 9 | Low power heating relay (645) (until October 2011), Rear window heating relay (645) (from November 2011), Contact X relief relay (from May 2012) |

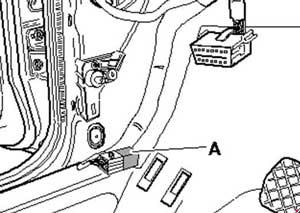

Individual relays may be located in the driver’s footwell, for example the remote control unit for the taxi’s anti-theft alarm or relay 1 that switches the fan in the roof.
