Kia Stinger was produced in 2017, 2018, 2019, 2020, 2021, 2022, 2023. During this time, the model has been updated. In our publication, you can find a description of the fuses and relays of the Kia Stinger with block diagrams, their locations and photo examples of execution. Let’s highlight the fuse responsible for the cigarette lighter.
The purpose of fuses and relays may differ from the one presented and depends on the year of manufacture and the level of electrical equipment of your vehicle.
Cabin block

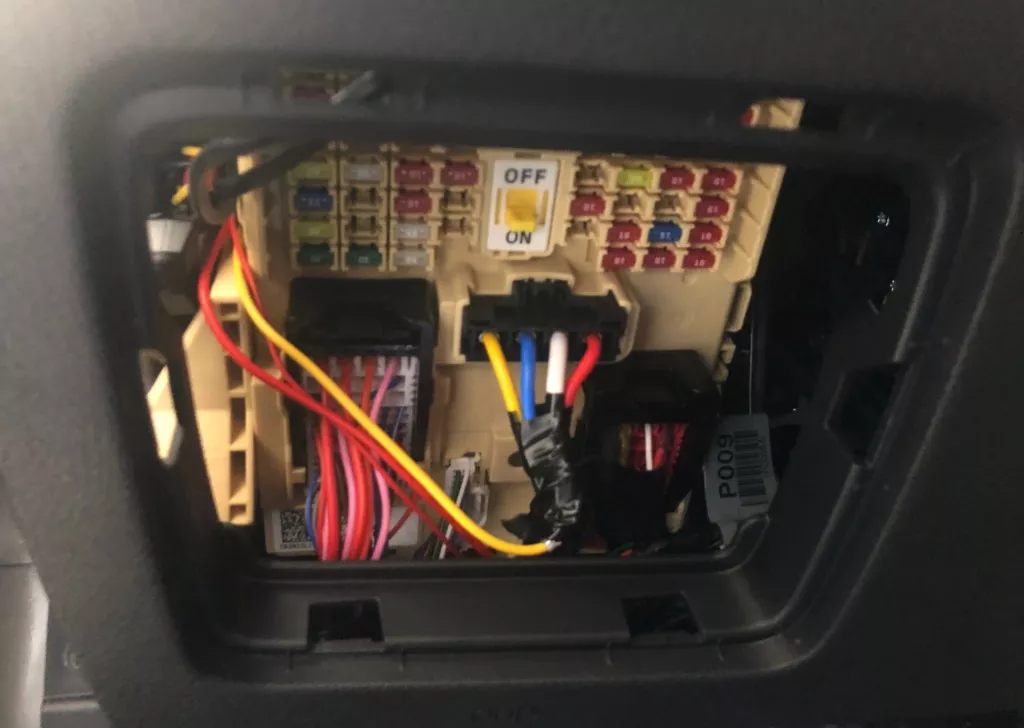

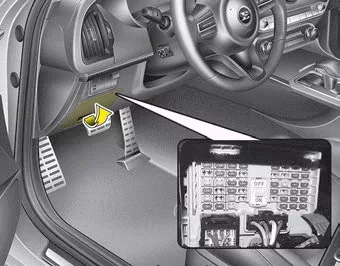

In the car interior, the fuse box is located in the lower left part of the instrument panel, behind a protective cover.

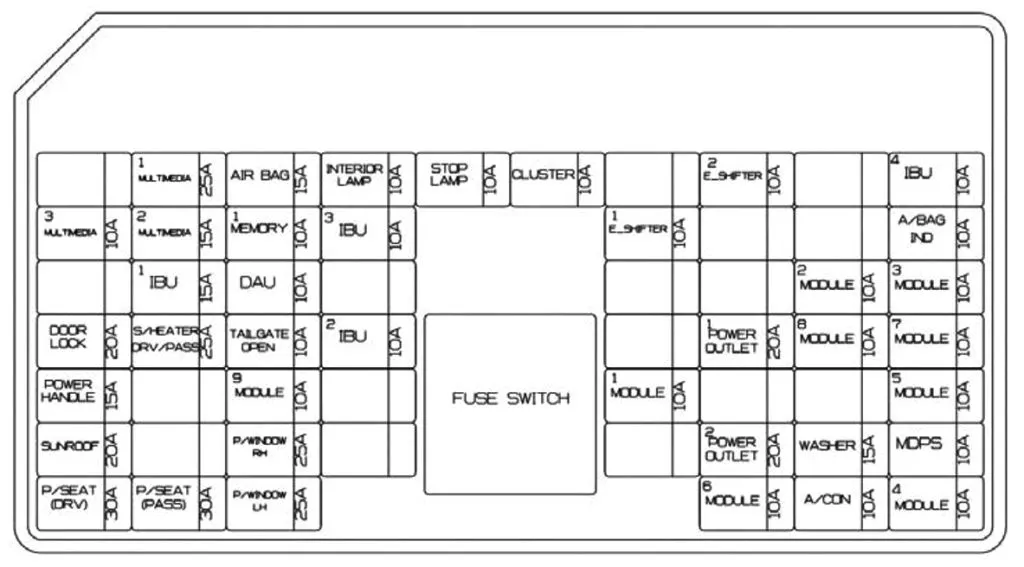

The block itself will look something like this.
| № | A | Description |
|---|---|---|
| MULTIMEDIA 1 | 25 | Low-power DC-DC converter (audio) |
| AIRBAG | 15 | SRS control module (supplementary restraint system) |
| INTERNAL LAMP | 10 | Overhead console lamp, Interior center lamp, Interior lamp, Vanity lamp switch, left side of handle/right side of handle, Luggage compartment lamp, left side of handle/right side of handle, Glove box lamp, Driver’s door light/Driver/Passenger door light, Driver/Passenger footwell lamp |
| STOP LAMP | 10 | IBU, brake light switch |
| CLUSTERS | 10 | Instrument cluster, head-up display |
| E-SHIFTER 2 | 10 | Electronic automatic transmission shift lever (IG1) |
| MOTHER 4 | 10 | MOTHERS (IG1) |
| MULTIMEDIA 3 | 10 | Instrument cluster, head-up display, air conditioning switch |
| MULTIMEDIA 2 | 15 | Audio |
| MEMORY 1 | 10 | Air conditioning control module, air conditioning switch, security indicator, head-up display |
| MOTHER 3 | 10 | MOM (B+) |
| ELECTRONIC SWITCH 1 | 10 | Electronic automatic transmission shift lever (B+) |
| A/BAG IND. | 10 | Instrument cluster, passenger airbag IND |
| MOTHER 1 | 15 | MOM (B+) |
| DAU | 10 | Driver’s door module, driver/passenger electric exterior mirror |
| MODULE 2 | 10 | MOTHERS (IG2) |
| MODULE 3 | 10 | Automatic transmission shift lever switch, driver’s door module, brake light switch |
| LOCK | 20 | Door lock relay, door unlock relay, two-turn unlock relay |
| S/HEATER | 25 | Front seat ventilation control module, front seat heating control module |
| DRV/PASS | ||
| REAR GATE | 10 | Trunk lid relay, fuel tank lid relay, emergency panel switch |
| MOTHER 2 | 10 | Rain sensor |
| SOCKET 1 | 20 | Front socket #2 |
| MODULE 8 | 10 | Cooling fan controller (BLDC motor), surround view monitor, front seat control module with air ventilation, |
| 10 | Front/rear seat heating control module | |
| MODULE 7 | 10 | IBU, ECS unit, AWD (all-wheel drive), ECM (electronic control module), intelligent cruise control module, automatic transmission shift lever indicator, console switch (front/upper), blind spot collision warning unit, left side of handle/right side of handle, steering wheel angle sensor, tilt and telescopic steering column module, multi-function camera, emergency landing switch |
| POWER HANDLE | 15 | Steering tilt module and telescopic module |
| MODULE 9 | 10 | Driver lumbar airbag control unit |
| MODULE 1 | 10 | Data link connector, console switch (upper), lighting lamp control unit |
| MODULE 5 | 10 | Air conditioning control module, air conditioning switch, audio system, headlight, left side of handle/right side of handle, low voltage DC converter (audio/amplifier (amplifier)), electrochromic mirror, amplifier (amplifier), driver’s built-in memory control module, front ventilated seat, front/rear |
| Seat heating control module | ||
| LUKE | 20 | Sunroof control unit (glass) |
| R/WINDOW R.V. | 25 | Passenger power window module, rear power window module, right handle side |
| SOCKET 2 | 20 | Rear socket |
| PRAYNA MACHINE | 15 | Multifunction switch |
| MDPS | 10 | MDPS (electric power steering) unit (R-MDPS (electric power steering)) |
| P/SEAT (DRV) | 30 | Driver’s onboard memory system control module, driver’s seat module |
| P/SEAT (PASS) | 30 | Passenger seat module |
| P/LH WINDOW | 25 | Driver’s power window module, rear power window module, left side of handle |
| MODULE 6 | 10 | IBU, low voltage DC/DC converter (audio/AMP), automatic transmission electronic shift lever (SBW), engine compartment junction box (RLY. 4 – socket relay) |
| A/CON | 10 | Air conditioning control module, air conditioning switch, engine compartment distribution block (fan relay) |
| MODULE 4 | 10 | Left side of headlight handle/right side of headlight handle, AFS control unit, automatic headlight range adjustment device module |
The fuses marked POWER OUTLET are responsible for the operation of the cigarette lighter. Several more fuses may be installed in the block under the hood.
Block under the hood

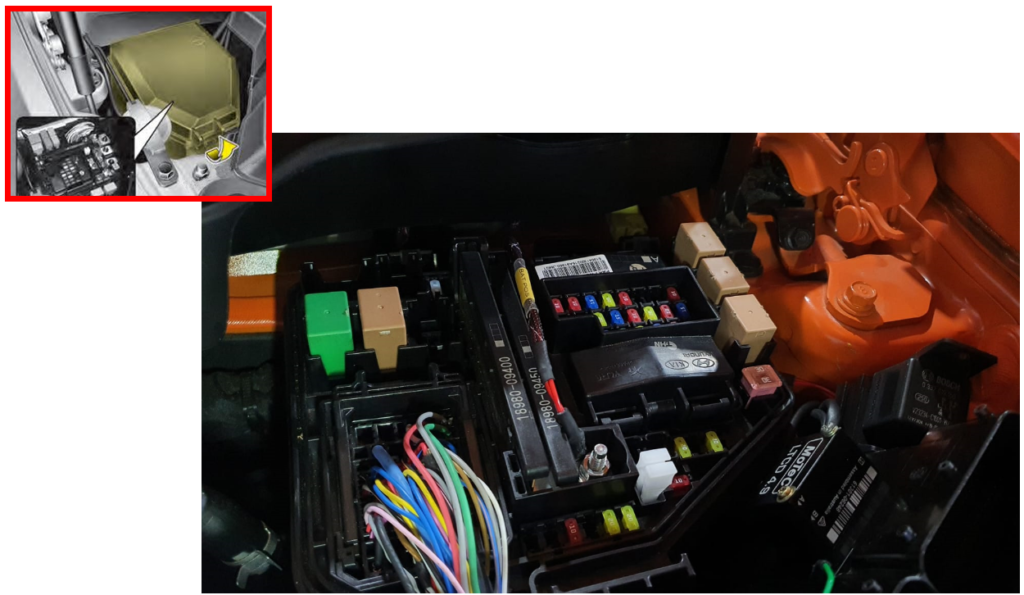

Under the hood, on the right side, there is a fuse and relay box.
| № | A | Marking |
|---|---|---|
| ALL | 175/200 | Generator, multi fuse — FAN Cooling |
| COOLING FAN 2 | 125 | [BLDC (Brushless DC Motor)] Cooling Fan Controller |
| BEGINNING | 30 | Relay starters |
| COOLING FAN 1 | 80 | [BLDC (Brushless DC Motor)] Cooling Fan Controller |
| B+5 | 50 | Dashboard distribution block (fuse – STOP SIGNAL / RCD fuse / INTERIOR LAMP) |
| B+4 | 50 | Instrument panel connector block (fuse – DOOR LOCK / POWER HANDLE / SUNROOF / P/SEAT (DRV) / P/SEAT (PASS)) |
| B+3 | 50 | Dashboard distribution block (fuse – S/HEATER DRV/PASS/TAIL GATE/MODULE9/P/WINDOW RH/P/WINDOW LH) |
| OPCU | 50 | Electric oil pump inverter |
| ESC 1 | 40 | ESC (Electronic Stability Control) control module |
| ESC 2 | 40 | ESC (Electronic Stability Control) control module, universal control connector |
| BLOWER | 40 | Fan relay |
| POWER TAIL GATE | 30 | Power tailgate module |
| MDPS | 100 | MDPS unit (electric power steering) |
| B+6 | 60 | Engine Control Relay, Fuse – SIGNAL / DOUBLE 1 / H / LAMP H / B / ALARM SIGNAL) |
| B+1 | 60 | Instrument panel distribution block (fuse – IBU1/IBU2) |
| B+2 | 50 | Instrument panel distribution block (fuse – E-SHIFTER1/MODULE1) |
| E-CVVT 1 | 40 | [THETA II 2.0L T-GDI Engine] E-CVVT Relay |
| VACUUM PUMP | 20 | Vacuum pump relay |
| AWD | 20 | AWD (all-wheel drive) ECM (electronic control module) |
| IG 2 | 20 | Relay IG2 |
| SOCKET 2 | 10 | Front/rear USB charger, front socket #2 |
| SOCKET 1 | 20 | Front socket #1 |
| air conditioning | 10 | Air conditioning control module |
| E-CVVT 3 | 20 | [THETA II 2.0L T-GDI Engine] ECM (Engine Control Module) |
| E-CVVT 2 | 20 | [THETA II 2.0L T-GDI Engine] ECM (Engine Control Module) |
| ESC 3 | 10 | ESC (Electronic Stability Control) control module, universal control connector |
| ECU 3 | 10 | ECM (engine control module) |
| ECU 2 | 15 | ECM (engine control module) |
| HORN | 30 | Horn relay |
| SHIRNYK 1 | 30 | Wiper power relay |
| PKU 2 | 15 | TCM (Transmission Control Module) |
| SENSOR 4 | 10 | Brake system vacuum switch, vacuum pump relay, electric oil pump inverter |
| PKU 1 | 20 | TCM (Transmission Control Module) |
| SHIRNYK 2 | 10 | IBU (Integrated Body Control Unit), ECM (Electronic Control Module) |
| SENSOR 1 | 15 | Rear distribution block (fuel pump relay) |
| SENSOR5 | 20 | [THETA II 2.0L T-GDI Engine] Ignition Coil #1/#2/#3/#4 |
| [Lambda II 3.3L T-GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6 | ||
| H/LAMP HI | 10 | Headlight relay (high beam) |
| ECU 1 | 20 | ECM (engine control module) |
| SENSOR 3 | 15 | [THETA II 2.0L T-GDI Engine] Oxygen sensor (upper) |
| [Lambda II 3.3L T-GDI Engine] Oxygen Sensor #2/#4 | ||
| SENSOR 2 | 10 | [THETA II 2.0L T-GDI Engine] Electronic thermostat, oil control valve, purge control solenoid valve, RCV (recirculation valve) control solenoid valve, canister shut-off valve |
| [Lambda II 3.3L T-GDI Engine] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), RCV Control Solenoid Valve (Recirculation Valve Control), Purge Control Solenoid Valve, Canister Close Valve | ||
| B/ALARM SIGNAL | 10 | Burglar alarm sounder relay |

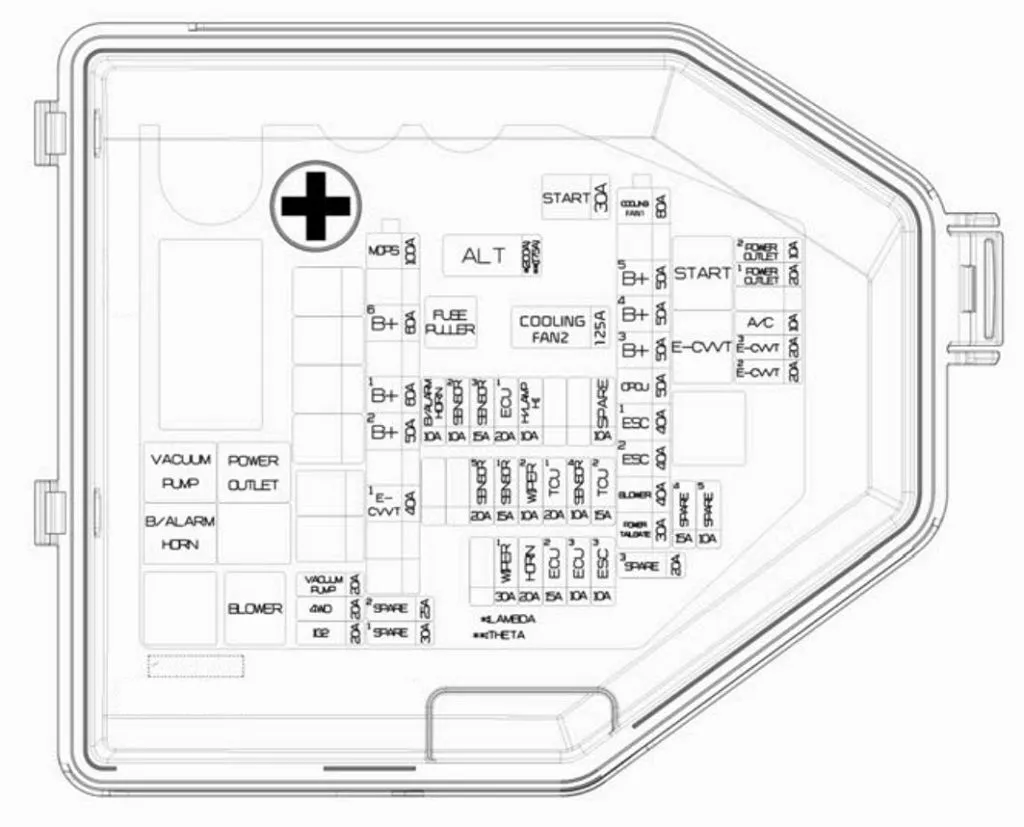

Check the assignment of the elements with your diagram located on the back of the unit cover.
| Relay | |
|---|---|
| Vacuum pump relay | Vacuum pump relay |
| B/Horn relay | B/Horn relay |
| Socket relay | Power outlet relay |
| Blower relay | Fan relay |
| Relay start | Relay starters |
| E-CVVT Relay (G4KL) | E-CVVT Relay (G4KL) |
Blocks in the trunk

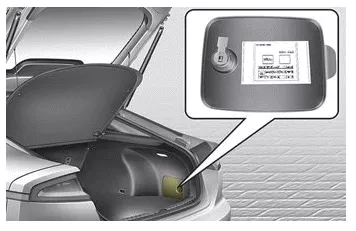

Fuse block

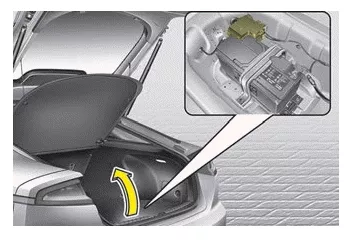

Installed on the right side under the trim.

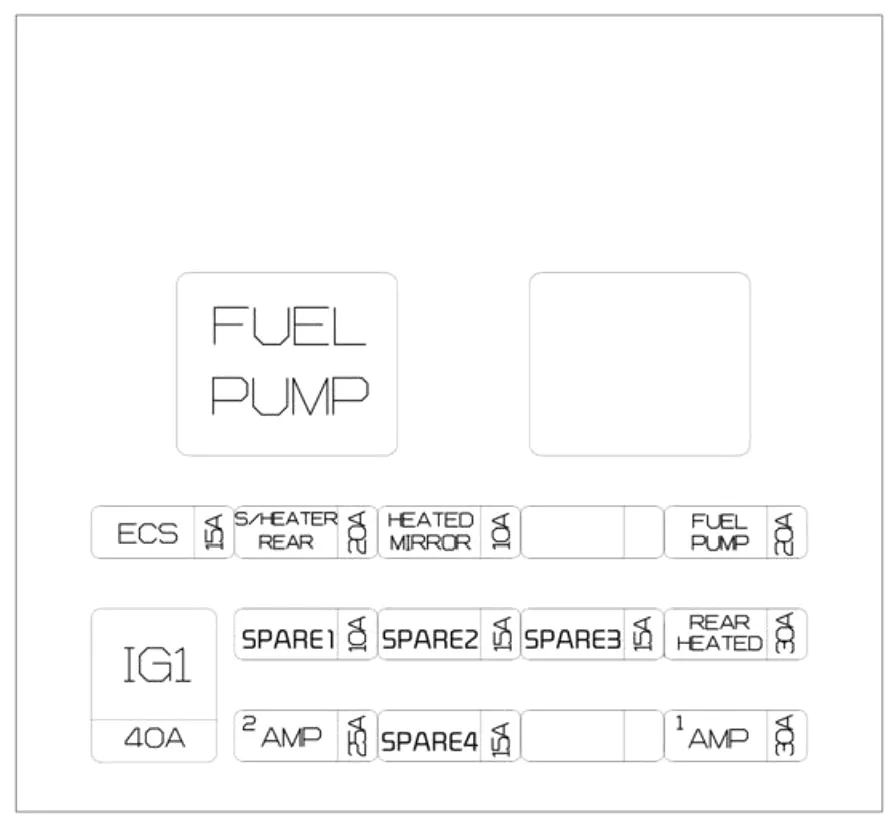

| № | A | Appointment |
|---|---|---|
| ECS | 15 | ECS unit (electronic suspension control) |
| S/HEATER | 20 | Rear seat heating control module |
| POSTERIOR | ||
| WITH HEATING | 10 | Air conditioning switch, driver/passenger electric exterior mirror |
| MIRROR | ||
| FUEL PUMP | 20 | Fuel pump relay |
| SPARE1 | — | |
| SPARE2 | — | |
| SPARE3 | — | |
| REAR HEATER | 30 | Rear heating relay |
| AMP 2 | 25 | AMP (Amplifier) (MOBIS/PREMIUM) |
| SPARE4 | — | |
| AMP 1 | 30 | Low DC-DC Converter (AMP (Amplifier)) |
| IG 1 | 40 | Relay IG1/ACC |
Power unit

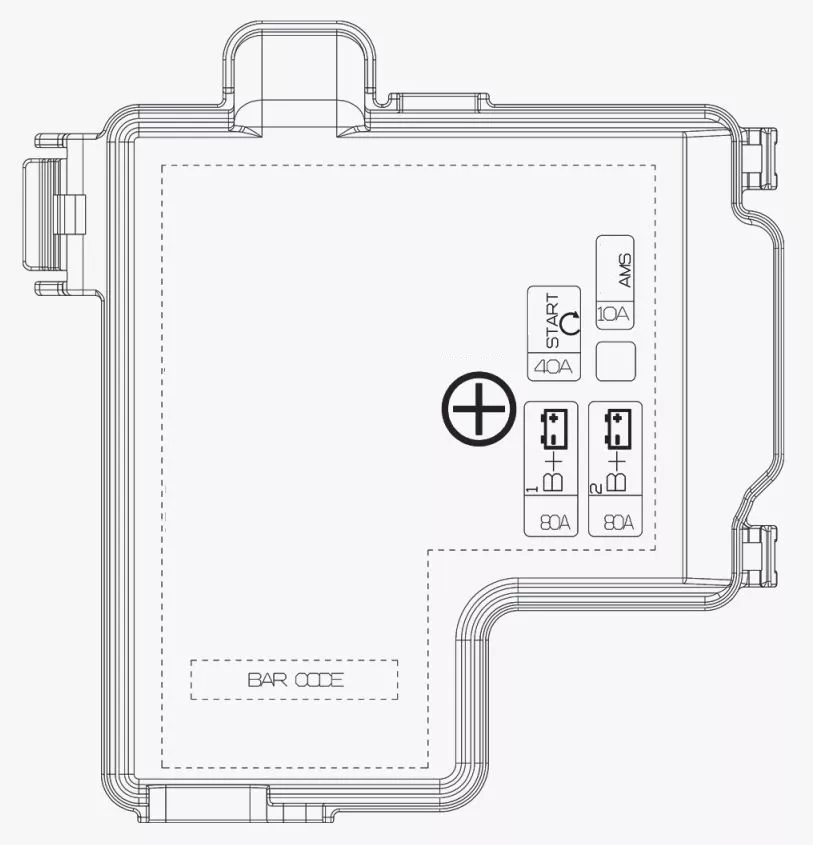

A high-power fuse block is mounted on the positive terminal of the battery.
| № | A | Appointment |
|---|---|---|
| B+1 | 80 | Rear distribution block (fuse – FUEL PUMP / REAR HEATER / AMP1) |
| B+2 | 80 | Rear additional distribution block (fuse – ECS/S/HEATER REAR/IG1) |
| BEGINNING | 40 | Distribution block in the engine compartment (relay socket), fuse -START/ECU2/TCU1) |
| AMS | 10 | Battery sensor |
