Peugeot 405 was produced in 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 and 1997 with sedan and station wagon bodies. We present to your attention a description of the fuse and relay blocks of the Peugeot 405 and their diagrams.

Depending on the year of manufacture and the vehicle’s equipment, different versions of the blocks and the location of fuses and relays are possible. The biggest changes affected the restyled model.

Fuses and relays under the hood

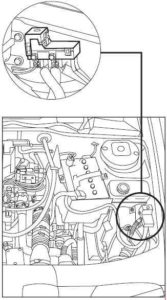

Fuse box location

Appointment

  • cooling system fan;
  • ABC;
  • fuel pump;
  • oxygen sensor;
  • electronic engine control unit.

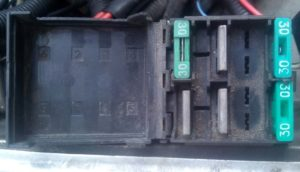

Other fuse and relay elements are located in various parts of the engine compartment, such as the radiator fan motor fuse:

You can find more detailed instructions in the repair manual.

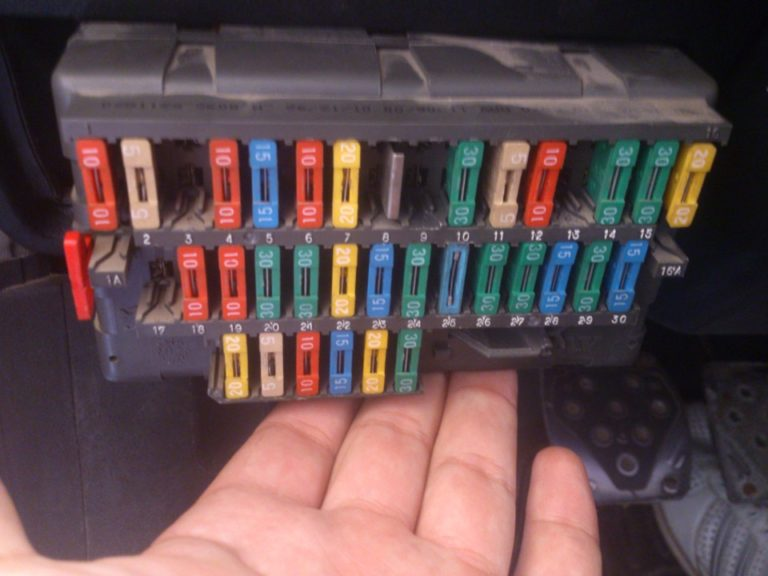

Fuse box in the passenger compartment

To access it, you need to turn the screw securing the protective cover on the left side of the dashboard.

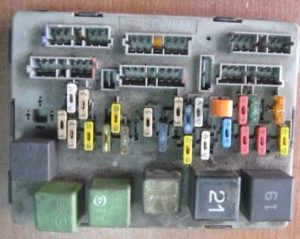

Option 1


Description

  1. Heated rear window, heated mirrors 15A/20A
  2. Rear left side marker lights 5A
  3. Fog lights, front fog light control 5A
  4. Front position lights, license plate and instrument panel lighting, clock lighting and brightness control 10A
  5. Ignition, time delay for turning off the interior lighting, oil and brake fluid level control lamps, handbrake and tachometer, reversing lights, 10A fan fuse
  6. Additional devices, wipers/washers, brake lights, interior lighting 15A
  7. Emergency lights 15A/20A
  8. Power fuse for power windows, sunroof, clock, door locks, interior and trunk lighting, radio memory 20A
  9. Radio, battery and accessories 5A
  10. Rear window heater, window and sunroof lift safety device, mirror adjustment, seat heating, turn signals, clock 15A
  11. Rear right side marker lights 5A
  12. Anti-lock brake system 10A
  13. Electric rear window lifts 20A
  14. Electric front window lifts, sunroof opening 25A.
  15. Electric horn, cigarette lighter 15A
  16. Air horn, cigarette lighter 20A
  17. Additional left headlight
  18. Additional right headlight 5A
  19. Air conditioning 25A
  20. Unused 5A

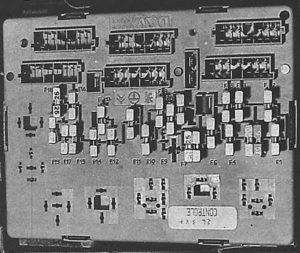

Option 2

Scheme

Depending on the year of manufacture, fuse number 15 or 16 at 20A is responsible for the cigarette lighter.
