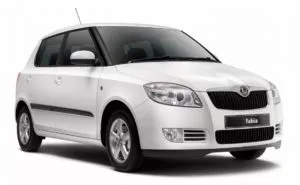

Skoda Fabia 2nd generation (Mk2) was produced in 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014 with hatchback and station wagon (Fabia Combi) bodies. This model was produced with petrol and diesel engines with volumes of 1.2, 1.4, 1.6 and 1.9 liters. In this material you will find a description of fuses and relays for Skoda Fabia 2nd generation with diagrams and photographs of the block in which they are located. Separately, we note the fuse for the cigarette lighter and washer.

Blocks in the cabin

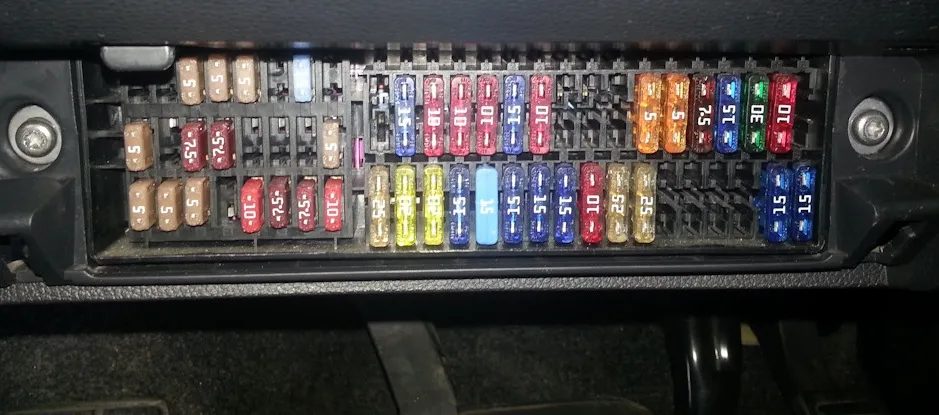

Fuse box

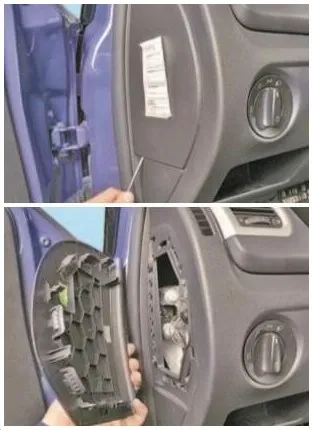

It is located under the steering wheel and covered with a protective cover.

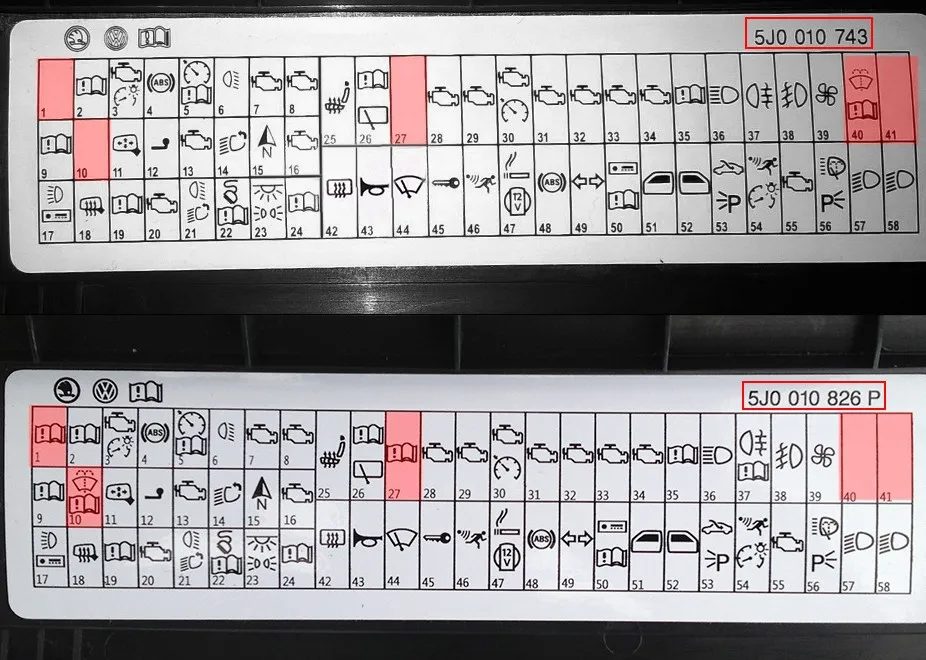

On the back of the cover there should be a current description of the unit for your vehicle.

The serial number of this designation will be placed in the right corner. Here are the 4 most common options:

  • 5J0010623A — Fabia 2 from 2007 to 2010 (pre-styling)
  • 5J0010743 – Fabia from 2010 to 2012
  • 5J0010826P – Fabia from 2012 to 2015
  • 5J0010675 – Fabia from 2007 to 2010.

Accordingly, the designation may also change.

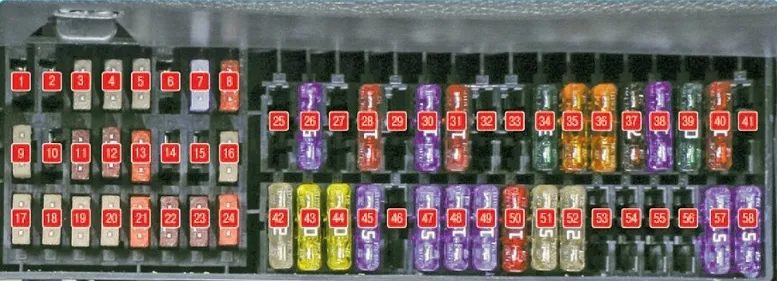

  1. Not busy
  2. 5A Starter Relay
  3. 7.5A Engine electronics, vehicle electrical system control unit, Headlight range control unit, Data bus interface diagnostics, Voltage stabilizer
  4. 5A ABS control unit, Steering angle sensor, Start-stop mode button
  5. 5A Tempomat device (for petrol engines)
  6. 10A Reversing light bulb (for vehicles with manual transmission)
  7. 5A Engine control unit, Ignition system (for vehicles with manual transmission), 7.5A Engine electronics, automatic transmission preselector lever
  8. 5A Brake Pedal Switch, Clutch Pedal Switch, Radiator Fan Control Unit
  9. 5A Adaptive lighting and headlight range control unit, Air conditioning, climate control, radiator fan control unit, Parking sensor control unit.
  10. not busy
  11. 5A Adjustment of exterior rearview mirrors
  12. 5A Trailer Recognition Control Unit
  13. 5A Dual Clutch Transmission Mechatronics, Automatic Transmission Control Unit
  14. 10A Left Adaptive Headlight Module, Right Adaptive Headlight Module
  15. 5A Voltage Converter 12V/5V, Navigation
  16. 5A Engine Control Unit, Fuel Pump Relay, Speedometer Sensor (for cars without ABS), Fuel Pump Control Unit
  17. 7.5A Left or right daytime running light (DRL) bulb, Left or right LED DRL and parking light module
  18. 5A Heated exterior rearview mirrors
  19. 5A Contact S
  20. 15A Fuel Pump Control Unit
  21. 10A Reversing light bulb for vehicles with automatic transmission or fog lights when connected via BCM
  22. 7.5A Instrument cluster, Diagnostic socket, Air conditioning control unit, Multifunction steering wheel (without start-stop system)
  23. 15A Interior body lighting, storage shelf, trunk lighting
  24. 5A Vehicle electrical system control unit
  25. 20A Seat heating
  26. 10A Rear Window Wiper Motor
  27. not busy
  28. 10A Engine Electronics
  29. 10A Engine Electronics
  30. 15A/20A Fuel Pre-Pump Pump, Ignition High Voltage Transformer, Clutch Pedal Position Sensor, Low Heat Output Relay, Cruise Control (Diesel)
  31. 10A Lambda probe
  32. 15A Fuel Pressure Regulating Valve
  33. 15A Engine Control Unit
  34. 20A Brake Vacuum Pump, Engine Control Unit, Engine Electronics
  35. 5A Headlight range adjuster illumination lamp
  36. 15A High beam
  37. 7.5A Rear fog light bulb left, Rear fog light indicator
  38. 10A Fog lights
  39. 30A Fresh Air Intake Fan
  40. 15A Rear Window Wiper Switch, Windshield Washer Heating Resistor
  41. not busy
  42. 25A Heated rear window
  43. 20A Sound signals
  44. 20A Windscreen Wiper Motor
  45. 10A Central locking system motor in the trunk lid (Central locking)
  46. 15A Anti-theft alarm device (for start-stop system)
  47. 15A Cigarette Lighter, 12V Socket
  48. 15A ABS control unit
  49. 15A Direction indicator
  50. 10A Car radio, navigation
  51. 25A Driver’s Door Control Unit, Rear Left Door Control Unit
  52. 25A Front Passenger Door Control Unit, Rear Right Door Control Unit
  53. 25A Sliding roof control unit
  54. 15A Anti-theft alarm system (without start-stop system)
  55. 30A Mechatronics Dual Clutch Transmission Gearbox
  56. 25A Headlight Cleaning Relay
  57. 15A Low beam and headlight range control bulb, left side
  58. 15A Low beam and headlight range control bulb, right side

Fuse number 47 for 15A is responsible for the cigarette lighter. And for the cleaner number 10 or 40.

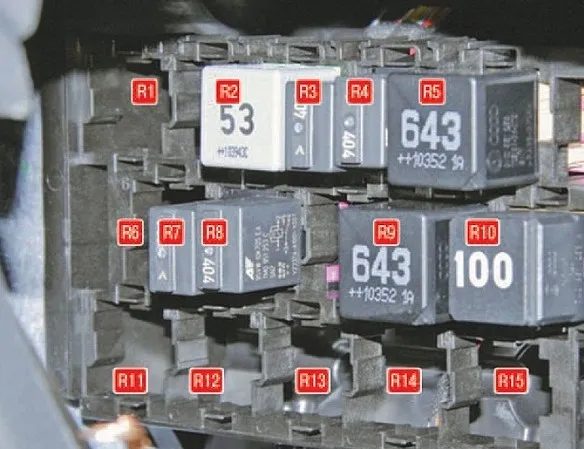

Relay block

Located at the end of the instrument panel behind the left cover.

  • R1, R6, R11-R15 – reserve;
  • R2 – windshield heating relay (depending on the configuration);
  • R3 – starter lock relay;
  • R4 – fuel supply relay along the pressure line;
  • R5 – power supply relay;
  • R7 – front parking light relay;
  • R8 – fuel pump relay;
  • R9 – air conditioning relay;
  • R10 – contact relay “X”

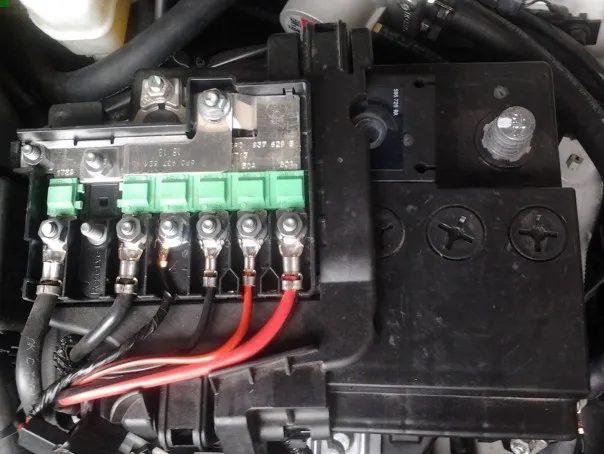

Block under the hood

The mounting block with fuses and fusible links is located in the cover on the battery.

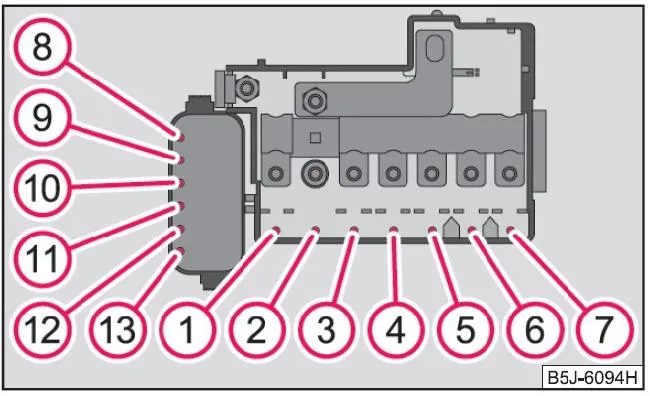

Option 1

  1. 175A Generator
  2. Not busy
  3. 80A Interior space
  4. 60A Additional electric heating
  5. 40A Interior space
  6. 50A Cooling fan, glow plugs
  7. 50A Electric Steering
  8. 25A ABS, ESP, ASR
  9. 30A Cooling Fan
  10. 5A Cooling Fan
  11. 40A ABS, ESP, ASR
  12. 5A Central control unit
  13. 5A Automatic Transmission, 40A Additional Heater

Option 2

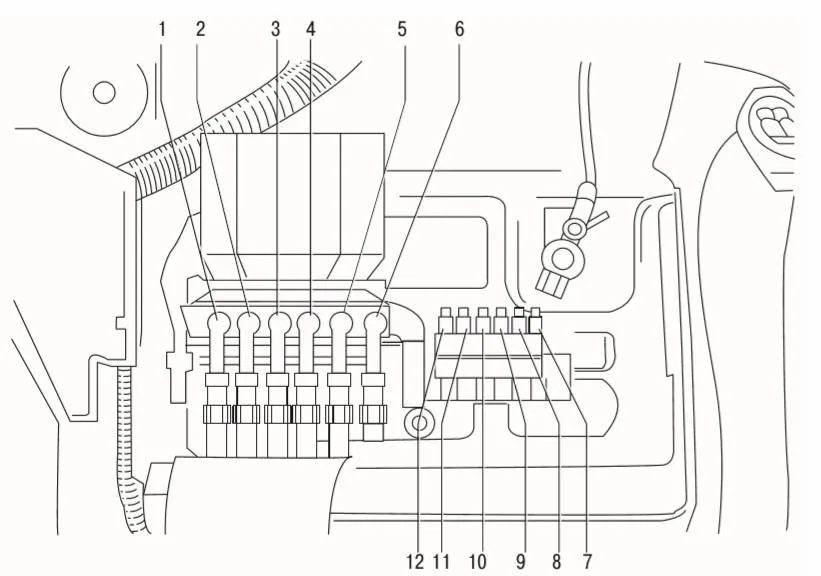

Scheme

1175A Generator
280A Electrical Equipment Control Unit
360A Additional heater
440A Hydro – electronic unit ABS
550A Power Steering Control Unit
650A Glow Plugs
75A Automatic transmission
840A Electrical Equipment Control Unit
930A Cooling Fan
105A Air Conditioner
1130A Cooling Fan
1225A Hydro – electronic unit ABS
